LG M1994A Manual de usuario

EUT Type: LCD Monitor

FCC ID: BEJM2294AJ

Test Report Number: GETEC-E3-08-042

FCC Class B Certification

APPENDIX H

: USER’S MANUAL

Make sure to read the

Safety

Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for furture reference.

See the label attached on the product and give the information to your dealer when you ask for

service.

M1994A

M2294A

User’s Guide

Before Connecting to the PC

Stand Installation

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Carefully place the product screen side

down on a cushioned surface that will

protect product and screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base

by turning the screw to the right.

* Turn the screw by using the screw

handle

Screw

Before Connecting to the PC

Detaching Stand

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Place the set screen side down on a

cushion or soft cloth. Detach the monitor to the Stand

Base by turning the screw to the left.

Turn the screw by using the screw handle 4

Pull the stand base.

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

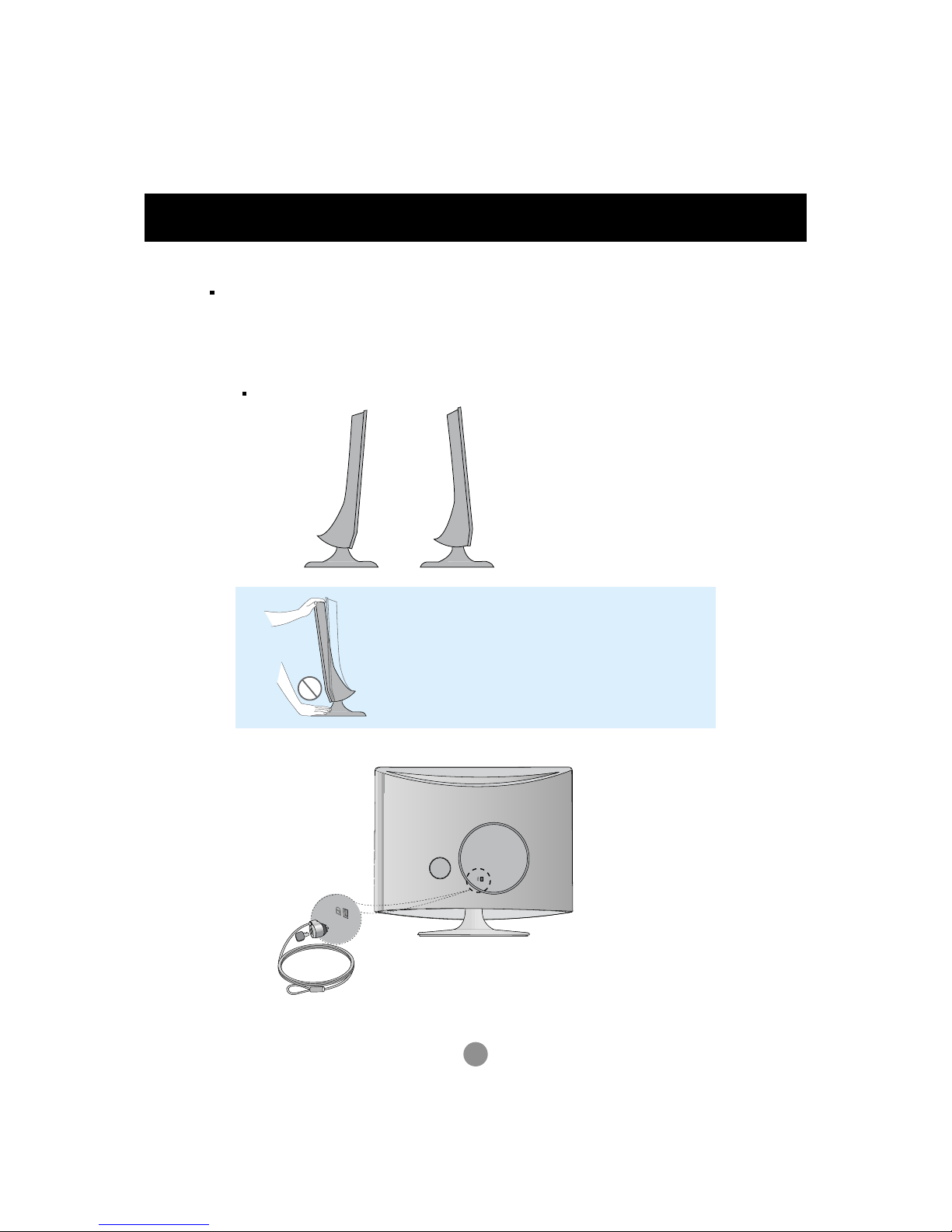

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range

Before Connecting to the PC

Warning:

When adjusting the angle of the screen, do not put

your finger(s) in between the head of the monitor

and the stand body. You can hurt your finger(s).

Locking Device

Use this locking cable

(This has to be purchased

separately if required.

) to prevent theft.

Theft prevention locking device

-5

~ -2

~ 18

Name of the Remote Control Buttons

POWER

TV/PC

INPUT

ENTER

MTS

MUTE

FCR

REVIEW

MEMORY/ERASE

CAPTION

A.PROG

SLEEP

APC

DASP ARC/

VOL

Name and Function of the Parts

1. Take out the battery cap.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cap.

• Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

AAA Type

TV/PC :

TV/PC button

Not working

POWER

INPUT

Number buttons

MTS

Not working

A.PROG

PC: Automatic adjustment function (Operational for the analog signal only)

MEMORY/ERASE

Not working

CAPTION

Select a closed caption (AV only)

Input

Component

RGB

DVI

HDMI

Each time you press the Input button it will

change to

AV Component RGB DVI

HDMI.

If nothing is inputted for several seconds the

screen will automatically move to the selected

menu.

ENTER

MUTE

FCR

REVIEW SLEEP

APC

DASP ARC/

VOL

CH ( ) Buttons

Up and Down Button.

VOL ( ) Buttons

Volume Button

ENTER Button

Use when functional adjustment is completed.

Use this button to enter the On Screen Display menu.

REVIEW

Not working

SLEEP : SLEEP Timer

You can set a time period after which the all modes should switch

itself to standby.

Press the key repeatedly to select the number of minutes.

APC Button

(Auto Picture Control)

Press repeatedly to select Clear,Optimum,Soft,User picture mode.

DASP Button

(Digital Auto Sound Processing)

Use this button to select the sound tone.

Press repeatedly to select Flat,Music,Movie,Sports,User

sound tone.

ARC/

To select the image size of the screen.

•

When AV mode: 16:9, Horizon, Zoom1,Zoom2, 4:3

•When RGB/DVI/HDMI/Component mode

:16:9, 4:3

10 20 30 60

240 180 120 90

_ _ _ (off)

Name of the Remote Control Buttons

Name and Function of the Parts

MUTE

Switches the sound on or off.

FCR

Not working

Name and Function of the Parts

Rear View

Ext. IN

AC IN

AUDIO IN

(RGB/DVI)

VIDEO

COMPONENT

AUDIO

VIDEO

RGB IN (PC)

DVI-D

HDMI

S-VIDEO

AUDIO IN

(RGB/DVI)

VIDEO

COMPONENT

AUDIO

VIDEO

RGB IN (PC)

Ext. IN

DVI-D

HDMI

S-VIDEO

Power Connector : Connect the power cord.

HDMI Digital Signal Connector

DVI Digital Signal Connector

D-Sub Analog Signal Connector

RGB, DVI Sound Jack : Connect to the jack in the PC sound card or D-TV sound Output Jack.

AV Input Terminal

Component Input Terminal

Ext In Jack : Connect the TN300 Tuner. (Please refer to TN300 install guide.)

AV Input Terminal

AUDIO

VIDEO

S-VIDEO

(MONO)

Audio Input Terminal

Video Input Terminal

S-Video Input Terminal

Name and Function of the Parts

AUDIO IN

(RGB/DVI)

DVI-D

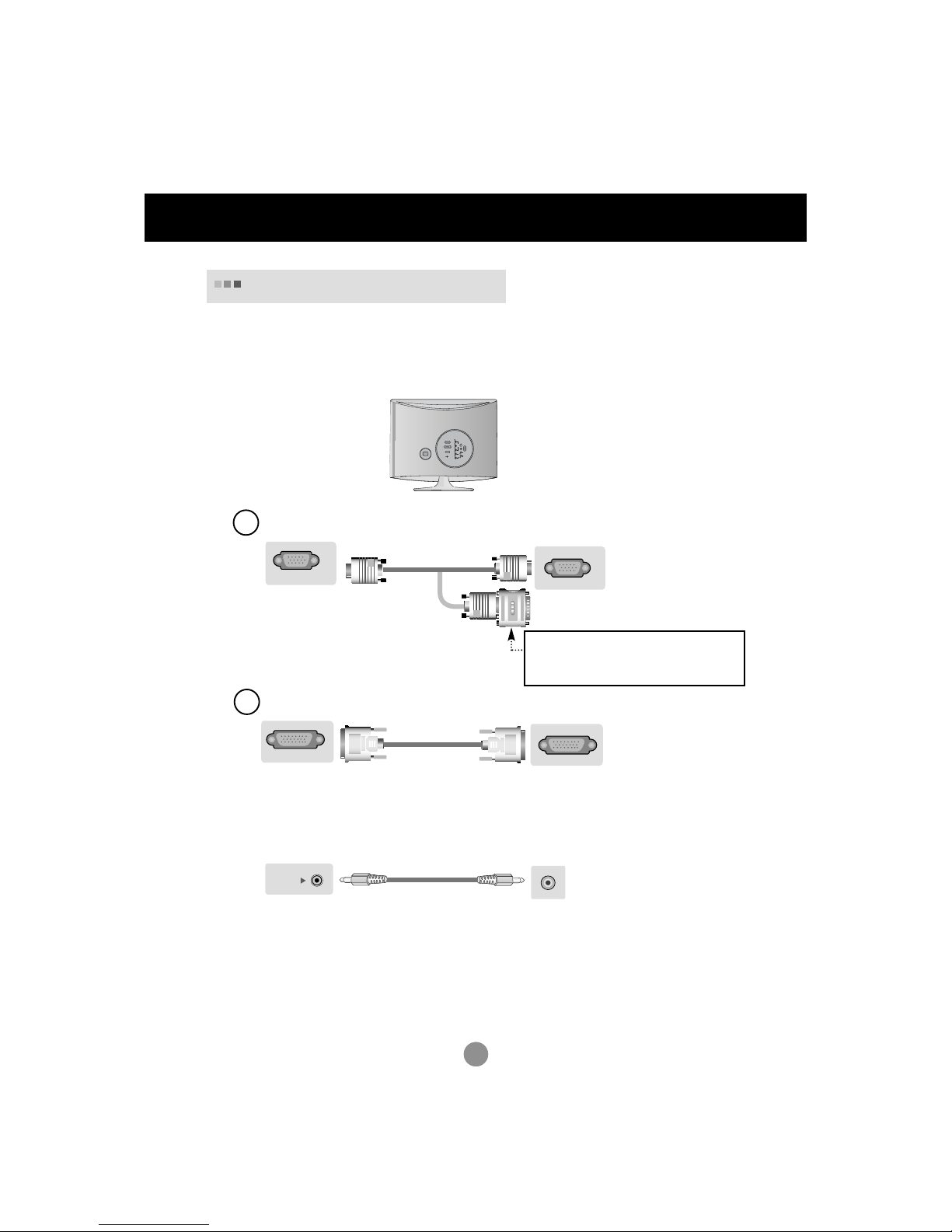

Connecting to your PC

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

Connecting with the D-Sub signal input cable.

Rear side of the product.

Connecting to External Devices

RGB IN (PC)

Macintosh Adapter (Not included)

Use the standard Macintosh adapter since an

incompatible adapter is available in the market.

(Different signaling system)

Audio cable

Connecting with the DVI signal input cable.

Rear side of the product

Rear side of the product.

Connect the audio cable.

•

Make sure to check the sound card connection terminal in the PC before connecting to the product.

If the PC sound card supports both Speaker Out and Line Out, change it to Line Out by setting the jumper

or the PC application. (For more details, refer to the sound card user’s guide.)

-Speaker Out : The terminal connected to the speaker that is not equipped with an amplifier.

- *Line Out : The terminal connected to the speaker equipped with an amplifier.

If Audio Out in the PC sound card has only Speaker Out, reduce the PC volume. This product is integrated

with an amplifier.

Ext.IN

ACIN

AUDIOIN

(RGB/DVI)

VIDEO

COMPONENT

AUDIO

VIDEO

RGBIN (PC)

DVI-D

HDMI

S-VIDEO
