L227WSG
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential electrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A3
Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Connecting the stand
1.Place the monitor with its front facing downward on a soft cloth.
2.Assemble the Stand Body into the product in the correct direction as shown in the picture.
3.Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.
5.Once assembled take the monitor up carefully and face the front side
4.Insert the Cable Deco Cover in the Stand Body in the correct direction.
Stand Body
Stand Base
Stand Body Hinge Body
Stand Base Cable Deco Cover Cable Deco Cover
A4
Connecting the Display
Disassembling the stand
1. Put a cushion or soft cloth on a flat
surface.
4. Nip Latch inside, Take off the stand base from stand body.
5.
Please pull the stand body lightly to separate it from the hinge body.
2. Place the monitor face down on
the cushion or soft cloth.
3. Slide the Cable Deco Cover out from the stand body.
A5
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range: -5˚~20˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
Swivel : 355˚
355
A6
Using the Computer
1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
3. Press button on the front switch panel to turn the power on.
When monitor power is turned on, the 'Self Image Setting
Function' is executed automatically.
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the
monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen
while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.
2
Connecting the Display
A
B
Connect Dsub Cable (PC)
Connect Dsub Cable (Mac)
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed
to change the 15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2 row connector.
NOTE
This is a simplified representation of the
rear view.
This rear view represents a general
model; your display may differ from the
view as shown.
User must use shielded signal interface
cables (D-sub 15 pin cable, DVI cable)
with ferrite cores to maintain standard
compliance for the product.
Wall-outlet type
Power Cord
1
2
Varies according to model.
Signal Cable
2. Insert the Cable Deco Cover in the Stand Body in the correct direction.
A7
Control Panel Functions

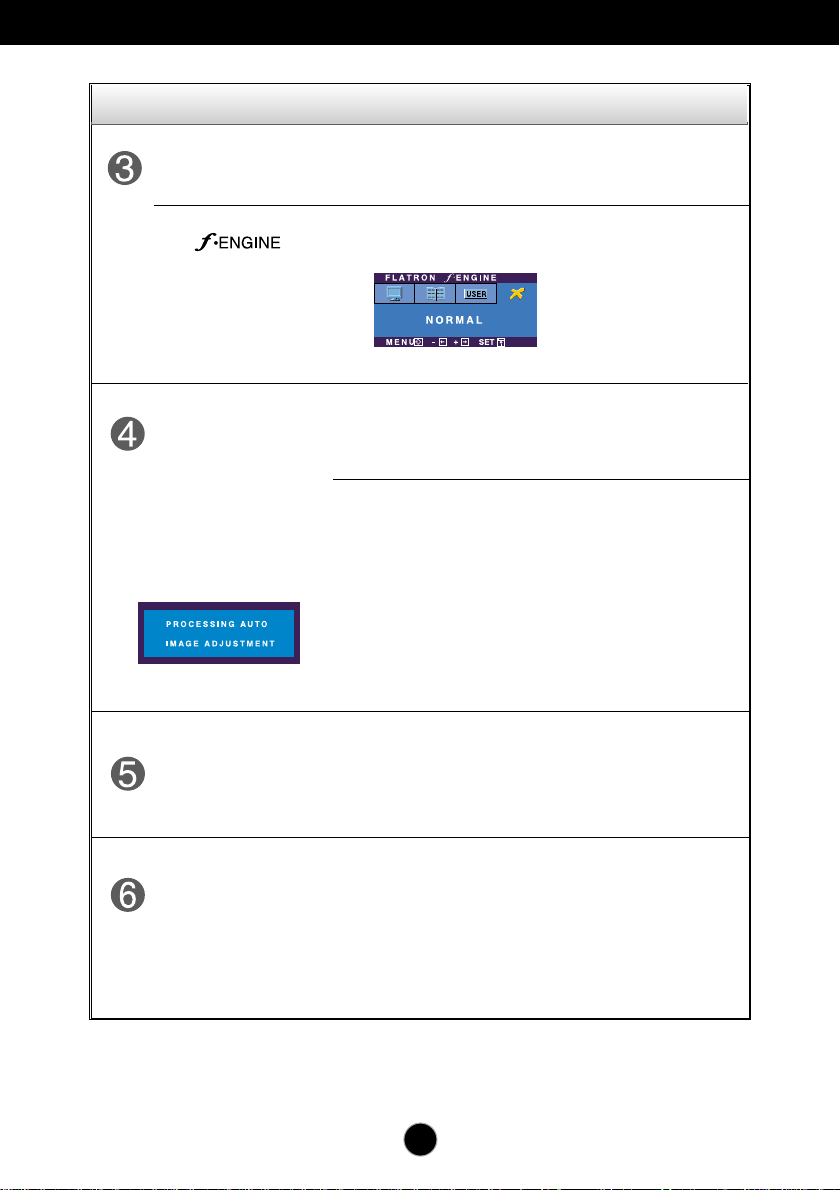

ZOOMING
EZ Zoom lowers the display’s resolution in single-step
increments. Depressing the button once lowers the
resolution by one step; while a second button-press returns
the resolution to the original display settings.
One touch of the ‘EZ ZOOMING’ key enables you to
magnify the size of the image so that you can easily view
characters and pictures.
To use this feature, please install forteManager program in the enclosed CD-ROM.
Recommended resolutions are :
1680 x 1050, 1440 x 900, 1280 x 1024, 1024 x 768, 800 x 600.
Setting will vary from one operating system or video card to another.
Please refer to the computer manufacturer’s user guide for more details.
Control Function
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
Front Panel Controls
Button
A8
Control Panel Functions
This Indicator lights up blue when the display
operates normally(On Mode). If the display is in
Sleep Mode (Energy Saving), this indicator color
changes to amber.
Use this button to turn the display on or off.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SET
Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
1680 x 1050
Control Function
-
+
Buttons
Use these buttons to select or adjust functions in the On
Screen Display.
For more information, refer to page A15.
-
A9
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the - or + Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the - /+ Buttons to adjust the image to the desired level. Use the
AUTO/SET Button toselect other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
- + - +
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Monitor de LG
LG
LG UltraFine 27MD5KL-B.AAU Manual de usuario
LG
LG M4720C Manual de usuario
LG
LG 42VS20-BAA Manual de usuario
LG
LG MFL67652408 Manual de usuario
LG
LG Flatron L1810B Manual de usuario
LG
LG LSM2150 Manual de usuario
LG
LG L15NX Manual de usuario
LG
LG M2901SCBN Manual de usuario
LG
LG W2753HQV Manual de usuario
LG
LG 22MB35P Manual de usuario
LG
LG 27HJ712C-W.AWP Manual de usuario
LG
LG 22MB35PU-I.AUS Manual de usuario
LG
LG 27QP88D Manual de usuario
LG
LG 34UC97 Manual de usuario
LG
LG MT-60PZ12B Manual de usuario
LG
LG 22EB23PY Manual de usuario
LG
LG W2363D-PF Manual de usuario
LG
LG W1946P Manual de usuario
LG
LG L1553S Manual de usuario
LG
LG E2042SA Manual de usuario
