OWNER’S MANUAL

LCD MONITOR

LCD MONITOR MODEL

2422PY

Please read this manual carefully before operating your set and

retain it for future reference.

ENGLISH

Accessories

!!! Thank for selecting LGE products !!!

Please make sure the following items are included with your

monitor. If any items are missing, contact your dealer.

User's Guide/Cards Power Cord

15-pin D-Sub Signal Cable

(To set it up, this signal cable may be

attached to this product before

shipping out.)

DVI-D Signal Cable

(This feature is not available in all

countries.)

NOTE

This accessories may look different from those shown here.

User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite

cores to maintain standard compliance for the product.

Audio Cable USB Cable

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor,

the computer system, and other attached devices are turned off.

Connecting the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2.Assemble the Stand Base into the Stand Body.

Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.

WARNING

The tape and locking pin may only be removed from those monitors equipped with a

standing base when the base is pulled up. Otherwise, you may be injured by the protruding

sections of the stand.

Product Handling with Care: When you lift up or move the product, Do Not hold or touch the

front part of LCD panel. It will damage the panel. (Please hold the Stand Body or plastic cover of

the product.)

Stand Base

Stand Body

Stop Pin

3. Once assembled take the monitor up carefully and face the front side.

Connecting the Display

IMPORTANT

This illustration depicts the general model of connection. Your monitor may differ from the items

shown in the picture.

Do not carry the product upside down holding only the stand base. The product may fall and get

damaged or injure your foot.

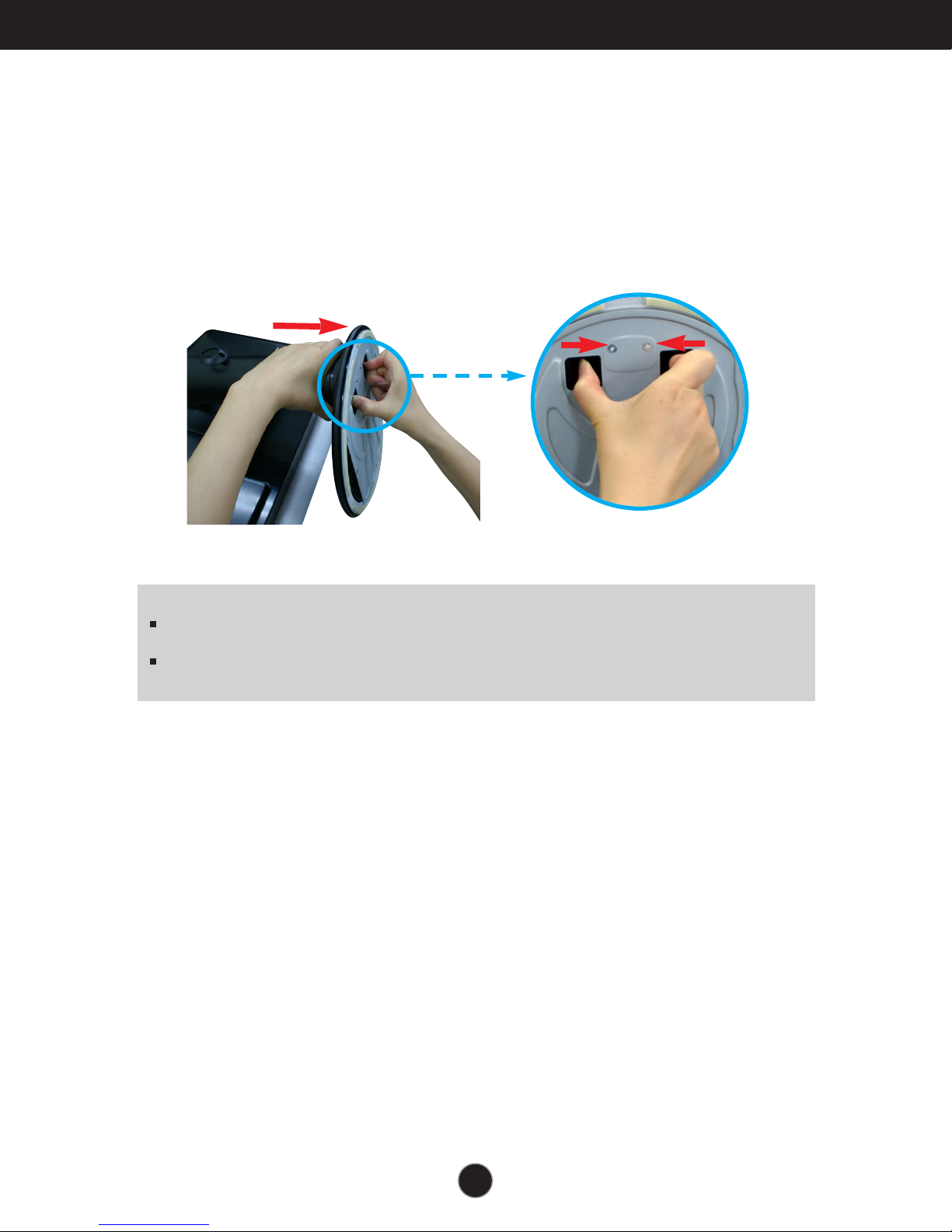

Removing the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. While pressing the latches, push the stand base in the direction of the arrow to separate

from the stand body.

Connecting the Display

Height Range : maximum 4.33 inches (110.0 mm)

* Please be sure to

remove the Locking

pin to adjust the height.

Positioning your display

After installation, adjust the angle as shown below.

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range

Swivel Range : 355˚

110.0 mm

Connecting the Display

ERGONOMIC

t is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt

angle of the monitor should not exceed 5 degrees.

WARNING

You do not need to replace the Locking pin after it is removed, to adjust its height.

When adjusting the angle of the screen, do not put your finger(s) in

between the head of the monitor and the stand body. You can hurt your

finger(s).

When adjusting the height of the screen, do not put your finger(s) in

between the head of the monitor and the stand base. You can hurt your

finger(s).

Connecting the Display

-The pivot function allows you to rotate the screen 90 degrees clockwise.

Lift the monitor to its highest height to utilize the Pivot function.

2.Landscape & Portrait : You can rotate the panel 90o clockwise.

Please be cautious and avoid contact between the monitor head and the

Stand Base when rotating the screen to access the Pivot function. If the

monitor head touches the Stand Base, then the Stand Base could crack.

Be careful with the cables when rotating the screen.

Using the Pivot function

Stand section

Head section

Connecting the Display

Connect DVI-D(Digital signal) Cable

Connect D-sub(Analog signal) Cable

1. Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices is turned off.

Connect signal input cable and power cord in order, then tighten the screw

of the signal cable.

Connecting with the PC

Wall-outlet type

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the

15 pin high density (3 row) D-sub VGA

connector on the supplied cable to a 15 pin 2

row connector.

When using a D-Sub signal input cable

connector for Macintosh

Varies according to model.

DVI-D (This feature is not available in all countries.)

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

Connect the signal

input cable and tighten

it up by turning in the

direction of the arrow

as shown in the figure.

Connect Audio Cable

Connect DisplayPort Cable (Separate purchase)

Warning

Please pull the DVI cable first,then pull DisplayPort cable,

for protect your finger.

Connecting the Display

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts

the display to optimal settings for individual input signals.

‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen

flicker or tilted screen while using the device or after changing screen resolution, press the

AUTO function button to improve resolution.

4. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

Power Button

3. Put the power cord and cables into the cable holder.

Cable Holder

Connecting the Display

Connecting the USB(Universal Serial Bus) Cable

1. You can use the USB port at the back of the monitor to connect peripherals (USB

mouse, USB keyboard, etc.) to the monitor, not to the computer.

The monitor’s USB terminal supports USB 2.0 and High Speed cables.

Two USB Downstream ports

Connect these ports to a mouse,

USB keyboard,memory stick with

current spec under 100mA.

One USB Upstream port

Connect this port to the downstream

port of a computer, laptop or USB

monitor (Your computer or USB

monitor must support USB and have

USB ports).

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.
