2TABLE OF CONTENTS

TABLE OF CONTENTS

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Composition

5 Product and Button Description

5 - How to Use the Joystick Button

6 - Input Connector

7 Moving and Lifting the

Monitor

8 Installing the Monitor

8 - Assembling the Stand

9 - Installing on a Table

9 - Adjusting the Stand Height

10 - Adjusting the Angle

11 - Tidying up Cables

11 - Using the Kensington Lock

12 - Installing on the Wall

14 USING THE MONITOR

14 Connecting to a PC

14 - HDMI Connection

15 - DisplayPort Connection

15 - Thunderbolt ( ) Connection

16 Connecting AV Devices

16 - HDMI Connection

16 Connecting Peripherals

16 - USB Cable connection - PC

17 - Connecting Headphones

18 INSTALLING THE LG MONITOR

SOFTWARE

20 USER SETTINGS

20 Activating the Main Menu

20 - Main Menu Features

21 User Settings

21 - Menu Settings

22 - Ratio

23 - Function

24 - PBP

25 - Picture

26 - Color

27 - Settings

28 - Reset

29 TROUBLESHOOTING

31 PRODUCT SPECIFICATION

32 Factory Support Mode

(Preset Mode, HDMI/DisplayPort/

Thunderbolt PC)

32 HDMI Timing (Video)

32 Power LED

33 PROPER POSTURE

33 Proper Posture for Using the Monitor

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort

compliance logo for dual-mode source devices are all registered trademarks of the

Video Electronics Standards Association.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade-

marks of Waves Audio Ltd.

ENGLISH

4ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any miss-

ing components, contact the retailer where you purchased the product. Note that the product and related compo-

nents may look different from those shown here.

CD (Owner's Manual /

Software / Guides) / Cards Power cord AC/DC Adapter HDMI cable

DisplayPort Cable Stand Base Stand Body 4 Screws

(M4 x 10)

Cable Holder

yAlways use genuine LG components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of unauthorized components.

yUse the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noise.

CAUTION

yThe components may look different from those illustrated here.

yWithout prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

yTo purchase optional accessories, visit an electronics store, an online shopping site, or contact the retailer from

which you purchased the product.

yThe power cord provided may differ, depending upon the region.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

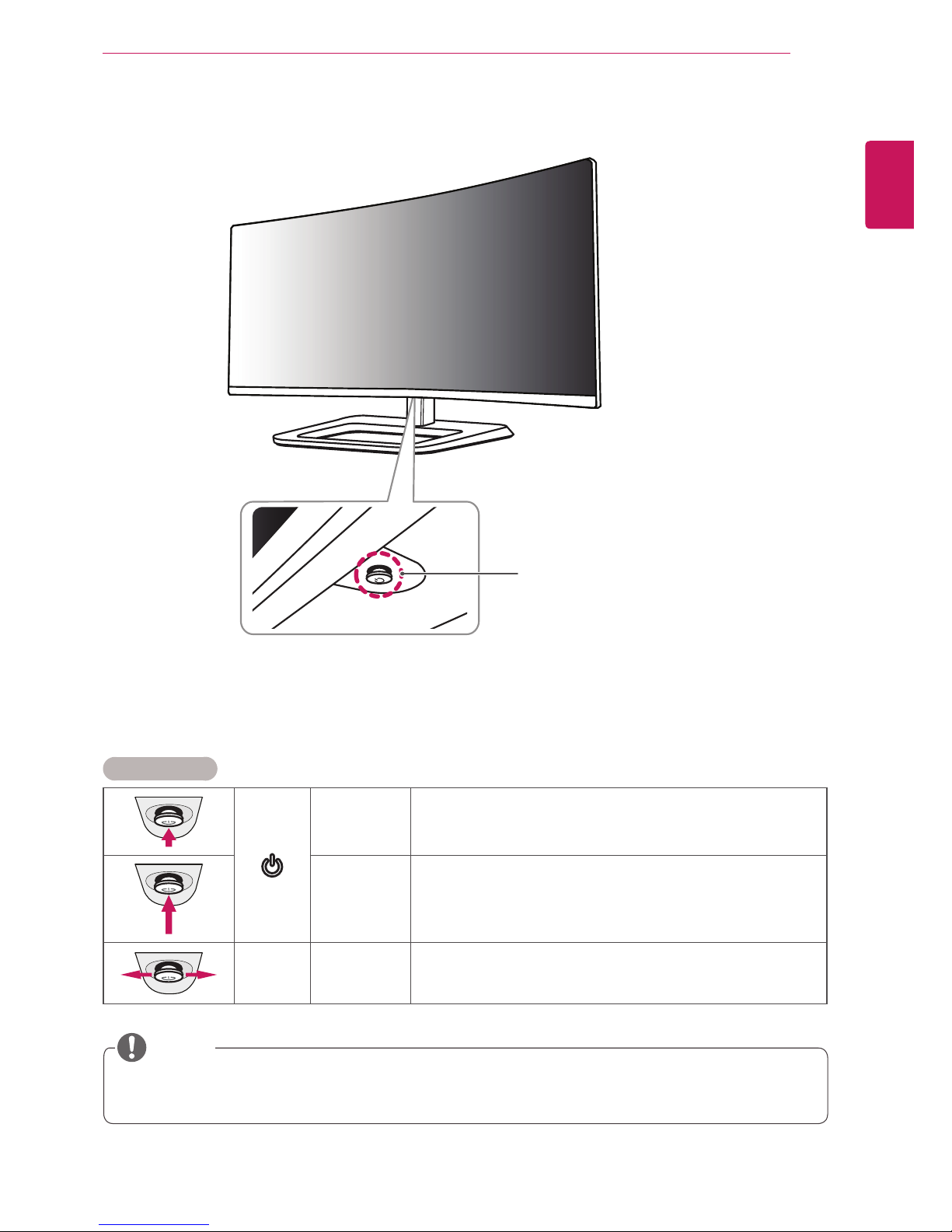

Product and Button Description

Joystick Button /

Power LED

yOn Power on

yOff Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn

off the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

yBefore turning on the monitor, please make sure that the DC switch on the rear side of product is ON.

NOTE

ENGLISH

6ASSEMBLING AND PREPARING

Input Connector

USB IN 2

5 V 1.1 A

DC-IN

(19 V )

DP IN

HDMI IN 1

H/P

USB UP USB IN 1

5 V 1.1 A

HDMI IN 2

DC switch

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the

Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe transporta-

tion, regardless of its shape or size.

yPlace the monitor in the original box or packing

material before attempting to move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all other cables.

yHold the bottom and side of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should face

toward you to prevent it from being scratched.

yWhen transporting the monitor, do not expose

the monitor to shock or excessive vibration.

yWhen moving the monitor, keep it upright and

never turn the monitor on its side or tilt it side-

ways.

yAvoid touching the monitor screen as much as

possible.

-This may result in damage to the screen or

some of the pixels used to create images.

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor

to become unstable and fall, resulting in damage

to the monitor or personal injury. In addition, this

may cause the joystick button to malfunction.

CAUTION

ENGLISH

8ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the Stand

yTo protect the screen, place the screen face down

on the screen pad which is inside the box.

CAUTION

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be covered

by the product warranty.

yDo not carry the monitor upside down by just

holding the base. This may cause the monitor

to fall off the stand and could result in personal

injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

Stand Body

Stand Base

ENGLISH

ASSEMBLING AND PREPARING

Installing on a Table

1 Lift the monitor and place it on the table in an

upright position. Place the monitor at least

10 cm away from the wall to ensure sufficient

ventilation.

10 cm

2 Connect the power adapter to the monitor and

then plug the power cord into the wall outlet.

3 Press the joystick button on the bottom of the

monitor to turn on the monitor.

yUnplug the power cord before moving or install-

ing the monitor. There is risk of electric shock.

CAUTION

Cautions When Connecting Power Cord

220 V 110 V

yMake sure to use the power cord that is pro-

vided in the product package and connect it to a

grounded power outlet.

yIf you need another power cord, please contact

your local dealer or the nearest retail store.

Adjusting the Stand Height

1 Place the monitor mounted on the stand base in

an upright position.

2 Push the head downward and pull out the

locking pin.

Head

Locking pin

ENGLISH

10 ASSEMBLING AND PREPARING

Adjusting the Angle

1 Place the monitor mounted on the stand base in

an upright position.

2 Adjust the angle of the screen. The angle of the

screen can be adjusted forward or backward from

-5° to 15° for a comfortable

viewing experience.

-515

FrontRear

yTo avoid injury to the fingers when adjusting the

screen, do not hold the lower part of the moni-

tor's frame as illustrated below.

-515

yBe careful not to touch or press the screen area

when adjusting the angle of the monitor.

-515

WARNING

3 Handle the monitor with both hands for safety.

4 The height can be adjusted up to 140.0 mm.

140.0 mm

yOnce the pin is removed, it is not necessary to re-

insert it to adjust the height.

CAUTION

yDo not put your fingers or hand

between the screen and the

base (chassis) when adjusting

the screen's height.

WARNING
