LG 27EA83 Manual de usuario

www.lg.com

OWNER'S MANUAL

IPS LED MONITOR

(LED LCD MONITOR)

27EA83

27EA83R

Please read the safety information carefully before using the product.

IPS LED Monitor (LED LCD Monitor) Model List

ENGLISH

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

ENG

ENGLISH

Table of Contents

CONTENTS

3LICENSE

4ASSEMBLING AND

PREPARING

4Product composition

4Separate purchase

5Component and Button Description

6Moving and Lifting the Monitor

7Installing the Monitor

7- Assembling the stand base

8- Detaching the stand base

8- Installing onto a table

9- Adjusting the stand height

10 - Adjusting the angle

11 - Tidying cables

11 - Pivot feature

12 - Using the Kensington lock

13 - Installing the wall mount plate

13 - Installing to a wall

15 Power Adapter Mount

15 - Mounting the Power adapter

15 - Removing the Power Adapter Mount

16 USING THE MONITOR

16 Connecting to a PC

16 - DVI connection

17 - Display port connection

17 - HDMI connection

18 Connecting to AV Devices

18 - USB 3.0 cable-PC connection

18 - Headphone port connection

19 INSTALLING TUSB3410

DRIVER

20 INSTALLING TRUE COLOR

PRO/FINDER

22 INSTALLING SCREEN SPLIT

24 CUSTOMIZING SETTINGS

24 Activating the Main Menu

25 CUSTOMIZING SETTINGS

25 - Menu Settings

26 - Ratio Settings

27 - ECO Settings

28 - Color Mode Settings

29 - PIP settings

30 - Picture

31 - Color

32 - Settings

33 TROUBLESHOOTING

35 SPECIFICATIONS

36 Factory support mode

36 (Preset Mode, DVI-D/HDMI/PC Display

Port)

36 HDMI

36 Power Indicator

37 PROPER POSTURE

37 Proper Posture When Using a Monitor

37 Adjust the screen so that you can

comfortably look at it at a slight downward

angle from your natural eye level.

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

VESA, VESA logo, Display Port Compliance Logo and Display Port

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ENG

ENGLISH

ASSEMBLING AND PREPARING

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

ySeparate purchase are not included for all models. To purchase optional accessories, visit an elec-

tronics store or online shopping site or contact the retail store where you purchased the product.

NOTE

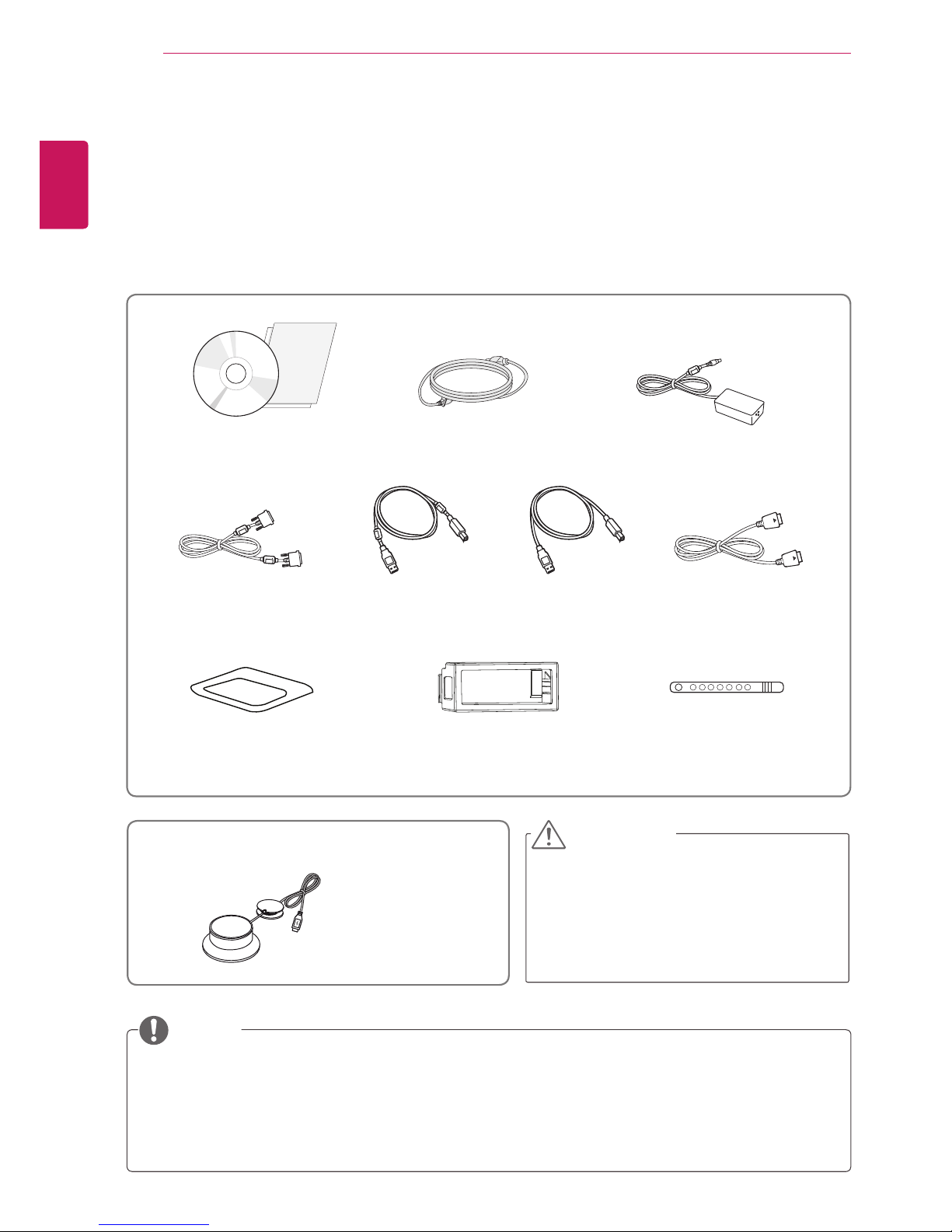

Product composition

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to en-

sure safety and product performance.

yThe product warranty will not cover dam-

age or injury caused by the use of coun-

terfeit components.

CAUTION

Power Cord

A-B Type USB 3.0 Cable Display Port Cable

Stand Base Adapter Management

Cover

AC/DC Adapter

DVI-D Dual Cable

User Manual/Card

Cable Tie

Calibrator

(ACB8300)

Separate purchase

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

DVI-D IN

HDMI IN

DP IN

H/P

USB UP

(CALIBRATOR)

USB IN

5 V 0.9 A

DC-IN

(19.5 V )

Power Indicator

yOn: power is on

yOff: power is off

Touch buttons on the bottom of

the monitor

Input Connector

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

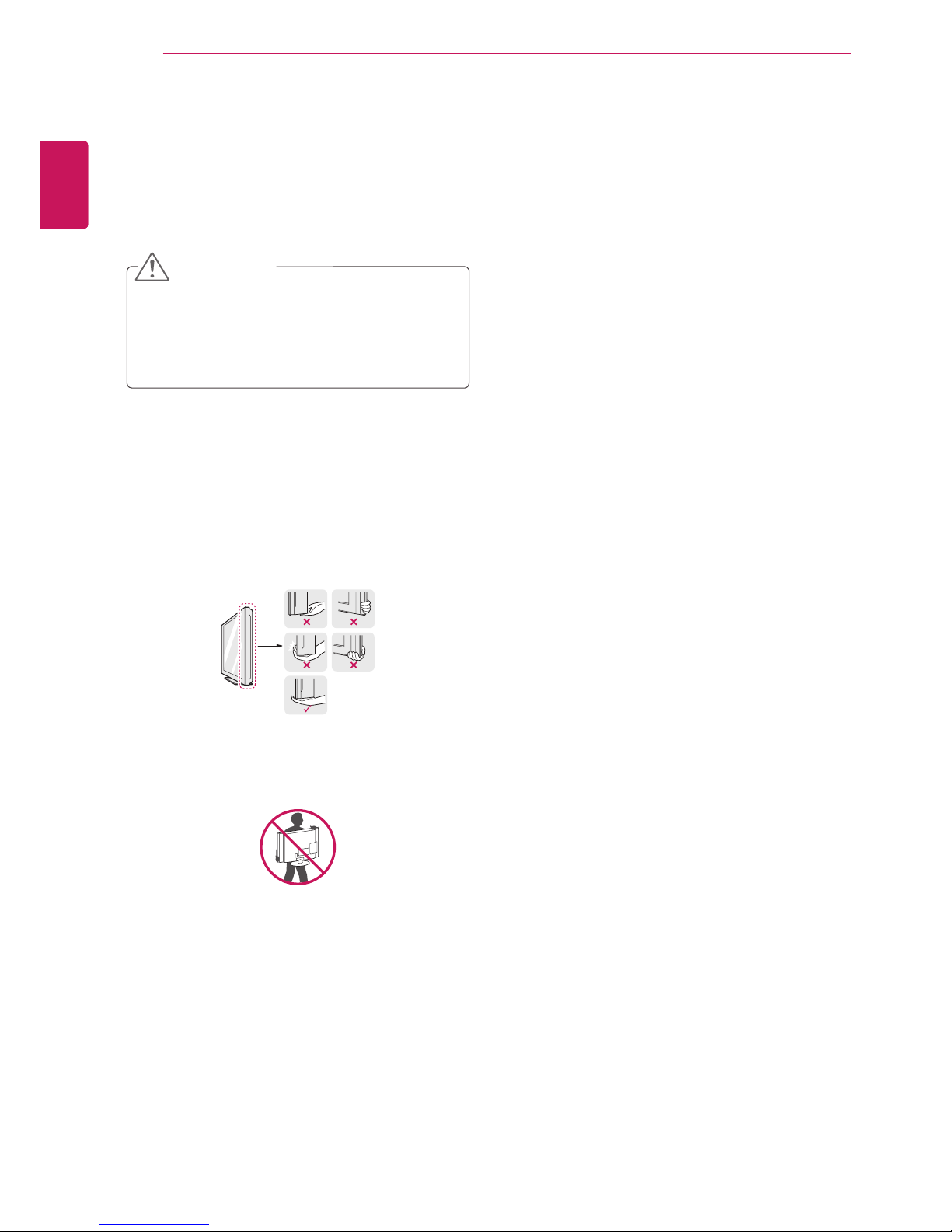

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs much as possible, avoid touching the

monitor screen. This may result in damage

to the screen or some of the pixels used to

create images.

CAUTION

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen transporting the monitor, do not ex-

pose the monitor to jolts or excessive vibra-

tion.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

1Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2Rotate the stand body 90˚ counterclockwise.

yTo avoid scratching the head, make sure

that when rotating the stand body, the stand

body does not make contact with the head.

Stand Body

(Stand Body)

Head

3Insert the stand base into the hook of the

stand body.

4Fix by turning the screw to the right with a coin.

WARNING

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand base

1Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Turn the screw to the left using a coin.

Detach the stand base.

Installing onto a table

1Lift the monitor and place it on the table in an

upright position.

Place at least 10 cm away from the wall to

ensure sufficient ventilation.

2Connect the adapter to the monitor, then plug

the power cord into the power outlet.

3Press the (Power) button on the bottom of

the monitor to turn it on.

10 cm

yDisconnect the power cord first, and then

move or install the Monitor set. There is risk

of electric shock.

CAUTION

yThe components in the illustrations may dif-

fer from the actual product.

yDo not carry the monitor upside down, as this

may cause it to fall off its stand and result in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

4The height can be adjusted up to 110.0 mm.

yDo not put your fingers or

hand between the screen

and the base (chassis) when

adjusting the screen's height.

Tape

Locking Pin

Stand Body

CAUTION

WARNING

110.0 mm

3Push the Head downward and pull out the

Locking Pin.

Head

Locking pin
