ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yOnly use an approved LG power adapter.

yDamage caused by other power adapters is not covered by warranty.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

Power Cord

User Manual/

Software Installation CD/

Card

Stand Base

AC/DC adaptor

CAUTION

NOTE

15-pin D-SUB Signal Cable A-B Type USB Cable

ENG

ENGLISH

ASSEMBLING AND PREPARING

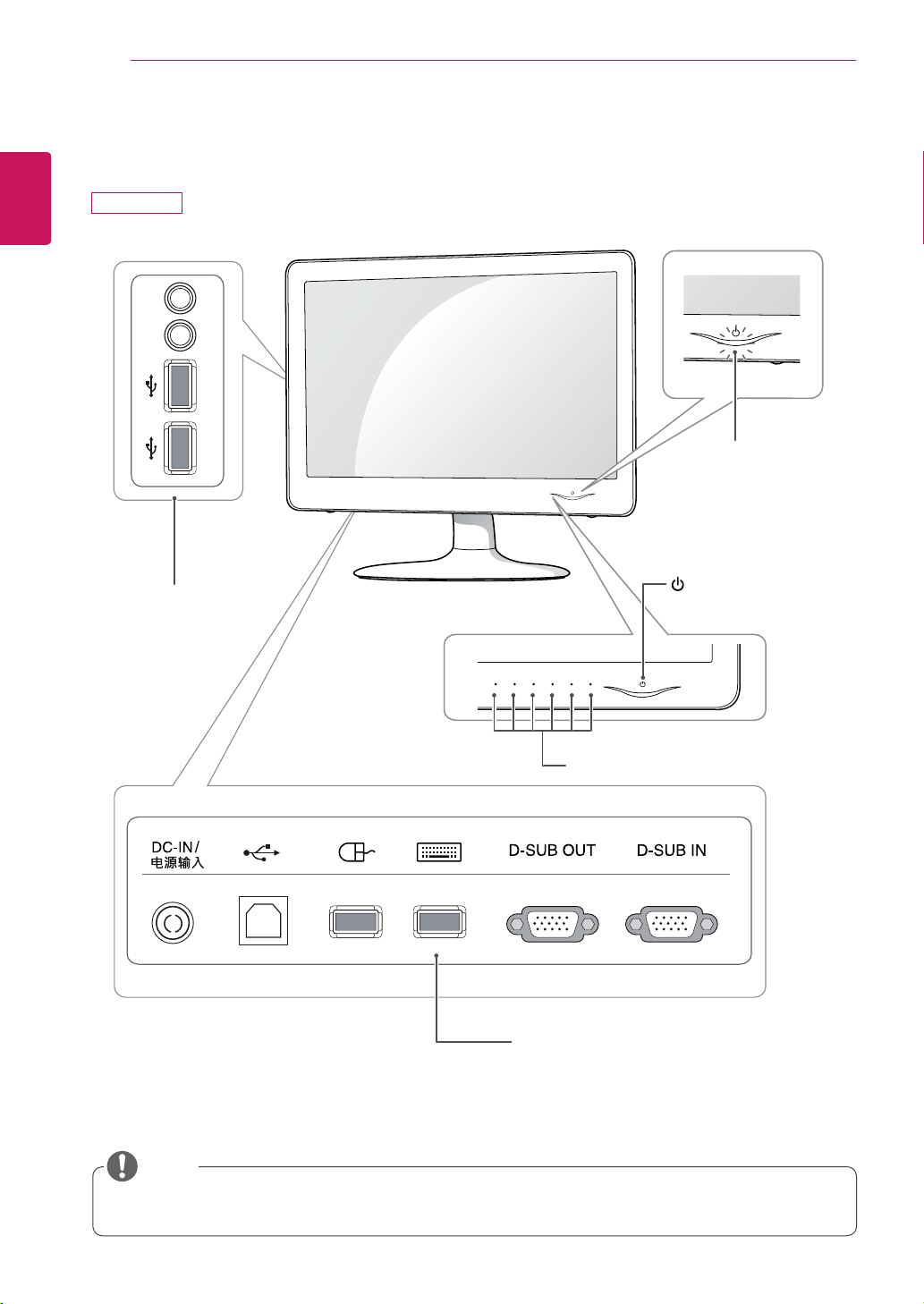

Parts and buttons

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Buttons

Input Connectors (See p.13 to 14)

(Power Button)

Input Connectors

(See p.15)

yKeep radio away 10 cm from the front side buttons and power button.

NOTE

N195WU

ENG

ENGLISH

ASSEMBLING AND PREPARING

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Buttons

Input Connectors (See p.13 to 14)

(Power Button)

Input Connectors

(See p.15)

yKeep radio away 10 cm from the front side buttons and power button.

NOTE

N225WU

ENG

ENGLISH

ASSEMBLING AND PREPARING

Button Description

MENU Activates the main menu.

OSD Lock/Unlock

Functions

Locks/unlocks the OSD screen.

yTo lock the OSD screen, press and hold the MENU button

for several seconds. The "OSD LOCKED" message will be

displayed and the screen will be locked.

yTo unlock the OSD screen, press and hold the MENU

button again for several seconds. The "OSD UNLOCKED"

message will be displayed and the screen will be unlocked.

SMART+ Use this button to enter AUTO BRIGHT(Only N195WU model), ORIGINAL RATIO

menus.

AUTO To adjust the monitor settings, press the AUTO button on the MONITOR SETUP OSD

menu (only supported for analog signal(D-SUB)).

For optimal screen display, use the following resolution.

Optimal Resolution

N195WU 1366 x 768

N225WU 1920 x 1080

INPUT Allows selection of the input signal.

yIf you connect the monitor to a computer using a D-SUB cable, select either the USB

or D-SUB input signal.

yIf only one computer is connected to the monitor, the input signal is detected automati-

cally. The initial input signal is USB.

EXIT Exits the OSD menu.

(Power Button) D-SUB input

yUse this button to switch the monitor on or off.

USB input

yOn : Press the power button to turn on the power.

yMonitor Off : If you press the power button, the monitor will automatically turn off after

5 seconds.

yUSB Off : Press the power button twice to turn off the USB power.

Power Indicator

N195WU When the monitor is in operating mode, the power indicator

will turn purple (on mode).

When the monitor is in power saving mode, the power indica-

tor will blink purple.

N225WU When the monitor is in operating mode, the power indicator

will turn blue (on mode).

When the monitor is in power saving mode, the power indica-

tor will blink blue.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting Up the Monitor set

Attaching the Stand Base

1Place the monitor's screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

Stand Body

Stand Base

CAUTION

Stand Body

Lifting and moving the

Monitor set

When moving or lifting the Monitor set, read the

following to prevent the Monitor set from being

scratched or damaged and for safe transportation

regardless of its type and size.

yAvoid touching the screen at all times, as this

may result in damage to the screen or some

of the pixels used to create images.

CAUTION

yIt is recommended to move the Monitor set in

the box or packing material that the Monitor

set originally came in.

yBefore moving or lifting the Monitor set,

disconnect the power cord and all cables.

yHold the top and bottom of the Monitor

set frame firmly. Make sure not to hold the

transparent part, speaker, or speaker grill

area.

yWhen holding the Monitor set, the screen

should face away from you to prevent the

screen from scratches.

yWhen transporting the Monitor set, do not

expose the Monitor set to jolts or excessive

vibration.

yWhen transporting the Monitor set, keep the

Monitor set upright, never turn the Monitor

set on its side, or tilt towards the left or right.

ENG

ENGLISH

ASSEMBLING AND PREPARING

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

Adjusting the stand body

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

2Press the button as shown and pull the stand

body up.

CAUTION

Stand Body

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 10 cm away from the wall to

ensure sufficient ventilation.

2Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

10 cm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

yWhen you connect the DC jack to the moni-

tor, ensure it is inserted tightly to prevent it

from coming loose.

CAUTION

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of the

screen can be adjusted up to 15° forwards and

5° backwards for a comfortable viewing experi-

ence.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

15- 5

Front Side Rear Side

15- 5

WARNING

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE
