LG 24CAV37K Manual de usuario

www.lg.com

24CAV37K

CLOUD(LED LCD) MONITOR MODEL

Owner's Manual

CLOUD MONITOR

LED LCD MONITOR

(LED MONITOR*)

Please read this manual carefully before operating

your set and retain it for future reference.

*LG LED Monitors are LCD Monitors with LED Backlighting.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

ENG

English

Table of Contents

TABLE OF CONTENTS

3 ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

5 Lifting and moving the Monitor

5 Setting Up the Monitor set

5 - Attaching the Stand Base

6 - Mounting on a table

6 - Adjusting the angle

7 - Adjusting the stand height

7 - Using the Kensington locking device

8 - Detaching the stand base

8 - Using the cable holder

8 - Detaching the stand body

9 - Swivel stand

9 - Using the Pivot function

10 - Installing the wall mount plate

10 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting Input Signal Cable

12 - D-SUB IN connection - PC

13 - DVI connection

14 Connecting LAN/Peripherals

14 - LAN connection

15 - Peripheral device connection

16 - Self Image Adjustment

17 CUSTOMIZING SETTINGS

18 Customizing Settings

18 - Menu Settings

19 - Picture

20 - Color

21 - Display

22 - Others

23 - Volume

24 TROUBLESHOOTING

26 PRODUCT SPECIFICATION

27 Preset Mode

27 Indicator

28 PROPER POSTURE

28 Proper posture for using the monitor

29 USING CLOUD SOLUTION

ENG

English

ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

 Only use an approved LG power adapter.

 Damage caused by other power adapters is not covered by warranty.

 Note that the components may look different from those shown here.

 Without prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

 To purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

Power Cord

User Manual/Card

CAUTION

NOTE

D-SUB Cable

(This cable is not included in all

countries.)

Stand Base One Screw Cable Holder

AC-DC Adapter

ENG

English

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

 LED On : Power is on

 LED Off: Power is off

Front Side Buttons

Input Connectors (See p.12 to 15)

(Power Button)

Input Connectors

(See p.15 )

ENG

English

ASSEMBLING AND PREPARING

Setting Up the Monitor set

Attaching the Stand Base

1 Place the monitor's screen face down.

 To protect the screen from scratches, cover

the surface with a soft cloth.

3 Using a coin, turn the screw clockwise to se-

cure the stand base.

2 Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Body

Stand Base

Lifting and moving the

Monitor

Please heed the following information when

moving the monitor.

 Avoid touching the screen at all times, as this

may result in damage to the screen or pixels .

CAUTION

 It is recommended to move the Monitor in

the box or packing material that the Monitor

originally came in.

 Before moving or lifting the Monitor,

disconnect the power cord and all cables.

 Hold the top and bottom of the Monitor frame

firmly. Make sure not to hold the transparent

part area.

 When holding the Monitor, the screen should

face away from you to prevent the screen

from scratches.

 When transporting the Monitor, do not

expose the Monitor to jolts or excessive

vibration.

 When transporting the Monitor, keep the

Monitor upright, never turn the Monitor on its

side, or tilt towards the left or right.

ENG

English

ASSEMBLING AND PREPARING

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 35° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 3.94 inches away from the wall

to ensure sufficient ventilation.

2Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

3.94 inches

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

ENG

English

ASSEMBLING AND PREPARING

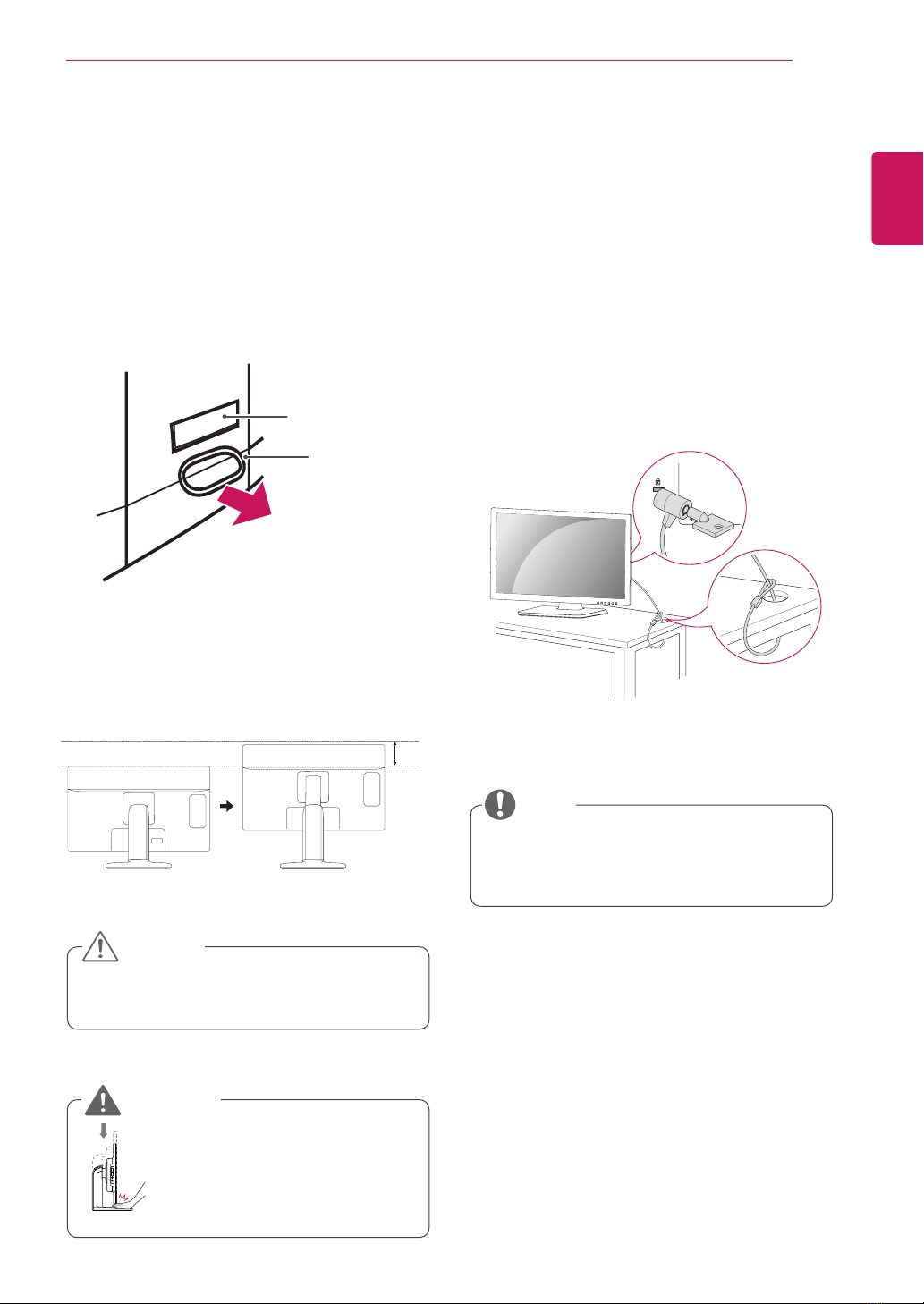

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

3The height can be adjusted up to 5.12 inches.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

CAUTION

WARNING

5.12 inches

Tape

Locking Pin

Stand Body

ENG

English

ASSEMBLING AND PREPARING

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

Stand Body

Stand Base

Using the cable holder

NOTE

The holes are used for wall mount bracket.

Varies depending upon your country or

model.

yThe holes are used for wall mount bracket.

yVaries depending upon your country or

model.

NOTE

The holes are used for wall mount bracket.

Varies depending upon your country or

model.

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

ENG

English

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.
