OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

16EN33S

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

5 - Detaching the Stand Base

6 - Mounting on a table

6 - Using the cable holder

8USING THE MONITOR SET

8 Connecting to a PC

8 - D-SUB connection

10 CUSTOMIZING SETTINGS

11 Customizing Settings

11 - Menu Settings

12 -Picture

13 -Color

14 -Display

15 -Others

16 MY KEY Setting

17 FUNC. Setting

17 -Picture Mode

18 -SUPER ENERGY SAVING

19 -DUAL DISPLAY

19 -DUAL WEB

20 -MY KEY Setting

21 TROUBLESHOOTING

23 SPECIFICATIONS

23 16EN33S

24 Preset Modes (Resolution)

24 Indicator

25 PROPER POSTURE

25 Proper posture for using the Monitor set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Body Stand Base

CD(Owner's Manual) /

Card

D-SUB Cable

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.8)

Button (See p.10)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right with a coin.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Pull out the Stand Body and Stand Base

from the monitor set.

Turn the screw to the left with a coin.

Pull out the Stand Base.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

Using the cable holder

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

3Press (Power) button on the bottom switch

panel to turn the power on.

10 cm

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front Rear

ENG

ENGLISH

USING THE MONITOR SET

Connecting to a PC

yYour Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

NOTE

ENG

ENGLISH

USING THE MONITOR SET

yIf you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

ySome red, green, or blue spots may appear

on the screen. This is normal.

y"Self Image Setting" Function.

This function provides the user with optimal

display settings.When the user connects

the monitor for the first time, this function

automatically adjusts the display to optimal

settings for individual input signals.(Only

supported in Analog Mode)

y‘AUTO’ Function.

When you encounter problems such as

blurry screen, blurred letters, screen flicker

or tilted screen while using the device or

after changing screen resolution, press the

AUTO function button to improve resolution.

(Only supported in Analog Mode)

NOTE

yConnect the signal input cable

and tighten it by turning the

screws clockwise.

yDo not press the screen with your

finger for a long time as this may

result in temporary distortion on the screen.

yAvoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION Self Image Setting Function

Press the power button on the bottom panel to

turn the power on. When monitor power is turned

on, the "Self Image Setting" Function is executed

automatically. (Only supported in Analog Mode)

ENG

ENGLISH

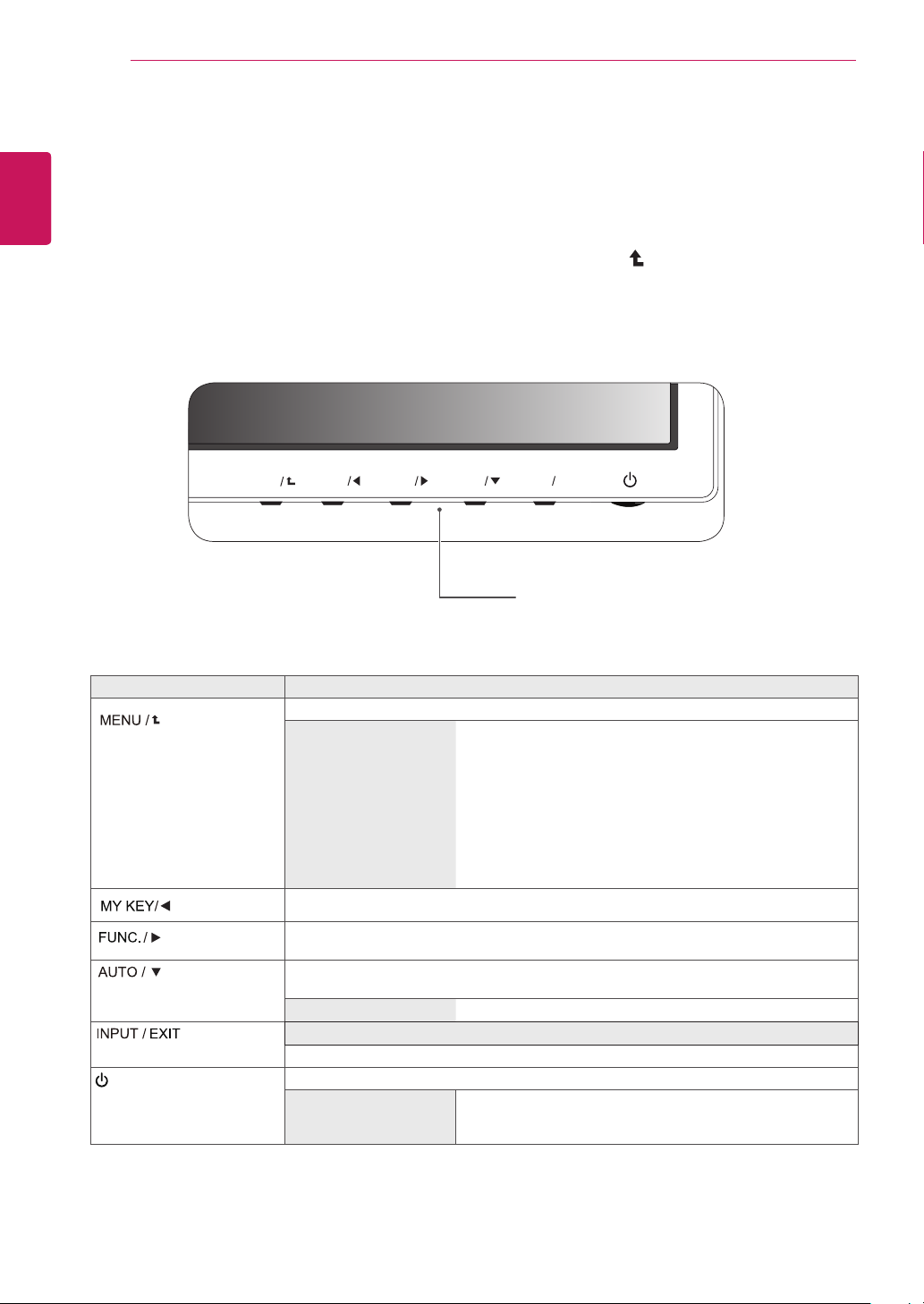

CUSTOMIZING SETTINGS

1Press the desired button on the bottom of the Monitor set.

2Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

3Select EXIT to leave the OSD menu.

MY KEY

AUTO

INPUT EXIT

FUNC.

Monitor set Buttons

Button Description

Accesses the main menus.(See p.11)

OSD Locked/OSD

Unlocked

This function allow you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds. Then

OSD of “OSD Lock” will appear. After that, user can select

lock or unlock by pressing left/right button.

If user selects the “Lock” icon by pressing the “OK” button,

the message “OSD Locked” will appear. Otherwise, “OSD

Unlocked” will appear. After selecting the “Lock”, If you want

to change to Unlock, you can push the “MENU” button for

several seconds. The message “OSD Unlocked” will appear.

Use this button to enter MY KEY menu.For more information.(See p.16)

Use this button to enter Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY,

DUAL WEB,MY KEY Setting menus.(See p.17)

When adjusting your display settings, always press the AUTO button on the MONITOR

SETUP OSD. (Only supported in Analog Mode)

The best display mode 1366 x 768

EXIT

EXIT the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays red if the display is running properly

(On Mode). If the display is in Sleep Mode, the power

indicator blinks red.
