LG 23CAV42K-B Manual de usuario

www.lg.com

OWNER'S MANUAL

CLOUD MONITOR

(LED LCD MONITOR)

23CAV42K

Please read the safety information carefully before using the product.

CLOUD Monitor(LED LCD Monitor) Model

English

ENG

English

Table of Contents

TABLE OF CONTENTS

3ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

6 Lifting and moving the Monitor

6 Setting Up the Monitor set

6 - Attaching the Stand Base

7 - Mounting on a table

7 - Adjusting the angle

8 - Adjusting the stand height

8 - Using the Kensington locking device

9 - Detaching the stand base

9 - Detaching the stand body

10 - Swivel stand

10 - Using the Pivot function

11 - Installing the wall mount plate

11 - Mounting on a wall

13 USING THE MONITOR SET

13 Connecting Input Signal Cable

13 - D-SUB IN connection - PC

14 - DVI connection

15 Connecting LAN/Peripherals

15 - LAN connection

16 - Peripheral device connection

17 - Self Image Adjustment

18 CUSTOMIZING SETTINGS

19 Customizing Settings

19 - Menu Settings

20 - PICTURE

21 - COLOR

22 - DISPLAY

23 - OTHERS

24 - VOLUME

25 TROUBLESHOOTING

27 PRODUCT SPECIFICATION

28 Preset Mode

28 Power Indicator

29 PROPER POSTURE

29 Proper posture for using the monitor

30 USING CLOUD SOLUTION

ENG

English

ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yOnly use an approved LG power adapter.

yDamage caused by other power adapters is not covered by warranty.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

Power CordUser Manual/Card

Stand Base

Adaptor

CAUTION

NOTE

15-pin D-SUB Signal Cable

(This cable is not included in all

counties)

ENG

English

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

Input Connectors (See p.13 to 16)

(Power Button)

Input Connectors

(See p.to 16 )

ENG

English

ASSEMBLING AND PREPARING

Button Description

MENU Activates the main menu.

OSD Lock/Unlock

Functions

Locks/unlocks the OSD screen.

yTo lock the OSD screen, press and hold the MENU button

for several seconds. The "OSD LOCKED" message will be

displayed and the screen will be locked.

yTo unlock the OSD screen, press and hold the MENU

button again for several seconds. The "OSD UNLOCKED"

message will be displayed and the screen will be unlocked.

VOL

Adjust the volume of the monitor.(only works in Cloud mode)/the left arrow key.

CLOUD

Disconnects the connection when the key is pressed for a few seconds while in Cloud

mode;the right arrow key.

AUTO To adjust the monitor settings, press the AUTO button on the MONITOR SETUP OSD

menu (only supported for analog signal).

For optimal screen display, use the following resolution.

Optimal Resolution 1920 x 1080

INPUT Allows selection of the input signal.

yIf you connect the monitor to a computer using a D-SUB cable, select either the

CLOUD or D-SUB input signal.

yThe initial input signal is D-SUB.

EXIT Exits the OSD menu.

(Power Button)

yD-SUB Input: Power On/Off

yCLOUD Input

Monitor Off: Press the power button once then the monitor will be turned off after 5

seconds.

CLOUD Off: Press the power button twice then the monitor and CLOUD connection

will be disabled.

CLOUD On: Press the power button.

Power Indicator When the monitor is in operating mode, the power indicator

will turn Red (on mode).

When the monitor is in power saving mode, the power indica-

tor will blink Red.

ENG

English

ASSEMBLING AND PREPARING

Setting Up the Monitor set

Attaching the Stand Base

1Place the monitor's screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Body

Stand Base

Lifting and moving the

Monitor

Please heed the following information when

moving the monitor.

yAvoid touching the screen at all times, as this

may result in damage to the screen or pixels .

CAUTION

yIt is recommended to move the Monitor in

the box or packing material that the Monitor

originally came in.

yBefore moving or lifting the Monitor,

disconnect the power cord and all cables.

yHold the top and bottom of the Monitor frame

firmly. Make sure not to hold the transparent

part area.

yWhen holding the Monitor, the screen should

face away from you to prevent the screen

from scratches.

yWhen transporting the Monitor, do not

expose the Monitor to jolts or excessive

vibration.

yWhen transporting the Monitor, keep the

Monitor upright, never turn the Monitor on its

side, or tilt towards the left or right.

ENG

English

ASSEMBLING AND PREPARING

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 15° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 100 mm away from the wall to

ensure sufficient ventilation.

2Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

100 mm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

ENG

English

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

3The height can be adjusted up to 130 mm.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

Tape

Locking Pin

Stand Body

CAUTION

WARNING

130.0mm

ENG

English

ASSEMBLING AND PREPARING

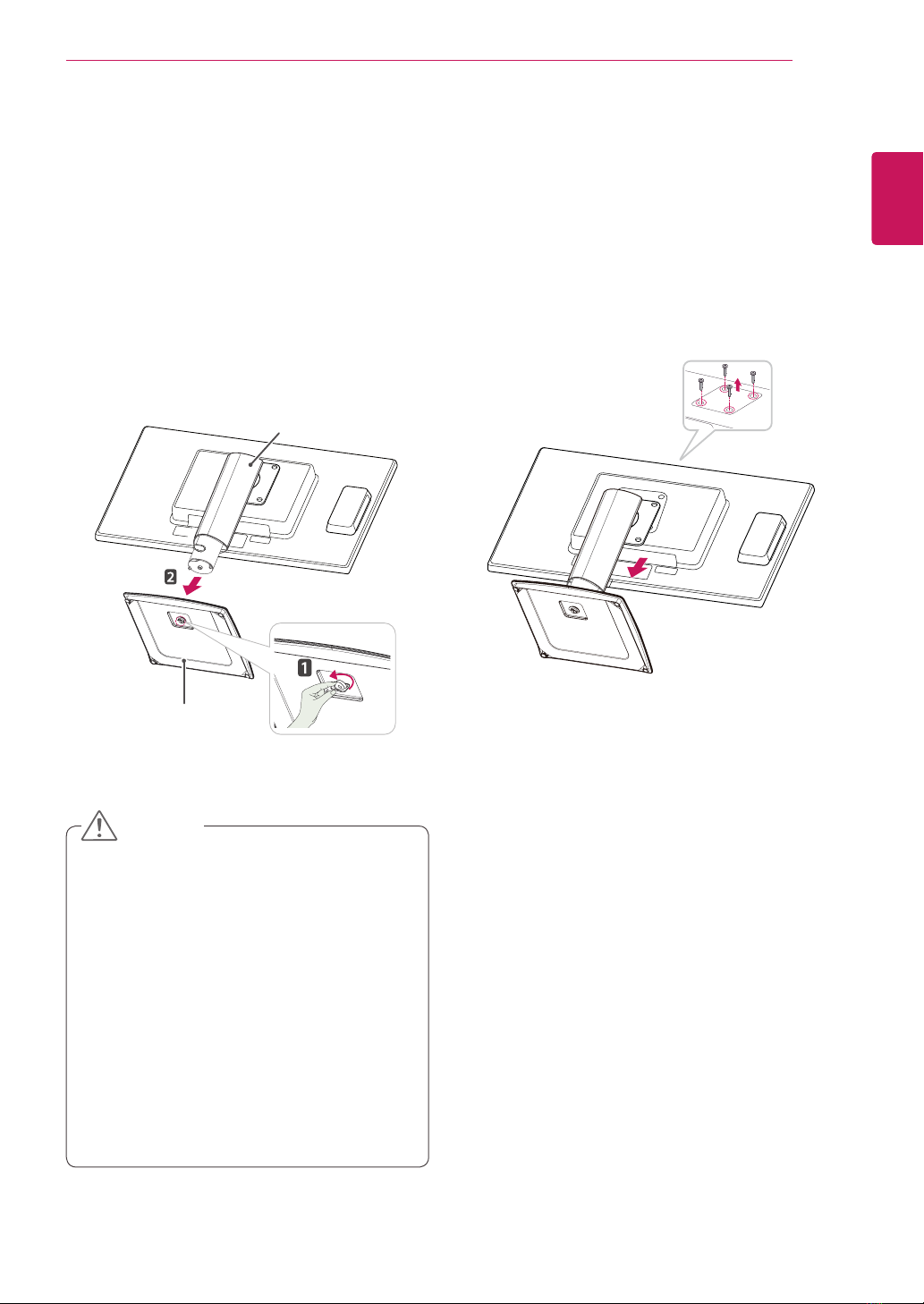

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

Stand Body

Stand Base

ENG

English

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 90 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.
