ENGLISH

Please read this manual carefully before operating your set and retain it for

future reference.

P/NO : MFL69346102 (1510-REV00)

Transparent

Display

Easy Setup Guide

47WFB

49WFB

55WFB

2

ENGLISH

INSTALLATION PREPARATION

Accessories

Check your product box for the following items. If there are any missing accessories, contact

the local dealer where you purchased your product. The illustrations in this manual may differ

from the actual product and accessories.

 Do not use any unapproved or counterfeit parts or accessories to ensure the safety and

product life span.

 Any damages or injuries by using unapproved items are not covered by the warranty.

WARNING: This product contains chemicals known to the State of California to cause cancer

and birth defects or other reproductive harm. Wash hands after handling.

 The accessories supplied with your product may vary depending on the model or region.

 Product specifications or contents in this manual may be changed without prior notice due

to upgrade of product functions.

 This product is used as a built-in product installed inside of an enclosure and cooler.

 Long-term storage may cause staining on the extruded aluminum from oxidation.

CAUTION

NOTE



You can view more information about the signage monitors in the owner's manual.

Card and book

To view the Owner's Manual

3

ENGLISH

< Rear side of the product >

 This product has the front and back sides. Make sure the product is installed with the front

side facing forward.

 Image is displayed reversely on the back side.

Mounting Holes

Use M3 screws to mount the monitor. There are 16 screw holes on the rear side of the prod-

uct.

47WFB

CAUTION

4

ENGLISH

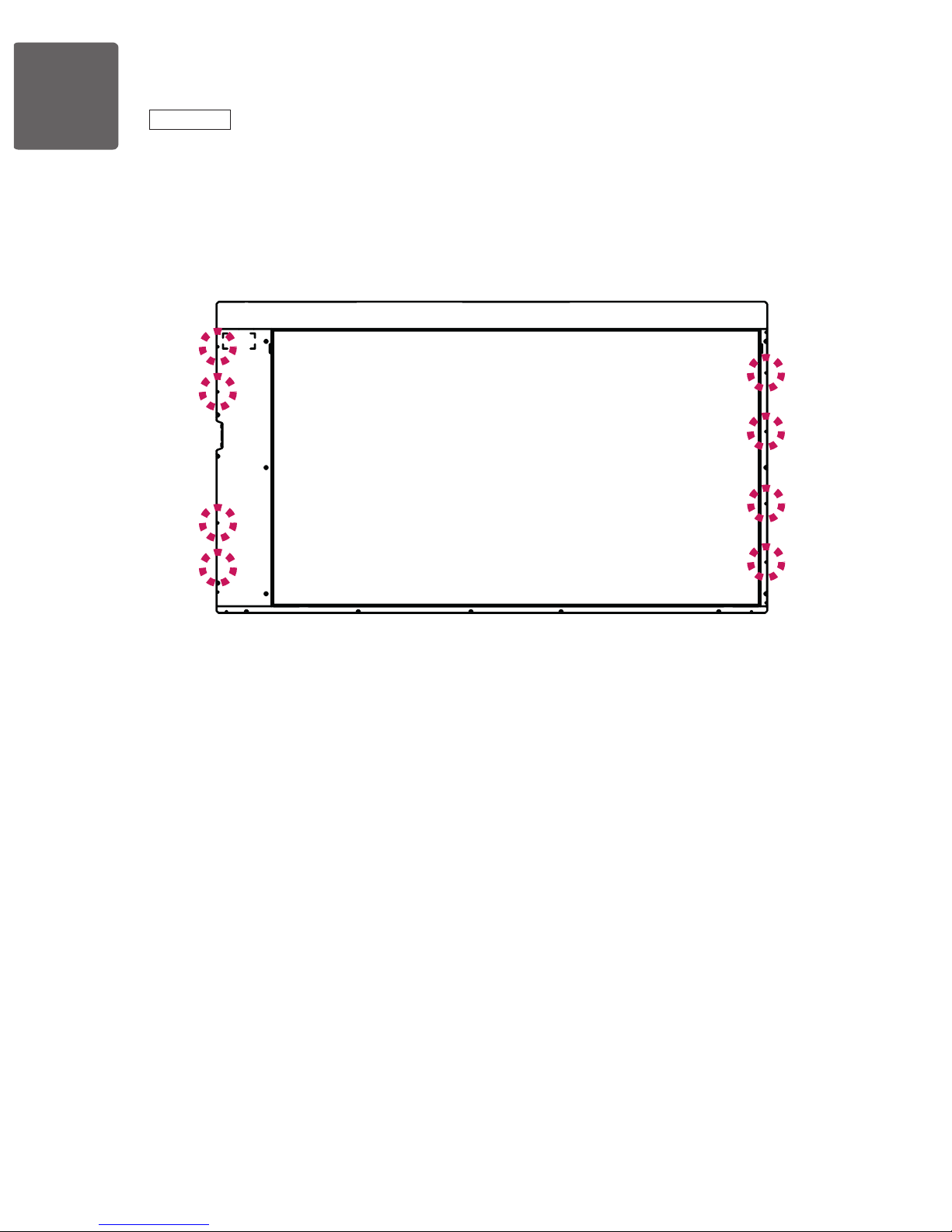

< Rear side of the product >

Use M3 screws to mount the monitor. There are 8 screw holes on the rear side of the product.

49WFB

5

ENGLISH

< Rear side of the product >

Use M3 screws to mount the monitor. There are 8 screw holes on the rear side of the product.

55WFB

6

ENGLISH

Correct Method Incorrect Method

Storage Method for Panel Protection

Panel

Cushion

When laying down the product, place a

cushion or a soft cloth on a flat floor. Put

the product down with the panel of the

product facing down.

If there is no a cushion or a soft cloth avail-

able, ensure the floor is clean. Then lay

the product down carefully with the panel

facing either upward or downward. At this

time, make sure that no object falls on the

panel.

Panel

Panel

Panel

If the product is tilted onto the bezel, the

bottom of the panel may be damaged.

If the product is tilted onto the edge of the

panel, the panel may be damaged.

7

ENGLISH

PRODUCT INSTALLATION

Lighting installation

This product must be installed with lighting.

Lighting must be installed behind the product so that the display can be seen clearly.

Installing a certain object behind the screen may require additional lighting.

Lighting

Lighting

Additional lighting

Additional lighting

Object

600 lux or more

(When the Full

Screen is White.)

600 lux or more

(When the Full

Screen is White.)

8

ENGLISH

 This product can be installed in various

locations besides the enclosure.

< Example of the product in the enclosure >

< Example of the lighting installation >

Lighting must be installed in the enclosure.

Installation in Enclosure

Install the product in the enclosure. Wear working gloves when installing the product. Do not

use bare hands. Otherwise, it may cause personal injury.

1Place the product in the enclosure.

2Attach the product using the prepared screw holes and an additional enclosure guide

frame.

NOTE

 The panel of this product is so thin

that it can be easily broken when it is

exposed to the outside. Please use the

protective glass to prevent the product

from directly being exposed to the

outside.

 When installing the product in its hous-

ing, make sure that the framework of

the product is grounded. (This helps

prevent the product being damaged in

the event of thunder and lightning.)

CAUTION

9

ENGLISH

SPECIFICATIONS

Dimension (W x H x D) 1176.58 mm x 645.02 mm x 11.2 mm

Weight (head) 4.5 kg

Dimension (W x H x D) 1222.34 mm x 690.8 mm x 11.2 mm

Weight (head) 5.4 kg

Dimension (W x H x D) 1331.1 mm x 786.7 mm x 11.2 mm

Weight (head) 6.6 kg

47WFB

49WFB

55WFB

W

W

H

H

D

D
