LG MG1043SARW Manual de usuario

MFL67565702

MG1043SARW

www.lg.com

OWNER’S MANUAL

MICROWAVE OVEN

PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.

MFL67800602

You cannot operate your oven with the door open due to the safety interlocks

built into the door mechanism. These safety interlocks automatically switch off

any cooking activity when the door is opened; which in the case of a

microwave oven could result in harmful exposure to microwave energy.

It is important not to tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow

food or cleaner residue to accumulate on sealing surfaces.

Do not operate your oven if it is damaged. It is particularly important that the

oven door closes properly and that there is no damage to the: (1) door(bent),

(2) hinges and latches (broken or loosened), (3) door seals and sealing

surfaces.

Your oven should not be adjusted or repaired by anyone except qualified

service personnel.

Warning

Precautions to avoid possible exposure to excessive microwave energy.

Precautions

When heating liquids, e.g. soups, sauces and beverages in your microwave

oven, overheating the liquid beyond boiling point can occur without

evidence of bubbling. This could result in a sudden boil over of the hot

liquid. To prevent this possibility the following steps should be taken:

1 Avoid using straight sided containers with narrow necks.

2 Do not overheat.

3 Stir the liquid before placing the container in the oven and again halfway

through the heating time.

4 After heating, allow to stand in the oven for a short time, stir or shake

them again carefully and check the temperature of them before

consumption to avoid burns (especially, contents of feeding bottles and

baby food jars).

Be careful when handling the container.

Always allow food to stand after being cooked by

microwaves and check the temperature of them

before consumption. Especially contents of feeding

bottles and baby food jars.

Please ensure cooking times are correctly set as

over cooking may result in the FOOD catching fire

and subsequent damage to your oven.

Warning

How the Microwave Oven Works

Microwaves are a form of energy similar to radio and television waves and

ordinary daylight. Normally, microwaves spread outwards as they travel

through the atmosphere and disappear without effect. Microwave ovens,

however, have a magnetron which is designed to make use of the energy in

microwaves. Electricity, supplied to the magnetron tube, is used to created

microwave energy.

These microwaves enter the cooking area through openings inside the oven. A

turntable or tray is located at the bottom of the oven. Microwaves cannot pass

through metal walls of the oven, but they can penetrate such materials as

glass, porcelain and paper, the materials out of which microwave-safe

cooking dishes are constructed.

Microwaves do not heat cookware, though cooking vessels will eventually get

hot from the heat generated by the food.

A very safe appliance

Contents

Your microwave oven is one of the safest of all home

appliances. When the door is opened, the oven

automatically stops producing microwaves. Microwave

energy is converted completely to heat when it enters

food, leaving no “left over” energy to harm you when

you eat your food.

Precautions 2

Contents 3

Unpacking & Installing 4 ~ 5

Setting the Clock 6

Child Lock 7

Micro Power Cooking 8

Micro Power Level 9

Two Stage Cooking 10

Quick Start 11

Grill Cooking 12

Combination Cooking 13

Auto Defrost 30 ~31

Quick Defrost 32 ~ 33

Timer 34

Important Safety Instructions

Microwave - safe Utensils

Food characteristics & Microwave cooking

Questions & Answers

Plug Wiring Information/Technical Specifications

38 39~

Continental Menu

Arabic Menu

European Menu

Oriental Menu

14 ~ 17

18 ~ 21

22 ~ 25

26 ~ 29

Energy Saving 35

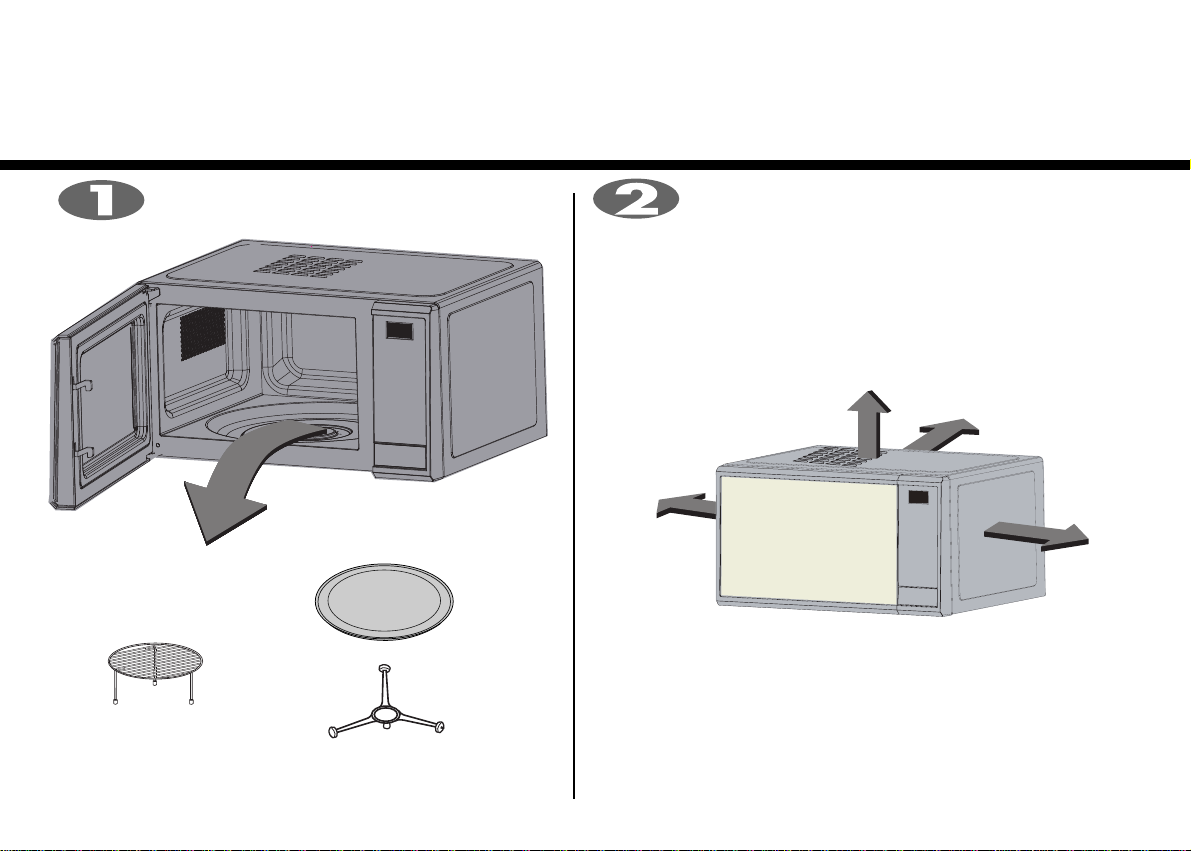

Place the oven in the level location of your choice with

more than 85cm height but make sure there is at least

20cm of space on the top and 10cm at the rear for proper ventilation.

The front of the oven should be at least 8cm from the edge of the

surface to prevent tipping.

An exhaust outlet is located on top or side of the oven. Blocking the

outlet can damage the oven.

Unpacking &

Installing

Unpack your oven and place it on a flat level

surface.

By following the basic steps on these two pages you will be able to quickly check that your oven is operating

correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your

oven make sure you remove all accessories and packing. Check to make sure that your oven has not been

damaged during delivery.

THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING

PURPOSES

GLASS TRAY

GRILL

RACK

ROTATING RING

The DISPLAY will count down from

When it reaches 0 it will sound BEEPS. Open

the oven door and test the temperature of the water. If

your oven is operating the water should be warm

careful when removing the container it may be hot.

YOUR OVEN IS NOW INSTALLED

Fill a microwave safe container with

300 ml (1/2 pint) of water. Place on

the GLASS TRAY and close the oven door. If you

have any doubts about what type of container to

use please refer to page

Open your oven door by pushing the Release Button.

Place the ROTATING RING inside the oven and place

the GLASS TRAY on top.

Plug your oven into a standard household socket.

Make sure your oven is the only appliance

connected to the socket.If your oven does not operate

properly, unplug it from the electrical socket and then plug it

back in.

Press the

START button

once to set

30 seconds of

cooking time.

You will hear

a BEEP when

you press the button.

Your oven will start

after you have finished

the press.

30 seconds.

. Be

Setting the

Clock You can set either 12 hour clock or 24 hour clock.

In the following example I will show you how to set the time for 14:35 when using the 24 clock.

Make sure that you have removed all packaging from your oven.

When your oven is plugged in for the

first time or when power resumes after a

power cut, a ‘0’ will be shown in the

display; you will have to reset the clock.

If the clock (or display) shows any

strange looking symbols, unplug your

oven from the electrical socket and plug

it back in and reset the clock.

Make sure that you have correctly installed your oven as described earlier

in this book.

Press STOP/CLEAR.

Press

once.

(If you want to use a 12 hour clock, Press

once more.

If you want to change different option after setting clock,

you have to unplug and plug it back in.)

Press 10 MIN fifteen times.

Press 1 MIN three times.

Press 10 SEC five times.

Press

to set the time.

The clock starts counting.

SET CLOCK

Child

Lock

Press and hold STOP/CLEAR until “L” appears on the display and BEEP

sounds.

The CHILD LOCK is now set.

The time will disappear on the display if you have set the clock.

“L” remains on the display to let you know that CHILD LOCK is set.

To cancel CHILD LOCK press and hold STOP/CLEAR until “L” disappears.

You will hear BEEP when it’s released.

Your oven has a safety feature that

prevents accidental running of the oven.

Once the child lock is set, you will be

unable to use any functions and no

cooking can take place.

However your child can still open the

oven door!

Press STOP/CLEAR.

Micro Power

Cooking

Make sure that you have correctly installed your oven as described earlier

in this book.

Press STOP/CLEAR.

Press MICRO twice to select 80%(720W) power.

“720” appears on the display.

Press 1 MIN five times.

Press 10 SEC three times.

Press

Your oven has five microwave Power

settings. High power is automatically

selected but repeated presses of the

MICRO key will select a different power

level.

In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds.

POWER

HIGH

MEDIUM

HIGH

MEDIUM

MEDIUM LOW

LOW

DEFROST

Press

MICRO

100%

80%

60%

time

times

40% 360W

times

20% 180W

Power

Output

900W

720W

540W

START/Q-START

Micro Power

Level

Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking.

The table below shows the examples of food and their recommended cooking power levels for use with this

microwave oven.

POWER LEVEL

POWER LEVEL (%)

HIGH * Boil Water

* Brown minced beef

* Cook poultry pieces, fish, vegetables

* Cook tender cuts of meat

MEDIUM HIGH * All reheating

* Roast meat and poultry

* Cook mushrooms and shellfish

* Cook foods containing cheese and eggs

MEDIUM * Bake cakes and scones

* Prepare eggs

* Cook custard

* Prepare rice, soup

DEFROST

MEDIUM LOW * Melt butter and chocolate

* Cook less tender cuts of meat

LOW * Soften butter & cheese

* Soften ice cream

* Raise yeast dough

* All thawing

USE POWER OUTPUT

100%

80%

60%

40%

20% 180W

900W

720W

540W

360W

Two stage

Cooking

Press STOP/CLEAR.

Set the power and the cooking time for stage1.

(You can omit this process for HIGH power.)

Press MICRO once to select HIGH power.

Press 10 MIN once.

Press 1 MIN once.

Set the power and the cooking time for stage2.

Press MICRO four times to select

360

power.

Press 10 MIN three times.

Press 1 MIN five times.

Press

During two stage cooking the oven door

can be opened and food checked. Close

the oven door and press

and the cooking stage will continue.

At the end of stage1, BEEP sounds and

stage 2 commences.

Should you wish to clear the programme

press STOP/CLEAR twice.

In the following example I will show you how to cook some food in two stages. The first stages will cook your

food for 11 minutes on HIGH; the second will cook for 35 minutes on

360

Auto cook

START/Q-START.

START/Q-START
