LG 55TR3DK-B Manual de usuario

OWNER’S MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it for future

reference.

ENGLISH

www.lg.com

55TR3DK-B

65TR3DK-B

75TR3DK-B

86TR3DK-B

55TR3DK-I

65TR3DK-I

75TR3DK-I

86TR3DK-I

Getting to Know the Product 3

Checking Components .................3

Checking Optional Components . . . . . . . . .5

Installing the Product 6

Installing on Wall .....................6

Checking Wall Mount Support Specifications 6

Installing the Product 7

Connecting to Power ..................8

Exploring the Product 9

Names of Each Part . . . . . . . . . . . . . . . . . . .9

Front 9

Back 10

Side 11

Checking the Input/Output Terminals ...12

Front Cable Terminal 12

Side Cable Terminal 13

Bottom Cable Terminal 14

Using the Touch Pen ..................15

Getting to Know the Touch Pen Functions 15

Storing the Pen 16

Replacing the Pen Tip 16

Table of Contents

Precautions for Use 17

Dust ...............................17

Afterimage .........................17

Recommended Usage Condition 18

Product Specifications 19

Touch screen ........................19

Speaker ............................19

Specifications by Model...............20

Resolution ..........................21

VGA (PC) Support Mode 21

USB Type-C Supported Mode 22

HDMI / OPS Supported Mode 24

Licence 26

WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment

may cause radio interference.

Getting to Know the Product

Checking Components

An electronic blackboard is a display product that can be used by touching the screen. A touch pen, remote control

and others are provided with the product. If any of the listed components are missing, contact customer support.

LG Electronics also sells optional components that can help you use the product more effectively as separate

purchases.

Product specifications or components may change without prior notice according to the quality improvements or

feature upgrades.

Caution

• To ensure user safety and product longevity, do not use counterfeit products. If the product is damaged as

a result of using counterfeits, the warranty does not apply. In such cases, the user cannot be compensated

even if injured.

• If the product is used in an environment with excessive dust, the warranty does not apply.

Note

• Remove all tapes attached to the front before connecting the product to power.

• Cables used when connecting to external devices must be purchased separately.

• Keep the product box and do not discard it. It can be used when moving the product.

Checking Components

Getting to Know the Product

AAA

Electronic blackboard Owner’s manual and warranty Remote control and batteries

(AAA, 2 pieces)

HDMI cable Power cable TOUCH cable

USB Type-C cable Touch pens and pen tips (2 each) WiFi dongle

Note

• : Depending on country

• The components provided in the box may vary depending on the region and model.

• Component images shown in the owner’s manual are for the user’s understanding and may differ from actual

components.

Checking Optional Components

Getting to Know the Product

Checking Optional Components

Optional components may change without prior notice to improve product performance. New components may be

added.

Note

• All optional components are separate purchases. Contact LG Electronics if you wish to purchase them.

• Component images shown in the owner’s manual are for the user’s understanding and may differ from actual

components.

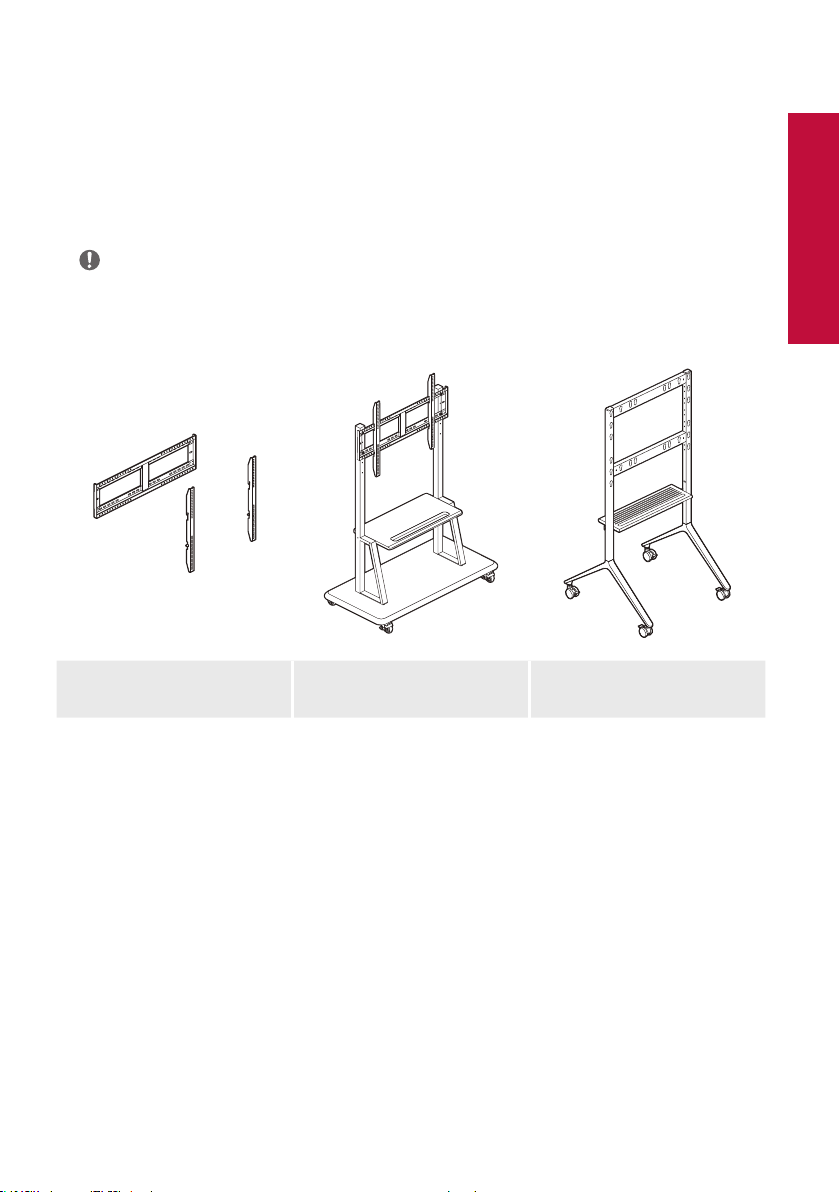

Wall Mount Holder

(WM-L000S)

Floor stand

(ST-000F)

Universal stand

(ST-860F)

Installing the Product

Installing on Wall

The electronic blackboard can be used in a wall-mounted format by securing it to a wall. To install it on a wall, first

attach a wall mount support (optional) to the back of the product body.

The wall mount support is a separate purchase and can be purchased from a nearby dealer. For more information

on installing a wall mount support, see the installation guide provided with your wall mount support purchase.

Checking Wall Mount Support Specifications

When installing a wall mount support, you must use screws and brackets that comply with VESA (Video

Electronics Standards Association) standard specifications.

Model Name VESA Dimensions (A x B) (mm) Screw

Specifications

Maximum Length

(mm) Quantity

55TR3DK-B

55TR3DK-I 400 x 200 M8 25 4

65TR3DK-B

65TR3DK-I 600 x 400 M8 25 4

75TR3DK-B

75TR3DK-I 800 x 400 M8 25 4

86TR3DK-B

86TR3DK-I 800 x 600 M8 25 4

Installing on Wall

Installing the Product

Caution

• Disconnect the power cord first before moving or installing the product. There is risk of electric shock.

• Do not install the product on a ceiling or sloped wall. There is a risk of falling and injury.

• If you tighten the screws too tightly and damage the product, the warranty may not apply.

• Use screws and brackets for wall mounting that meet the VESA standard specifications. The warranty does

not apply to the breakage or personal injury due to the use of incorrect components.

• Using screws longer than VESA standard specifications when installing a wall mount support may damage

the interior of the product. In such cases, we do not take responsibility for any damage or issues that may

arise with the product.

Installing the Product

Allow at least 10 cm of clearance from the wall for ventilation, and install the product with care to prevent it from

falling. When purchasing a wall mount support, the installation guide and all necessary parts are included. A wall

mount support can be purchased separately from a nearby dealer.

10 cm

Connecting to Power

Installing the Product

Connecting to Power

1 Connect the power cable provided as a component to the power terminal at the bottom of the product.

2 Press the power switch on the front of the product or next to the power terminal to turn the power on.

Note

• The screen may flicker if the product is turned on when it is cold. This is normal, so there is no need to worry.

Exploring the Product

Names of Each Part

Front

No. Name Explanation

Touch screen Screen that displays the contents of the electronic blackboard and can be

operated by touching it with your hand or with a touch pen.

Speaker Outputs the sound.

Touch Pen Holder Holds a touch pen by attaching it magnetically.

Front Cable Terminal

Terminals that allow you to connect each of the external devices of the

following specifications.

• USB Type-C

•

Names of Each Part

Exploring the Product

Back

0304

No. Name Explanation

Handle for

Transportation Used for moving the electronic blackboard.

Screw Holes Used for mounting the electronic blackboard on a stand or installing it on a

wall with a wall mount.

Power Cable Terminal Connects the power cord.

Power Sources Turns the power on or off.
