Easy Setup Guide
LG Digital Signage
(MONITOR SIGNAGE)
47LV35A
55LV35A
Please read this manual carefully before operating your set and retain
it for future reference.
P/NO : MFL68621511(1608-REV00)
Printed in Korea
*MFL68621511*
ENG
ENGLISH
2
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any pirated items to ensure the safety and product life span.
yAny damages or injuries by using pirated items are not covered by the warranty.
CAUTION
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
ySuperSign software and manual.
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (
http://www.lgecommercial.com/supersign
) and download the latest
software for your model.
NOTE
Power Cord DVI Cable
IR Receiver
CD (Owner's Manual)
/ Cards
RS-232C Cable
Remote Control
and Batteries
Short Vertical
Tiling Guide(2 ea)
Long Horizontal
Tiling Guide(2 ea)
M6 Screws
(4 ea)
M4 Screws
(8 ea) Mounting Cable Tie (2 ea)
(For Cable Arrangement)
55LV35A
47LV35A
Tiling Guide(4 ea)
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
3
ENG
ENGLISH
ASSEMBLING AND PREPARING
Dimensions (Width x Height x Depth) / Weight
H
WD
47LV35A 1044.9 mm x 590.0 mm x 89.9 mm / 16.5 Kg
55LV35A 1213.4 mm x 684.2 mm x 88.5 mm / 23 Kg
To View the Owner’s Manual
Insert CD-ROM in Computer.
CD-ROM will open automatically.(for Windows only)
If it does not run automatically, it is available to see the below sequence.
My computer ➙Digital_LG(CD-ROM) ➙Index.htm Open
My computer ➙Digital_LG(CD-ROM) ➙Manual ➙Owner's Manual Open
4
ENG
ENGLISH
SAFETY PRECAUTIONS
Do not Clamp
Do not drop from clamping.
2 Persons needed for transport
Load with care.
PRECAUTION IN MOVEMENT
Adhere to the warning signs printed on the Box.
Do not drop from stacking.
4 Persons needed for transport
Do not transport horizontally.
Do not drop from carrying.
This way up/ Fragile/ Keep away from rain/ Stacking limit 4.
Don’t tumble the Set box sideward down.
Don't lie on or lean on the Set box.
5
ENG
ENGLISH
SAFETY PRECAUTIONS
Move the Set as a team of 2 persons. When you move
the bare Set, please use one hand on grabbing the
handle and the other support under the Set.
PRECAUTION IN HANDLING Precaution
10 cm
10 cm
10 cm10 cm
20 cm
1Be careful not to collide the sets with the floor or with
each other. Install in the space with enough airflow.
6
ENG
ENGLISH
SAFETY PRECAUTIONS
Causes & Phenomena of the
Line Defect
The line defect would occur on your Set if you strike on
the edge of the Set.
LOG (LINE ON GLASS) DEFECT
COF (CHIP ON FILM) DEFECT
COF Cable
Source PCB
COF Cable
Source PCB
1 Shock on Module Top Side Top COF Crack
Vertical Line Defect
2Shock on Module Left Side Left COF Crack
Horizontal Line Defect
1Shock on Module Left/Top Corner Left/Top LOG
Crack Horizontal Line Defect
7
ENG
ENGLISH
INSTALLING THE PRODUCT

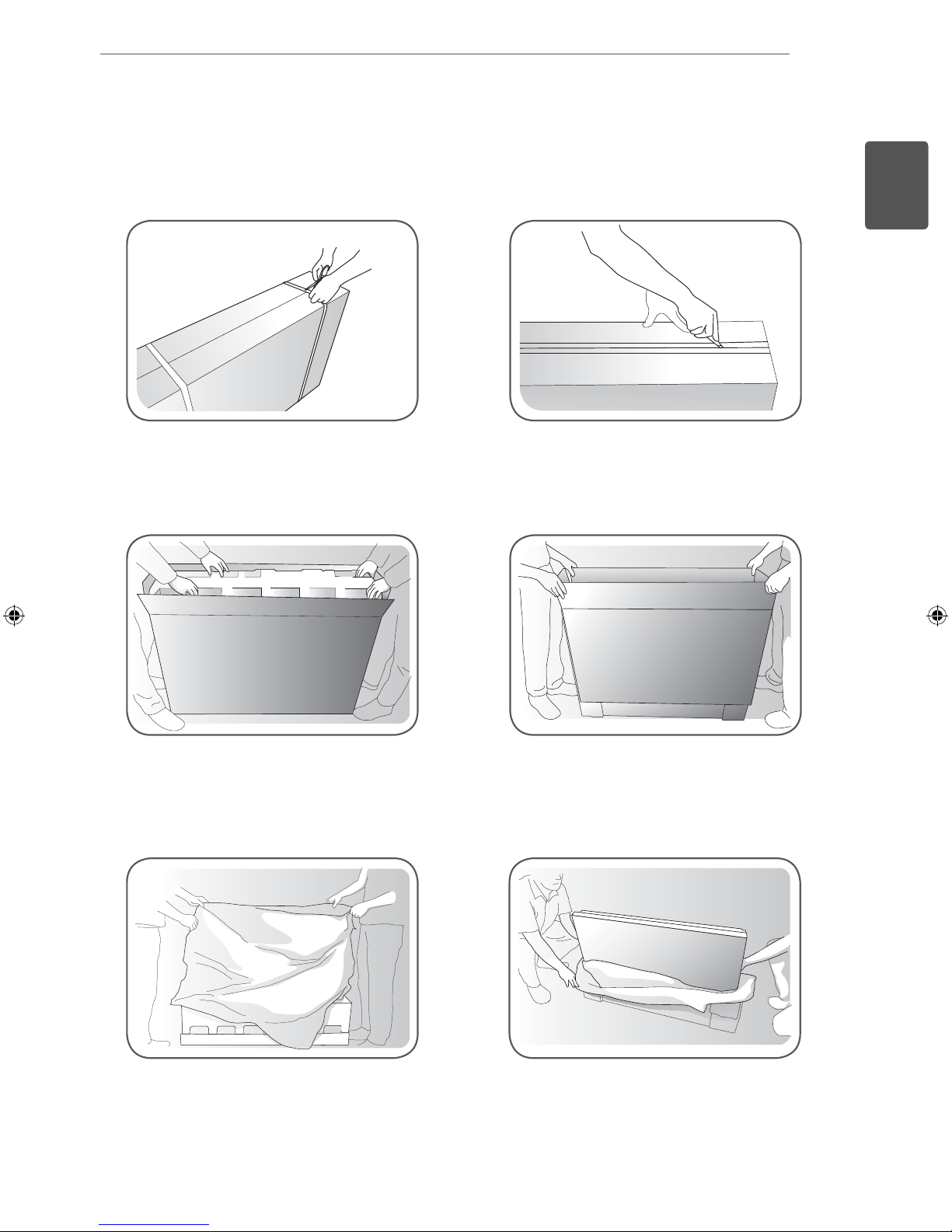

Installing the Product
1 Cut Packing Strap of the Box.
3Open the Box and remove the top packing.
5Open the Poly Bag.
4Remove the Upper Box.
6Undress the Poly Bag.
2Cut Tape on the Box.
8
ENG
ENGLISH
INSTALLING THE PRODUCT
7Lift up the Set using the SIDE/BACK Handle.
9With one hand under the set and the other hand grabbing the set, move the set.
10 Lay the back of the Set down on the table.
8Remove Bottom packing when lifting up the Set.
9
ENG
ENGLISH
INSTALLING THE PRODUCT
11 Use the cushion or Pad when you lay the face of the Set downward.
12 Connect IR receiver to use remocon. And then, connect power cord .
1
2
10
ENG
ENGLISH
TILING DISPLAYS
How to Mount the Set
Tiling Displays
Example of 2 x 2 tiling
<Rear view of the set with the wall mount plate>
yWhen you connect Monitor sets for multivision, you may find that the screen color is not the same
across all the Monitor sets. If you want to adjust the screen color manually, please refer to the
Installation Manual.
yWhen you install multiple Monitor sets onto a wall, attach the IR Receiver to all the sets, or use an
RS-232C cable to connect them and then attach the IR Receiver to the first set.
CAUTION
55LV35A
47LV35A
Screws for
attaching the
VESA wall
mount
Screws for
attaching the
VESA wall
mount
