OWNER’S MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

22XE1J

Please read the user manual before using this product to ensure safe and convenient

use.

www.lg.com

ENGLISH

TABLE OF CONTENTS

BASIC ..........................................3

-Checking the Accessories....................................... 3

-Checking the Product Components.................. 4

GETTING READY ........................4

-Connecting the Cables............................................. 4

CHECKING BEFORE

INSTALLATION ........................ 10

-Installation Orientation.........................................10

-Installation Location............................................... 12

-Wall Mount Holder..................................................14

-Safety and Precaution Guide

for Installation ........................................................... 15

INSTALLING THE

PRODUCT................................. 21

-Installation Conditions.......................................... 21

-Precautions When Designing a Case ............ 22

PRECAUTIONS FOR USE......... 30

-Dust................................................................................. 30

-Afterimage................................................................... 30

PRODUCT

SPECIFICATIONS..................... 32

LICENCE................................... 35

ENGLISH

WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may

cause radio interference.

BASIC

NOTE

• The accessories provided with your product may vary depending on the model or region.

• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product

functions.

• SuperSign Software & Manual

-Visit

http://partner.lge.com

to download the latest SuperSign software and manual.

Checking the Accessories

X 10

(M3 x L5.5)

Depending on country

ENGLISH

Checking the Product Components

The illustrations may differ depending on the model.

Ambient Light Sensor / Infrared Receiver

Power

Indicator

• Ambient Light Sensor: Adjusts the screen brightness by measuring the amount of light.

• Infrared Receiver: The part that receives the signal from the remote control.

• Power Indicator: Lights up red when the screen is turned on normally. The light turns orange when in sleep mode.

GETTING READY

Connecting the Cables

ENGLISH

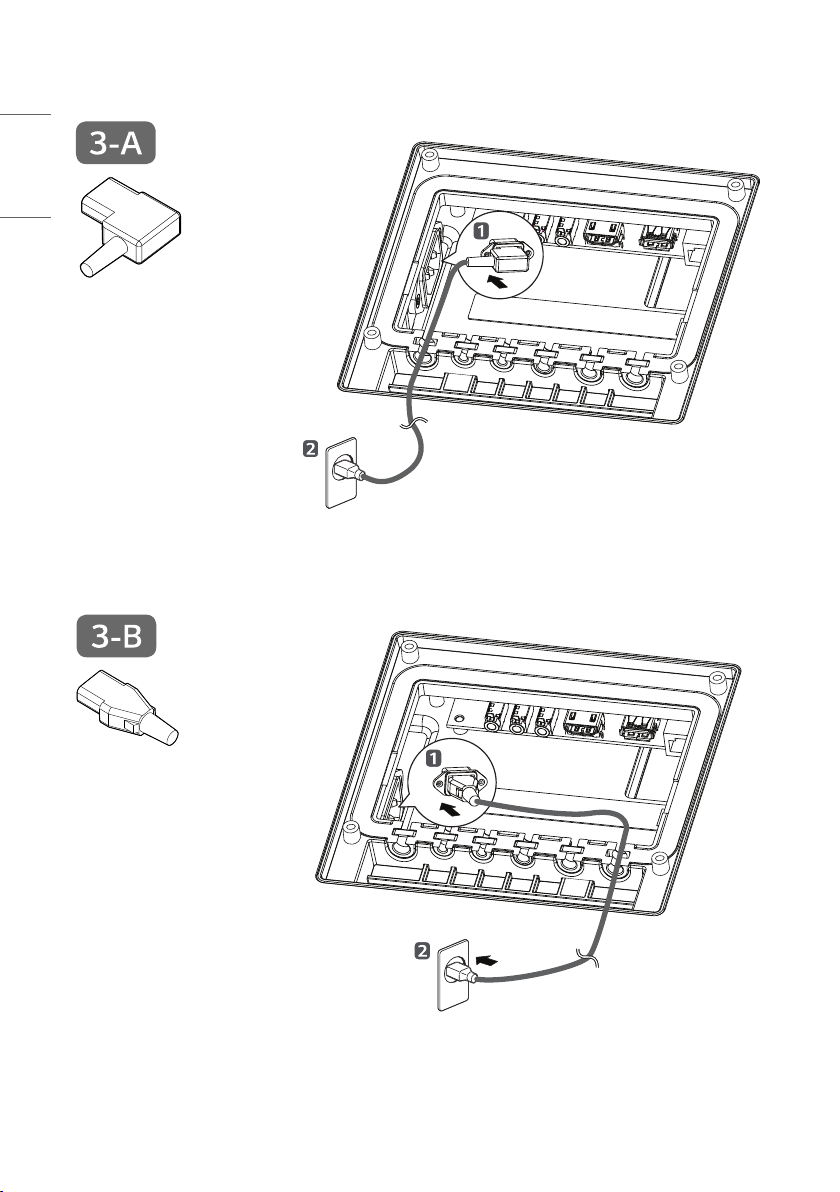

Power Cord Insertion

(Angle)

Power Cord Insertion

(Straight)

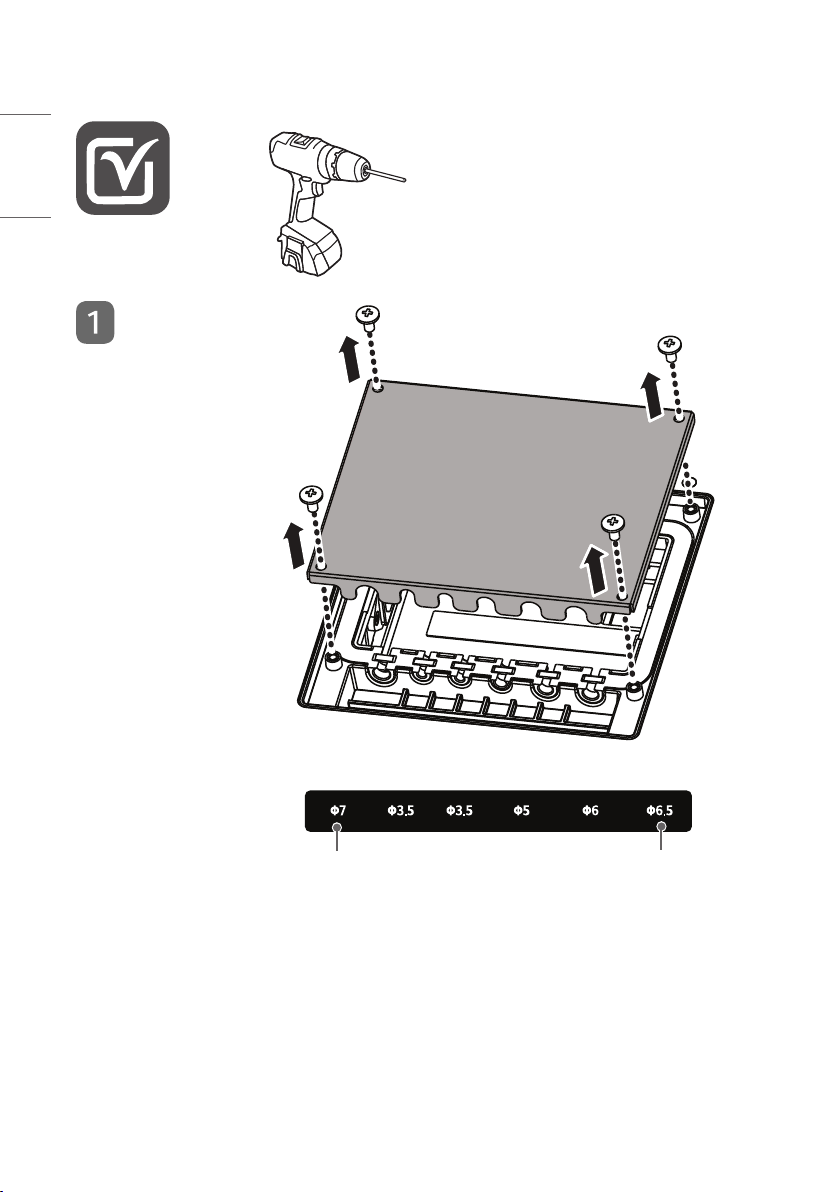

Remove the square rubbers before connecting the cables.

-7:insertpowercord(Angle)

-: insert power cord (Straight)

CAUTION

• Do not remove the square rubbers when the cables are not connected.

• If the square rubbers are not inserted without a cable, water may enter the product and cause malfunction, which is

not covered by the warranty.

ENGLISH

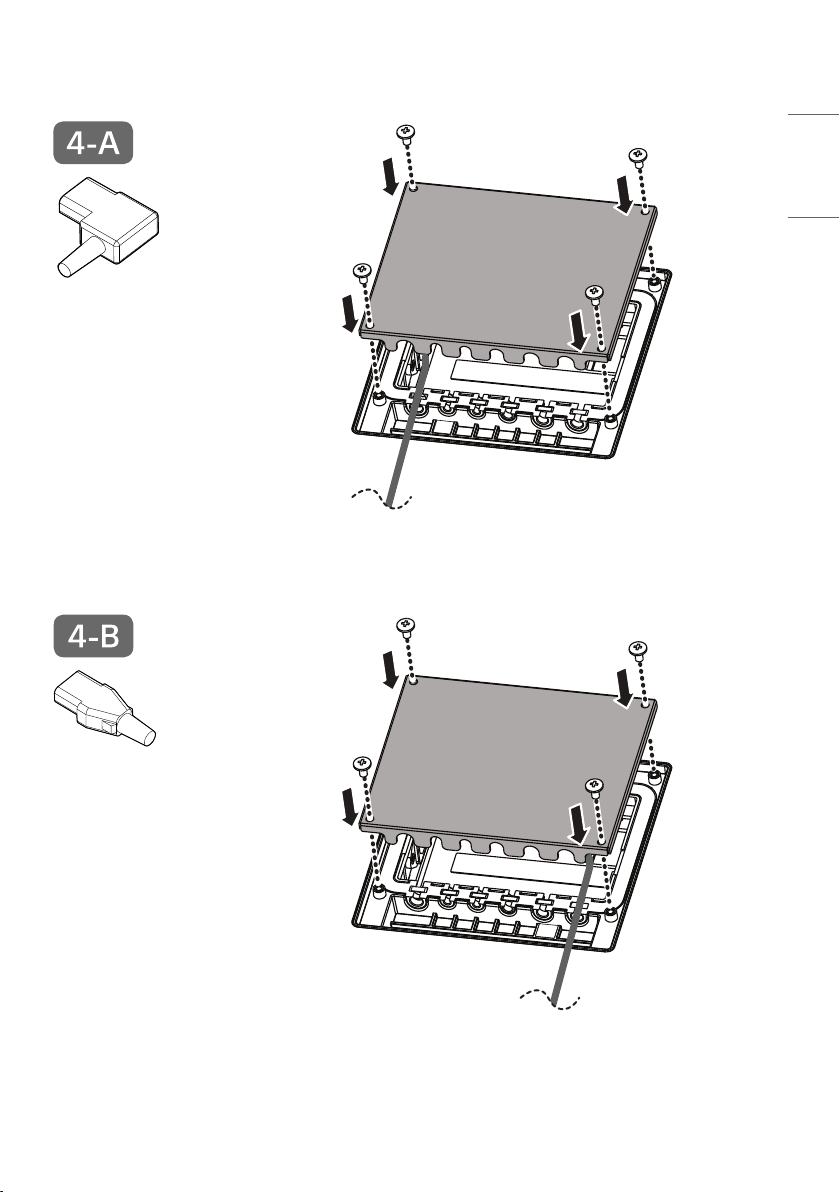

Power Cord Insertion

(Angle)

Power Cord Insertion

(Straight)

ENGLISH

Power Cord Insertion

(Angle)

Power Cord Insertion

(Straight)

ENGLISH

CHECKING BEFORE INSTALLATION

We are not responsible for product damage caused by failure to follow the guide.

Installation Orientation

Using Vertically

Wheninstallingvertically,rotatethemonitor90degreesclockwisewhilefacingthefrontofthescreen.

Tilt Angle

You can install the product by tilting it horizontally or vertically.

Youcantilttheproductupto15degreesforinstallation,whiletheproductshouldbespacedatleast40mmapart

from the wall.

40mm

15˚
