LG 47LV35A-5B.AFBZ Manual de usuario

P/NO : MFL68643009 (1912-REV01)

www.lg.com

*MFL68643009*

OWNER’S MANUAL

LG Digital

Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it for

future reference.

47LV35A

55LV35A

2TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3LICENSES

4ASSEMBLING AND

PREPARING

4 Accessories

5 Parts

6 To Install in a Portrait Layout

7 STORAGE METHOD FOR PANEL

PROTECTION

7 - Correct Method

7 - Incorrect Method

8 Installing on a Wall

10 IR Receiver Connection

10 - IR RECEIVER

11 Tiling Displays

11 - How to Mount the Set

13 - How to Join Sets

15 REMOTE CONTROL

17 Displaying the Device Name Connected

to an Input Port

18 MAKING CONNECTIONS

18 Connecting to a PC

20 External Device Connection

21 Using the Input List

21 Adjusting Aspect Ratio

23 ENTERTAINMENT

23 - Connecting to a Wired Network

24 - Network Status

25 Using the My Media

25 - Connecting USB Storage Devices

27 - Browsing Files

29 - Viewing Movies

32 - Viewing Photos

34 - Viewing the Contents List

35 - DivX®VOD Guide

36 CUSTOMIZING SETTINGS

36 Accessing Main Menus

37 - PICTURE Settings

40 - TIME Settings

41 - OPTION Settings

42 - NETWORK Settings

44 Picture ID

45 Daisy Chain Monitors

45 - DVI Cable

46 TROUBLESHOOTING

49 SPECIFICATIONS

52 IR CODES

53 CONTROLLING THE MULTIPLE

PRODUCT

53 Connecting the cable

53 RS-232C Configurations

53 Communication Parameter

54 Command Reference List

56 Transmission / Receiving Protocol

LICENSES

ENGLISH

yProduct damage from moving or changing the installation location is not covered by warranty.

yThe warranty will not cover any damages caused by using the product in an excessively dusty

environment.

NOTE

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit

www.lg.com

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

This DivX Certified®device has passed rigorous testing to ensure it plays

DivX®video. To play purchased DivX movies, ﬁrst register your device at vod.

divx.com. Find your registration code in the DivX VOD section of your device

setup menu.

DivX Certified®to play DivX®video up to HD 1080p, including premium

content.

DivX®, DivX Certiﬁed®and associated logos are trademarks of DivX, LLC and

are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

4ASSEMBLING AND PREPARING

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unauthorized or aftermarket items to ensure the safety and product life span.

yAny damages or injuries by using unauthorized or aftermarket items are not covered by the warranty.

CAUTION

yThe accessories provided with your product may vary depending on the model or region.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

ySuperSign software and manual.

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (

http://partner.lge.com

) and download the latest software for your

model.

NOTE

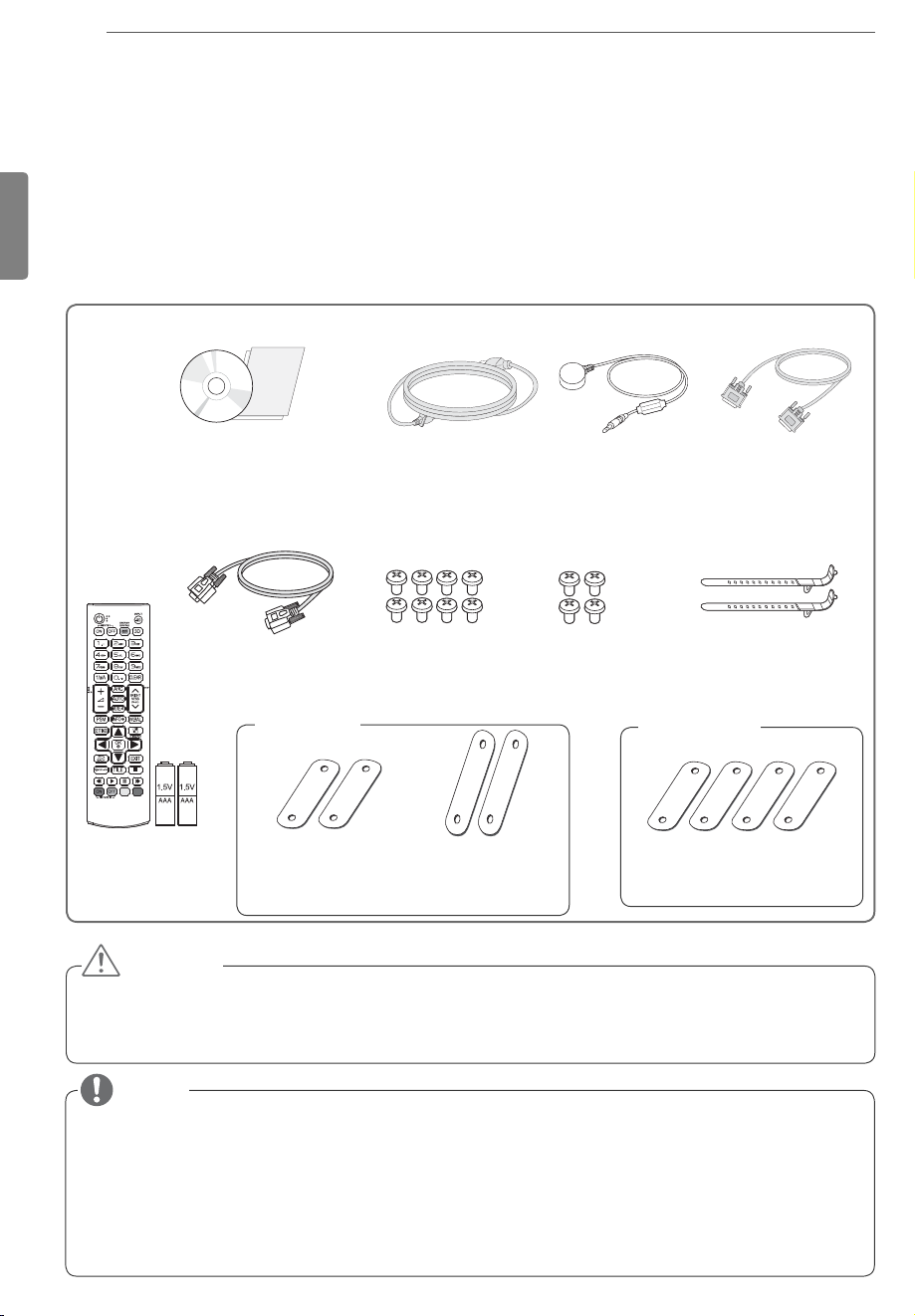

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

Power Cord DVI Cable

IR Receiver

CD (Owner's Manual)

/ Cards

RS-232C Cable

Remote Control

and Batteries

Short Vertical

Tiling Guide

(2 ea)

Long Horizontal

Tiling Guide(2 ea)

M6 Screws

(4 ea)

M4 Screws

(8 ea) Mounting Cable Tie (2 ea)

(For Cable Arrangement)

55LV35A

47LV35A

Tiling Guide(4 ea)

ASSEMBLING AND PREPARING

ENGLISH

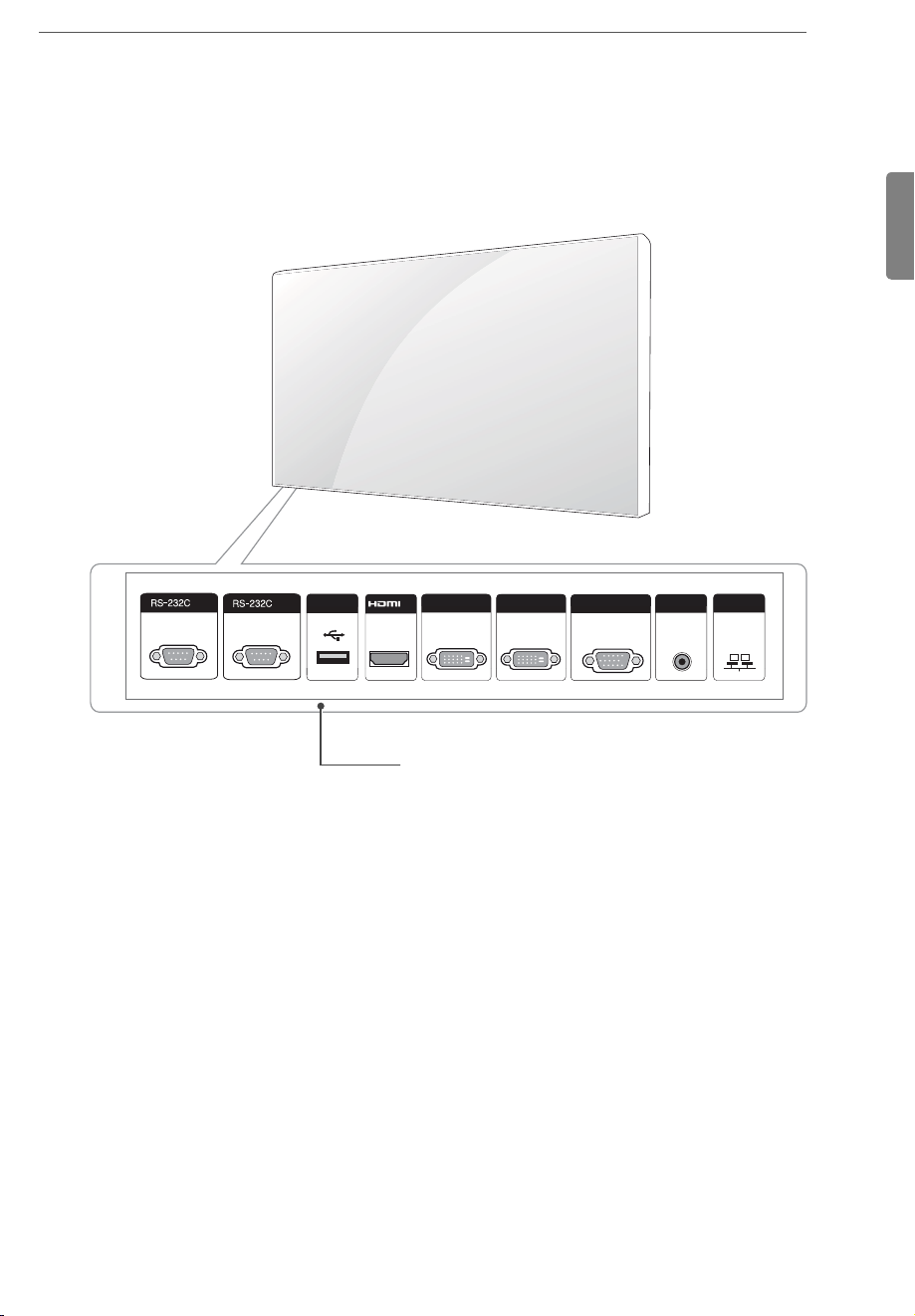

Parts

USB LANDVI IN DVI OUT

IN OUT

RGB/ AV

/COMPONENT IN

IR IN

Connection panel

6ASSEMBLING AND PREPARING

ENGLISH

To Install in a Portrait Layout

When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).

ASSEMBLING AND PREPARING

ENGLISH

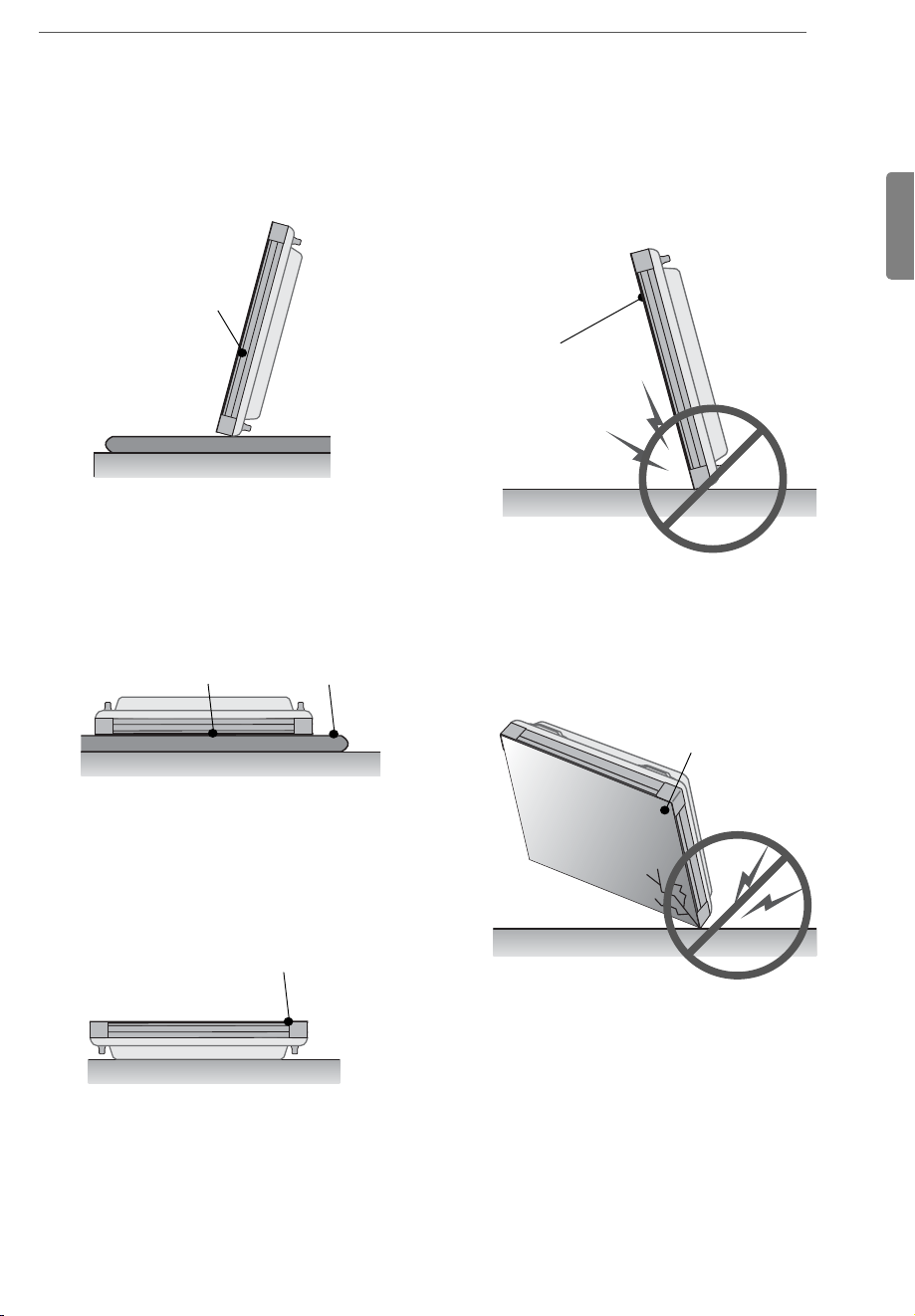

Correct Method Incorrect Method

STORAGE METHOD FOR PANEL PROTECTION

Panel

If the product needs to be set upright, hold both

sides of the product, and tilt backward carefully

for. Do not let the panel not to touch the floor.

When laying down the product, lay a cushion on a

flat floor. Put the product on it with the panel of

the product facing down.

If there is not a cushion available, ensure the floor

is clean and then lay the product down carefully

with the panel facing either upward or downward.

At this time, be careful for objects not to fall on the

panel.

Cushion

Panel

If the product is tilted onto the bezel, the bottom of

the panel may be damaged.

If the product is tilted onto the edge of the panel,

the panel may be damaged.

Panel

8ASSEMBLING AND PREPARING

ENGLISH

yDisconnect the power cord first, and then

move or install the monitor set. Otherwise

electric shock may occur.

yIf you install the monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

yDo not over tighten the screws as this may

cause damage to the monitor set and void

your warranty.

yUse the screws and wall mounts that meet

the VESA standard. Any damages or injuries

by misuse or using an improper accessory

are not covered by the warranty.

yTo prevent injury, this apparatus must be

securely attached to the wall in accordance

with the instrallation instructions. (This

pertains to Australia and New Zealand only.)

CAUTION

NOTE

Do not install the product in a place with

no ventilation (e.g., on a bookshelf or in a

closet) or on a carpet or cushion. If there is

no other option but to mount the product on

the wall, make sure that sufﬁcient ventilation

is provided before installation.

- Failure to do so may result in a ﬁre due to

the increase in the internal temperature.

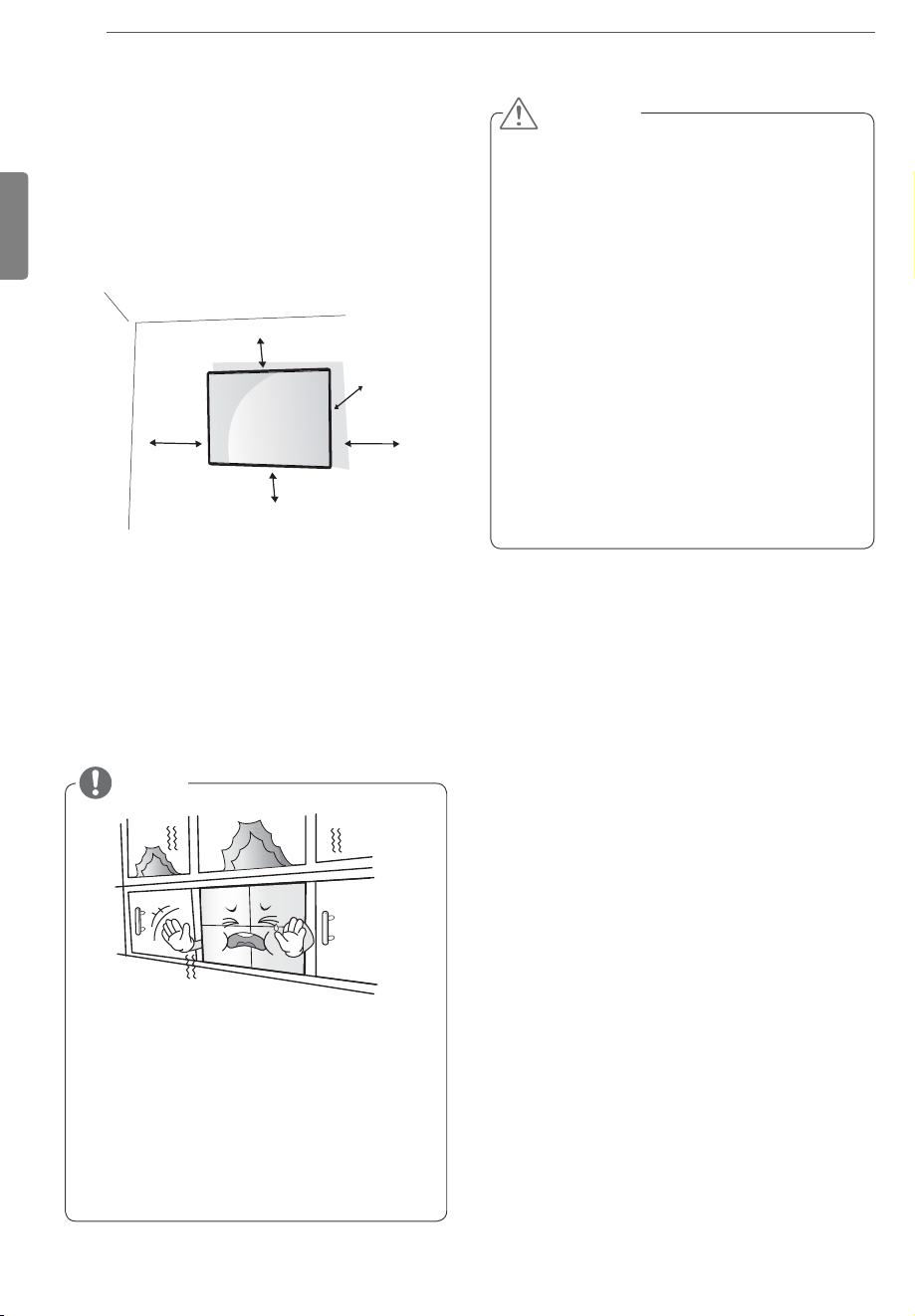

IInstall the monitor at least 10 cm away from the

wall and leave about 20 cm of space at each side

of the monitor to ensure sufficient ventilation.

Use the wall mount plate and screws that comply

with the VESA standard.

Installing on a Wall

To install the Monitor on a wall (optional),

use the VESA screws provided as accessories to

fasten it.

10 cm

10 cm 10 cm

20 cm

ASSEMBLING AND PREPARING

ENGLISH

Securing the product to a wall (optional)

(Depending on model)

1Insert and tighten the eye-bolts, or product

brackets and bolts on the back of the product.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the

eye-bolts on the rear of the product.

3Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the

flat surface.

NOTE

yMake sure that children do not climb on or

hang on the product.

yUse a platform or cabinet that is strong and

large enough to support the product securely.

yBrackets, bolts, and ropes are optional. You

can obtain additional accessories from your

local dealer.

CAUTION

yIf a product is not positioned in a sufficiently

stable location, it can be potentially

hazardous due to falling. Many injuries,

particularly to children, can be avoided by

taking simple precautions such as:

»Using cabinets or stands recommended

by the manufacturer of the product.

»Only using furniture that can safely

support the product.

»Ensuring the product is not overhanging

the edge of the supporting furniture.

»Not placing the product on tall furniture

(for example, cupboards or bookcases)

without anchoring both the furniture and

the product to a suitable support.

»Not standing the product on cloth or other

materials placed between the product

and supporting furniture.

»Educating children about the dangers of

climbing on furniture to reach the product

or its controls.

WARNING

10 ASSEMBLING AND PREPARING

ENGLISH

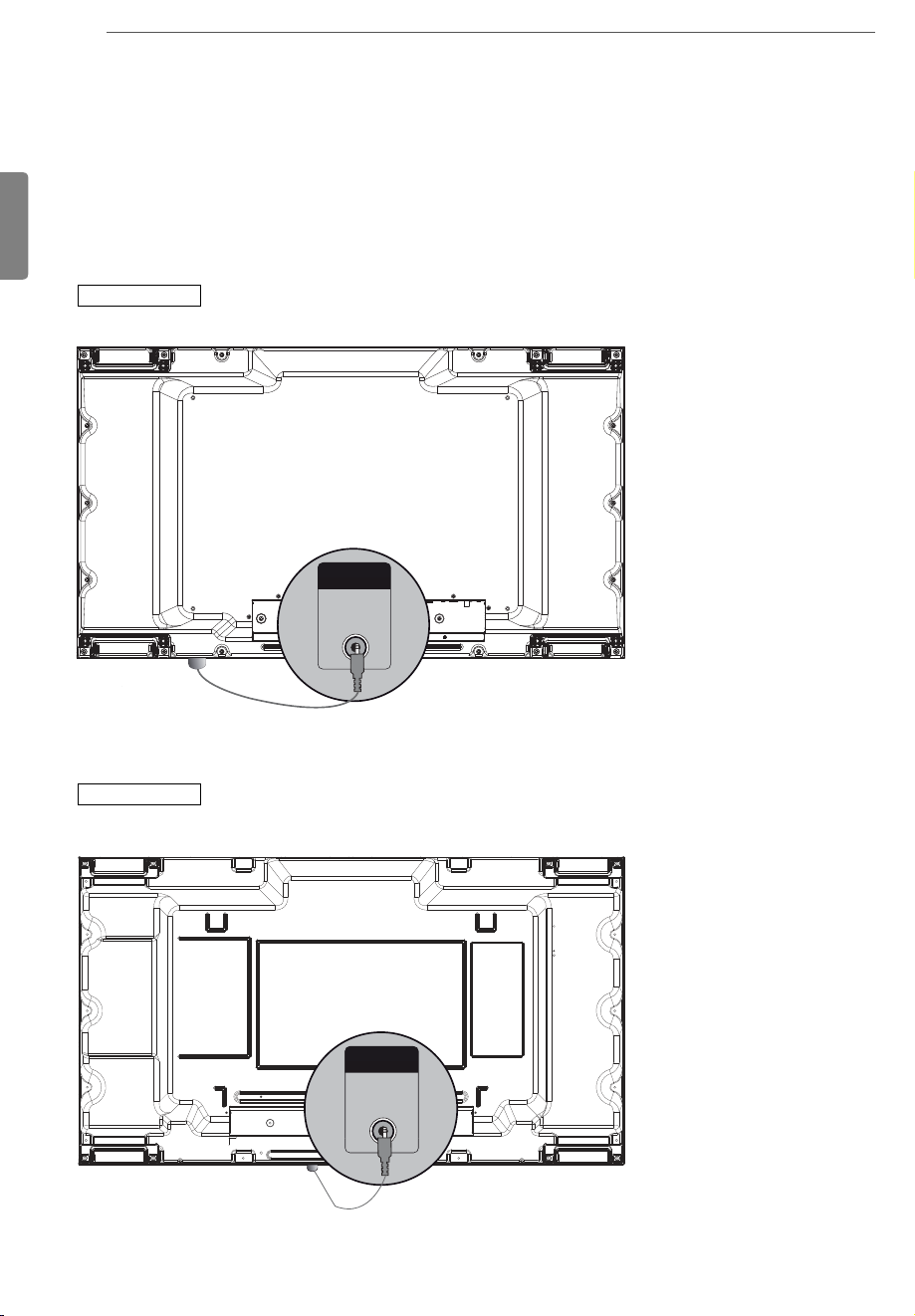

IR RECEIVER CONNECTION

IR RECEIVER

This allows a remote control sensor to be placed in a custom location. Then that display can control other

displays via an RS-232C cable.

IR IN

55LV35A

47LV35A
