LG BCM4358 Manual de usuario

User Manual

PRODUCT NAME : RF Module

MODEL NAME : LGSBWAC61

(00)-0073

The information contained herein is the exclusive property of LG Innotek

and shall not be distributed, reproduced or disclosed in whole or no in part

without prior written permission of LG Innotek.

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

1/9

Index

No Description Page

1 Features 2

2 Picture of Product 2

3 Installation Manual 3

4 Block Diagram 4

5 Absolute Maximum Ratings 4

6 Operating Conditions 5

7 Standard Test Conditions 5

8 Pin Description 6

9 Out Drawing 7

10 Packing Information 8

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

2/9

2. Picture of Product

1. Features

TWCM-B301D is the small size and low power module for IEEE 802.11ac wireless LAN

& BT4.1 + HS. TWCM-B301D is based on Broadcom BCM43569 solution.

IEEE 802.11 a/b/g/n/ac Dual Band WLAN infrastructure

Bluetooth 4.1 + HS

Size : 68.0mm x 38.0mm

Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac)

WLAN Metal Press antenna, BT Printed antenna on

Use on-chip OTP (One-Time Programmable)

Host Interface : USB2.0 (WLAN & BT)

- This model is using the common USB2.0 to control WLAN and BT

Security : WAPI, WEP, WPA, WPA2, WMM, AES, WEP, TKIP, CKP

Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

3/9

3. Installation Manual

TWCM-B301D installed position

Install the module like below in the back of the TV

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

4/9

5. Absolute Maximum Ratings

Parameter Min Max Unit

Storage Temperature -20 +80 ℃

Storage Humidity (40℃)-90%

Caution : The specifications in Table 1 define levels at which permanent damage to the

device can occur. Function operation is not guaranteed under these conditions.

Operating at absolute maximum conditions for extend periods can adversely affect the

long-term reliability of the device.

. Other conditions

1) Do not use or store modules in the corrosive atmosphere, especially where chloride

gas, sulfide gas, acid, alkali, salt or the like are contained.

Also, avoid exposure to moisture.

2) Store the modules where the temperature

and relative humidity do not exceed 5 to 40℃and 20 to 60%.

3) Assemble the modules within 6 months.

Check the soldering ability in case of 6 months over.

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

5/9

6. Operating Conditions

Parameter Min Typ Max Unit

Ambient Temperature 0 - 60 ℃

Ambient Humidity (40℃)--85 %

Supply Voltage 4.75 5.0 5.25 Vdc

7. Standard Test Conditions

The Test for electrical specification shall be performed under the following condition

Otherwise this following conditions, not guaranteed this performance.

Temparature 25 ±5℃

Humidity 65 ±5%

Input Voltage Supply Voltage

VDD_3.3V +3.3V ±0.165V

7-1. Ambient condition

7-2. Power supply voltages

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

6/9

8. Pin Description

Pin No. Pin Name I/O Pin Description

1 GND - Ground

2 BT_REG_ON - BT Regulator ON

3 3D_Sync - 3D_Sync

4 WL_HOST_WAKE - Wake On WLAN

5 GND - Ground

6 USB D+ I/O USB Communication signal USB D+

7 USB D- I/O USB Communication signal USB D-

8 VCC I VDD 3.3V

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

7/9

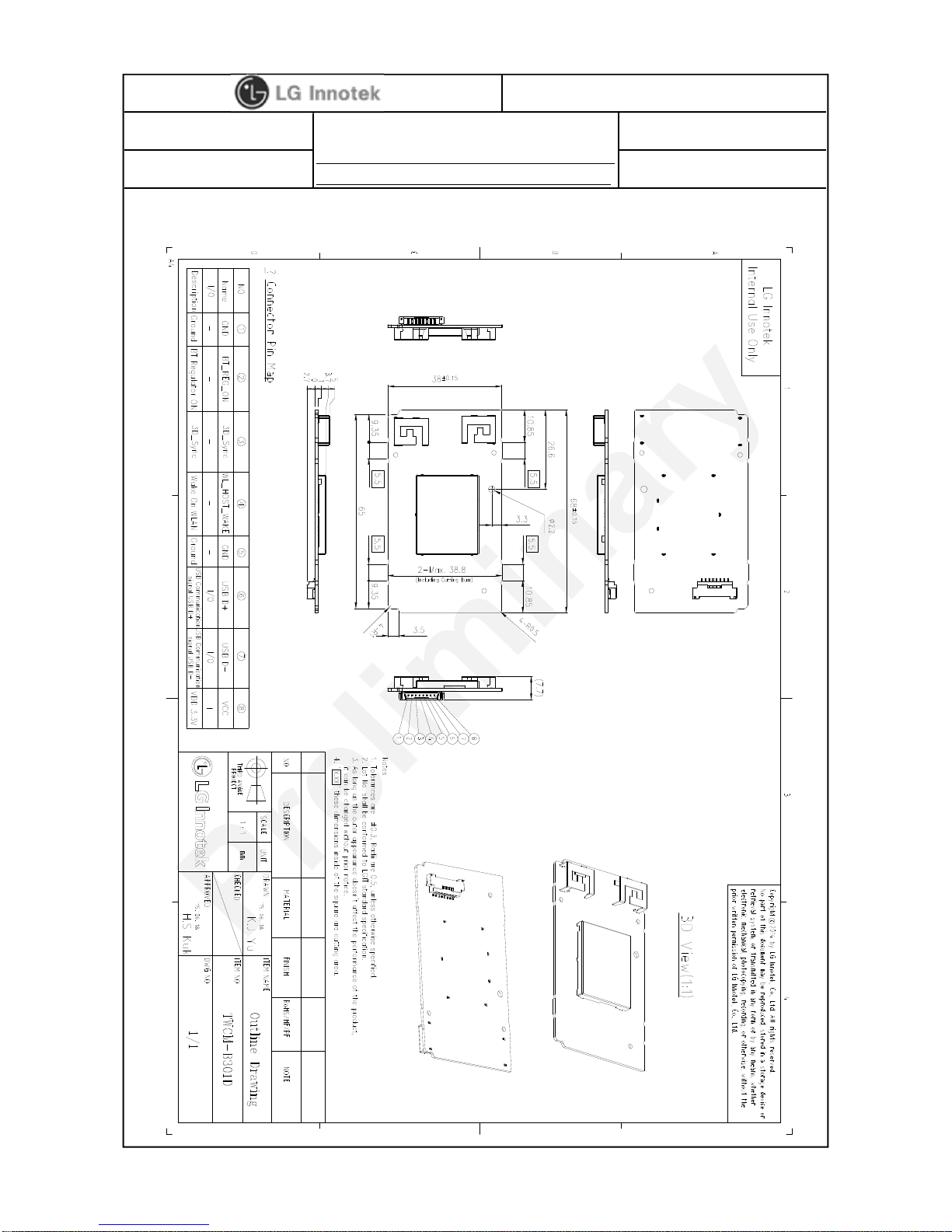

9. Outline Drawing

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

8/9

10. Packing Information

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2015.08.10 MODEL NAME: TWCM-B301D(LGIT)

LGSBWAC61(LGE)

REV. DATE : 2015.08.10

REV.NO : v0.01

9/9

TWCM-B301D
