LEXUS RX 350 2010– TVIP V4
PREPARATION REMOTE ENGINE STARTER (RES)
Page 1 of 24
Issue C : 03/27/09
Part #: PT398-48091 NOTE: Part number of this accessory may not be the same as the part number shown.
Conflicts: Do not install into Manual Transmission Vehicles or Vehicles without RKE systems.
Recommended Tools
Personal & Vehicle Protection Description
Safety Glasses
Safety Gloves (Optional)
Vehicle Protection Blankets, Parts Boxes
Special Tools
Techstream Version 4.10.045
Installation Tools
Screwdriver #2 Phillips
Nylon Panel Removal Tool e.g. Panel Pry Tool #1 Toyota SST# 00002-06001-01
Side Cutters
Torque Wrench 36 in•lbf (4.07 N•m), 88.5 in•lbf (10 N•m)
Tape Clear, Electrical
Socket 8mm, 10mm, extension
Special Chemicals
Cleaner VDC Approved Cleaner
Glass Cleaner Household Glass Cleaner
x1 x1x1 x1
x2
Kit Contents
Additional Items
(may be required)
Item# Description
Recommended Sequence
of Application
Item# Description
Spanish x1
x2
RES ECU RES ECU Bracket RES Harness Key Tag
Engine Room
Label Remote Label Window Label
Owner’s Guide M5 Screw
x1
Spanish x2
English x2 English x2
Spanish x2
English x1
English x2
Spanish x2
LEXUS RX 350 2010– TVIP V4
PREPARATION REMOTE ENGINE STARTER (RES)
Page 2 of 24
Issue C : 03/27/09
Table of Contents
PreparationI. ............................................................................................................................. 1–4
Table of Contents1. ................................................................................................................................................2
Wire Routing Overview2. .......................................................................................................................................3
Disassembly Overview3. ........................................................................................................................................4
ProcedureII. ............................................................................................................................. 5–21
Disassembly (Engine Compartment)1. ..................................................................................................................5
Disassembly (Passenger’s Side)2. ........................................................................................................................6
RES ECU Installation3. ........................................................................................................................................ 11
V4 Wire Harness Installation4. ............................................................................................................................12
Registration Preparation5. ...................................................................................................................................14
Registration6. .......................................................................................................................................................14
Tags and Labels7. ................................................................................................................................................19
Complete the Installation8. ..................................................................................................................................21
ChecklistIII. ............................................................................................................................. 22–24
Accessory Function Checks1. ..............................................................................................................................22
Vehicle Function Checks2. ...................................................................................................................................23
Legend
Do not proceed until process
has been completed.
Follow steps carefully to
avoid damaging the Vehicle
or Accessory
Use caution to avoid injury.
Used in Figures to call attention
to specific tools recommended
for the process.
Highlights a change in
installation with respect to
previous issue.
Indicates that torque is related
to safety.
Accessory Installation Practice (read before installation)
Care must be taken when installing this accessory to ensure damage does not
occur to the vehicle. The installation of this accessory should follow approved
guidelines to ensure a quality installation.
These guidelines can be found in the “Accessory Installation Practices”
document.
This document covers such items as:
Vehicle Protection (use of•
covers and blankets, cleaning chemicals, etc.)
Safety (eye protection, checking torque procedure, etc.)•
Vehicle Disassembly/Reassembly (panel removal, part storage, etc.)•
Electrical Component Disassembly/Reassembly (battery disconnection,•
connector removal, etc.)
Please see your Toyota dealer for a copy of this document.
LEXUS RX 350 2010– TVIP V4
PREPARATION REMOTE ENGINE STARTER (RES)
Page 3 of 24
Issue C : 03/27/09
TVIP Vehicle Description
A–
24P White
(for RES ECU)
B eF1 12P White
C–
RES ECU
Wire Harness Outline (Passenger’s Compartment)
A
C
B
LEXUS RX 350 2010– TVIP V4
PREPARATION REMOTE ENGINE STARTER (RES)
Page 4 of 24
Issue C : 03/27/09
6
S
eat Tem
p
erature Control
U
ni
t
7
S
hi
f
t Knob
8
C
enter
C
onsole
9
C
enter
C
onsole
S
ide Trim
10
PS Knee Airba
g
1
En
g
ine Cove
r
2
P
S Ste
p
Cover
3
P
S Cowl Cove
r
4
G
lovebox Under
C
over
5
G
lovebox
S
ide Trim
11
Glovebox
12
F
use Box
C
over
Disconnect all Correspondin
g
Connectors.
1
2
3
4
5
6
7
9
10
11
8
Disassembly Overview
12
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 5 of 24
Issue C : 03/27/09
10mm Socket

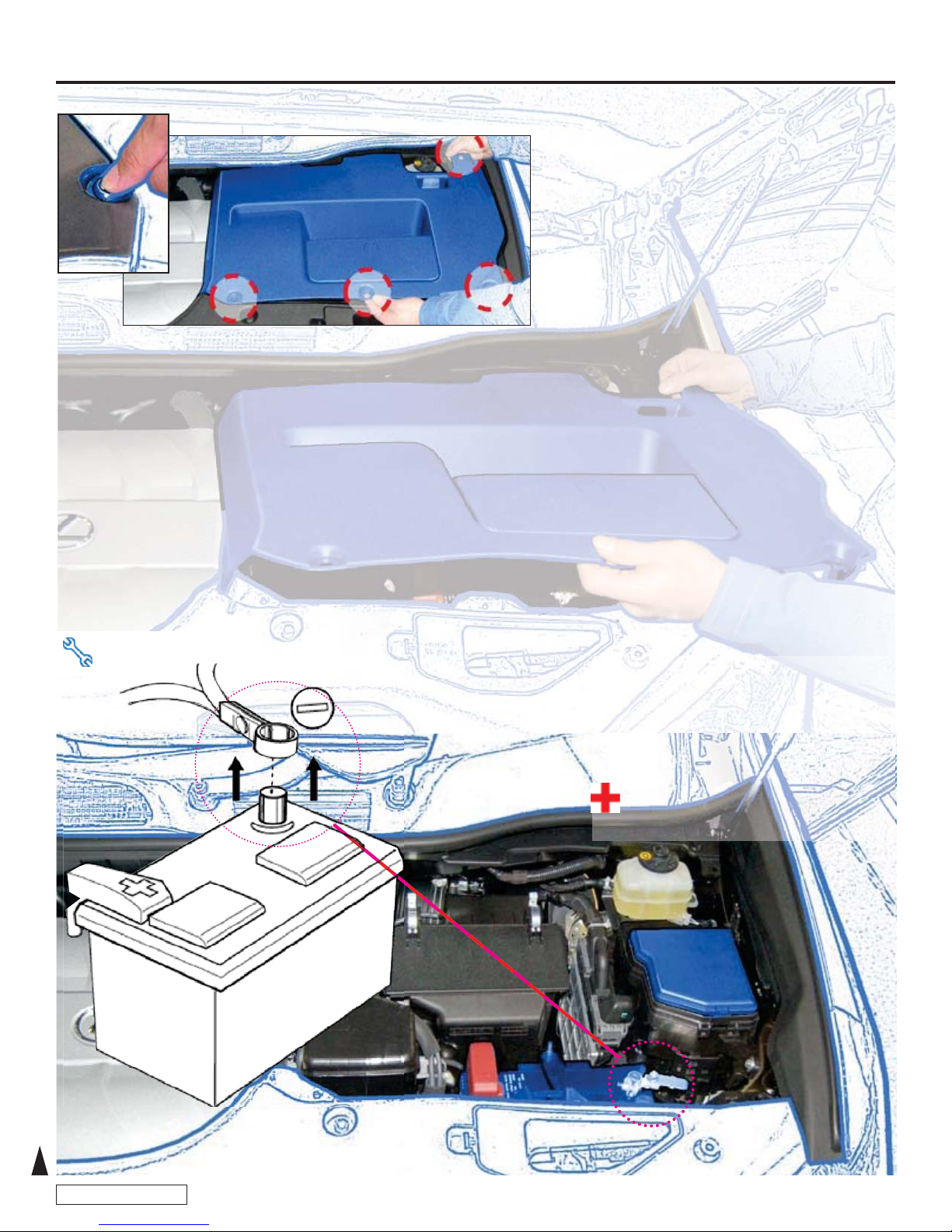

Disconnect the Negativec.
Battery Terminal.
Protect the Fender.•
Note the Battery Cable Position•
as it will be re-installed in the
same position.
CAUTION: Do not touch the
Positive Terminal.
1. Disassembly.
(Engine Compartment)
Place the Vehicle in Park with thea.
Parking Brake set.
Remove the Engine Cover.b.
Press then remove 4 Clips.•
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 6 of 24
Issue C : 03/27/09
Remove the Passenger’sb.
Side Cowl Cover
Remove the Glove Boxc.
Under Cover.
Nylon Panel Removal Tool Fig. 2-1
Fig. 2-3
Nylon Panel Removal Tool Fig. 2-2
Disassembly.2.
(Passenger’s Side)
Remove the Passenger’sa.
Side Step Cover.
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 7 of 24
Issue C : 03/27/09
Nylon Panel Removal Tool Fig. 2-6
Remove the Glove Box Sided.
Trim.
Remove Seat Temperaturef.
Control Unit.
Nylon Panel Removal Tool Fig. 2-4

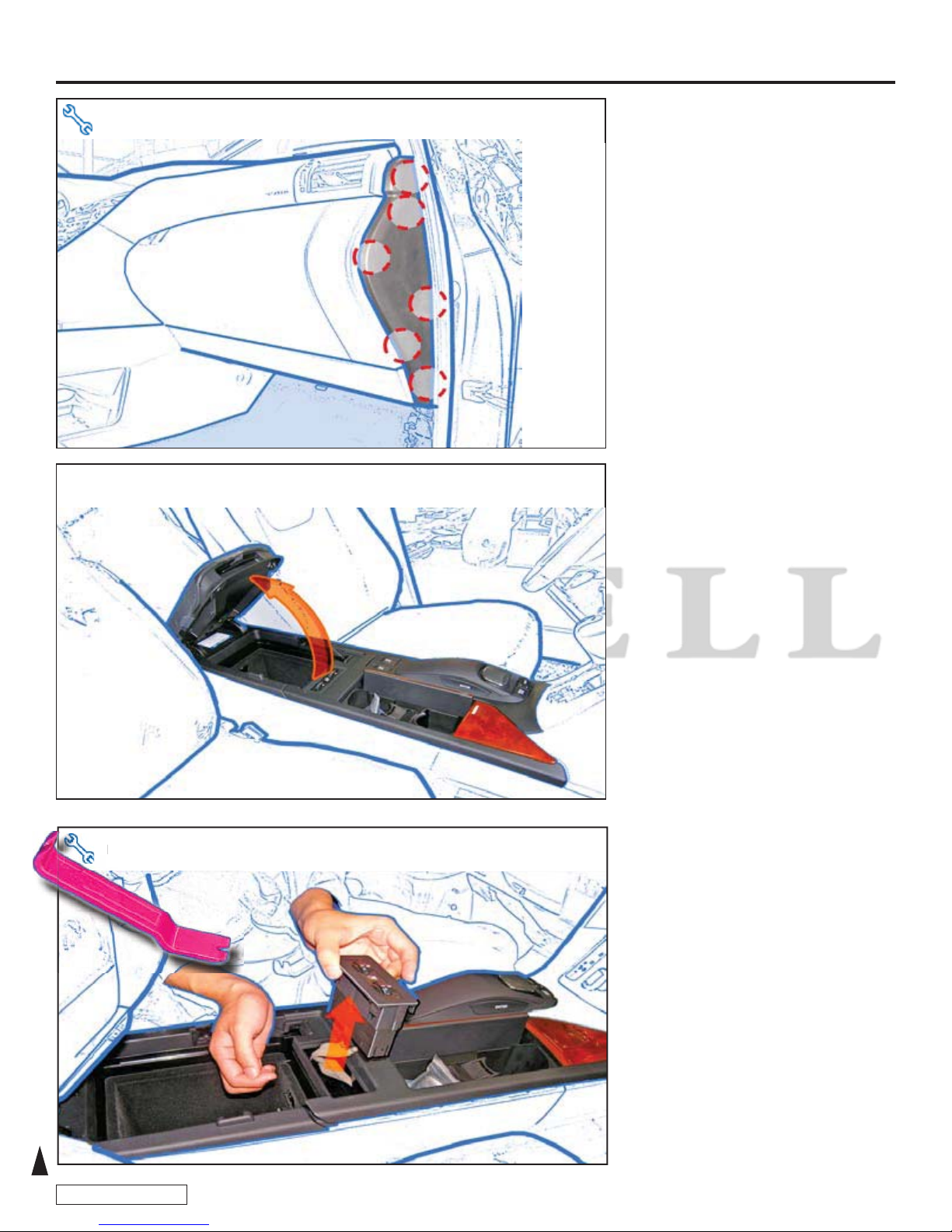

Open Center Console Com-e.
partment.
Fig. 2-5
Ny
lon Panel Removal
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 8 of 24
Issue C : 03/27/09
Remove the Shift knob by turningg.
counter-clockwise.
Push on the Shift Release withh.
taped screwdriver and Shift to
Neutral.
Pull on the Left sidei.
Stick Shift Cover, then
pull the Center Console
up and pull on the Right
side Stick Shift Cover.
Shift Center Console to the leftj.
and place protective blankets.
Remove Center Console Sidek.
Trim.
Screwdriver,
Electrical tape Fig. 2-7
350
Fig. 2-8
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 9 of 24
Issue C : 03/27/09
10mm Socket, Extension
Remove Knee Airbag carefully then wrap it and stack on anym.
object to lift it high enough to prevent tension on the Airbag
wire.
Remove 3 Bolts.l.
LEXUS RX 350 2010– TVIP V4
PROCEDURE REMOTE ENGINE STARTER (RES)
Page 10 of 24
Issue C : 03/27/09
Remove 3 screws from then.
bottom of the Glovebox.
Open the Glovebox ando.
remove 2 Screws.
Remove the Glovebox byp.
pulling it towards the left side.
Phillips Screwdriver Fig. 2-10
Phillips Screwdriver Fig. 2-9
Fig. 2-11
