Lexmark C2240 Manual de usuario

C2240, C2325, C2425, C2535,

CS421, CS521, CS622

5029-038,23x, 43x, 6x6

Service Manual

•Start diagnostics

•Maintenance

•Safety and notices

•Trademarks

•Index

June 29, 2018 www.lexmark.com

www MK-Electronic de

Product information

Product name:

Lexmark C2240; Lexmark C2325dw; Lexmark C2425dw; Lexmark C2535dw; Lexmark CS421dn; Lexmark CS521dn; Lexmark

CS622de

Machine type:

5029

Model(s):

038, 230, 238, 430, 438, 636, 696

Edition notice

June 29, 2018

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK

INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement

may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information

herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described

may be made at any time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available

in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that

product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any

existing intellectual property right may be used instead. Evaluation and veriﬁcation of operation in conjunction with other products,

programs, or services, except those expressly designated by the manufacturer, are the user’s responsibility.

Trademarks

Lexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer

commands (language) and functions included in its printer products. This printer is intended to be compatible with the PCL language.

This means the printer recognizes PCL commands used in various application programs, and that the printer emulates the functions

corresponding to the commands.

PostScript is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

P/N

5029

www MK-Electronic de

General information

Printer model conﬁgurations

The LexmarkTM C2240, C2325, C2425, C2535, CS421, CS521, CS622 printers are network‑capable,

multifunction laser printers. The printers support color and monochrome printing and are embedded with home

screen solutions and applications. All information in this service manual pertains to all models unless explicitly

noted.

The printers are available in the following models:

Model Conﬁgurations Machine type/model

C2240 Network-ready color laser printer with 4.3” color

touchscreen and internal duplex printing for small

workgroups

5029‑696

C2325dw Network-ready color laser printer with 2‑line display

and internal duplex printing for small workgroups

5029‑038

C2425dw Network-ready color laser printer with 2.4” color

display and internal duplex printing for small

workgroups

5029‑238

C2535dw Network-ready color laser printer with 2.4” color

display and internal duplex printing for small

workgroups

5029‑438

CS421dn Network-ready color laser printer with 2.4” color

display and internal duplex printing for small

workgroups

5029‑230

CS521dn Network-ready color laser printer with 2.4” color

display and internal duplex printing for small

workgroups

5029‑430

CS622de Network-ready color laser printer with 4.3” color

touchscreen and internal duplex printing for small

workgroups

5029‑636

5029

General information

www MK-Electronic de

Parts catalog

Legend

The following column headings are used in the parts catalog:

•Asm‑index—Identiﬁes the item in the illustration

•P/N—Identiﬁes the part number of a FRU

•Units/mach—Refers to the number of units in a printer

•Units/opt—Refers to the number of units in an option

•Units/FRU—Refers to the number of units in a FRU

•Description—A brief description of the part

The following abbreviations are used in the parts catalog:

•NS (not shown) in the Asm‑index column indicates that the part is procurable but is not shown in the

illustration.

•PP (parts packet) in the Description column indicates that the part is contained in a parts packet.

5029

Parts catalog

374

www MK-Electronic de

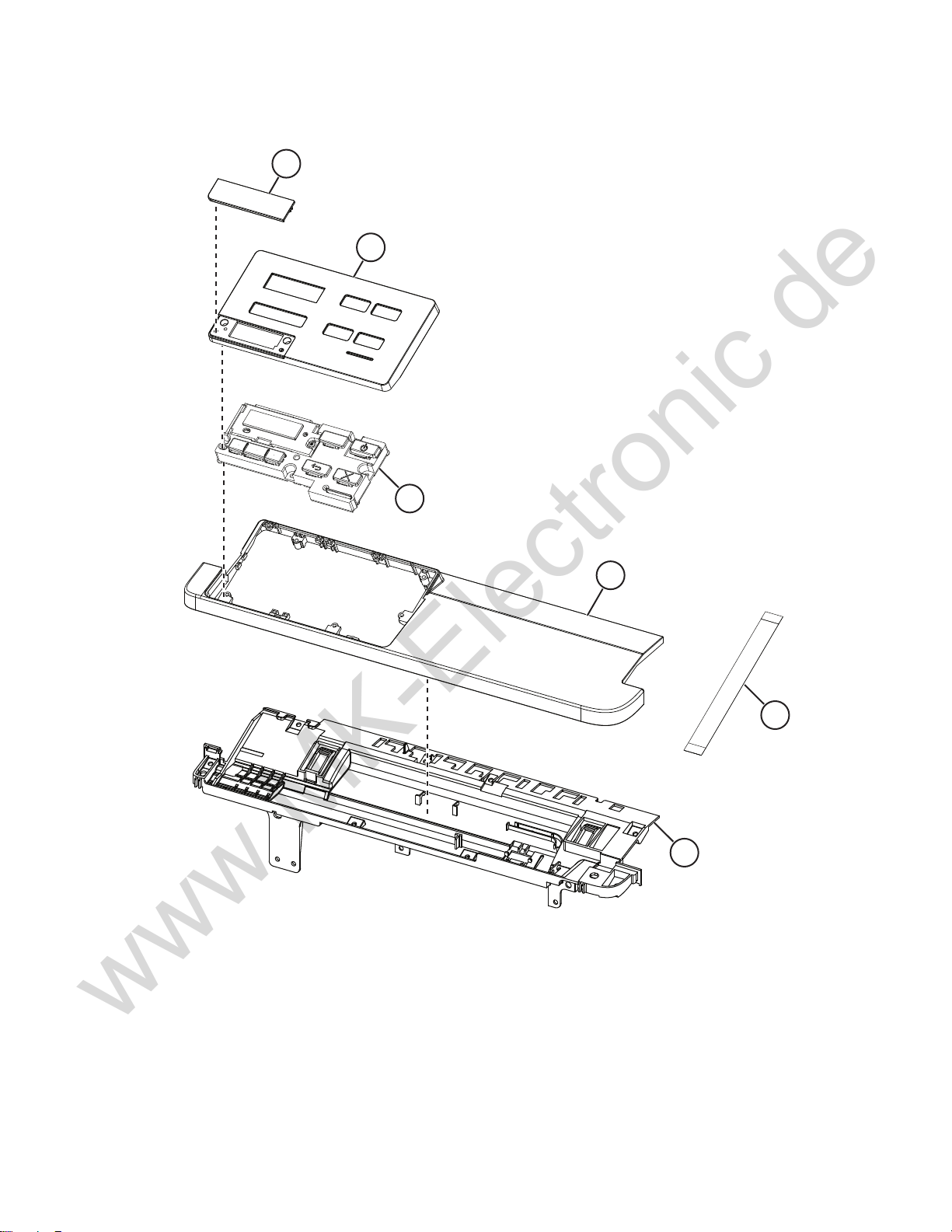

Assembly 1: 2-line control panel

5029

Parts catalog

375

www MK-Electronic de

Assembly 1: 2-line control panel

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 41X2070 1 1 CS321 control panel

badge cover

“2‑line control panel badge cover

removal” on page 285

1 41X2127 1 1 SC2325 control panel

badge cover

“2‑line control panel badge cover

removal” on page 285

2 41X2044 1 1 2-line control panel bezel “2‑line control panel bezel removal”

on page 287

3 41X2047 1 1 2-line control panel

assembly

“2‑line control panel assembly

removal” on page 290

4 41X2045 1 1 2-line control panel top

cover

“2‑line control panel top cover

removal” on page 291

5 41X2046 1 1 2-line control panel

ribbon cable

“2‑line control panel top cover

removal” on page 291

6 41X1305 1 1 2-line control panel base

cover

“Control panel base removal” on

page 284

5029

Parts catalog

376

www MK-Electronic de

Assembly 2: 2.4-inch and 4.3-inch control panel

5029

Parts catalog

377

www MK-Electronic de

Assembly 2: 2.4-inch and 4.3-inch control panel

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 41X2049 1 1 CS421 control panel badge

cover

“2.4‑inch control panel badge

cover removal” on page 286

1 41X2050 1 1 CS521 control panel badge

cover

“2.4‑inch control panel badge

cover removal” on page 286

1 41X2132 1 1 SC2425 control panel

badge cover

“2.4‑inch control panel badge

cover removal” on page 286

1 41X2133 1 1 SC2535 control panel

badge cover

“2.4‑inch control panel badge

cover removal” on page 286

2 41X1304 1 1 2.4-inch control panel bezel

(CS421, C2425, CS521, and

CS2535)

“2.4‑inch control panel bezel

removal” on page 287

3 41X1627 1 1 2.4-inch control panel

assembly (CS421, C2425,

CS521, and CS2535)

“2.4‑inch control panel top cover

removal” on page 292

4 41X1308 1 1 Headphone cable --

541X1309 1 12.4‑inch control panel FFC

(CS421, C2425, CS521, and

CS2535)

“2.4‑inch control panel top cover

removal” on page 292

5 41X2021 1 1 4.3-inch control panel FFC

(CS622 and CS2240)

“4.3‑inch control panel top cover

removal” on page 294

6 41X2021 1 1 Control panel ribbon cable --

741X1307 1 1USBcable “Front USB cable removal” on

page 301

8 41X1305 1 1 Control panel base cover “Control panel base removal” on

page 284

9 41X1306 1 1 4.3-inch control panel top

cover (CS622 and CS2240)

“4.3‑inch control panel top cover

removal” on page 294

10 41X2113 1 1 4.3-inch control panel

assembly (CS622 and

CS2240)

“4.3‑inch control panel top cover

removal” on page 294

11 41X1302 1 1 4.3-inch control panel bezel

(CS622 and CS2240)

“4.3‑inch control panel bezel

removal” on page 288

12 41X2115 1 1 4.3-inch control panel

keyboard cover without

volume (CS622 and

CS2240)

“4.3‑inch control panel top cover

removal” on page 294

13 41X1310 1 1 4.3-inch control panel

keyboard cover (CS622

and CS2240)

“4.3‑inch control panel top cover

removal” on page 294

14 41X2048 1 1 CS622 control panel badge

cover

“4.3‑inch control panel badge

cover removal” on page 286

5029

Parts catalog

378

www MK-Electronic de

Asm-index P/N Units/mach Units/FRU Description Removal procedure

14 41X2134 1 1 C2240 control panel badge

cover

“4.3‑inch control panel badge

cover removal” on page 286

NS 41X2119 1 1 Control panel power cable --

5029

Parts catalog

379

www MK-Electronic de

5029

Parts catalog

380
