Lexmark C 760 Manual de usuario

Lexmark™ C760, C762

5060-4xx

• Table of Contents

• Start Diagnostics

• Safety and Notices

•Trademarks

• Index

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

Parts catalog 7-1

5060-4xx

7. Parts catalog

How to use this parts catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of identical parts, they are shown on the

same list. Common parts are shown by one index number. Parts peculiar to one or the other of the

assemblies are listed separately and identified by description.

•NS: (Not Shown) in the Asm-Index column indicates that the part is procurable but is not pictured in the

illustration.

The Lexmark C76x(506x-4xx) laser printer is available in four models:

The parts catalog uses the following model designations to identify model specific FRUs: 401, 402, 421, and

422.

Lexmark C760 5060-401 Non-network

Lexmark C760 5060-402 Network

Lexmark C762 5060-421 Non-network

Lexmark C762 5060-422 Network

7-2 Service Manual

5060-4xx

Assembly 1: Covers

Parts catalog 7-3

5060-4xx

Assembly 1: Covers

Asm-

index Part

number Units Description

1–1 56P2821 1 Top cover assembly

2 56P2838 1 250 output flag and retainer

3 56P1539 1 Cable, options - stacker, including output bin sensor

4 56P2820 1 Redrive cap cover assembly

5 12G6380 7 Machine pad

6 12G6389 1 Top front support bracket

7 56P2813 1 Right rear cover

8 3 Screw, parts packet 12G6530

9 56P2810 1 Right front cover

10 12 Screw type 323, parts packet 12G6309

11 56P2837 1 Lower right door assembly

12 12G6405 1 Front right light shield cover

13 56P2216 4 Shield, door spring

14 7 Screw, parts packet 56P2220

15 12G6376 4 Spring, rear hold down

16 12G6347 4 Bellcrank, front hold down

17 56P2246 1 Detent spring

18 56P2218 1 Detent, front access door

19 56P2219 1 Housing, front access door

20 56P2816 1 Handle, front access door

21 56P2818 1 Front cover assembly

22 56P2811 1 Front lower right cover

23 56P2822 1 Front right handle cover assembly

24 56P2808 1 Paper path access door

25 12G6403 1 Spring, paper path access door

26 56P2807 1 Front lower left cover

27 56P2823 1 Front left handle cover assembly

28 12G6404 1 Left front light shield cover

29 56P1277 1 Paper tray guide

30 56P2817 1 Operator panel bezel with overlays, 421/422 only

30 56P2842 1 Operator panel bezel with overlays, 401/402 only

31 56P2844 1 Operator panel assembly

32 2 Screws, parts packet 12G6532

33 12G6399 1 Front upper pivot cover

34 12G6397 1 Front access door support

35 56P2489 1 Label, top paper jam, 421/422 only

35 56P2505 1 Label, top paper jam, 401/402 only

7-4 Service Manual

5060-4xx

Assembly 1.1: Covers

Parts catalog 7-5

5060-4xx

Assembly 1.1: Covers

Asm-

index Part

number Units Description

1.1–1 56P2819 1 Left upper cover assembly

2 21 Screw type 323, parts packet 12G6309

3 56P2809 1 Left upper pivot cover

4 12G6491 1 Jam access spring

5 56P2835 1 Lower access jam door assembly

6 56P2814 1 Left lower pivot cover

7 56P2812 1 Cover, left lower

8 56P2815 1 Waste container door

9 56P2800 1 Blank, TLI/SN label

10 12G6387 2 Ground cable

11 56P2824 1 Rear cover

12 12G6383 2 Fuser latch slide

13 12G6384 2 Fuser latch slide spring

14 12G6340 1 Fuser top duct

15 12G6386 1 Duplex actuator arm assembly

16 56P1500 1 RIP fan duct

17 12G6360 1 Fuser wall duct

18 12G6358 1 Fuser bottom duct

19 56P2290 1 Fuser left duct

20 56P2291 1 Redrive belt cover duct

NS 12G6510 6 Cable tie (6 in pack)

NS 12G6511 2 Cable tie pad

7-6 Service Manual

5060-4xx

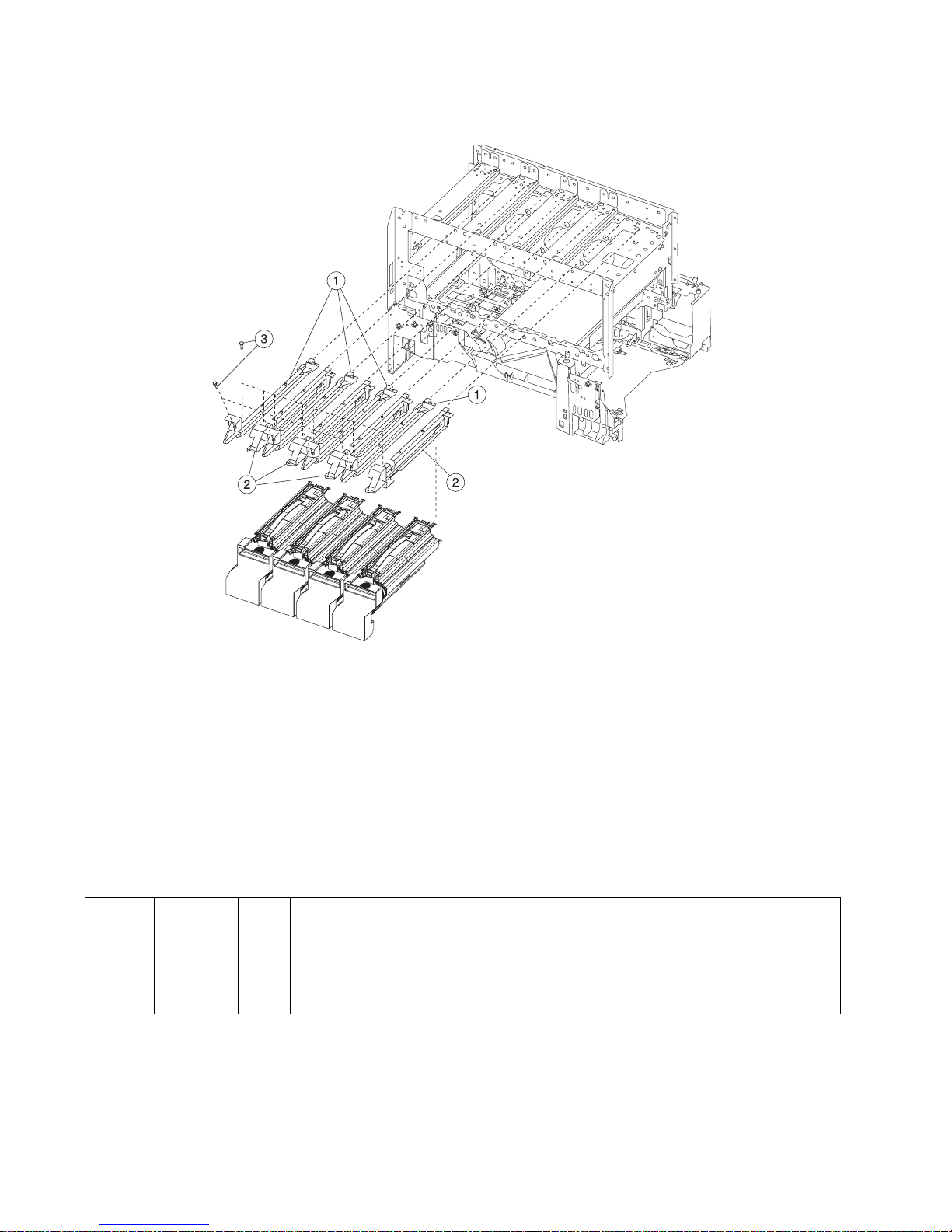

Assembly 2: Cartridge mounting

Asm-

index Part

number Units Description

2–1 12G6535 4 Guide assembly, left side

2 12G6536 4 Guide assembly, right side

3 12 Screws, parts packet 12G6532

Parts catalog 7-7

5060-4xx

Assembly 3: Fuser assembly

Asm-

index Part

number Units Description

3–1 56P2852 1 Fuser assembly, 220 V 500W

1 56P2851 1 Fuser assembly, 115 V 500W

1 56P2853 1 Fuser assembly, 100 V 500W (Japan)

7-8 Service Manual

5060-4xx

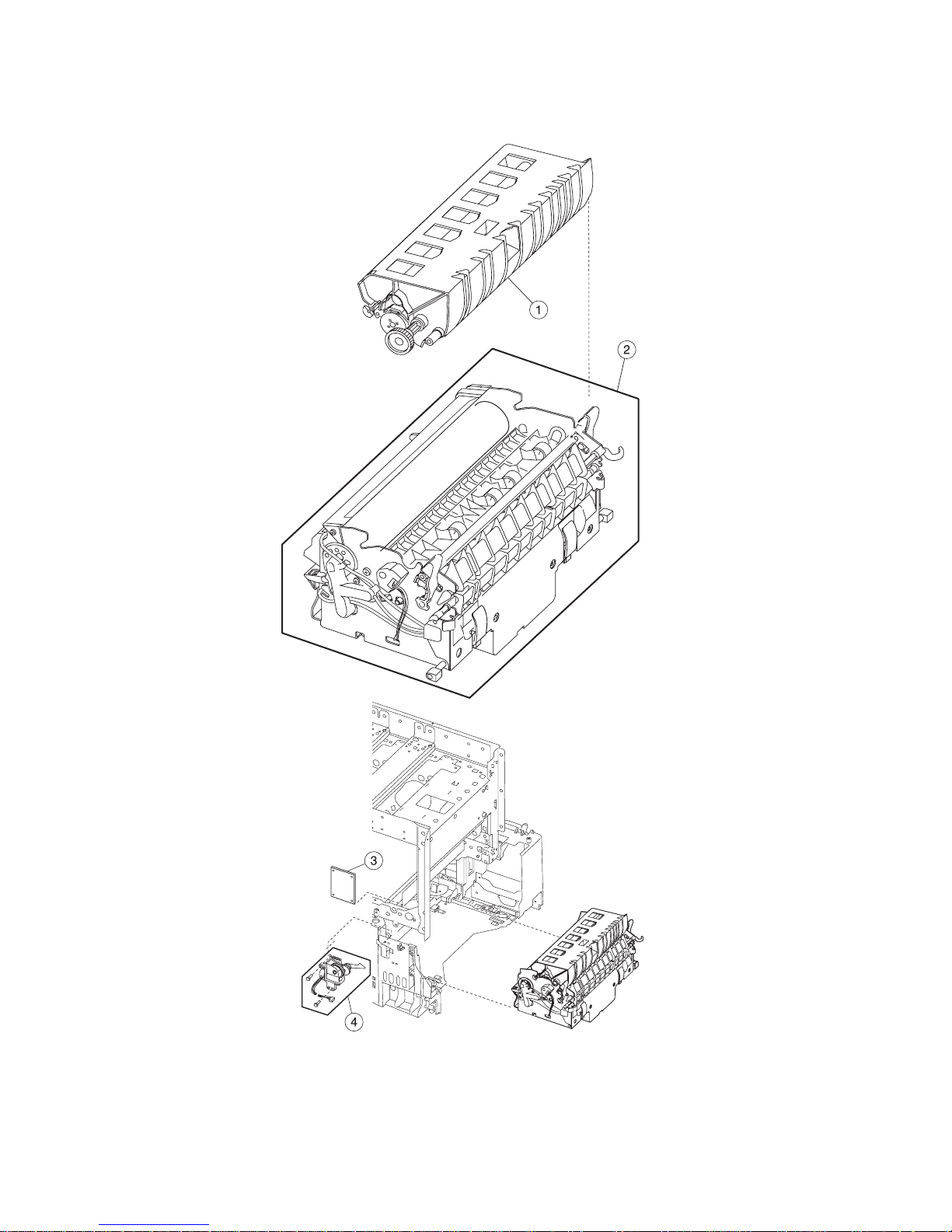

Assembly 3.1: Fuser (web oiler)

Parts catalog 7-9

5060-4xx

Assembly 3.1: Fuser (web oiler)

Asm-

index Part

number Units Description

3.1–1 12G6545 1 Web oiler assembly

2 56P2856 1 Fuser assembly, web oiler 220 V 500W

2 56P2855 1 Fuser assembly, web oiler 115 V 500W

2 56P2854 1 Fuser assembly, web oiler 100 V 500W (Japan)

3 56P1558 1 Web oiler driver board assembly

4 12G6543 1 Web oiler index drive assembly
