Lexmark Forms Printer 4227

4227-X00

Extracted From Service Manual

Edition: October 2000

The following paragraph does not apply to any country where such provisions are

inconsistent with local law: LEXMARK INTERNATIONAL, INC. PROVIDES THIS

PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do

not allow disclaimer of express or implied warranties in certain transactions, therefore, this

statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are

periodically made to the information herein; these changes will be incorporated in later

editions. Improvements or changes in the products or the programs described may be

made at any time.

A form for reader’s comments is provided at the back of this publication. If the form has

been removed, comments may be addressed to Lexmark International, Inc., Department

D22/035-3, 740 New Circle Road N.W., Lexington, Kentucky 40550, U.S.A. Lexmark may

use or distribute any of the information you supply in any way it believes appropriate

without incurring any obligation to you. You can purchase additional copies of publications

related to this product by calling 1-800-553-9727. In other countries, contact your point of

purchase.

Lexmark and Lexmark with diamond design are trademarks of Lexmark International,

Inc., registered in the United States and/or other countries.

Color Jetprinter is a trademark of Lexmark International, Inc.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.

4227-X00

Parts Catalog 7-1

4227-X00

7. Parts Catalog

How to Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the

other of the assemblies are listed separately and identified by

description.

•AR: (As Required) in the Units column indicates that the

quantity is not the same for all machines.

•NP: (Non-Procurable) in the Units column indicates that the part

is non-procurable and that the individual parts or the next higher

assembly should be ordered.

•NR: (Not Recommended) in the Units column indicates that the

part is procurable but not recommended for field replacement,

and that the next higher assembly should be ordered.

•R: (Restricted) in the Units column indicates that the part has a

restricted availability.

•NS: (Not Shown) in the Asm-Index column indicates that the

part is procurable but is not pictured in the illustration.

•PP: (Parts Packet) in the Description column indicates that the

part is contained in a parts packet.

7-2 Service Manual

4227-X00

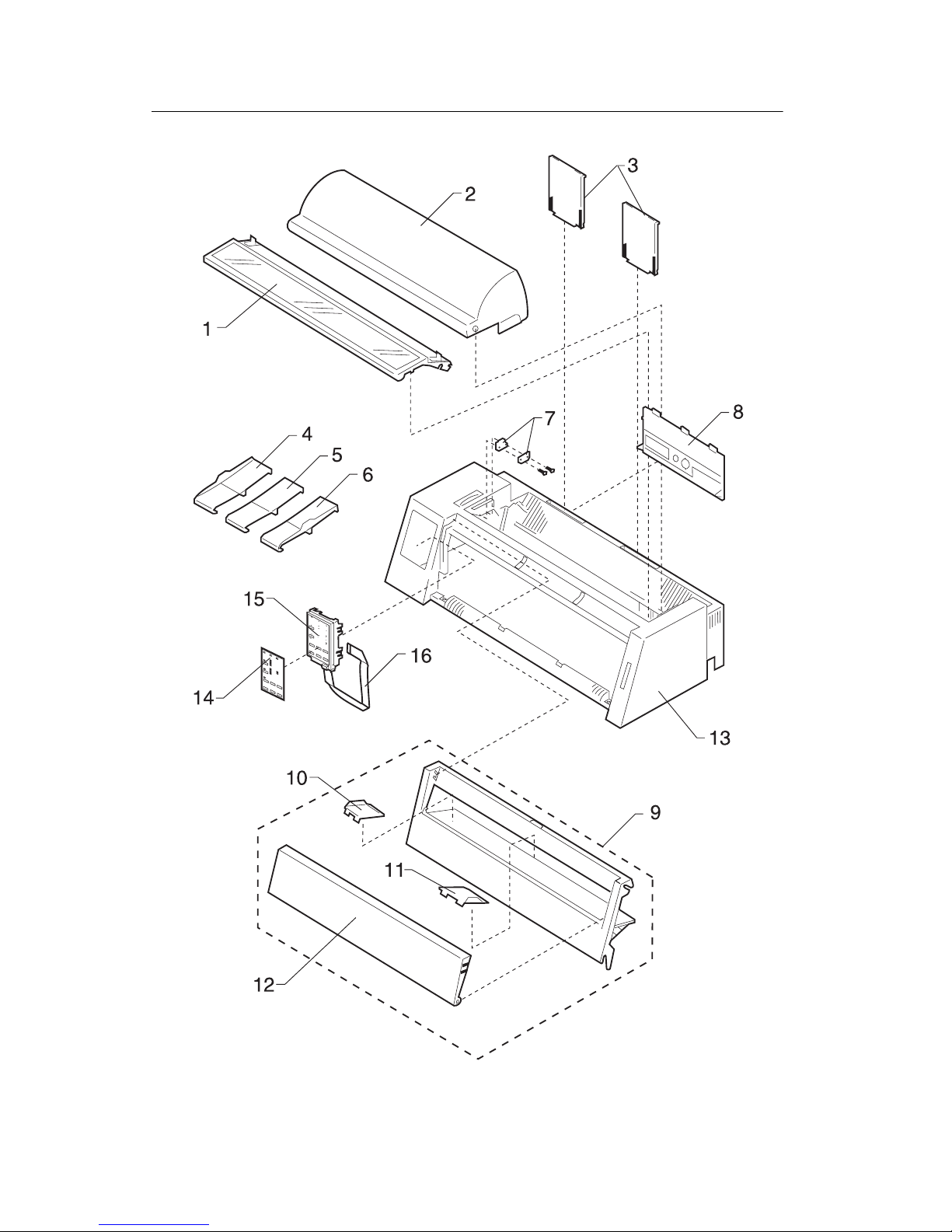

Assembly 1: Covers and Operator Panel

Parts Catalog 7-3

4227-X00

Asm-

Index Part

Number Description

1 -1 11A6201 Cover Assembly, Ribbon Access

2 11A6208 Cover, Acoustic

3 79F4782 Paper Stand

4 1333164 Extender, Paper Guide (Left)

5 1333166 Extender, Paper Guide (Center)

6 1333165 Extender, Paper Guide (Right)

7 11A6207 Switch Assembly, Cover with Cover Switch Plate

8 11A6203 Cover, Rear (4227-100)

8 12G0226 Cover, Rear (4227-200)

9 11A6189 Cover Assembly, Front (Complete)

10 1333152 Guide, Paper (Left)

11 1333167 Guide, Paper (Right)

12 79F4825 Guide, Cover (Front)

13 11A6204 Cover Assembly with Logo, (Top) (4227-100)

13 12G0213 Cover Assembly, with Logo, (Top) (4227-200)

14 11A6253 Overlay Kit, Operator Panel

15 11A6205 Operator Panel Assembly with English Overlay

16 11A6206 Cable, Operator Panel

7-4 Service Manual

4227-X00

Assembly 2: Paper Feed

Parts Catalog 7-5

4227-X00

Asm-

Index Part

Number Description

2 -1 11A6231 Feed Roller, Upper

2 11A6257 Bearing Kit

3 11A6233 Frame Support Shaft

4 11A6240 TOF & Paper Empty Sensors with Flags & Springs

5 11A6239 Paper Guide / Platen Assembly

6 11A6234 Bracket, Auto-Gap Motor (4227-100)

6 12G0229 Bracket, Auto-Gap Motor (4227-200)

7 11A6241 Roller, Feed (Lower)

8 79F4832 Roller, Pinch (Lower)

9 11A6235 Side Frame Assembly, (Left) (4227-100)

9 12G0221 Side Frame Assembly, (Left) (4227-200)

10 11A6237 Sensor, Paper Select

11 11A6256 Gear Kit

12 11A6232 Separator, Paper

13 11A6236 Latch, Ribbon

14 11A6238 Side Frame Assembly, (Right)

15 11A6255 Screw and Clip Kit

16 11A6258 Spring Kit

17 11A6230 Plate, Carrier

18 11A6209 Tractor Side Frame, (Left)

19 11A6210 Tractor Side Frame, (Right)

20 11A6256 Gear Kit

21 11A6211 Tractor Pair, with Sensors (Left and Right)

22 11A6212 Shaft Kit, Tractor

23 79F4830 Paper Guide, Tractor

24 12G0228 Carrier Motor Cooling Fan (4227-200)

7-6 Service Manual

4227-X00

Assembly 3: Carrier

Parts Catalog 7-7

4227-X00

Asm-

Index Part

Number Description

3 -1 11A6229 Sensor, Auto Gap

2 11A6216 Board and Bracket, Sub Logic (4227-100)

2 12G0214 Board and Bracket, Sub Logic (4227-200)

3 11A6255 Screw, Parts Packet

4 11A6215 Motor, Paper Feed Assembly, with Bracket

5 11A6257 Bearing, Parts Packet

6 11A6256 Gears, Parts Packet (4227-100)

6 12G0212 Gears, Parts Packet (4227-200)

7 11A6220 Motor, Ribbon Drive and Gear Plate Assembly

9 11A6221 Plate Assembly, Belt Tension Pulley

10 11A6227 Motor, Auto Gap (4227-100)

10 12G0220 Motor, Auto Gap (4227-200)

11 79F4832 Roller, Lower Pinch

12 11A6258 Spring, Parts Packet

13 11A6226 Bracket, Carrier Motor (4227-100)

13 12G0230 Bracket, Carrier Motor (4227-200)

14 11A6225 Motor, Carrier Assembly (4227-100)

14 12G0231 Motor, Carrier Assembly (4227-200)

15 11A6219 Cable, Printhead and Retainer (4227-100)

15 12G0225 Cable, Printhead and Retainer (4227-200)

16 11A3310 Cam, Release Slider

17 11A3311 Cam, Sub Slider

18 11A6218 Printhead (4227-100)

18 12G0224 Printhead (4227-200)

19 11A6224 Roller and Spring, Carrier

20 11A6222 Carrier Asm. with Belt & Oil Felt (4227-100)

20 12G0232 Carrier Asm. with Belt & Head Cooling Gum (4227-200)

21 11A6223 Shaft, Carrier

22 11A6228 Lever, Paper Select

23 11A6214 Gear Plate, Right

24 11A6217 Cable, Sub Logic Board (4227-100)

24 12G0215 Cable, Sub Logic Board (4227-200)

25 12G0210 Main Logic Card Dust Cover

NS 11A6202 Gear Cover, Left

7-8 Service Manual

4227-X00

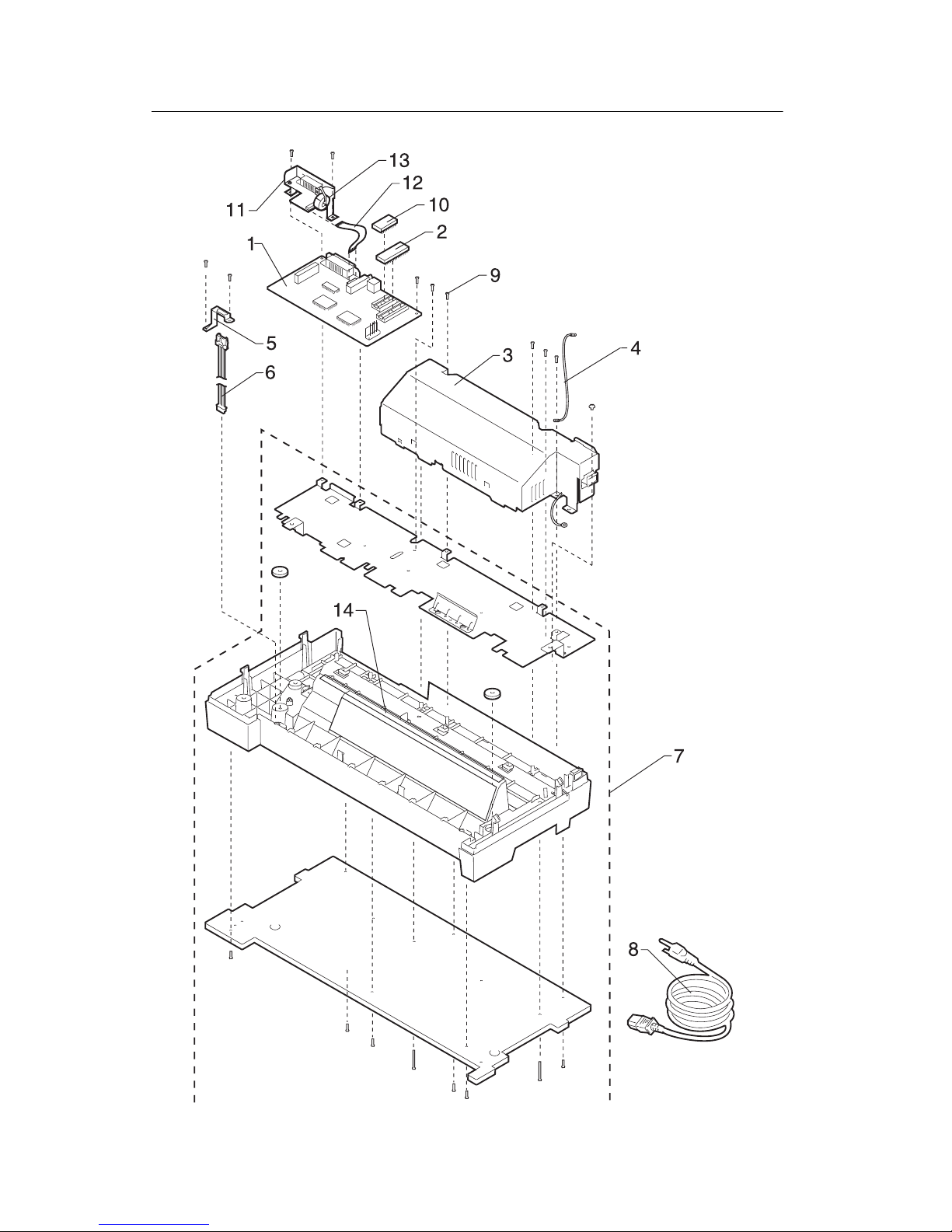

Assembly 4: Base and Electronics
