Lexmark 20T3600 - T 620 B/W Laser Printer Manual de usuario

Lexmark T620 and T622

High-Capacity Output Stacker

Installation Instructions

Instruções de instalação do

empilhador de saída de alta capacidade

Instructions pour l'installation

du réceptacle haute capacité

Installationsanweisungen für das

AblagefachmithoherKapazität

Istruzioni per l'installazione del

raccoglitore ad alta capacità

Instrucciones de instalacióndela

unidad de salida de alta capacidad









 



English

First Edition (January 2001)

The following paragraph does not apply to any country where such provisions are inconsistent with local law:

LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express

or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in later editions. Improvements or changes in the products or

the programs described may be made at any time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make

these available in all countries in which it operates. Any reference to a product, program, or service is not intended to

state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or

service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of

operation in conjunction with other products, programs, or services, except those expressly designated by the

manufacturer, are the user’s responsibility.

Lexmarkis a trademark of Lexmark International, Inc., registeredin the United States and/or other countries.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the

Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and

Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.

High-Capacity Output Stacker Installation Instructions 1

Introduction

The Lexmark High-Capacity Output Stacker gives your printer

additional output capacity by allowing you to print and stack up to

approximately 1,500 sheets of 20 lb paper.

To ensure reliable paper feeding, it is important that you select paper

recommended for use with the printer and that you load it properly.

Refer to the Reference section of your printer

User’s Guide

for information

pertaining to safety and warranty.

High-Capacity Output Stacker Installation Instructions

Unpacking the high-capacity output

stacker

1Remove all items from the box as shown. If any items are missing, contact

the place where you bought the high-capacity output stacker.

2Remove all packing material and tape from each item.

Note: Save the carton and packing material in case you need to repack

the option for service or storage.

3Install the high-capacity output stacker immediately; otherwise, the edges

of the mounting brackets could damage tabletops or fabrics.

Labels

Bracket

Paper

bail High-capacity

output stacker

label

(colored triangle)

bottom side

High-Capacity Output Stacker Installation Instructions 3

Installing the high-capacity output

stacker

1Turn the printer power off and unplug the power cord.

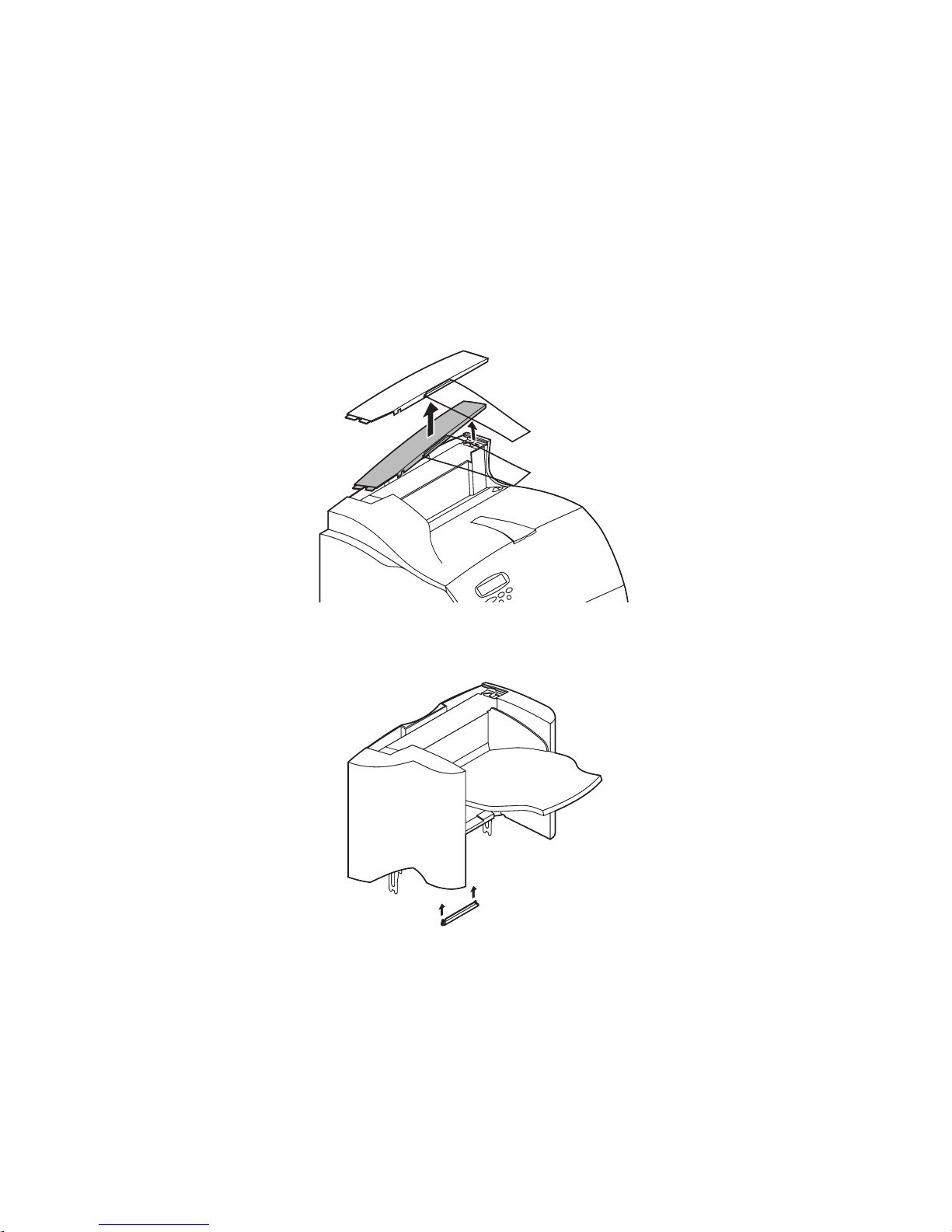

2Remove any previously installed output options or the top cover from the

printer.

3Slide the plastic bracket onto the static brush holder located near the

bottom of the high-capacity output stacker.

High-Capacity Output Stacker Installation Instructions

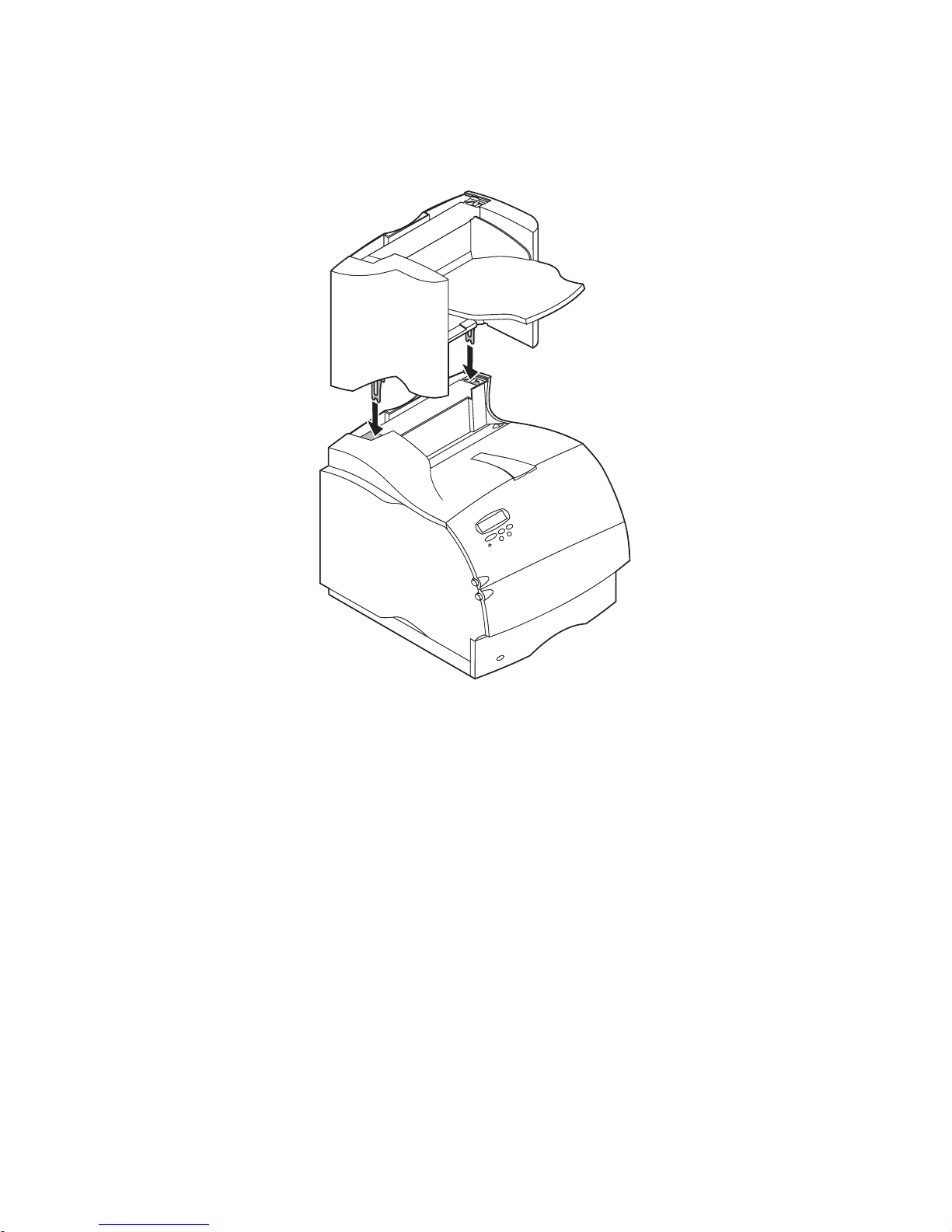

4Install the high-capacity output stacker on the printer.

Note: The high-capacity output stackermust be installed directly onto the

printer, below any other output options.

5Reinstall any output options previously removed.

6Attach the top cover to the topmost output option.

High-Capacity Output Stacker Installation Instructions 5

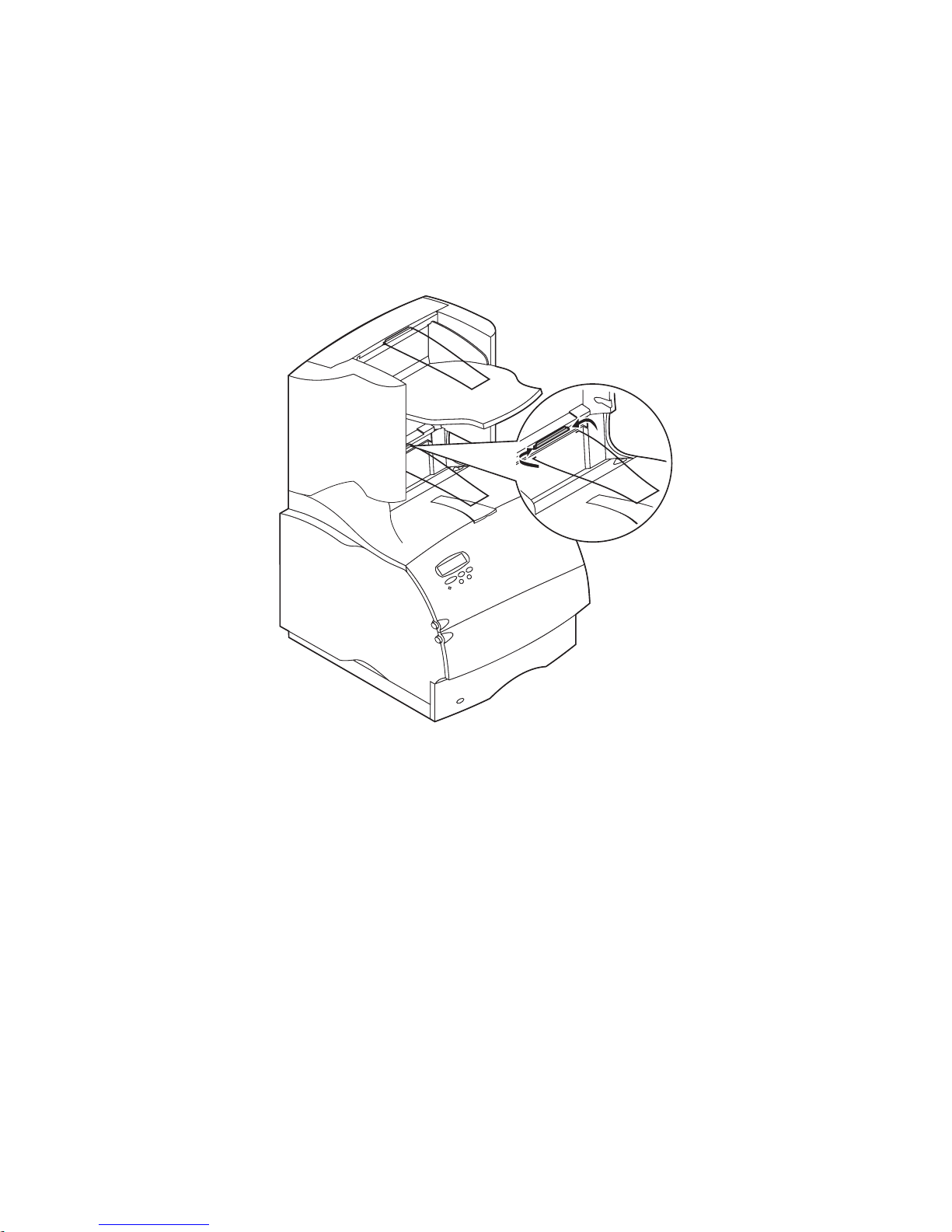

Installing the wire paper bail

Place the tips of the wire paper bail into the ends of the plastic bracket so that

the bail curves downward. The bail should rest in the approximate center of

the printer output bin.

High-Capacity Output Stacker Installation Instructions

Attaching labels to the high-capacity

output stacker

Labels are provided so that you may identify your various output bins. You

may attach the labels to the output bin tray, side cover, or wherever best suits

your application. For easy identification, you may write your own personal

output bin designation onto the label before attaching.

Output bin tray

Side cover
