Don’t Sacriﬁce Your Music or Your Desktop

You care intensely about your music. It’s more than a pastime – it’s a passion.

Lexicon understands your passion and it inspires us to innovate. Brilliantly designed,

I·ONIX ﬁts where it makes the most sense, between your keyboard and monitor. With all

the controls at your ﬁngertips, you’ll wonder why no one ever thought of it before.

The innovation doesn’t stop on the outside. Lexicon partnered with dbx®to

design a new 60V high-voltage, ultra-low noise mic preamp into every input to provide

professional recordings that keep your music sounding its best. The preamps run on

a 60V supply to guarantee headroom and deliver a superior recording across a wide

dynamic range. Ultra high-deﬁnition converters ensure pristine 24-bit/96kHz audio to

capture every subtle nuance of your performance. In fact the inputs are so clear and

transparent, your recordings will have deeper lows , smoother highs, and an overall

fuller sound.

The Lexicon name is synonymous with “the world’s best reverb.” The

Pantheon™II VST/AU reverb plug-in features 6 reverbs types with 16 adjustable

parameters, and 35 factory presets that range from Vocal to Live Sound and Special

Effects. It’s easy to complete your mix and add depth and dimension to any track

with Lexicon’s exquisitely rich, full reverbs.

No compromise performance – ergonomic brilliance. Pure genius.

USB DESKTOP RECORDING STUDIOS

™

U22 / U42S / U82S KEY FEATURES

0USB 2.0 connection to DAW – up to 480Mbps

044.1 to 96kHz sample rates, 24-bit resolution

0Analog ¼” and XLR combi-jack inputs on

the rear panel for mic/line inputs

0dbx®60V high-voltage, ultra-low noise mic

preamp’s on all analog mic/line inputs

0+48V phantom power for each input pair

0Hi-Z instrument input(s)

0Input signal metering via 8 LED’s per channel

0Analog ¼” TRS (Stereo Main) outputs

0High-power ¼” headphone output(s)

0Patent-pending ergonomic design

0Signal mixing and stereo bus signal metering

0Zero latency monitoring

0Low latency ASIO drivers

0Lexicon Pantheon II VST/AU reverb plug-in

0Software suite includes Steinberg®’s Cubase®

LE4, and Toontrack®EZdrummer®Lite

0Supports Windows®Vista/XP and Mac®

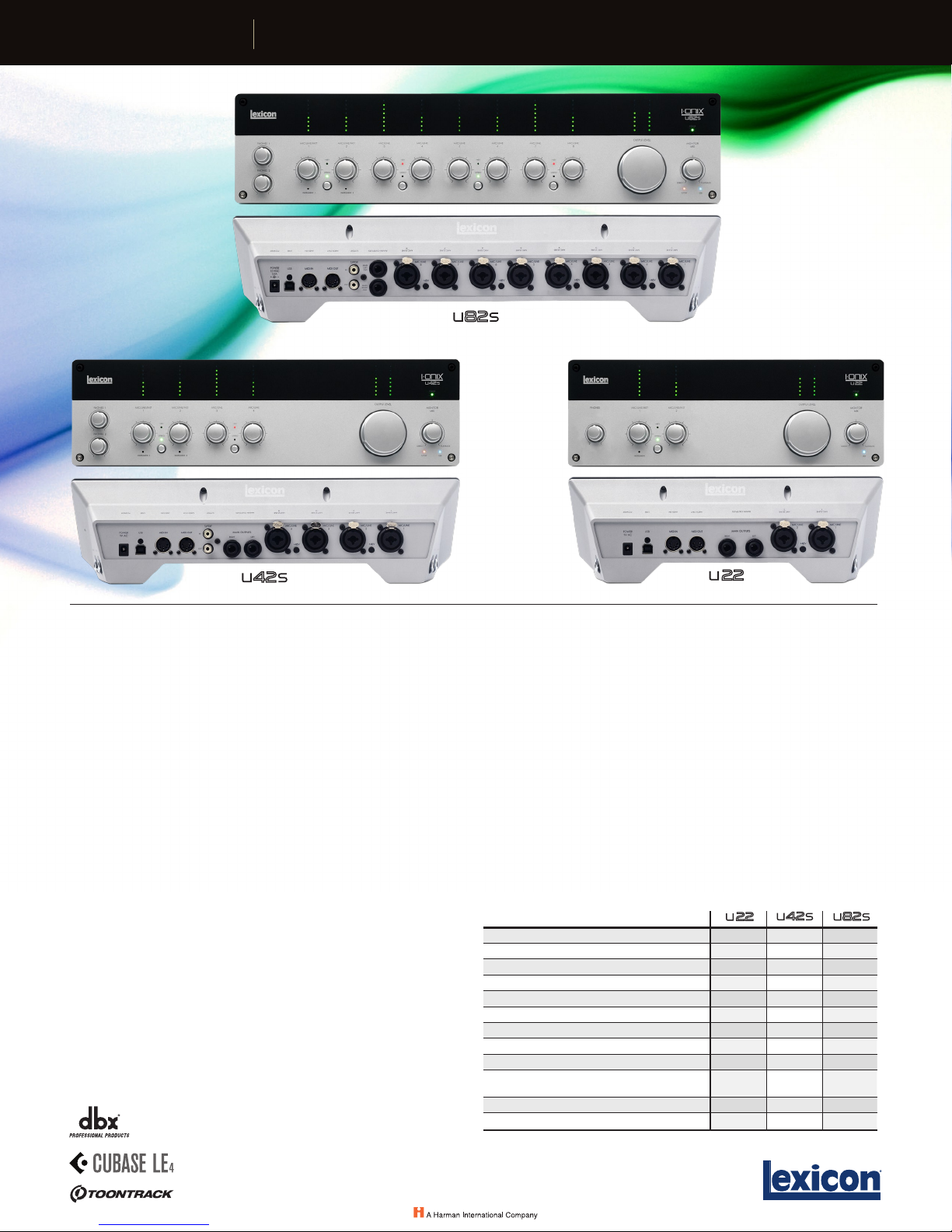

I•ONIX DESKTOP RECORDING STUDIOS U22 /U42S /U82S

lexiconpro.com

MICROPHONE INPUTS: Female XLR Pin 2 Hot

INPUT IMPEDANCE: 3kΩbalanced

PHANTOM POWER: +48 Volts

MAXIMUM GAIN: +58 dB

E.I.N. (AT MAX GAIN): −125 dBu @ 58dB gain typical (150Ωsource)

−128 dBu @ 58dB gain typical A-weighted

(150Ωsource)

MAXIMUM INPUT LEVEL: +20 dBu at minimum input gain

FREQUENCY RESPONSE: +0/−1.0 dB, 20Hz - 20kHz

THD+N: <0.01% 20Hz - 20kHz, +4 dBu input level, +4 dBu output

(mic input to main output)

<0.008% 1kHz, +4 dBu input level, +4 dBu output,

(mic input to main output)

LINE INPUTS: 1/4” TRS balanced or unbalanced

INPUT IMPEDANCE: 20kΩbalanced, 13kΩunbalanced

MAXIMUM INPUT LEVEL: +32 dBu

FREQUENCY RESPONSE: +0/−1.0 dB, 20Hz - 20kHz

THD+N: <0.015%, 20Hz - 20kHz, +4 dBu input level,

+4 dBu output (line input to main output)

<0.005%, 1 kHz, +4 dBu input level, +4 dBu output

INSTRUMENT INPUT: 1/4” TS unbalanced

INPUT IMPEDANCE: 1MΩ

MAXIMUM INPUT LEVEL: +13 dBu

FREQUENCY RESPONSE: +0/−1.0 dB, 20Hz - 20kHz

THD+N: <0.05%, 20Hz - 20kHz, +4 dBu input level,

+4 dBu output, (instrument input to main output)

<0.007%, 1 kHz, +4 dBu input level, +4 dBu output

LINE OUTPUTS: 1/4” TRS balanced or unbalanced

LEVEL: >+18 dBu maximum

IMPEDANCE: 32ΩBalanced, 16ΩUnbalanced

HEADPHONE OUTPUT: 1/4” stereo jack 350mW per channel at 50Ω

MIDI INTERFACE: 5 pin DIN connectors for MIDI in and MIDI out

SAMPLE RATE: 44.1, 48, 88.2, or 96 kHz (determined by computer

application)

DYNAMIC RANGE: A/D (24 Bit) 102 dB typical, A-weighted, 20Hz - 20kHz

D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz

A/D/A (24 Bit) 101 dB typical, A-weighted, 20Hz - 20kHz

POWER REQUIREMENTS: Power adaptors available for

100 – 240 VAC, 50/60 Hz,12 Watts (U22)

100 – 240 VAC, 50/60 Hz,18 Watts (U42S)

100 – 240 VAC, 50/60 Hz, 24 Watts (U82S)

SPECIfICaTIONS

Combi-Jack Analog Inputs 2 4 8

Simult. Recording Sources 2 6 10

dbx 60V Mic Preamps 2 4 8

Hi-Z Instrument Inputs 1 2 2

High-Power Headphone Outputs 1 2 2

1/4” TRS Analog Outputs 2 2 2

44.1 kHz to 96 kHz/24-bit QQQ

Stereo S/PDIF QQ

MIDI I/O QQQ

Pantheon II VST/AU QQQ

Reverb Plug-In

Cubase LE4 QQQ

ToonTrack EZdrummer Lite QQQ

U22 /U42S /U82S I•ONIX DESKTOP RECORDING STUDIOS
