Lewitt MTP 240 DMs Manual de usuario
www.lewitt-audio.com
ADD
MORE
TO
YOUR
POWER
TUNES. MTP 240 DM / DMs
MTP 240 DM / DMs Introduction
Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling
and its proper usage.
Music professionals know that it’s often the smallest details that make all the difference in vocal and instrumental recordings.
With our MTP series, we aim to exceed artists’ and audio engineers’ expectations of reproduction accuracy and isolation of the main sound
source. The new flagships among LEWITT's performance microphones – the MTP 840 DM and the 940 CM are true milestones of audio
technology.
All MTP microphones are professional-quality handheld dynamic and condenser performance microphones have been developed specifically
for the authentic, crystal-clear reproduction of vocals and are also well-suited for instrumental applications.
Customized frequency responses, a rugged construction, high gain before feedback and extremely low handling noise make all models of the
MTP series the perfect fit for any application, any performance and any setting.
LEWITT wishes you a lot of fun and success with this product! 02
MTP 240 DM / DMs The product
The MTP 240 DM and MTP 240 DMs are rugged and exceptionally feedback-safe dynamic cardioid
microphones tuned specifically for vocal applications. Perfectly suited for use in live performances and
ambitious home studio recordings, these dynamic microphones please entry-level vocalists and
professionals alike.
Using state-of-the-art microphone technology, the MTP 240 DM and DMs are engineered to provide
sound reproduction with exceptional clarity and detail. The optional on/off switch (MTP 240 DMs) and a
tough steel-mesh grille that perfectly resists wear and abuse rounds out the models’ features.
MTP 240 DMs MTP 240 DM
03
MTP 240 DM / DMs Features / Top applications
Features
·Optimized frequency response for vocal applications
·Uniform cardioid polar pattern minimizes unwanted background noise
·Easily withstands high sound pressure levels
·Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity
·Highly durable, black all-metal construction, optimized for rough daily touring routine
·Minimally affected by varying load impedance
·The MTP 240 DMs features a convenient, recessed on/off slide switch
·Corrosion-resistant gold-plated 3-pin XLR output connector
·Comes in a cardboard box including MTP 40 MCs shock mount and DTP 40 Lb artificial leather bag
Top applications
·Lead and background vocals
·Live and studio applications
04
Connecting and Disconnecting the Microphone Cable
·Before establishing connection, make sure that the microphone and the component
(e.g. amplifier) are switched off.
·Lower the volume of the component (e.g. amplifier) before connecting the microphone.
·Insert the connector into the microphone socket. Align the key on the connector with
the groove in the microphone, and then push the connector into the microphone until
it clicks.
·To disconnect the cable from the microphone, pull the connector away from the
microphone while depressing the latch lock.
How to Use
·Set the switch to ON when using the microphone, set it to OFF when it is not in use (only
applicable if your microphone has an ON/OFF switch).
·When using the microphone, do not cover any part of the grille with your hand to ensure
best sound quality and accurate directivity characteristic.
MTP 240 DM / DMs Using the mic
05
Hints
1 In order to prevent feedback (howling):
·Lower the volume.
·Place the microphone so that it is not pointed
to the speaker and that there is a sufficient
distance between the microphone and the
speaker.
·Do not cover the lower part of the grille with
your hand.
2 Positioning the microphone close to the
sound source causes the so-called proximity
effect (a boost in the low frequency response). This phenomenon can be used to create a
richer and warmer bass sound.
.
.
175
49.7
Dimensions
Using the mic / Tech data
MTP 240 DM / DMs
06
MTP 240 DM / DMs Tech data
·Acoustical operating principle:
·Directional pattern:
·Frequency range:
·Sensitivity:
·Rated impedance:
·Connector:
·Dimensions:
·Net weight:
dynamic, moving coil
cardioid
60 ... 18.000 Hz
2 mV / Pa (-54 dBV)
< 280 ohms
gold plated 3-pin XLR
49 dia. x 175 mm
1,9 dia. x 6,9 inch
335 g
11,8 oz.

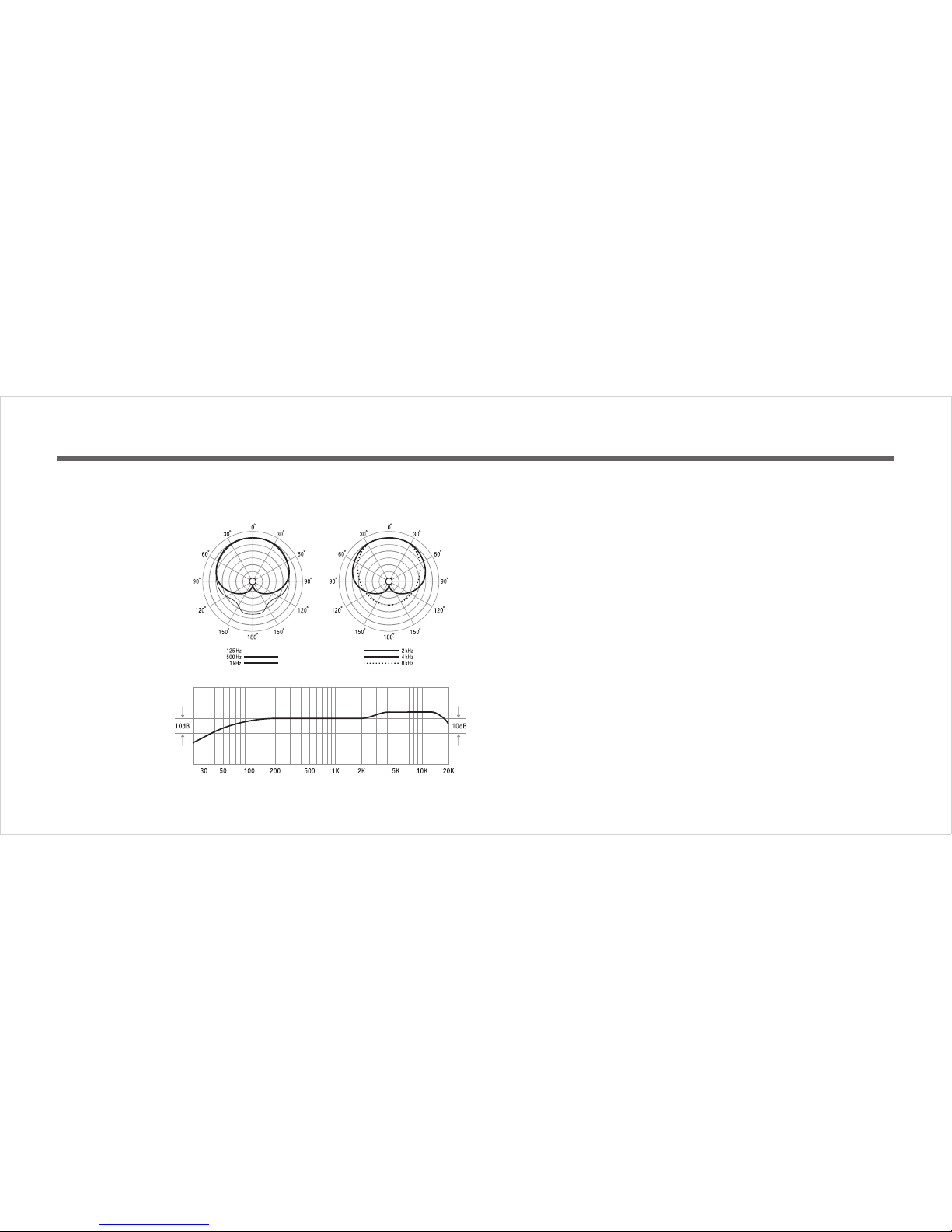

Tech dataTech graph
dB ref 1V Pa . /
5 dB unit /
07
MTP 240 DM / DMs Accessories
Accessories
MTP 40 MCs DTP 40 Lb
08
MTP 240 DM / DMs Cautions
Cautions
·
and force.
·To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
·Keep this product out of the reach of children.
·Do not use force on the switch or cable of the microphone.
·When disconnecting the microphone cable, grasp the connector and do not pull the cable.
·Do not attempt to modify or fix it. Contact qualified service personnel in case any service is needed. Please do not disassemble or modify
the microphone for any reasons as this will void users warranty.
·The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning. If necessary the
foam wind stopper can be washed with soap water. Please wait till it is dry before using it again.
·Also please refer to the owner’s manual of the component to be connected to the microphone.
The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress
09
Warranty
All products manufactured by LEWITT GmbH feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as
shown on your purchase receipt.
LEWITT GmbH shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at LEWITT’s discretion
either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of LEWITT GmbH.
While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To
avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will
not be serviced. Freight charges have to be covered by the owner of the product.
For further information please visit www.lewitt-audio.com or check your warranty card.
MTP 240 DM / DMs Warranty
10
