LevelOne WBR-6804 Manual de usuario

LevelOne

User Manual

Ver. 1.0

WBR-6804

150Mbps Wireless Dual-WAN 3G Router

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or

modifications to this equipment may cause harmful interference unless the

modifications are expressly approved in the instruction manual. The user could

lose the authority to operate this equipment if an unauthorized change or

modification is made.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class B for ITE, the essential protection requirement of

Council Directive 89/336/EEC on the approximation of the laws of the Member

States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this product is in compliance

with the essential requirements and other relevant provisions of Directive

1999/5/EC.

The CE-Declaration of Conformity can be downloaded at:

http://www.levelone.eu/support.php

General Public License

This product incorporates open source code into the software and therefore falls

under the guidelines governed by the General Public License (GPL) agreement.

Adhering to the GPL requirements, the open source code and open source

license for the source code are available for free download at

http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software on a

physical CD medium, LevelOne (Digital Data Communications) offers to mail this

CD to you upon request, for a price of US$9.99 plus the cost of shipping.

Table of contents

CHAPTER 1 INTRODUCTION..............................................................................................5

1.1 PACKAGE LIST............................................................................................................5

1.2 HARDWARE INSTALLATION......................................................................................5

CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY.......................................8

2.1 EASY SETUP BY WINDOWS UTILITY...............................................................................8

2.2 EASY SETUP BY CONFIGURING WEB PAGES............................................................ 13

YOU CAN ALSO BROWSE WEB UI TO CONFIGURE THE DEVICE.................................. 13

CHAPTER 3 MAKING CONFIGURATION ........................................................................ 17

3.1 BASIC SETTING............................................................................................................... 17

3.2 FORWARDING RULES.................................................................................................... 35

3.2.1 VIRTUAL SERVER........................................................................................................ 36

3.2.2 SPECIAL AP.................................................................................................................. 38

3.2.3 MISCELLANEOUS ........................................................................................................ 39

3.3 SECURITY SETTING........................................................................................................ 40

3.4 ADVANCED SETTING...................................................................................................... 47

3.5 TOOL BOX........................................................................................................................ 56

CHAPTER 4 . TROUBLESHOOTING................................................................................ 61

APPENDIX A. SPEC SUMMARY TABLE.............................................................................. 65

APPENDIX B. LICENSING INFORMATION .......................................................................... 66

Default Settings

IPAddress

192.168.1.1

Password

admin

Wireless Mode

Enable

Wireless SSID

LevelOne

Wireless Security

None

Chapter 1 Introduction

The Wi-Fi Combo Router is a high-performance tool that supports wireless networking at home,

work, or in a public place. The Wi-Fi Combo Router supports a USB 3G modem card, either

WCDMAor EVDO and even HSDPA as well, and supports wireless data transfers up to 150M bps,

and wired data transfers up to 100 Mbps. The WiFi Combo Router is compatible with industry

security features.

1.1Package List

WBR-6804

Power Adapter

RJ-45 LAN Cable

Quick Installation Guide

CD Manual/QIG

Antenna

1.2 Hardware Installation

A. Hardware configuration

LED Indicators

Power LED

Antenna

Reset Button

Mobile LED

WAN LED

WiFi LED

LAN LED

WPS Button

B. LED indicators

LED Indicator Description

USB 3G Green and Steady On USB 3G connection is established

Green and Blinking Data packet transferred via USB 3G

Ethernet WAN Green and Steady On Ethernet WAN connection is established

Green and Blinking Data packet transferred via Ethernet WAN

WiFi/WPS

Green and Blinking Data packet transferred via WiFi

Green and Blinking In WPS PBC mode

OFF WiFi radio is disabled

Ethernet LAN 1~4 Green and Steady On Ethernet LAN connection is established

Green and Blinking Data packet transferred via Ethernet LAN

Power JACK

WAN PORT

LAN PORT

USB PORT

LED Indicators

Power LED

C. Installation Steps

Note:

DO NOT

connect the router to power

before performing the installation steps below.

Step 1.

Plug a USB modem into USB port.

Step 2.

Insert RJ45 cable into LAN Port on the back panel of

the router. Then plug the other end of into computer.

Step 3.

Plug the power jack into the receptor on the back

panel of the router. Then plug the other end into a wall

outlet or power strip.

Chapter 2 Getting Started with Easy Setup Utility

There are two approaches for you to set up the Wi-Fi Combo Router quickly and easily. One is

through executing the provided Windows Easy Setup Utility on your PC, and the other is through

browsing the device web pages and configuration.

2.1 Easy Setup by Windows Utility

Step 1

：

Install the Easy Setup Utility

from the provided CD then

follow the steps to configure

the device.

Step 2

：

Select Language then click

“Next” to continue.

Step 3：

Then click the “Wizard” to

continue.

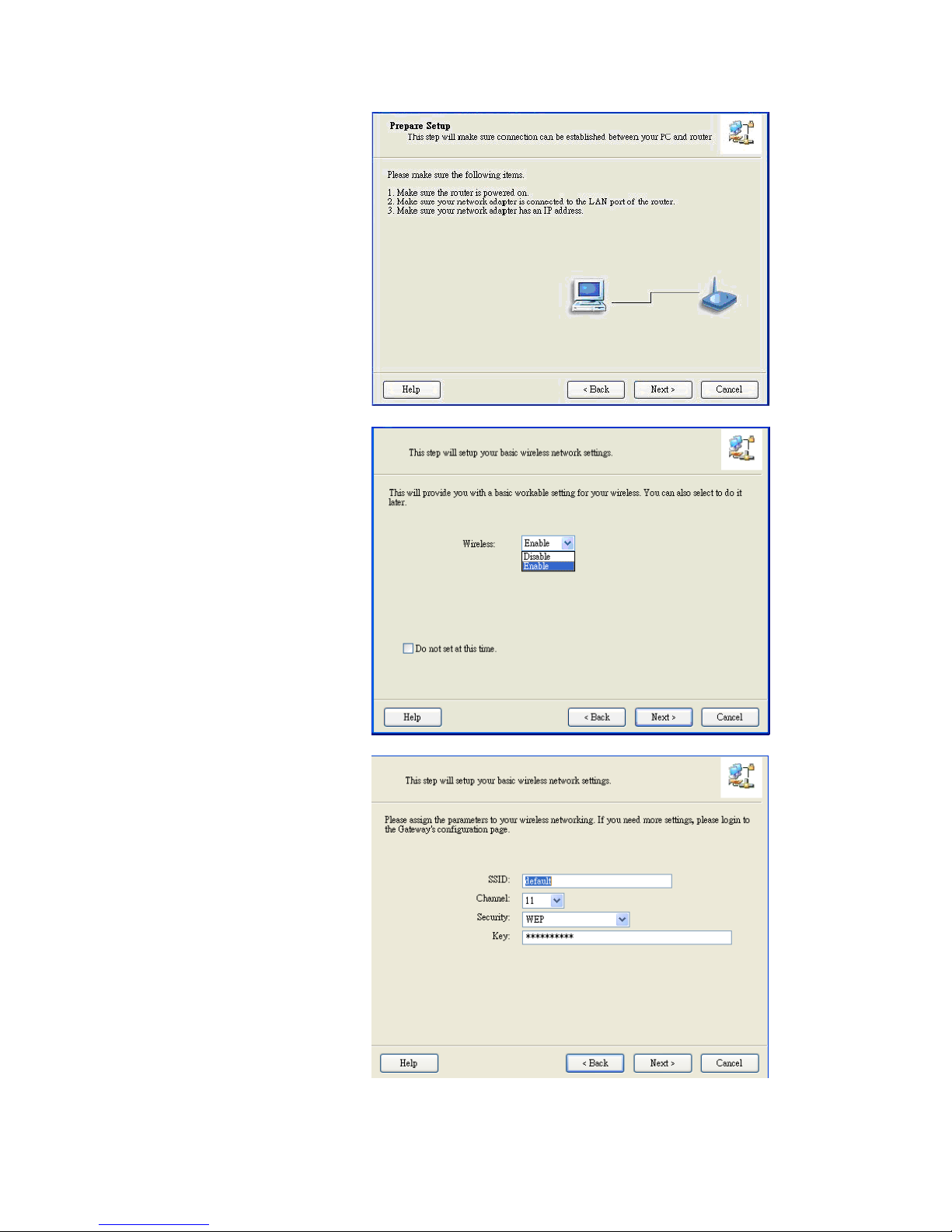

Step 4：

Click “Next” to continue.

Step 5

：

Select Wireless Enable, and

then click “Next” to continue.

Step 6：

Enter SSID, Channel and

Security options, and then

click “Next” to continue.

Step 7：

Click” Let me select WAN

service by myself” to select

WAN service manually.

Step 8：

Select 3G Service by clicking

3G icon to continue.

Step 9-1：

Select “Auto-Detection” and

the Utility will try to detect and

configure the required 3G

service settings automatically.

Click “Next” to continue.
