LevelOne Infinity IES-0510 Manual de usuario

4 FE + 1 MM SC Unmanaged Switch

Quick Installation Guide

IES-0510

4 FE + 1 MM SC Unmanaged Switch

10 to 60, DIN

Quick Installation Guide

10 to 60, DIN

-rail

Quick Installation Guide

v1.00 - 1206

IES-0510 Page 1

Overview

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports

of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC

fiber to enable high speed network at mission-critical

environment. This device is designed to be mounted on an

industry standard DIN-rail, plus the clearly visible status LEDs

provide simple monitoring of port link activity.

Cost Effective

This device operates under -10 to 60 Celsius (-14 to 140

Fahrenheit) temperature that offers optimal suitability for

industrial applications at low cost while maintaining all

components built to withstand harsh environment applications

without compromise reliability and stability.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or configure required, truly

plug and play.

IES-0510 Page 2

Features

•Complies with IEC61000-6-2 EMC Generic standard immunity for industrial

environment.

•Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-

duplex; Auto MDI/MDIX.

•100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM

Single mode SC type.

•Supports IEEE802.1p QoS with two priority queues.

•Supports IEEE802.3az Energy Efficient Ethernet (EEE).

•Support 2048 MAC addresses, 384K bits buffer memory.

•Store-and-forward mechanism.

•Full wire-speed forwarding rate and non-blocking mechanism.

•Broadcast storm filtering.

•Operating voltage and Max. current consumption: 0.2A @ 12VDC, 0.1A @

24VDC, 0.05A @ 48VDC. Power consumption: 2.4W Max.

•Power Supply: DC Terminal Block power input, 12-48VDC.

•Operating temperature ranges from -10℃to 60℃.

•Plastic compact DIN-Rail industrial case design.

Package Contents

IES-0510

Quick Installation Guide

IES-0510

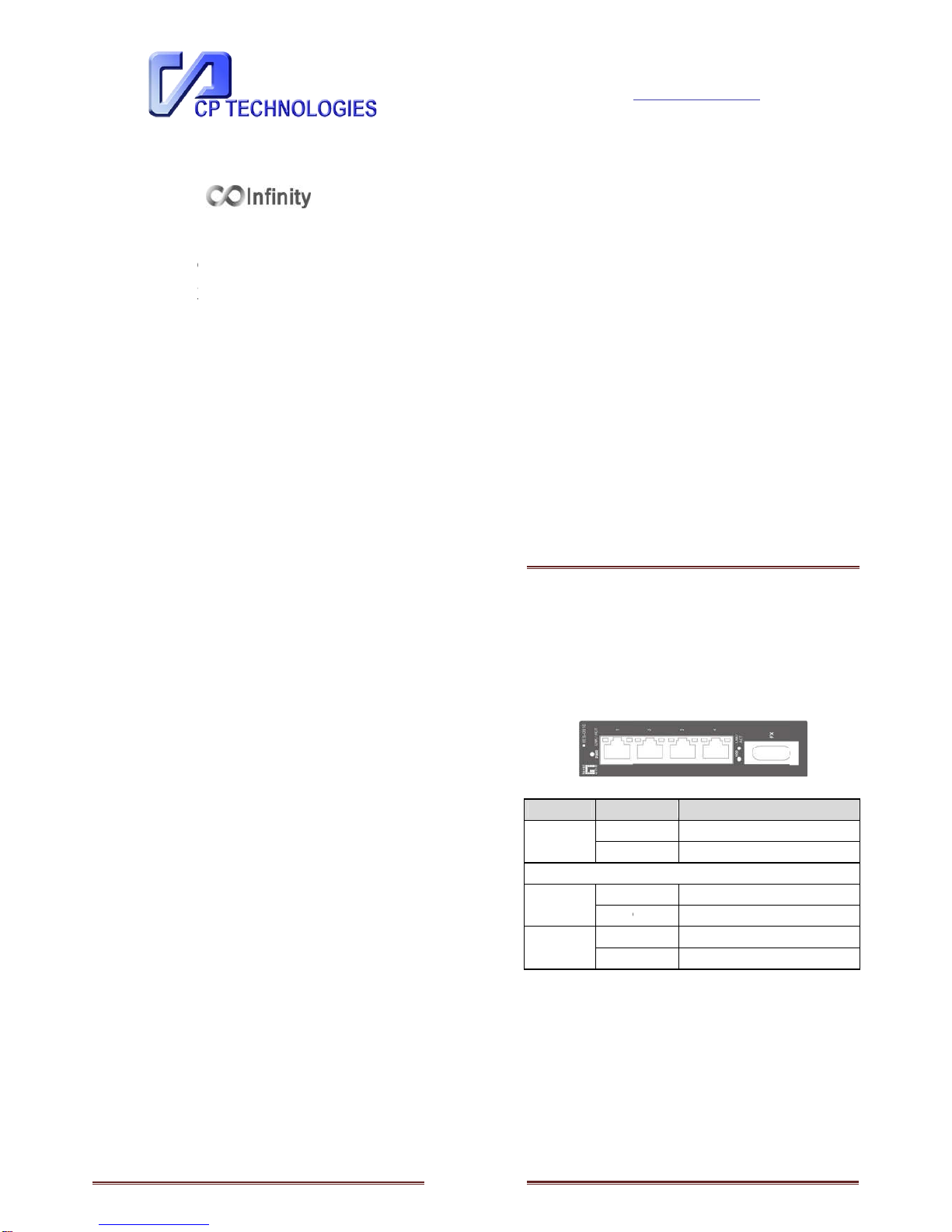

LED Status

LED

Status

PWR

(Green)

Steady

Off

10/100Base

TX or 100Base

LNK/ACT Steady

Flashing

100 Steady

Off

LED Status

Status

Description

Power On

Power Off

TX or 100Base

FX/BX

Network connection is established

Flashing

Transmitting or Receiving data

Connection at 100Mbps speed

Connection at 10Mbps speed

Page 3

Description

Network connection is established

Transmitting or Receiving data

Connection at 100Mbps speed

Connection at 10Mbps speed

IES-0510

Power Input

Terminal Block

PWR

Power Input

GND

Power Ground

Earth Ground

Power Input

12 to 48VDC

Power Ground

Earth Ground

Page 4

IES-0510

DIN Rail Mount

•

Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the

surface until it audibly snaps into place

•Start-

up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

•

Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

DIN Rail Mount

Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the

mounting

surface until it audibly snaps into place

up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

Page 5

Assembly: Place the switch on the DIN rail from above using

mounting

up: Connect the supply voltage to start up the switch

Dismantling: Pull out the lower edge and then remove the

IES-0510

10/100Base

The following lists the

Standard Port

Output Transmit Data +

Output Transmit Data

Input Receive Data +

4 NC

5 NC

6 Input

Receive Data

7 NC

8 NC

10/100Base

TX Connector

The following lists the

pin-out of 10/100Base-

TX ports.

Standard Port

Uplink Port

Output Transmit Data +

Input Receive Data +

Output Transmit Data

Input Receive Data

Input Receive Data +

Output Transmit Data +

Receive Data

Output Transmit Data

Page 6

TX Connector

TX ports.

Input Receive Data +

Input Receive Data

Output Transmit Data +

Output Transmit Data

IES-0510

100Base

WDM 100Base

Connection

FX Connection

The Tx (transmit) port of device I

is connected to the Rx (receive)

port of device II, and the Rx

(receive) port of device I to the

Tx (transmit) port of device II.

WDM 100Base

-BX

Connection

Only one optical fiber is required

to transmit and receive data

Page 7

FX Connection

The Tx (transmit) port of device I

is connected to the Rx (receive)

port of device II, and the Rx

(receive) port of device I to the

Tx (transmit) port of device II.

Only one optical fiber is required

to transmit and receive data
