LevelOne FCS-5053 Manual de usuario

Fixed Network Camera

Hardware User Manual

FCS-5053

Ver. 2013/12/24

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions..................................................................................... 5

Introduction 6

List of Models.............................................................................................. 6

Package Contents...................................................................................... 6

Physical Description................................................................................. 7

Installation Procedures 8

Mount the Camera...................................................................................... 8

Using the Bundled Bracket.............................................................8

Basic Connections....................................................................................11

Connecting a Single Camera....................................................... 11

Connecting Multiple Cameras......................................................12

Accessing the Camera 13

Configure the IP Addresses .................................................................. 13

Using DHCP Server to Assign IP Addresses................................13

Using the Default Camera IPAddress..........................................15

Access the Camera.................................................................................. 17

Other Adjustments and Accessories 20

Adjust Camera Focus ............................................................................. 20

Attach the Sunshield............................................................................... 22

Reset the Camera..................................................................................... 23

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

FCS-5053

Fixed Network Camera, 3-Megapixel, Outdoor, PoE 802.3af,

Day & Night, IR LEDs

Package Contents

Camera

Sunshield

Lens Focus Tuner

Hexagon Screw Kit

Sunshield Screw Kit

Quick Installation Guide

Bracket

Bracket Plate

Hardware Manual

Physical Description

Main View

Back Interior View

1) Ethernet Port

Connects to the network and power source. See Basic Connections on page 11 for more

instructions.

2) Reset Button

Press and hold the Reset button for 5 seconds to reset the camera to its default factory

settings. See Reset the Camera on page 23 for more instructions.

Hardware Manual

Installation Procedures

Mount the Camera

Using the Bundled Bracket

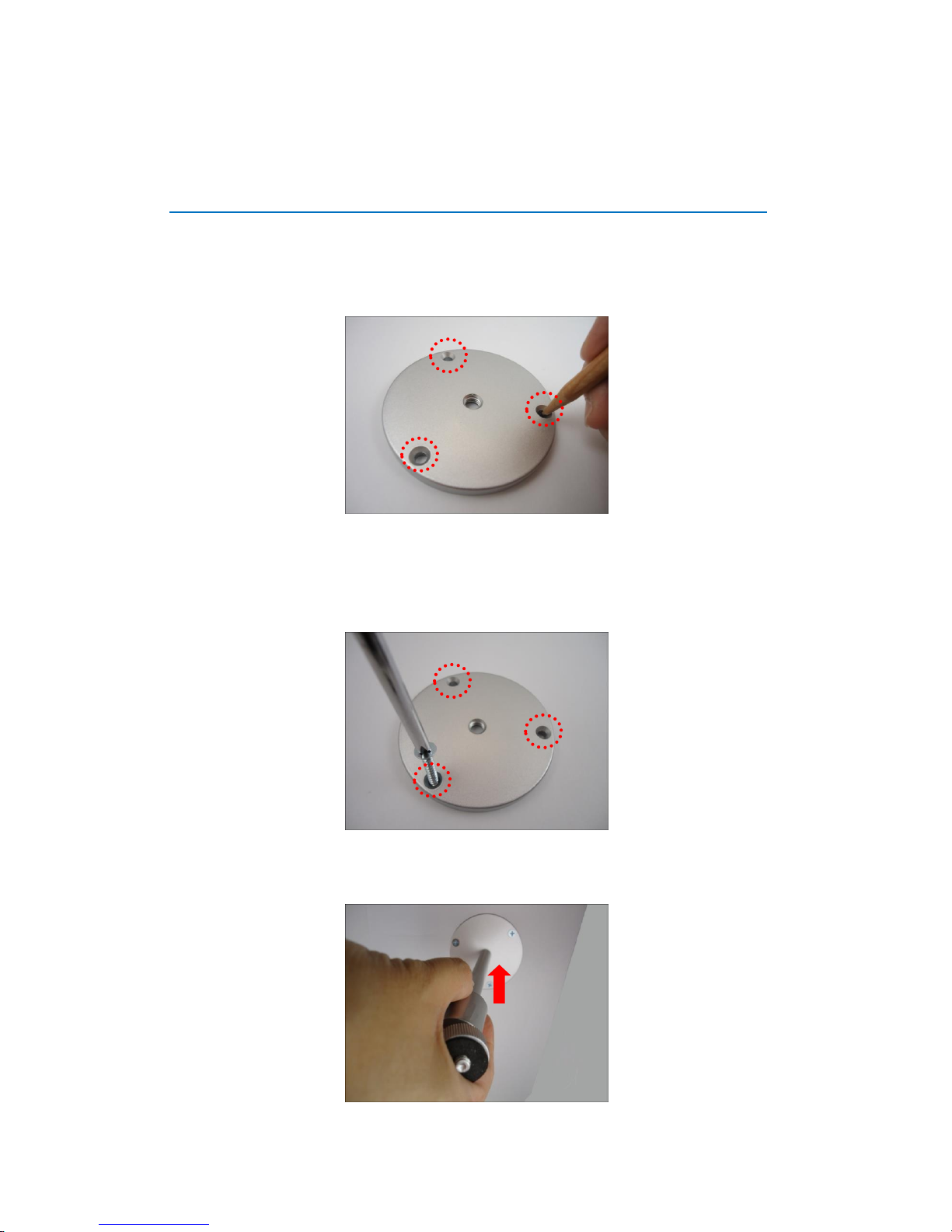

1. Mark the location of the three (3) screw holes using the bracket plate included in the

package.

NOTE: Depending on the surface where you will install the camera, it may be necessary to

drill the holes and use the supplied screw torx

2. Attach the plate to the surface using the three (3) supplied screws.

3. Attach the bracket to the plate.

Hardware Manual

4. Depending on how you want to install the camera, attach the camera to the bracket

through one of the three (3) holes below:

If the camera will be installed indoors and the use of sunshield is not necessary, you may

also use one of the two (2) holes on top of the camera to mount the bracket to the ceiling.

First, remove the pre-installed screw nut using a wrench (not included in the package).

Below is an example of this type of installation.

5. Adjust the camera viewing angle and tighten the knob to fix the camera position.

Depending on the camera angle, you may also need to tighten the two (2) screws using

the star wrench (included in the package) to fix the camera position.

Hardware Manual

6. Connect an Ethernet cable from the network side to the Ethernet port of the camera to

complete the installation. See Basic Connections on page 11 for more information.

NOTES on using Ethernet cables: For outdoor installations, it is recommended to use

exterior-grade Ethernet cables (CAT5/CAT5e/CAT6); ordinary Ethernet cables are only

designed for indoor use and may deteriorate quickly when exposed to outdoor elements.

Exterior-grade Ethernet cables are waterproof and do not require a conduit.

CAUTION: If the camera will be installed outdoors, be sure to waterproof the cable

connection by enclosing it inside a junction box or wrap it using a moisture-sealant tape,

such as 3M PRODUCTS Core Series 4-1000 (not included in the package) or equivalent.

See example below.

Camera Side

Network Side
