LevelOne FCS-3064 Instrucciones de uso

Fixed Network Camera

Hardware User Manual

FCS-3064

Ver.2014/04/02

Hardware Manual

Table of Contents

Precautions.............................................................4

Safety Instructions .................................................................................... 6

Introduction.............................................................7

The List of Models..................................................................................... 7

Package Contents...................................................................................... 7

Physical Description ................................................................................. 8

Before Installation.................................................10

How to Connect DI/Do Devices............................................................... 10

How to Connect Audio Devices.............................................................. 13

Installing the Camera on a Surface.....................14

Step 1: Drill the Holes.............................................................................. 14

Step 2: Open the Dome Cover................................................................ 15

Step 3: Install the Camera to the Surface.............................................. 16

Step 4: Connect the Cable ...................................................................... 17

Step 5: Access the Camera Live View.................................................... 18

Step 6: Adjust the Viewing Angle and Focus ........................................ 18

Step 7: Close the Dome Cover................................................................ 18

Other Adjustments and Accessories ..................20

How to Adjust the Camera Viewing Angle and Focus .......................... 20

FCS-3064 Camera Models ................................................................... 20

Hardware Manual

How to Replace the Dome Cover............................................................ 21

How to Use a Memory Card .................................................................... 25

How to Insert the Memory Card............................................................ 25

How to Remove the Memory Card........................................................ 25

Accessing the Camera .........................................26

Configure the IP Addresses.................................................................... 26

Access the Camera.................................................................................. 30

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the inner parts of video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual

Introduction

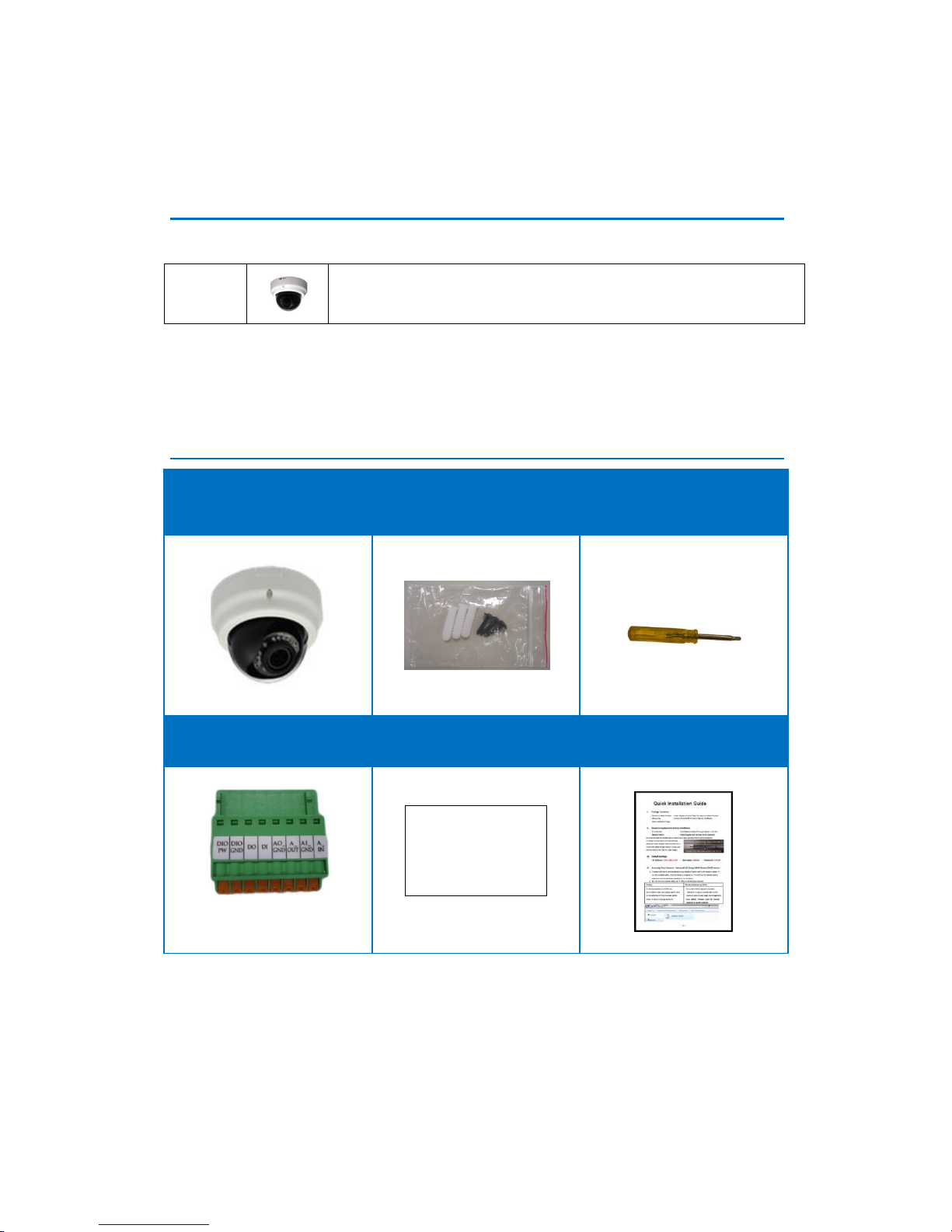

The List of Models

This hardware manual contains the following models:

FCS-3064

Fixed Dome Network Camera, 5-Megapixel, PoE 802.3af, Day & Night,

IR LEDs, WDR

From the installation perspective these models are very similar; therefore you can use one

manual for all of them.

Package Contents

Camera

Mounting Screw Kit

Hexagon Screwdriver

Terminal Block

(for Audio and DI/DO)

Drill Template

Quick Installation Guide

Drill Template

Hardware Manual

Physical Description

FCS-3064

NOTE: Actual camera may slightly differ.

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Use a Memory Card

on page 25 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including

the administrator’s password.

The reset button can be used for following purposes:

The administrator’s password has been forgotten and therefore the camera cannot be

accessed.

1. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to

modify these settings.

2. In case of connectivity issues or abnormal video quality.

Hardware Manual

How to do the reset properly?

Press and hold the reset button for 5 seconds.

4) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic

button, etc., as well as audio input and output devices, such as microphones and speakers.

Digital Input (DI) and Digital Output (DO) devices are used in applications like motion

detection, event triggering, alarm notifications, etc. See How to Connect DI/Do Devices on

page 10 and How to Connect Audio Devices on page 13 for more information.

Hardware Manual

Before Installation

This section describes the procedures in preparing the external devices that you can connect to

the camera. Depending on your surveillance needs, you may connect digital input (DI) or digital

output (DO) or audio input / output devices to your camera. The camera comes with one (1)

terminal block for both digital and audio input / output devices. The use of these devices, however,

is optional.

How to Connect DI/Do Devices

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI

can be triggers of events. For example, you can connect a “panic button” to the camera; as such

when the panic button is pressed, the alarm signal will be sent through the camera. Other

common DI device applications are emergency button, smoke detector, passive infrared sensor,

etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event

inside the camera. For example, you can connect an “alarm horn” to the camera; as such when

an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other

common DO device applications are motion-triggered lights, electric fence, magnetic door locks,

etc.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange

tab to secure the wire.

To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations

below:

Device

Mapping Instructions

Digital Output (DO)

DIO PW

Connect the wires of the output device to DIO PW and

DO.

Digital Input (DI)

DIO GND

Connect the wires of the input device to DIO GND and

DI.

For Audio Use
