LevelOne
DVI Broadcaster Series
ADE-8001
ADE-8002
ADE-8011
ADE-8201
ADE-8202
ADE-8204
ADE-8208
User Manual
V 1 0
Introduction
Thank you for purchasing LevelOne DVI broadcaster series products. This DVI broadcaster
extends your DVI-D and audio signal over Cat / e/6 and 4-wire phone cable. If you are
using short range receiver (ADE-8001) to receive the DVI-D signal, the extended distance
is up to 1 m with 1024x768 resolution; and if using long range receiver (ADE-8002), the
extended DVI-D distance can reach the distance up to 70m with 1024x768 resolution. You
can use the audio receiver to extend audio over 4-wire phone cable to provide a multimedia
broadcasting.
Take the advantage of Cat / e/6 cable, LevelOne DVI broadcaster series can simplify the
installation, extend the AV signal, and centralize the multimedia server. Many nice features
have been designed into these units, the single-port transmitter (ADE-8201) is the smallest
one in the world and can connect to DVI port without using another DVI cable. For single
port receiver (ADE-8002), you can fix the unit very easily through its magnetic pad and
metal plate. The multi-port unit(ADE-8202/8204/8208) is the first multi-port DVI extender
over Cat / e/6, it allows you to extend DVI signals with reasonable cost and easy
installation.
LevelOne DVI broadcaster series is the perfect solution for malls, plazas, stations and
supermarkets to display high resolution and crystallized images. It’s easy to maintain and
reduce installation cost.
Key Features
1. Multiply one DVI-D and audio source to 2/4/8 DVI-D and audio outputs over Cat / e/6
and 4-wire phone cable.
2. Video Amplifier Bandwidth: 1.6 GHz
3. Effective DVI-D extended distance and resolution for multi-port DVI Broadcaster:
DVI Input: transmitting over standard DVI cable up to 10 meters
DVI Output: transmitting over standard DVI cable, DVI resolution
1920x1200@10m.
RJ4 Output with ADE-8001: transmitting over Cat / e/6 cable, maximum DVI
resolution 800x600@20m, 1024x768@1 m, 1280x1024@10m
RJ4 Output with ADE-8002: transmitting over Cat / e/6 cable, maximum DVI
resolution 800x600@80m, 1024x768@70m, 1280x1024@60m, 1920x1200@3 m
4. DVI Input/Output Connector: Type DVI-I, supports only DVI-D digital video signal
. Audio type and distance: Stereo can be transmitted over 4-wire phone cable over 100
meters. (Audio function not included in ADE-8201, so you will need to purchase a pair of
ADE-8011 to extend the audio source.)
6. Input for one DVI-D + audio, output for one DVI-D + audio connection and 1/2/4/8 sets
of RJ-4 and RJ-11 connections to transmit DVI-D and audio signal using Cat / e/6 and
4-wire phone cable. (Audio function not included in ADE-8201)
7. RJ-4 to DVI-D receiver (ADE-8001 or ADE-8002) to receive the DVI-D signal from
Cat / e/6 cable, and RJ-11 Audio Transmitter/Receiver (ADE-8011) to receive the audio
signal from 4-wire phone cable (Audio function not included in ADE-8201)
8. Transmitter builds in DVI monitor’s EDID simulation, computer can boot up DVI signal
without connecting local monitor, initial pre-set range of frequency up to 1920x1200
9. LED status to indicate the DVI activity
10. Stackable capacity to expand the AV broadcasting
11. Provides magnetic pad and attachable metal plate for ADE-8002 to ease the installation
Panel Description
1. ADE-8201 1-Port DVI Transmitter
2. ADE-8202 2-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-4 DVI output
AUDIO OUT : RJ-11 Audio output
1
2
4
3
1. Connect to PC’s DVI Port
2. Power indicator (Orange LED)
3. Active (Green LED)
4. RJ-4 DVI-D output
3. ADE-8204 4-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-4 DVI output
AUDIO OUT : RJ-11 Audio output
4. ADE-8208 8-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-4 DVI output
AUDIO OUT : RJ-11 Audio output

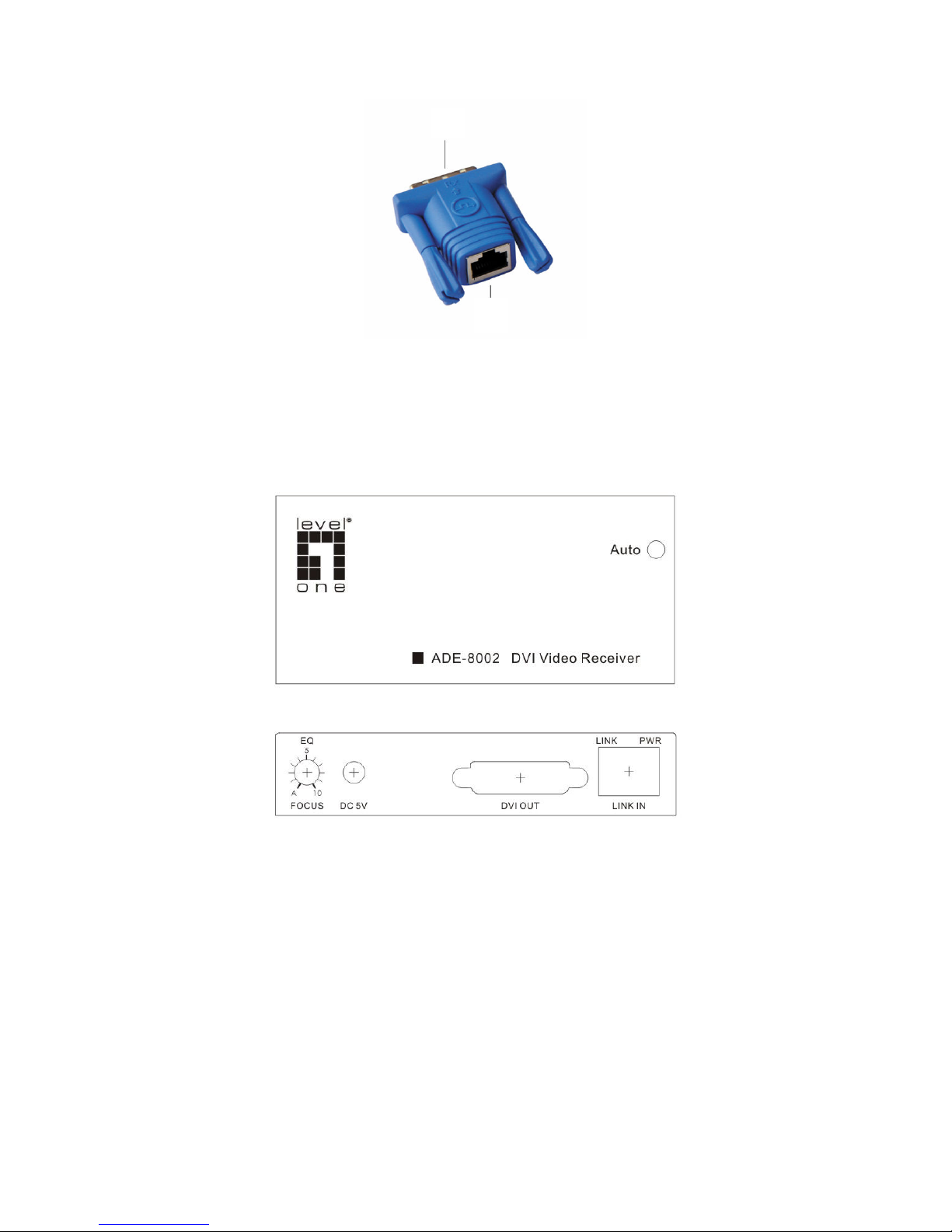

. ADE-8001 DVI-D Short Range Receiver
6. ADE-8002 DVI-D Long Range Receiver
Auto : Auto EQ is selected
FOCUS : EQ adjust (Auto or manual)
Power Jack : Connect to power adapter
DVI OUT : Connect to monitor or projector
LINK LED : DVI activity
PWR LED : Power indicator
LINK IN : RJ-4 DVI input
1
2
1. DVI output (To monitor)
2. RJ-4 DVI input
7. ADE-8011 Audio Transmitter/Receiver
1
2
1. Connect to audio jack
2. RJ-11 audio input/output
Installation and Operation
1. Install Single-Port Transmitter ADE-8201 and DVI Signal Receiver ADE-8001/8002:
(1) Basic Function Test: In the beginning, please connect your DVI monitor to your PC
or DVI player to confirm the basic display function and remain these devices turned
on for next installation sequence.
(2) Install Single-Port Transmitter ADE-8201: Please connect ADE-8201 to your PC or
DVI player’s DVI output port while the device is turned ON, the LED of ADE-8201
should all turn ON, the orange LED indicates the power ON status and the green
LED indicates the DDC2B activity of DVI port. Please notice that the ADE-8201 has
pre-set an EDID with a maximum DVI supporting frequency of 1920x1200 and can
simulate the behavior of DVI monitor, so the PC’s DVI port will remain activate even
when you re-boot the PC without plug actual DVI monitor.
Connect ADE-8201 to PC
(3) Install ADE-8001: Please connect ADE-8001 to your DVI display device’s DVI port
directly. The DVI monitor can be PDP, LCD TV, projector or LCD. The supported
DVI resolutions are 800x600@20m, 1024x768@1 m, 1280x1024@10m.
Connect Short Range Receiver ADE-8001 to DVI Monitor
(4) Install ADE-8002:
A. Plug power adaptor to ADE-8002, the orange LED above RJ-4 should be
ON to indicate the power on status. The other LED should turn off, since
there is no input of video signal from “LINK IN” port.
B. The “Auto” led in the front panel will turn ON as the EQ/FOCUS control switch
to the left end and the EQ/FOCUS will stay on AUTO, this will not function
until the receiver received video signal from “LINK IN” port.
C. Connect DVI monitor’s DVI cable to the receiver.
Connect ADE-8002 to DVI Monitor by DVI Cable
( ) Selection of Cat / e/6 cable: You may use most of current Cat / e/6 cables, and
since the quality varies, we do encounter some cables not perform well, even it is
expensive. Therefore, please test your current cables before you install the devices
on the site. For some environment need to prevent potential interference, the FTP
type cable is recommended. The connector must be made by 68B- 68B type.
The EIA/TIA definition of 68B in the pin assignment is (1)orange white, (2)orange,
(3)green white, (4)blue, ( )blue white, (6)green, (7)brown white, and (8)brown.
(6) Connect Cat / e/6 cable: Plug two ends of cable to Transmitter and Receiver’s
RJ-4 port, the monitor connected to the Receiver should display now and the
green LED above ADE-8002’s RJ-4 port should be ON to reflect the DVI signal
activation. For ADE-8002, you can manually adjust the EQ/FOCUS to have the best
display quality. The displayed DVI resolution will also relate to the distance been
extended, it will be better to test prior actual installation and should not exceed the
suggested frequency and corresponding distance.
Connection of Single-Port DVI-D Extender
(7) Extends Audio Signal: There is no audio function on ADE-8201, so you need to use
a pair of ADE-8011 to extend the audio and the cable using is 4-wire phone cable
and two ends of the cable should be made by straight RJ-11 connector.
Extended Connection of DVI-D with Audio
ADE
-
8011
ADE
-
8011
ADE
-
8
20
1
