LevelOne WUA?0606 Manual de usuario



WUA‐0606

150MbpsWirelessUSBAdapter



UserManual



V1.0

TableofContents

Chapter1ProductIntroduction ..............................................................1

1.1PACKAGECONTENTS..........................................................................1

1.2LEDINDICATORDESCRIPTION..............................................................1

1.3PRODUCTFEATURES ..........................................................................2

1.4PRODUCTUSAGE..............................................................................2

1.5BEFOREINSTALLATION .......................................................................3

1.6DISABLEOTHERMANUFACTURERS’WIRELESSNETWORKADAPTERS ...............3

1.7PRODUCTMAINTENANCE ...................................................................4

Chapter2InstallationGuide ...................................................................5

2.1HARDWAREINSTALLATION ..................................................................5

2.1.1InstalltheUSBnetworkadapter............................................. 5

Chapter3HowtousetheWindowsBuilt‐inWirelessConfiguration........9

3.1WIRELESSNETWORKCONNECTIONUNDERWINDOWSXP..........................9

3.2WIRELESSNETWORKCONNECTIONUNDERVISTA ..................................13

3.3WIRELESSNETWORKCONNECTIONUNDERWINDOWS7..........................16

Chapter4ClientWirelessUtility ...........................................................18

4.1STATIONMODE(CLIENTMODE).........................................................18

4.1.1SiteSurvey ............................................................ 19

4.1.2LinkInformation.................................................... 22

4.1.3Profile.................................................................... 24

4.1.4Advanced............................................................... 33

4.1.5About .................................................................... 34



4.2APMODE .....................................................................................34

4.2.1ConfigAP ............................................................................. 37

4.2.2Advanced ............................................................................. 38

4.2.3AccessControlList ............................................................... 39

4.2.4AssociateList ....................................................................... 40

4.2.5APModeunderWindows7................................................ 41

Appendix1:AcronymsandTerms .........................................................42

Appendix2:HowtoSetWPS ................................................................43

Appendix3:FAQ ...................................................................................51

Appendix4:Safety ...............................................................................55



-1-

Chapter1ProductIntroduction

ThankyouforchoosingthisLevelOnewirelessadapter!

TheLevelOneWUA‐0606isa11NwirelessUSBnetworkadapterwithupto

150Mbpswirelesstransmissionrate.ItcomplieswiththelatestIEEE802.11n

standard,andiscompatiblewith802.11b/gwirelessdevices.Withminiand

exquisitedesign,itiseasytocarryalong.ItsupportsWPSencryptionmethod

toquicklyimplementwirelessencryptionandsecurenetwork;supports

WMMtobettersmoothvideoandsound;supportsWindows7,Vista,

WindowsXP,Windows2000,MACOS,Linuxoperationsystemsetc.

Inconclusion,WUA‐0606isahigh‐performanceandcost‐effective11N

wirelessUSBnetworkadapterwithgoodsignal,longtransmissionrangeetc.

1.1PackageContents

¾WUA‐0606USBAdapter

¾QuickInstallationGuide

¾CDManual/Driver/Utility



Theabovelistisforyourreferenceonly,theactualcontentsmaydiffer

accordingtotheproductyoupurchase.

1.2LEDIndicatorDescription

ThereisonestatusLEDindicatoronthesideofthewirelessnetworkadapter.

ItlightsupandstaysONwhenworkingcorrectly,andflasheswhen

transferringdata.

-2-

1.3ProductFeatures

¾Supports150Mbpsreceivingandsendingrate

¾ComplieswithIEEE802.11nandiscompatiblewithIEEE802.11b/g

standards

¾Supports20MHz/40MHzfrequencywidth

¾Detectswirelessnetworkandadjuststransmittingrateautomatically

¾Providestwoworkingmodes:InfrastructureandAd‐Hoc

¾SupportsWEPdataencryptionandWPA‐PSK/WPA2‐PSKencryption

methods

¾SupportsWPS(Wi‐FiProtectedSetup)encryptiontosecureyour

wirelessnetwork

¾ComplieswithWindows2000/XP/Vista/7.



1.4ProductUsage

TheWUA‐0606WirelessUSBAdapteroffersafast,reliableandextendable

solutionforwirelessaccess.

Itismostlyusedinthefollowingcircumstances:



1.Enablesstaffmemberswhorequiregreatermobilityintheofficetohave

accesstowirelessnetworksanywhereinsidetheircompany.

2.Enableswirelesscommunicationforcompaniesorplaceswhicharenot

suitableforwiredLANinstallationbecauseofbudgetorbuildingenvironment

restrictions,suchashistoricalbuildings,rentals,orplacesforshort‐term

usage.

3.Suitsbusinessesorindividualwhooftenchangesnetworktopology.

4.Suitscompanyorindividualwhowouldliketoavoidusingexpensive

cablesorrentinglinesetc.

1.5BeforeInstallation

1.Pleaseperusethisuserguidebeforeyouinstallandusetheproduct.

2.Pleasecloseoruninstalltheconfigurationprogramsofother

manufacturers’beforeyouinstalltheconfigurationprogramsofWUA‐0606

MatoavoidpossibleUIcollision.

3.InordertoavoidpossiblenetworkcollisionbetweenthisLevelOnenetwork

adapterandthoseofothermanufactures,werecommendyoutofirst

disablethenetworkofothermanufacturerwheninstallaingdrive.



1.6Disableothermanufacturers’wirelessnetworkadapters

1.Rightclick“MyComputer”andselect“Manage”



-3-

2.OntheComputerManagementscreen,select“DeviceManager”－

“Networkadapters”,andrightclickthenetworkadapteryouwanttodisable

andclick“Disable”



3.Clickthe“Yes”buttononthedialogueboxtodisablethenetworkadapter.



1.7ProductMaintenance

1. Pleasekeeptheproductawayfromwaterandhumidenvironmentto

guaranteeitsnormalperformance

2. Protectitagainsthazardoussubstances(suchasacids,alkalisetc).

3. Pleasedon’tdirectlyexposetheadaptertothesunlightorexcessive

heat.

4. PleasecontactLevelOnetechsupportifanyproblemsoccur.

-4-

Chapter2InstallationGuide

Thischapterwillguideyouthroughtheprocessofinstallingthenetwork

adaptersoftwarepackage,withtheincludedsoftwareCD.Thepackage

integratesdriverandconfigurationsoftware.Thus,whenyouareinstalling

thedriver,theconfigurationsoftwarewillbeinstalledautomaticallyaswell.

Thesoftwareinstallationstepsandoperatingguideinthisuserguideare

explainedunderWindowsXP,Installationstepsforotheroperatingsystems

aresimilar.

2.1HardwareInstallation

2.1.1InstalltheUSBnetworkadapter

PleaseinserttheWirelessUSBAdapterintotheUSBportofyourcomputer.



-5-

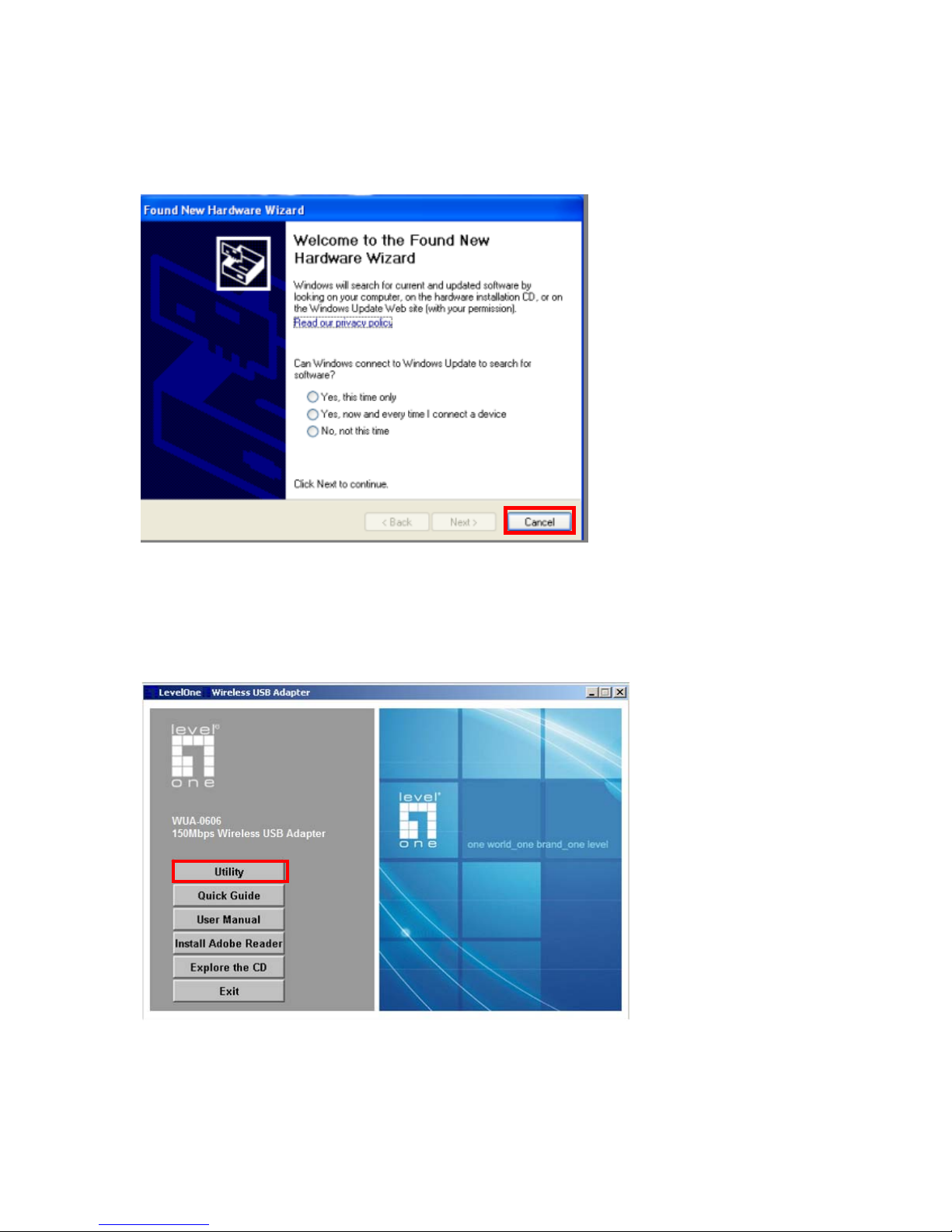

2.2.WhenThe“FoundNewHardwareWizard”systemdialoguepopsup,

werecommendthatyouselect“Cancel”andusetheincludedSetupWizard

softwareCDforfastinstallation.



2.3InserttheincludedCDintotheCDdriveofyourcomputertoauto‐runthe

program.(Ifitdoesn’tauto‐run,pleasedoubleclick“Setup.exe”intheCD,).

Whenthebelowscreenappearsclick“Utility”button.

-6-



2.4Select“Iacceptthetermsofthelicenseagreement”andclick“Next”.



-7-



2.5Twosetuptypesareprovided:oneis“InstalldriverandLevelOneWLAN

ConfigTool”,theotheris“Installdriveronly”.Werecommendyoutousethe

defaultinstallationmethod.click“Next”


