LevelOne WUA-1610 Manual de usuario

WUA-1610, WUA-1610H

300Mbps Wireless USB Adapter

User Manual

V1.0

Table of Contents

Chapter 1 Introduction ...................... 1

1.1 PACKAGE CONTENTS .........................................................1

1.2PRODUCT FEATURES..........................................................1

1.3LED INDICATOR DESCRIPTION..............................................2

1.4 PRODUCT USAGE .............................................................2

1.5 BEFORE INSTALLATION .......................................................2

1.6 DISABLE OTHER MANUFACTURERS’WIRELESS NETWORK ADAPTERS .3

1.7 PRODUCT MAINTENANCE ...................................................4

1.8WORKING ENVIRONMENT ..................................................5

1.9 SYSTEM REQUIREMENTS.....................................................5

Chapter 2 Installation Guide .............. 5

2.1 HARDWARE INSTALLATION................................................6

2.2 DRIVER AND SOFTWARE INSTALLATION....................................6

Chapter 3 System configuration....... 12

3.1 GENERAL .....................................................................13

3.2PROFILE.......................................................................13

3.3LINK INFORMATION.........................................................23

3.4ADVANCED ...................................................................25

Appendix 1: FAQ .............................. 27

-1-

Chapter 1 Introduction

Thank you for choosing this LevelOne wireless adapter!

The LevelOne WUA-1610 / WUA-1610H 300Mbps Wireless USB Adapter

complies with the most advanced IEEE802.11n standards, and is also

compatible with IEEE802.11 b/g/n wireless devices. The WUA-1610 /

WUA-1610H 300Mbps Wireless USB Adapter includes an easy-to-use

configuration that discovers available wireless networks wherever you go.

1.1 Package Contents

WUA-1610 / WUA-1610H

2dBi Antenna x 2 ( WUA-1610 )

5dBi Antenna x 2 ( WUA-1610H )

USB Cable

Quick Installation Guide

CD Manual / QIG / Utility

1.2 Product Features

Upgrades your wireless network up to 300Mbps

Provides 2dBi detachable antenna (WUA-1610)

Provides 5dBi detachable antenna (WUA-1610H)

Provides Wi-Fi protected setup (WPS) configuration

Quick and easy installation

Compatible with IEEE802.11b/g/n wireless standards

Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high

level security

USB 2.0 interface

Supports Window XP/Vista/7

-2-

1.3 LED Indicator Description

There is one status LED indicator on the side of the wireless network adapter.

It lights up and stays ON when working correctly, and flashes when

transferring data.

1.4 Product Usage

The WUA-1610 / WUA-1610H Wireless USB Adapter offers a fast, reliable and

extendable solution for wireless access.

It is mostly used in the following circumstances:

1. Enables staff members who require greater mobility in the office to have

access to wireless networks anywhere inside their company.

2. Enables wireless communication for companies or places which are not

suitable for wired LAN installation because of budget or building environment

restrictions, such as historical buildings, rentals, or places for short-term

usage.

3. Suits businesses or individual who often changes network topology.

4. Suits company or individual who would like to avoid using expensive

cables or renting lines etc.

1.5 Before Installation

1. Please peruse this user manual before you install and use the product.

2. Please close or uninstall the configuration programs of other

manufacturers’ before you install the configuration programs of WUA-1610 /

WUA-1610H Mato avoid possible UI collision.

3. In order to avoid possible network collision between this LevelOne

network adapter and those of other manufactures, we recommend you to

first disable the network of other manufacturer when installaing drive.

-3-

1.6 Disable other manufacturers’ wireless network adapters

1. Right click “My Computer” and select “Manage”

2. On the Computer Management screen ,select“Device Manager” －

“Network adapters”, and right click the network adapter you want to disable

and click “Disable”

-4-

3. Click the “Yes” button on the dialogue box to disable the network adapter.

1.7 Product Maintenance

1. Please keep the product away from water and humid environment to

guarantee its normal performance

2. Protect it against hazardous substances (such as acids, alkalis etc).

3. Please don’t directly expose the adapter to the sunlight or excessive

heat.

4. Please contact LevelOne tech support if any problems occur.

-5-

1.8 Working Environment

Temperature :

Operating Temperature：0℃~40℃

Storage temperature：-20℃~70℃

Humidity :

Operating Humidity：10% ~ 90% RH (non-condensing)

Storage Humidity：5% ~ 95% RH (non-condensing)

1.9 System Requirements

►Available USB 2.0 slot

►300 MHz processor and 32 MB of memory

►CD-ROM drive

►An 802.11 b/g/n access point (for Infrastructure Mode) or another 802.11

b/g/n wireless adapter (for Ad Hoc; Peer-to-Peer networking mode.)

►Microsoft® Windows® 7, Vista™, XP

Chapter 2 Installation Guide

This chapter will guide you through the process of installing the network

adapter software package, with the included software CD. The package

integrates driver and configuration software. Thus, when you are installing

the driver, the configuration software will be installed automatically as well.

The software installation steps and operating guide in this user guide are

explained under Windows XP, Installation steps for other operating systems

-6-

are similar.

2.1 Hardware Installation

Plug the USB Wireless Adapter into an available USB port on your computer,

and the Found New Hardware Wizard (windows 7) screen will appear; Close

the wizard, then clicks the following steps to install

2.2Driver and Software Installation

Installation

1. Insert the CD into the CD-ROM drive on your PC. The autorun program should

start automatically. If it does not, please run autorun.exe under your CD-ROM

drive. In the autorun screen, click Utility to begin the software installation.

2. Click “Next” to continue.

-7-

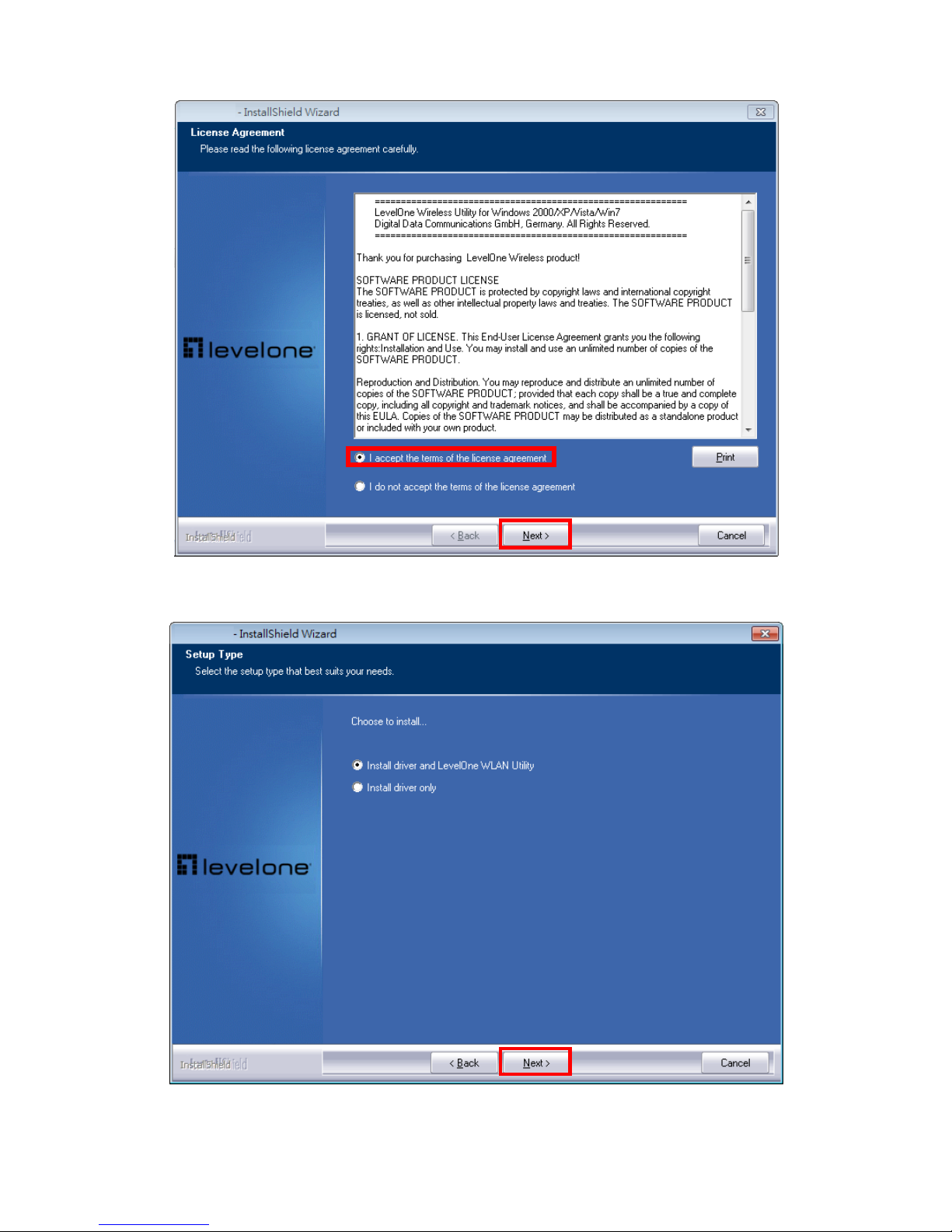

3. Click “Next” to continue.

-8-

4. Click “Next” to continue.

5. In Windows Vista / 7, the follow message may appear. Please click “Install

this driver software anyway.”

6. Please click “Finish” and restart your computer.
