Lenovo SE350 Guía rápida
1
Configuration Installation Guide
Bookshelf Configuration
This document provides important information for installing and removing the bookshelf configuration.
Install the bookshelf configuration
To install the bookshelf configuration, complete the following steps.
Note: Reserve 500 mm empty space in front of the node so that you can have sufficient space to install and remove the node.
1. If you would like to stack your nodes, complete the following steps.
Hook the six T-pins into place and slide the node sleeve backward.
Fasten the thumbscrew.
Repeat step and step to stack your node sleeves.
Note: Bookshelf supports up to three node stacks.
2. Align the right bookshelf with the node sleeve and slightly push the bookshelf leftward to hook the six T-pins into place; then,
fasten the two screws.
2
3. Align the left bookshelf with the node sleeve and slightly push the bookshelf rightward to hook the six T-pins into place; then,
fasten the two screws.
4. Align the node with the node sleeve and slide the node into place; then, fasten the two thumbscrews. Repeat the steps if you
have more nodes to install.
5. Carefully insert the tab on the security bezel into the slot; then, pivot the security bezel inward until the other side clicks into
place.
6. Use the key to lock the security bezel.
7. Repeat the step 5 and step 6 if you have more security bezels to install.
3
8. If you need to install the lock position switch, please refer to the Maintenance Manual. Otherwise, carefully place your machines
as the following illustration.
4
Remove the bookshelf configuration
To remove the bookshelf configuration, complete the following steps.
Note: Reserve 500 mm empty space in front of the node so that you can have sufficient space to install and remove the node.
1. Use the key to unlock the security bezel.
2. Press the release tab and pivot the security bezel outward to remove it from the node sleeve.
3. Repeat the step 1 and step 2 if you have more security bezels to remove.
4. Loosen the two thumbscrews and slide the node out of the node sleeve. Repeat the step if you have more nodes to remove.
5
5. Remove the two screws.
6. Slightly push the right bookshelf rightward to unhook the six T-pins; then, remove the right bookshelf.
7. Remove the two screws.
8. Slightly push the left bookshelf leftward to unhook the six T-pins; then, remove the left bookshelf.
6

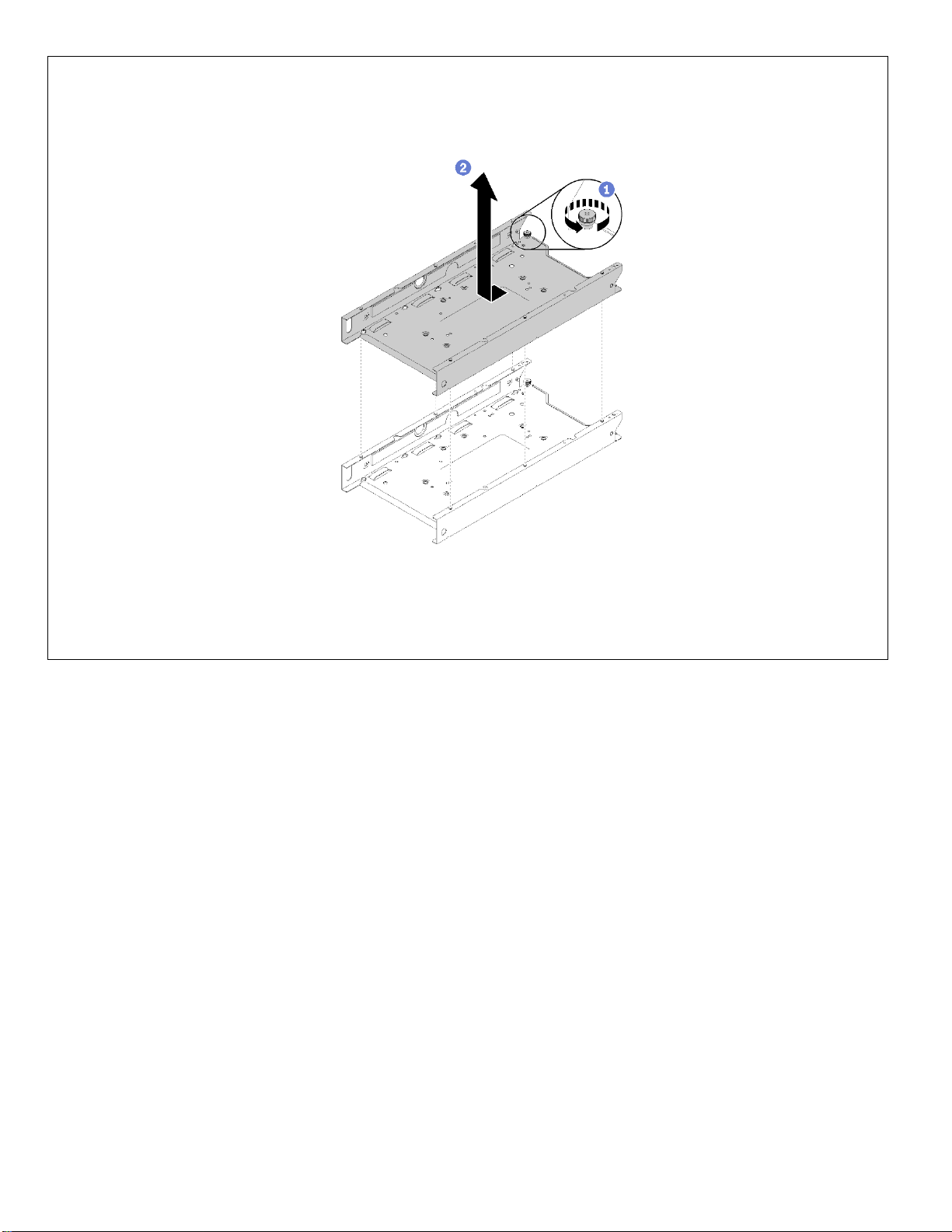

9. Remove the node sleeve if necessary.
Loosen the thumbscrew and slide the node sleeve frontward to unhook the six T-pins; then, remove the node sleeve.
Repeat the step if you have more node sleeves to remove.
7
DIN Rail Configuration
This document provides important information for installing and removing the DIN rail configuration.
Install the DIN rail configuration
To install the DIN rail configuration, complete the following steps.
Note: Reserve 500 mm empty space in front of the node so that you can have sufficient space to install and remove the node.
1. Install the two DIN rail clips to the power adapter bracket or the node sleeve depending on your configuration.
If you are installing the node sleeve without the power adapter bracket, complete the following steps.
Align the two DIN rail clips with the node sleeve.
Insert and tighten the four screws.
If you are installing the node sleeve with the power adapter bracket, complete the following steps.
Align the two DIN rail clips with the power adapter bracket.
Insert and tighten the four screws.
Note: You can install the DIN rail clips horizontally or vertically as below according to your DIN rail setting.
8
2. Hook the two DIN rail clips onto the rails at an angle.
3. Put down the node sleeve and ensure the DIN rail clips are securely seated.
4. Install the Screws to secure the power adapter bracket.
Note: You can install the screws vertically or horizontally according to your DIN rail setting.
9
5. Install power adapters into the bracket.
Align the power adapters with the power adapter bracket; then, slide the power adapters into place.
Align the tab with the slot and carefully hook the tab into place.
Fasten the thumbscrew.
❹Align the node sleeve with the power adapter bracket and slightly push the node sleeve downward to hook the four
T-pins into place.
❺Insert and tighten the four screws.
10
6. Align the node with the node sleeve and slide the node into place; then, fasten the two thumbscrews.
7. Connect the cables if necessary.
8. Carefully insert the tab on the security bezel into the slot; then, pivot the security bezel inward until the other side clicks into
place.
9. Use the key to lock the security bezel.
