ThinkPadBluetoothLaser Mouse

UserManual

Aboutthismanual

Thankyouforyourpurchaseof thisBluetoothmouseset. Thistopics covered inthismanualare

listed asfollowing.

(Thismousewillbe soldwithoutdongle.)

Introduction

InstallingandtheBatteries

InstallingandUninstallingtheWIDCOMMBluetoothStack

SettinguptheLaserMouse

UsingtheLaserMouse

UsingtheWIDCOMMBluetoothStack

Troubleshooting

1.Introduction

Features

LaserMouseFeatures

Withscrollwheeland twobuttons、tilt wheel

Powersavingmode

LEDindicator

a. Amber：Lowbattery

b. Flashinggreen: mouseispairing

USBBluetoothDongleFeatures

Bluetoothspecification v1.2andv2.0compliant

Supportsmouse

SupportsadditionalBluetoothdevices

SystemRequirements

Bluetooth/ USB mousesupported computer

Microsoft Windows98/ME/2000/XP orlater

2. InstallingtheBatteries

The mouseneedstwoAA sizebatteries.Followthe stepsbelowtoinstallthe batteries.

1. Press the button and thebatterycoverpopsout.

2.Installtwo"AA"batterieswhileobserving the polarity(+and -)indicatedinside the mouse.

3. Replacethebatterycover

3Installing and Uninstalling the

WIDCOMM Bluetooth Stack

3.1InstallingtheWIDCOMM BluetoothStack

BeforeinstallingtheWIDCOMM Bluetoothstack, plug the USB BluetoothdongleintoaUSB

port of yourcomputer.

1. Insertthe provided InstallationCD inthe CDROMdrive.

2. The installation stack loadsautomatically. Ifnot, click the

Setup.exe inthebinfolderof the CD ROM.

3. The welcomescreen introducesyou tothe installation process. Click Next tocontinue.

4. Read theagreement and select “Iaccepthetermsinthelicenseagreement”. Click Next to

continue.

5.Theprogramwillbeinstalledinthe folderasshown.Click Change toinstallinadifferentlocation.

Click Next tocontinue.

6. Click Install tostart theinstallation. Theinstallationmayneed sometimetocomplete.

7. The following screen appearstoindicatetheinstallation iscomplete.

8. Removethe dongleandplug itback in, the mousewillpairautomatically. Click Finish toexit

the installation.

The followingprompt requiresyou torestart thecomputersothat theBluetoothstack takes

effect. Click Yes torestart yourcomputernowor No torestartlater.

3.2Uninstalling theWIDCOMM BluetoothStack

Followthe stepsbelowtouninstallthe WIDCOMM Bluetoothstack fromyourcomputer.

1. Removethe USB Bluetoothdongle.

2. Click Start>Settings>Control Panel >Add/Remove

Programs.

3. Select WIDCOMMBluetoothSoftware fromthe programlist andclick Remove.

4. The systemstartstoremovethe program, itmaytakesometimetouninstall.

5.When theprogramhasbeen removed, aprompt requiresyou torestart the computer. Click Yes

torestart yourcomputernowor No torestartlater.

4. Setting up theLaserMouse

4.1QuickPairing inWindows

The Bluetoothmousehasbeen set toapre-pairing mode asthe factory default.Forquick pairing, enablethe

pre-pairing mode following the stepsbelow.

1. Plug the USBBluetoothdongleintoaUSBportofyourcomputer.

2. Forthe mouse, press the pairing button atitsbottom.

Pairing button

3. Press the button on thebottomof the USB Bluetoothdongleuntilthe LEDbeginstoflash

onceeverysecond.Thisindicatesthe. Bluetoothdonglehasstarted tosearchfordeviceto

be paired.( Thismousewillbesoldwithout dongle.)

4. Moveyourmousetoensuretheyareconnected.

Enablingthefunction ofUSBmouseinBIOS

If the mousefailedtowork(referto 7Troubleshooting”onpage14 formoreprobable

conditions), check that the USB functionof themousehasbeen enabled intheBIOSsetup.

SomeoldPCsystemsdo not support the USBkeyboard/mousein

BIOS/DOSenvironment.

4.2PairingonWIDCOMM BluetoothStack

Beforeusing the Bluetoothstack formousepairing,installthestack asinstructed in 3Installing

andUninstallingtheWIDCOMMBluetoothStack”.Then followthe stepsbelow.

1.Press the USB Bluetoothdonglebutton untilthefollowing Human InterfaceDevice(HID)screen

appears.

2.Whenthe mouseisconnected, the following confirmation message appears. Click toconfirm

that the correct mouseisconnected.

5Using theLaserMouse

Afterplugginginthe USB Bluetoothdongleandsetting themouseintheBluetoothconnection

environment asdescribedin 4.SettinguptheLaserMouse”, youcan beginusing the mouse

immediately.

5.1Power Statusof theLaser Mouse

The BluetoothmousehasabatterystatusLED.Whenthe batteryrunsout,

the LEDturnsamber. You shouldchange thebatteriesimmediately

.(The top LEDindicateisthe samewithbottomLED)

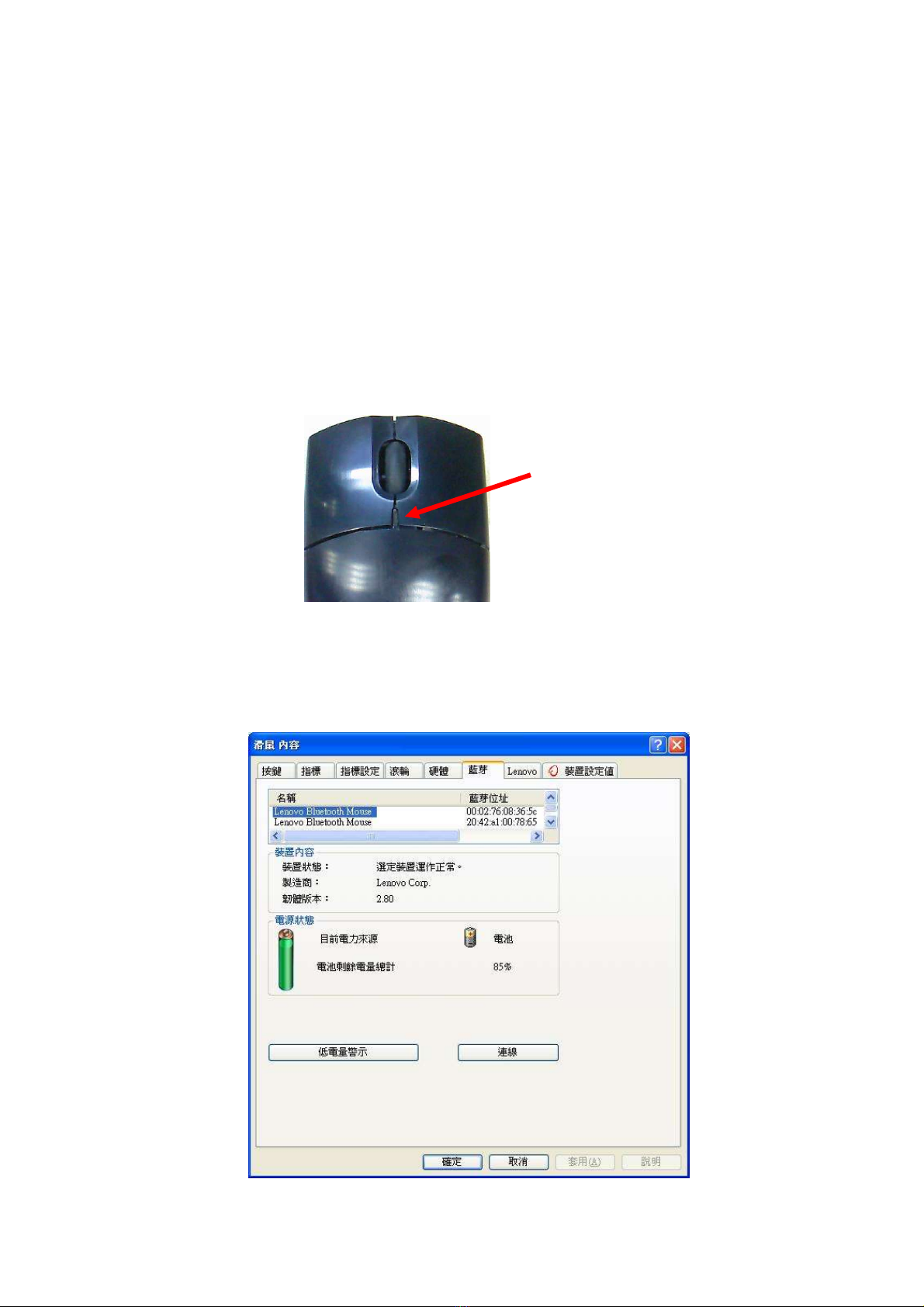

Toviewmoredetailedinformationonthemousebatterystatus, go tothe Controlpanel>Mouse >

Bluetooth.

LED
