Lenovo ThinkPad X395 Manual de usuario

Printed in China

PN: SPXXXXXXXX

X395

Setup Guide

Unpack

*ThinkPad Ethernet

Extension Adapter

Gen 2

*Lenovo HDMI to VGA

Adapter

*Lenovo USB-C to

DisplayPort Adapter

*Lenovo USB-C to

VGA Adapter

*For selected models

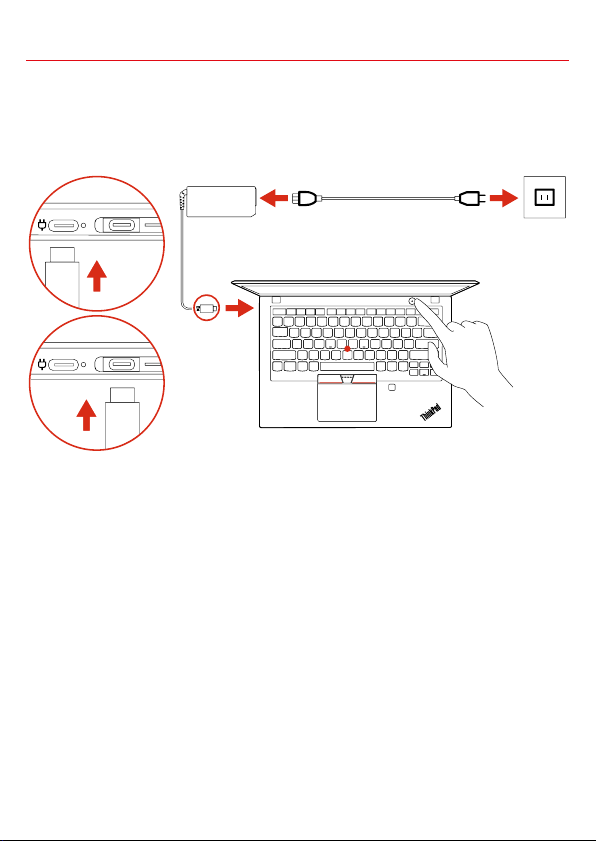

Initial Setup

Overview

HDMIHDMI

3 34 2

31 3

* 1. Infrared camera

*2. ThinkShutter

*3. Microphones

*4. Camera

*5. Multi-touch screen

6. Power button

7. Security-lock slot

8. Always On USB 3.1 connector

Gen 1

9. TrackPoint pointing stick

*10. Fingerprint reader

*11. Smart card slot

12.Nano-SIM-card and microSD-card

slot

13.Trackpad

14. TrackPoint® buttons

15.Audio connector

16. HDMI™ connector

17. USB 3.1 connector Gen 2

18. Docking station connector

19.Ethernet extension connector Gen 2

20. USB-C™ connector (USB 3.1 Gen 2)

*For selected models

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and

Warranty Guide for accessing the User Guide.

Customer Replacement Units (CRUs)

• ac power adapter

• Power cord

*• Base cover assembly

• M.2 solid-state drive

*• Wireless-WAN card

• Wireless-LAN card

• Pointing-stick nonslip cap

• Nano-SIM-card and microSD-card

tray

• Always On USB 3.1 connector Gen

1 board cable

Refer to the User Guide for CRU definition

* For selected models

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type ThinkPad X395 is in

compliance with Directive 2014/53/EU.

The full text of the system EU declaration of

conformity and the EU wireless module

declarations are available at the following Internet

addresses:

•For notebook computers:

https://www.lenovo.com/eu-doc-notebooks

•For tablets:

https://www.lenovo.com/eu-doc-tablets

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac

5725 - 5875

< 13.98

dBm

WWAN

UMTS

1/8

< 24.5

dBm

WWAN LTE

1/3/7/8/20/28

< 24 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

E-manual

Second Edition (December 2019)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to

restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
