Lenovo V530-15ICB Manual del propietario

V530-15ICB User Guide and Hardware

Maintenance Manual

Energy Star Machine Types: 10TV, 10TW, 10XS, and 10XT

Note: Be ore using this in ormation and the product it supports, be sure to read and understand the

Important Product Information Guide and Appendix A “Notices” on page 57.

First Edition (May 2018)

LIMITED AND RESTRICTED RIGHTS NOTICE: I data or so tware is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set orth in Contract No. GS-

35F-05925.

Contents

Chapter 1. O er iew. . . . . . . . . . . 1

Front view . . . . . . . . . . . . . . . . . . 1

Rear view . . . . . . . . . . . . . . . . . . 3

System board . . . . . . . . . . . . . . . . 5

Machine type and model label . . . . . . . . . . 6

Chapter 2. Specifications . . . . . . . . 7

Chapter 3. Computer locks . . . . . . . 9

Locking the computer cover . . . . . . . . . . . 9

Attaching a Kensington-style cable lock . . . . . 10

Chapter 4. Replacing hardware . . . . 11

Be ore replacing hardware . . . . . . . . . . 11

Knowing FRUs (including CRUs) . . . . . . . . 11

Locating FRUs (including CRUs) . . . . . . . . 12

Removing the computer cover . . . . . . . . . 14

Replacing the ront bezel . . . . . . . . . . . 15

Replacing the optical drive . . . . . . . . . . 16

Replacing the optical drive bracket . . . . . . . 17

Pivoting the drive bay assembly upward and

downward . . . . . . . . . . . . . . . . . 18

Replacing the storage drive . . . . . . . . . . 19

Replacing a memory module. . . . . . . . . . 22

Replacing the heat sink and an assembly . . . . 24

Replacing the coin-cell battery . . . . . . . . . 25

Replacing a PCI Express card . . . . . . . . . 28

Replacing the Wi-Fi card . . . . . . . . . . . 29

Replacing the M.2 solid-state drive . . . . . . . 33

Replacing the M.2 solid-state drive bracket . . . . 36

Replacing the power supply assembly . . . . . . 37

Replacing the internal speaker . . . . . . . . . 39

Replacing the thermal sensor . . . . . . . . . 40

Replacing the ront an . . . . . . . . . . . . 41

Replacing the Wi-Fi antennas . . . . . . . . . 42

Replacing the power button board . . . . . . . 44

Replacing the card reader . . . . . . . . . . . 47

Replacing the microprocessor . . . . . . . . . 49

Replacing the rear an . . . . . . . . . . . . 53

Replacing the system board . . . . . . . . . . 54

Completing the parts replacement . . . . . . . 55

Appendix A. Notices . . . . . . . . . . 57

Appendix B. Trademarks . . . . . . . 59

ii V530-15ICB User Guide and Hardware Maintenance Manual

Chapter 1. O er iew

This chapter provides basic in ormation to help you get amiliar with your computer.

Front iew

Note: Your computer model might look slightly di erent rom the illustration.

Figure 1. Front view

1 Optical drive eject/close button 2 Optical drive activity indicator

3 Internal speaker (optional) 4 Card reader slot (optional)

5 Power indicator 6 Power button

7 Microphone connector 8 Headphone connector

9 USB 3.1 Gen 1 connectors (4) 10 USB 3.1 Gen 2 connectors (2)

11 Storage drive activity indicator

1 Optical dri e eject/close button

Used to eject the tray o the optical drive. A ter you insert a disc into the tray, press the eject/close button to

close the tray.

2 Optical dri e acti ity indicator

This indicator is on when the optical drive is in use.

3 Internal speaker

Used to listen to the sounds rom your computer without using a headset or headphones.

4 Card reader slot

Used to read data rom a supported memory card.

5 Power indicator

This indicator is on when the computer is on.

6 Power button

Used to turn on your computer. When you cannot shut down the computer rom the operating system, press

and hold the power button or our or more seconds to turn o the computer.

7 Microphone connector

Used to connect a microphone to your computer when you want to record sound or interact with the

computer using speech recognition so tware.

8 Headphone connector

Used to connect headphones to your computer.

9 USB 3.1 Gen 1 connector

Used to connect a USB-compatible device. For optimal data trans er, connect a USB 3.1 Gen 1 device to a

USB 3.1 Gen 2 or USB 3.1 Gen 1 connector instead o a USB 2.0 connector.

10 USB 3.1 Gen 2 connector

Used to connect a USB-compatible device. For optimal data trans er, connect a USB 3.1 Gen 2 device to a

USB 3.1 Gen 2 connector instead o a USB 3.1 Gen 1 or USB 2.0 connector.

11 Storage dri e acti ity indicator

This indicator is on when the storage drive is in use.

2V530-15ICB User Guide and Hardware Maintenance Manual

Rear iew

Note: Your computer model might look slightly di erent rom the illustration.

Figure 2. Rear view

1 Microphone connector 2 VGA-out connector

3 DisplayPort® 1.2 out connector 4 HDMITM 1.4 out connector

5 USB 2.0 connectors (4) 6 Audio line-out connector

7 Audio line-in connector 8 Serial connector

9 Ethernet connector 10 Serial connector (optional)

11 PCI-Express card area 12 Padlock loop

13 Security-lock slot 14 Power cord connector

1 Microphone connector

Used to connect a microphone to your computer when you want to record sound or interact with the

computer using speech recognition so tware.

2 VGA-out connector

Used to send video signals rom the computer to another video device, such as a monitor.

Chapter 1.Overview 3

3 DisplayPort 1.2 out connector

Used to send audio and video signals rom the computer to another audio or video device, such as a high-

per ormance monitor.

4 HDMI 1.4 out connector

Used to send audio and video signals rom the computer to another audio or video device, such as a high-

per ormance monitor.

5 USB 2.0 connector

Used to connect a device that requires a USB 2.0 connection.

6 Audio line-out connector

Used to send audio signals rom the computer to external devices, such as powered stereo speakers,

headphones, or multimedia keyboards. To connect a stereo system or other external recording device,

connect a cable between the audio line-in connector o the device and the audio line-out connector o the

computer.

Note: I your computer has both an audio line-out connector and a headset or headphone connector, always

use the headset connector or headphone connector or earphones, headphones, or a headset. The

headphone connector does not support headset microphones.

7 Audio line-in connector

Used to receive audio signals rom an external audio device, such as a stereo system. To connect an external

audio device, connect a cable between the audio line-out connector o the device and the audio line-in

connector o the computer.

8 Serial connector

Used to connect an external modem, a serial printer, or other devices that use a serial connector.

9 Ethernet connector

Used to connect an Ethernet cable or network access.

10 Serial connector (optional)

Used to connect an external modem, a serial printer, or other devices that use a serial connector.

11 PCI-Express card area

To improve the operating per ormance o the computer, you can connect PCI-Express cards into this area.

Depending on the computer model, the connectors in this area vary.

12 Padlock loop

Used to secure a padlock.

13 Security-lock slot

Used to secure a Kensington-style cable lock.

14 Power cord connector

4V530-15ICB User Guide and Hardware Maintenance Manual

Used to connect the power cord to your computer or power supply.

System board

Note: See “Front view” and “Rear view” or additional component descriptions.

Figure 3. System board

1 4-pin power connector 2 Microprocessor an connector

3 Buzzer 4 Auxiliary an connector 2

5 Memory slot (DIMM2) 6 Memory slot (DIMM4)

7 Power button board connector 8 Internal speaker connector

9 10-pin power connector 10 SATA power connectors (2)

11 Auxiliary an connector 1 12 Clear CMOS /Recovery jumper

13 SATA 3.0 connectors (3) 14 M.2 solid-state drive slot

15 M.2 Wi-Fi card slot 16 PCH

17 Thermal sensor connector 18 Front USB 2.0 connector 1 (card reader connector)

19 Parallel connector 20 Serial (COM2) connector

21 PCI Express x1 card slot 22 PCI Express x16 graphics card slot

23 Coin-cell battery 24 System an connector

25 Microprocessor socket

Chapter 1.Overview 5

Machine type and model label

The machine type and model label identi ies the computer. When you contact Lenovo or help, the machine

type and model in ormation helps support technicians to identi y the computer and provide aster service.

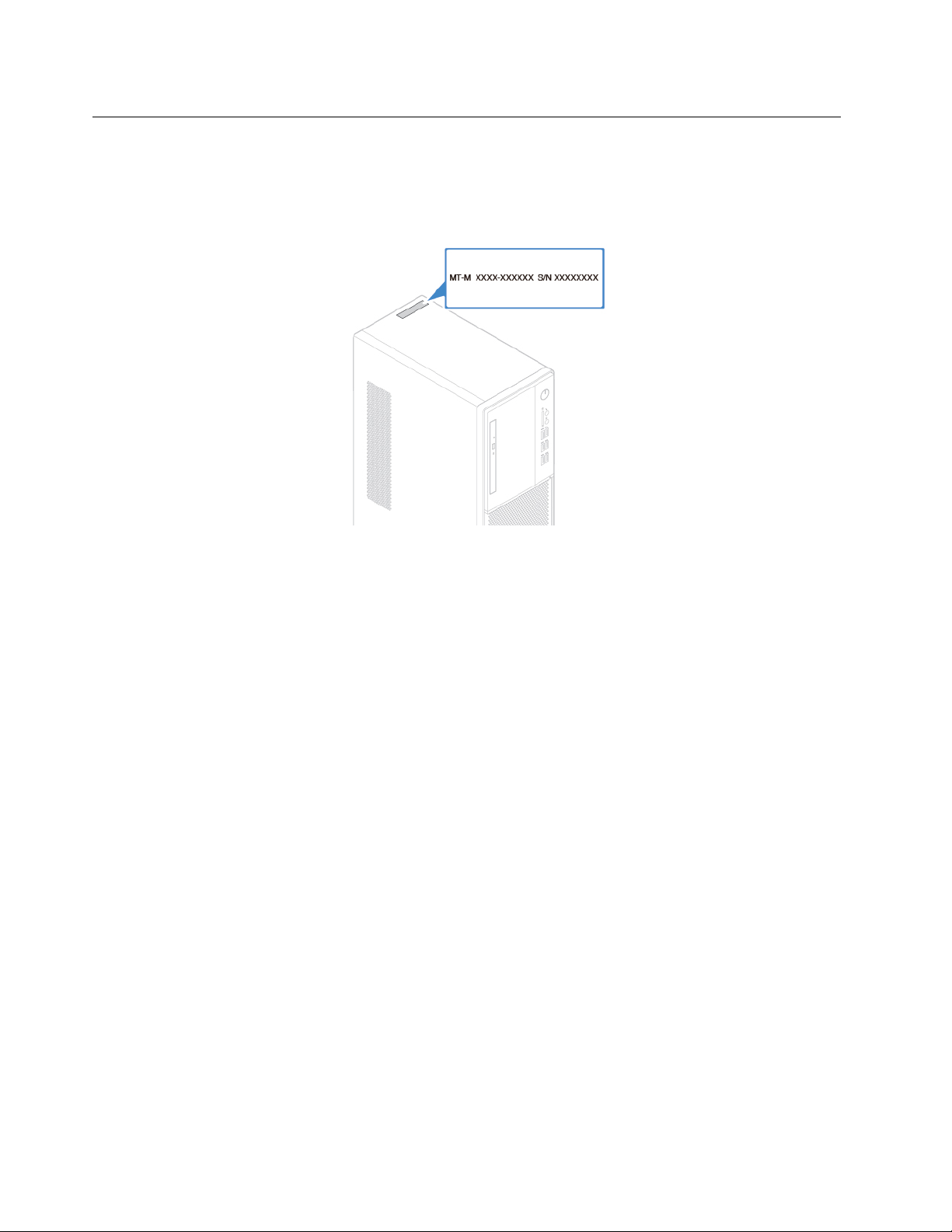

The machine type and model label is attached on the computer as shown.

Figure 4. achine type and model label

6V530-15ICB User Guide and Hardware Maintenance Manual
