Lenovo IdeaCentre Mini 01IRH8 Manual de usuario

IdeaCentre Mini

User Guide

Read this first

Before using this documentation and the product it supports, ensure that you read and understand the

following:

• Safety and Warranty Guide

• Generic Safety and Compliance Notices

• Setup Guide

First Edition (March 2023)

LIMIT D AND R STRICT D RIGHTS NOTIC : If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-

35F-05925.

Contents

A out this documentation . . . . . . . . iii

Chapter 1. Meet your computer. . . . . 1

Front . . . . . . . . . . . . . . . . . . . . 1

Rear . . . . . . . . . . . . . . . . . . . . 2

Features and specifications . . . . . . . . . . . 3

USB specifications . . . . . . . . . . . . . . 3

Operating environment . . . . . . . . . . . . . 4

Chapter 2. Get started with your

computer . . . . . . . . . . . . . . . . . 7

Work with Windows . . . . . . . . . . . . . . 7

Windows help information . . . . . . . . . . 7

Connect an external display . . . . . . . . . . . 8

Chapter 3. Explore your computer . . . 9

Lenovo Vantage. . . . . . . . . . . . . . . . 9

Set the power plan . . . . . . . . . . . . . . 9

Transfer data . . . . . . . . . . . . . . . . 10

Connect to a Bluetooth-enabled device. . . . 10

Purchase accessories . . . . . . . . . . . . 10

Chapter 4. CRU replacement . . . . . 11

CRU list . . . . . . . . . . . . . . . . . . 11

Remove or replace a CRU . . . . . . . . . . . 11

Power cord. . . . . . . . . . . . . . . 11

Computer stand . . . . . . . . . . . . . 12

Computer cover . . . . . . . . . . . . . 14

Bottom cover . . . . . . . . . . . . . . 15

Memory module . . . . . . . . . . . . . 17

Power supply assembly . . . . . . . . . . 18

M.2 solid-state drive . . . . . . . . . . . 19

Coin-cell battery. . . . . . . . . . . . . 20

System fan . . . . . . . . . . . . . . . 22

Chapter 5. Help and support . . . . . 23

Frequently asked questions . . . . . . . . . . 23

Self-help resources . . . . . . . . . . . . . 23

Call Lenovo . . . . . . . . . . . . . . . . 25

Before you contact Lenovo . . . . . . . . 25

Lenovo Customer Support Center . . . . . . 26

Purchase additional services. . . . . . . . . . 26

Appendix A. Notices and

trademarks . . . . . . . . . . . . . . . 27

ii IdeaCentre Mini User Guide

A out this documentation

• This guide applies to the Lenovo product models listed below. Illustrations in this guide may look slightly

different from your product model.

Model name Machine types (MT)

IdeaCentre Mini 01IRH8 90W2, 90W3

• For further compliance information, refer to the Generic Safety and Compliance Notices at https://

pcsupport.lenovo.com/docs/generic_notices.

• Depending on the model, some optional accessories, features, and software programs might not be

available on your computer.

• Depending on the version of the operating systems and programs, some user interface instructions might

not be applicable to your computer.

• Documentation content is subject to change without notice. Lenovo makes constant improvements to the

documentation of your computer, including this User Guide. To get the latest documentation, go to https://

pcsupport.lenovo.com.

• Microsoft® makes periodic feature changes to the Windows® operating system through Windows Update.

As a result, some information in this documentation might become outdated. Refer to Microsoft resources

for the latest information.

iv IdeaCentre Mini User Guide

Chapter 1. Meet your computer

Front

Item Description Item Description

1 Power button 2 Always On USB-A 3.2 Gen 2 connector

3USB-C® (3.2 Gen 2) connector 4 Headset connector

Power indicator

Show the system status of your computer.

• On: The computer is on.

• Off: The computer is off or in hibernation mode.

• Blinking: The computer is in standby mode.

Headset connector

The headset connector is compatible with:

• Headsets with a 3.5mm (0.14 inch), CTIA-compliant TRRS (4-pole) plug.

Note: This headset connector does not support standalone external microphones with a TRS (3-pole) plug

or headsets with an OMTP-compliant TRRS (4-pole) plug.

Always On USB-A 3.2 Gen 2 connector

With the Always On USB feature enabled, the Always On USB 3.2 connector Gen 2 can charge a USB-

compatible device when the computer is on, off, in sleep mode, or in hibernation mode.

Related topics

• “Connect an external display” on page 8.

• “USB specifications” on page 3.

2IdeaCentre Mini User Guide

Features and specifications

Specifications Descriptions

Hardware To view the hardware information of your computer, type device manager in the

Windows search box and then press nter.

Power supply • 150-watt automatic voltage-sensing power supply

Adapta ility for power supply • Mainland China: 220 V±22 V, 50 Hz±1 Hz

• Adaptive voltage positioning: 100 V to 240 V, 50/60 Hz

Microprocessor To view the microprocessor information of your computer, type system

information in the Windows search box and then press nter.

Memory Up to two double data rate 4 (DDR4) small outline dual in-line memory modules

(SODIMMs)

Storage device

• M.2 solid-state drive

To view the storage drive capacity of your computer, type disk management in the

Windows search box and then press nter.

Note: The storage drive capacity indicated by the system is less than the nominal

capacity.

Expansion • 2 Memory slots

• 2 M.2 solid-state drive slots

Network features

• Bluetooth

• 2.5 G thernet LAN

• Wireless LAN

USB specifications

Note: Depending on the model, some USB connectors might not be available on your computer.

Chapter 1.Meet your computer 3

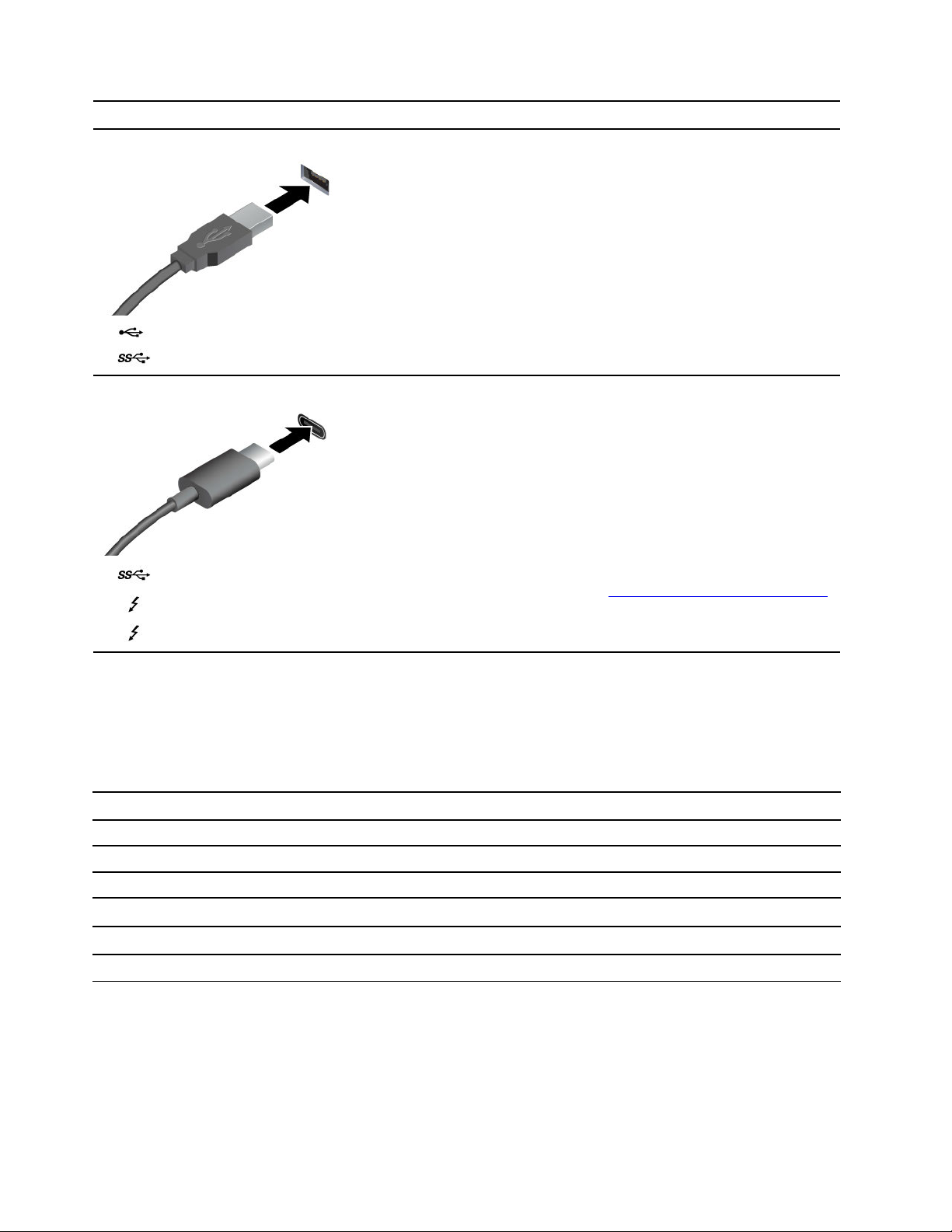

Connector name Description

• USB-A 2.0 connector

• USB-A 3.2 Gen 2 connector

Connect USB-compatible devices, such as a USB

keyboard, USB mouse, USB storage device, or USB

printer.

• USB-C (3.2 Gen 2) connector

• Thunderbolt 3 (USB-C) connector

• Thunderbolt 4 (USB-C) connector

• Charge USB-C compatible devices with the output

voltage and current of 5 V and 3 A.

• Connect to an external display:

– USB-C to VGA: 1920 x 1200 pixels, 60 Hz

– USB-C to DP: 3840 x 2160 pixels, 60 Hz

• Connect to USB-C accessories to help expand your

computer functionality. To purchase USB-C

accessories, go to https://www.lenovo.com/accessories.

Statement on USB transfer rate

Depending on many factors such as the processing capability of the host and peripheral devices, file

attributes, and other factors related to system configuration and operating environments, the actual transfer

rate using the various USB connectors on this device will vary and will be slower than the data rate listed

below for each corresponding device.

USB device Data rate (G it/s)

3.2 Gen 1 / 3.1 Gen 1 5

3.2 Gen 2 / 3.1 Gen 2 10

3.2 Gen 2 × 2 20

Thunderbolt 3 (USB-C) 40

Thunderbolt 4 (USB-C) 40

Operating environment

Temperature

• Operating: From 10°C (50°F) to 35°C (95°F)

• Storage or transportation: From -40°C (-40°F) to 60°C (140°F)

4IdeaCentre Mini User Guide
