User Guide

IdeaCentre Gaming5 17ACN7

Read this first

Before using this documentation and the product it supports, ensure that you read and understand the

following

• Safety and Warranty Guide

• Generic Safety and Compliance Notices

• Setup Guide

First Edition (March 2022)

LIMITED AND RESTRICTED RIGHTS NOTICE If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-

35F-05925.

Contents

Abo t this doc mentation . . . . . . . . iii

Chapter 1. Meet yo r comp ter . . . . . 1

Front . . . . . . . . . . . . . . . . . . . . 1

Rear . . . . . . . . . . . . . . . . . . . . 2

Features and specifications . . . . . . . . . . . 3

USB specifications . . . . . . . . . . . . . . 3

Operating environment . . . . . . . . . . . . . 4

Chapter 2. Get started with yo r

comp ter . . . . . . . . . . . . . . . . . 7

Work with Windows . . . . . . . . . . . . . . 7

Windows help information . . . . . . . . . . 7

Chapter 3. Explore yo r comp ter . . . 9

Lock the computer . . . . . . . . . . . . . . 9

Lenovo Vantage. . . . . . . . . . . . . . . . 9

Set the power plan . . . . . . . . . . . . . 10

Transfer data . . . . . . . . . . . . . . . . 10

Connect to a Bluetooth-enabled device (for

selected models) . . . . . . . . . . . . 10

Purchase accessories . . . . . . . . . . . . 11

Chapter 4. CRU replacement . . . . . 13

CRU list . . . . . . . . . . . . . . . . . . 13

Remove or replace a CRU . . . . . . . . . . . 14

Power cord. . . . . . . . . . . . . . . 14

Computer cover . . . . . . . . . . . . . 14

Front bezel . . . . . . . . . . . . . . . 15

3.5–inch storage drive . . . . . . . . . . 16

Memory module . . . . . . . . . . . . . 17

M.2 solid-state drive . . . . . . . . . . . 18

Microprocessor heatsink and fan assembly . . 19

Coin-cell battery. . . . . . . . . . . . . 20

PCI-Express card, PCI-Express card holder,

PCI-Express card bracket and side system

fan . . . . . . . . . . . . . . . . . . 21

Power supply assembly . . . . . . . . . . 26

Chapter 5. Help and s pport . . . . . 29

Frequently asked questions . . . . . . . . . . 29

Self-help resources . . . . . . . . . . . . . 29

Call Lenovo . . . . . . . . . . . . . . . . 31

Before you contact Lenovo . . . . . . . . 31

Lenovo Customer Support Center . . . . . . 31

Purchase additional services. . . . . . . . . . 32

Appendix A. Notices and

trademarks . . . . . . . . . . . . . . . 33

ii User Guide

Abo t this doc mentation

• This guide applies to the Lenovo product models listed below. Illustrations in this guide may look slightly

different from your product model.

Model name Machine types (MT)

IdeaCentre Gaming5 17ACN7 90TQ

• For further compliance information, refer to the Generic Safety and Compliance Notices at https //

pcsupport.lenovo.com/docs/generic_notices.

• Depending on the model, some optional accessories, features, and software programs might not be

available on your computer.

• Depending on the version of the operating systems and programs, some user interface instructions might

not be applicable to your computer.

• Documentation content is subject to change without notice. Lenovo makes constant improvements to the

documentation of your computer, including this User Guide. To get the latest documentation, go to https //

pcsupport.lenovo.com.

• Microsoft® makes periodic feature changes to the Windows® operating system through Windows Update.

As a result, some information in this documentation might become outdated. Refer to Microsoft resources

for the latest information.

iv User Guide

Chapter 1. Meet yo r comp ter

Front

1. Power button 2. Headset connector

3. USB-C® connector (USB 3.2 Gen 1) 4. USB 3.2 connectors

5. Ventilation slots

Power indicator

Show the system status of your computer.

• Blinking for three times: The computer is initially connected to power.

• On: The computer is on.

• Off: The computer is off or in hibernation mode.

• Blinking rapidly: The computer is entering sleep or hibernation mode.

• Blinking slowly: The computer is in sleep mode.

Related topics

• “USB specifications” on page 3.

• “Work with Windows” on page 7.

• “Lock the computer” on page 9.

2User Guide

Feat res and specifications

For detailed specifications of your computer, go to https //psref.lenovo.com.

Hardware To view the hardware information of your computer, type device manager in the

Windows search box and then press Enter.

Power s pply

• 300-watt automatic voltage-sensing power supply

• 310-watt automatic voltage-sensing power supply

• 380-watt automatic voltage-sensing power supply

• 500-watt automatic voltage-sensing power supply

Microprocessor To view the microprocessor information of your computer, type system

information in the Windows search box and then press Enter.

Memory Double data rate 4 (DDR4) dual in-line memory module (DIMM)

Storage device

To view the storage drive capacity of your computer, type disk management in the

Windows search box and then press Enter.

Note: The storage drive capacity indicated by the system is less than the nominal

capacity.

Expansion

• 3 SATA3.0 Port

• 2 DDR4 DIMM slots

• 2 M.2 solid-state drive slot (1 for WIFI and BT, 1 for PCIE SSD)

• 2 Storage drive bay (3.5-inch Storage drive bay)

• PCI Express slots PCIEx16 (1), PCIEx1 (1)

Network feat res

• Bluetooth

• Ethernet LAN

• Wireless LAN

USB specifications

Note: Depending on the model, some USB connectors might not be available on your computer.

Chapter 1.Meet your computer 3

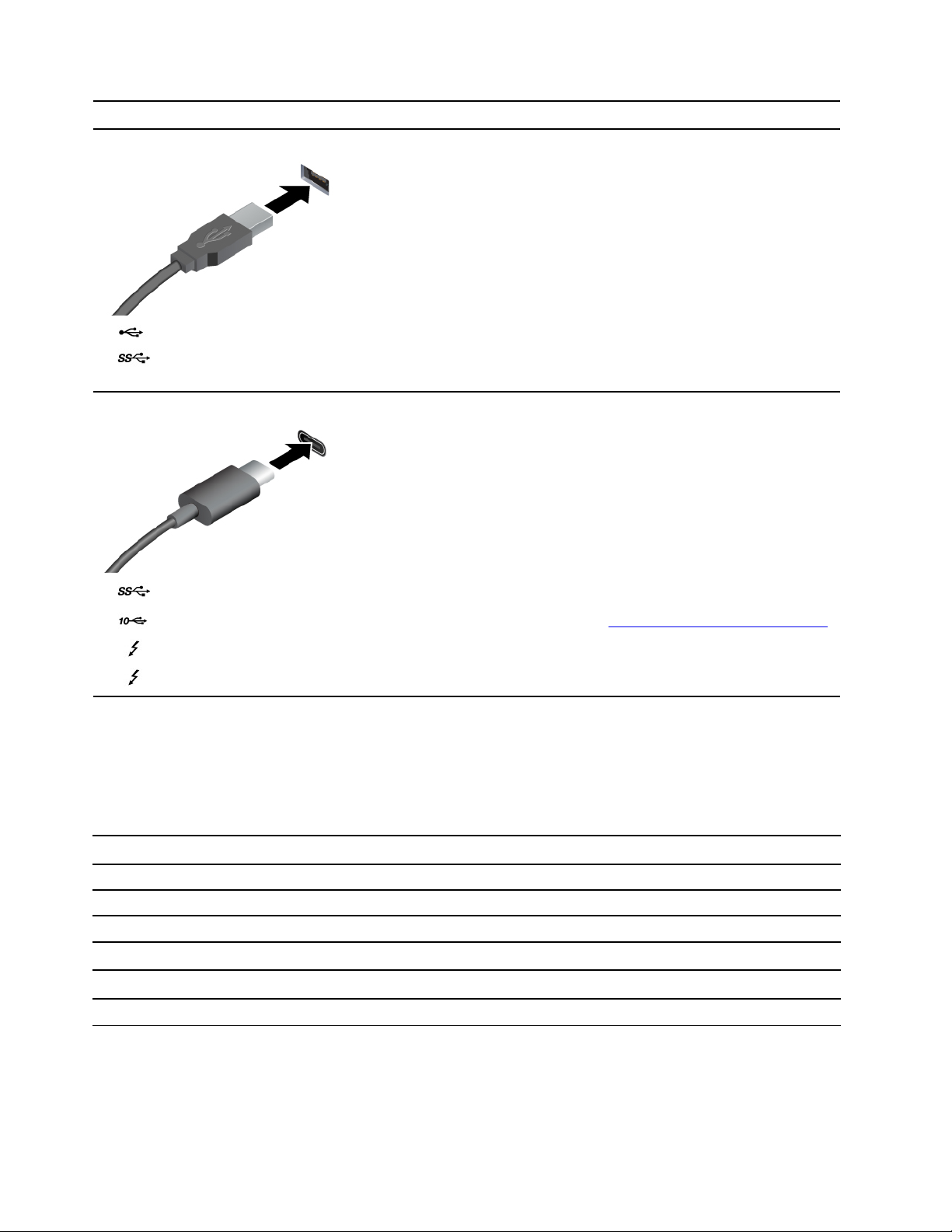

Connector name Description

• USB 2.0 connector

• USB 3.2 connector Gen 1 / USB 3.2 connector

Gen 2

Connect USB-compatible devices, such as a USB

keyboard, USB mouse, USB storage device, or USB

printer.

• USB-C (3.2 Gen 1) connector

• USB-C (3.2 Gen 2) connector

• Thunderbolt 3 connector (USB-C)

• Thunderbolt 4 connector (USB-C)

• Charge USB-C compatible devices with the output

voltage and current of 5 V and 3 A.

• Connect to an external display

– USB-C to VGA 1900 x 1200 pixels, 60 Hz

– USB-C to DP 3840 x 2160 pixels, 60 Hz

• Connect to USB-C accessories to help expand your

computer functionality. To purchase USB-C

accessories, go to https //www.lenovo.com/accessories.

Statement on USB transfer rate

Depending on many factors such as the processing capability of the host and peripheral devices, file

attributes, and other factors related to system configuration and operating environments, the actual transfer

rate using the various USB connectors on this device will vary and will be slower than the data rate listed

below for each corresponding device.

USB device Data rate (Gbit/s)

3.2 Gen 1 / 3.1 Gen 1 5

3.2 Gen 2 / 3.1 Gen 2 10

3.2 Gen 2 × 2 20

Thunderbolt 3 (USB-C) 40

Thunderbolt 4 (USB-C) 40

Operating environment

Temperat re

• Operating From 5°C (41°F) to 35°C (95°F)

4User Guide
