Lenovo S90-A Manual de usuario

Quick Start Guide

Lenovo S90-A

English/Français

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the

United States, other countries, or both.

Other company, product, or service names may be trademarks or

service marks of others.

Getting support

For support on network service and billing, contact your wireless

network operator. For instructions on how to use Lenovo

smartphone, go to: http://support.lenovo.com/.

Downloading publications

To obtain the latest smartphone manuals, go to:

http://support.lenovo.com/

Accessing your User Guide

Your User Guide contains detailed information about your

smartphone. To access your User Guide, use one of the following

methods:

Go to: http://support.lenovo.com and follow the instructions

on the screen.

Turn on your smartphone, and then open the User Guide app.

Read this guide carefully before using your smartphone.

English

First glance.......................................................................1

Installing the Micro SIM card.............................................2

Charging the battery......................................................... 3

Technical speciﬁcations ....................................................4

Important regulatory, safety, and handling information.......5

Service, support, and warranty information.......................8

Recycling and environmental information..........................9

Speciﬁc Absorption Rate information...............................10

Contents

First glance

Front-facing camera

Fill Light

1Receiver

On/Off button

Light/Proximity sensor

4Volume buttons

Home button

Touch screen

7Back button

Flashlight

Menu button

10 Rear-facing camera

Speaker

Headset connector

13 Micro-SIM-card tray

16 17 Micro USB connector

Microphone

10 1713 16

11 12 13 14

Installing the Micro SIM card

SIM2

SIM1

SIM2

SIM1

SIM2

A Micro SIM card provided by your carrier is required in order to use

cellular services. Install the Micro SIM card as shown.

Step 1.

Step 2.

Step 3.

Insert the SIM eject tool that comes with your smartphone

into the hole in the Micro-SIM-card tray.

Pull out the Micro-SIM-card tray and position the Micro SIM

card into the tray in correct orientation.

Carefully insert the tray with the installed Micro SIM card

back into the slot.

Only Micro SIM cards work with your smartphone.

Always turn off your smartphone ﬁrst before you insert or remove a

Micro SIM card. Insert or remove a Micro SIM card with your

smartphone on may damage your Micro SIM card or smartphone

permanently.

Charging the battery

Low battery power Fully charged Charging

Your smartphone has a built-in rechargeable battery. For more

information about battery safety, see the “Built-in rechargeable

battery notice” section. The battery in this product cannot be easily

replaced by users themselves.

Charge the battery as shown.

Turning on or turning off your smartphone

Turn on: Press and hold the On/Off button until

the Lenovo logo appears.

Turn off: Press and hold the On/Off button for a

few seconds, then tap Power off.

Restart: Press and hold the On/Off button for

about 10 seconds.

Method 1.

Method 2.

Connect your smartphone to a power outlet using the

cable and USB power adapter that come with your

smartphone.

Connect your smartphone to a computer using the cable

that comes with your smartphone.

① Depending on the measuring method, the dimensions and weight

might vary slightly.

② In some countries, LTE is not supported. To know if your

smartphone works with LTE networks in your country, contact

your carrier.

Type: CMOS

Pixels: 13 megapixels (back) + 8 megapixels (front)

Processor: Qualcomm 8916

quad-core

1.2 GHz

Size: 5.0 inches

Resolution: 1280 × 720 pixels

Model: Lenovo S90-A

Bluetooth 4.0; WLAN 802.11 b/g/n;

②FDD-LTE/WCDMA/GSM; GPS

Battery: 2300 mAh

Height: 146 mm (5.75 inches)

Depth: 6.9 mm (0.27 inch)

Model and system

Display

Battery

Processor

①Dimensions and weight

Camera

Wireless communication

Technical speciﬁcations

System: Android

Width: 71.7 mm (2.82 inches)

Weight: 129 g (0.28 lb)

Screen: multi-touch

LCD type: S-AMOLED

Important regulatory, safety, and handling

information

This section contains important regulatory, safety, and handling

information for Lenovo smartphones. Additional safety and handling

information is provided in the User Guide. See the “Accessing your

User Guide” section for details.

Read rst — regulatory information

Be sure to read the Regulatory Notice for your country or region

before using the wireless devices contained in your Lenovo Mobile

Phone. To obtain a PDF version of the Regulatory Notice, see the

“Downloading publications” section.

Plastic bag notice

DANGER: Plastic bags can be dangerous. Keep plastic bags away

from babies and children to avoid danger of suffocation.

General battery notice

Batteries supplied by Lenovo for use with your product have been

tested for compatibility and should only be replaced with approved

parts. Risk of explosion if the battery is replaced with an incorrect

type. Dispose of used batteries according to the instructions.

Rechargeable battery notice

CAUTION: Risk of explosion if the battery is replaced with an incorrect

type.

When replacing the lithium battery, use only the same or an equivalent

type that is recommended by the manufacturer. The battery contains

lithium and can explode if not properly used, handled, or disposed of.

Dispose of used batteries according to the instructions.

Do not:

Throw or immerse into water

Heat to more than 100°C (212°F)

Repair or disassemble

Built-in rechargeable battery notice

CAUTION: Do not attempt to replace the internal rechargeable lithium

ion battery. Contact Lenovo Support for factory replacement.

Charging

Lenovo is not responsible for the performance or safety of products

not manufactured or approved by Lenovo. Use only approved

Lenovo ac adapters and batteries. Adapter shall be installed near the

equipment and shall be easily accessible.

Prevent hearing damage

Lenovo Phone has a headphone connector. Always use the

headphone connector for headphones (also called a headset) or

earphones.

CAUTION: Excessive sound pressure from earphones and

headphones can cause hearing loss. Adjustment of the equalizer to

maximum increases the earphone and headphone output voltage and

the sound pressure level. Therefore, to protect your hearing, adjust

the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time

at high volume can be dangerous if the output of the headphone or

earphone connectors do not comply with speciﬁcations of EN

50332-2.

The headphone output connector of Lenovo Phone complies with EN

50332-2 Sub clause 7. This speciﬁcation limits Lenovo Phone's

maximum wide band true RMS output voltage to 150 mV. To help

protect against hearing loss, ensure that the headphones or

earphones you use also comply with EN 50332-2 (Clause 7 limits) for

a wide band characteristic voltage of 75 mV. Using headphones that

do not comply with EN 50332-2 can be dangerous due to excessive

sound pressure levels.

If Lenovo Phone came with headphones or earphones in the

package, as a set, the combination of the headphones or earphones

and Lenovo Phone already complies with the speciﬁcations of EN

50332-1. If different headphones or earphones are used, ensure that

they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using

headphones that do not comply with EN 50332-1 can be dangerous

due to excessive sound pressure levels.

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform

audio tests for EN50332.

This device has been tested to comply with the Sound Pressure Level

requirement in the applicable EN 50332-1 and/or EN 50332-2

standards. Permanent hearing loss may occur if earphones or

headphones are used at high volume for prolonged periods of time.

Warning statement: To prevent possible hearing damage, do not listen

at high volume levels for long periods.

Operating temperature

Use Lenovo Phone only in the temperature range of -10°C (14 °F) —

40°C (104 °F) to avoid damage.

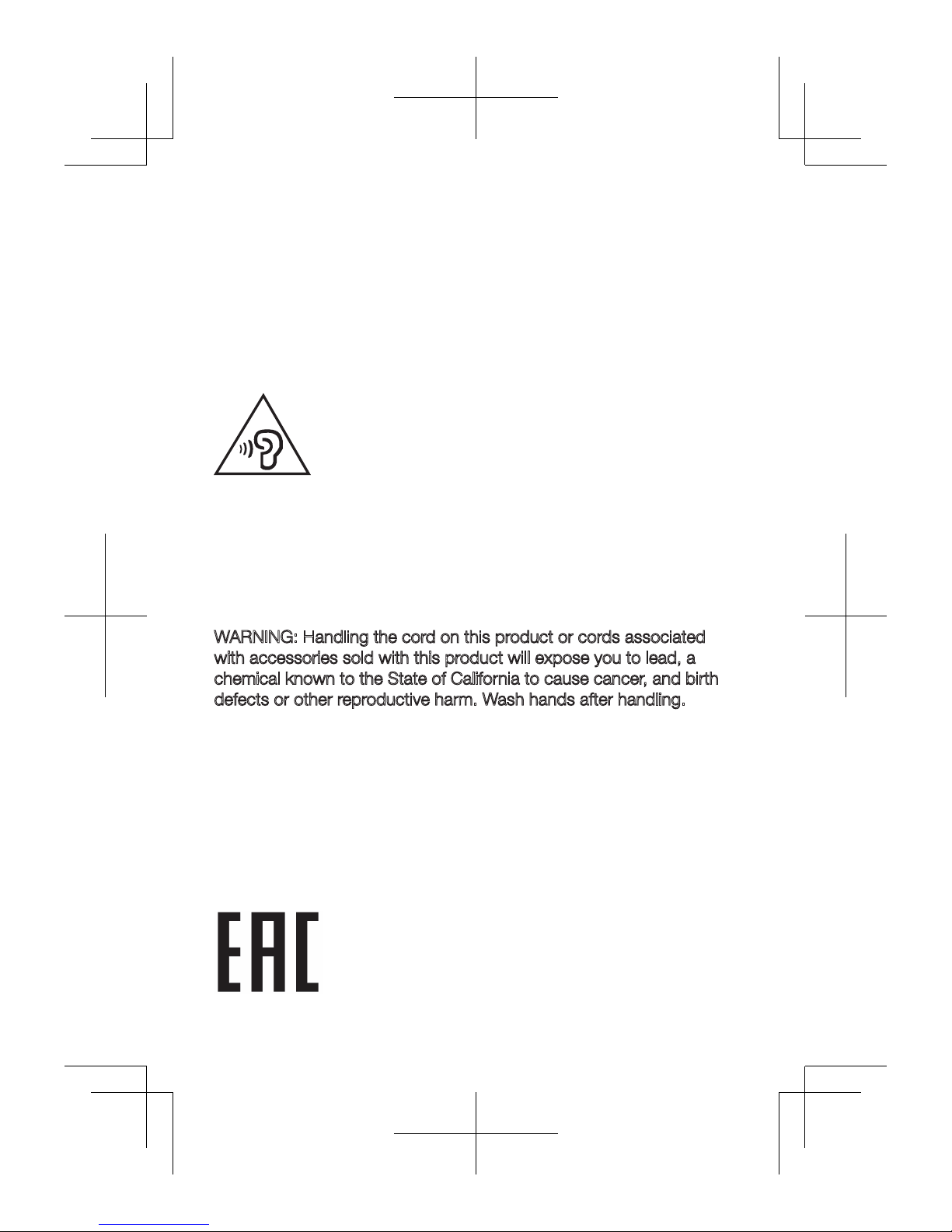

Polyvinyl Chloride (PVC) cable and cord notice

WARNING: Handling the cord on this product or cords associated

with accessories sold with this product will expose you to lead, a

chemical known to the State of California to cause cancer, and birth

defects or other reproductive harm. Wash hands after handling.

Disposing according to local laws and regulations

When Lenovo Phone reaches the end of its useful life, do not crush,

incinerate, immerse in water, or dispose of Lenovo Phone in any

manner contrary to local laws and regulations. Some internal parts

contain substances that can explode, leak, or have an adverse

environmental effect if disposed of incorrectly. See “

Recycling and

environmental information

” for additional information.

Eurasian compliance mark
