LENCO XEMIO-119 Manual de usuario
Instruction Manual
Xemio-119/129/139
Notice
: Thank you for choosing our product! Please read the user's manual
carefully to ensure proper operation.
Content
Precautions
System requirement
1. Installation instruction
1.1 Installing the driver
1.2 Installing the battery
2. Connecting/ downloading
2.1 Connecting to PC
2.2 Removing USB device
3. Basic operation
3.1 Buttons and functions
3.2 Power on/off
3.3 Main menu setup
4. MP3 Player Operation
4.1 Playing music
4.2 Playing voice files
4.3 Function Setting
1
4.3.1 Setting EQ mode
4.3.2 Setting Play mode
4.3.3 Setting Contrast
4.3.4 Setting Backlight
4.3.5 Setting Power set
4.3.6 Setting Recording
4.3.7 Setting Language
4.3.8 Exit
4.4 Preview function
4.5 About
4.6 Folder function
4.7 Exit
5. Recording function
6. A-B loop playing
7.Lock function
Lyric sync
USB mode
FAQ
Technical specifications
2
Precautions
1) Never use the player during driving or operating other vehicles to avoid
traffic accident, which is also restricted by the law in some districts. Even on
foot, it is still dangerous to listen to extremely high volume levels, especially
when crossing the street. Whenever your surroundings require alertness,
please stop using the player for safety purposes.
2) Please connect the earphones before you switch on the player. This not
only avoids damaging the earphones, but also helps to keep the player in
good condition.
3) Keep the player clean and away from heat sources or direct sunlight, dirt,
high humidity and rain.
4) If the surface is dirty, please clean it carefully with a damp soft cloth or soft
abluent. Never clean the case with alcohol or diluents.
5) Never use the player in rather dry environment to avoid static.
6) Never disconnect the player from PC abruptly during downloading,
uploading and formatting to avoid application failure.
7) When the player is used as removable disk, please follow the proper file
download and upload procedures. Our company resumes no responsibility for
any file lost due to improper operation.
3
8)
You can res
et
by removing the AAA
batteries.
System requirement
System requirement of MP3 player:
Microsoft Windows 98
se
/2000/Me/XP
Pentium 200MHZ or above.
USB port
120MB hard disk space
Mouse installed
CD-ROM drive
4
1. Installation instruction
1.1Installing driver for Windows 9
8se
(not required for Windows ME or above)
a. Connect the MP3 Player to the USB port of a PC, "Find new hardware"
appears on the screen, then click "Search latest driver for this device" and
insert the driver CD into CD-ROM, and then click "Next".
b. Select "Look in" to direct the installation directory to the "Drivers" files in
the driver CD, then click Yes.
c. PC will install the driver for Windows 98
se
automatically.
1.2 Installing battery
Install one
AAA
alkaline battery properly upon indicator on the play.
Press
button to power the player on and enter the MP3 standby mode.
2. Connecting and downloading
2.1 Connecting a PC as USB
Before operation, please verify the player is powered on with one end of the
USB cable came with the system inserted into PC and another end into the
MP3 player.
Data transferring
Reminder:
Due to computer capability issue, please turn on your MP3 Player before
connecting to the USB port !
5
2.2Removing the USB device
a.Double click the Safely Remove Hardware icon in taskbar:
b.From Safely Remove Hardware screen, highlight "USB Mass Storage
Device" item, and then click "Stop" button. "Stop to Hardware Device"
window appears on the screen as shown in the picture below.
player can be disconnected from PC safely.
Notice:
Never unplug the USB cable when transmitting data with PC to avoid
damaging the Player; after data transmitting, please do not disconnect the player
6
from PC until "Device now be safely removed" appears; while using USB function,
all other buttons will be nonfunctional. Any application lost or I/O error and power
on issues caused by improper operations, please refer to FAQ.
7
8
3. Basic operation
3.1 Buttons and functions
1) Earphone jack 2) Next
3) VOL- 4) Microphone
5) VOL+ 6)
Play/Pause/Stop
7) LCD display
8) A-B/REC 9) Last
10) Menu 11) Hold
9
Otros manuales para XEMIO-119
1
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Reproductor de MP3 de LENCO
LENCO
LENCO XEMIO-654 Manual de usuario
LENCO
LENCO MP CARD Manual de usuario
LENCO
LENCO XEMIO-760 BT Manual de usuario
LENCO

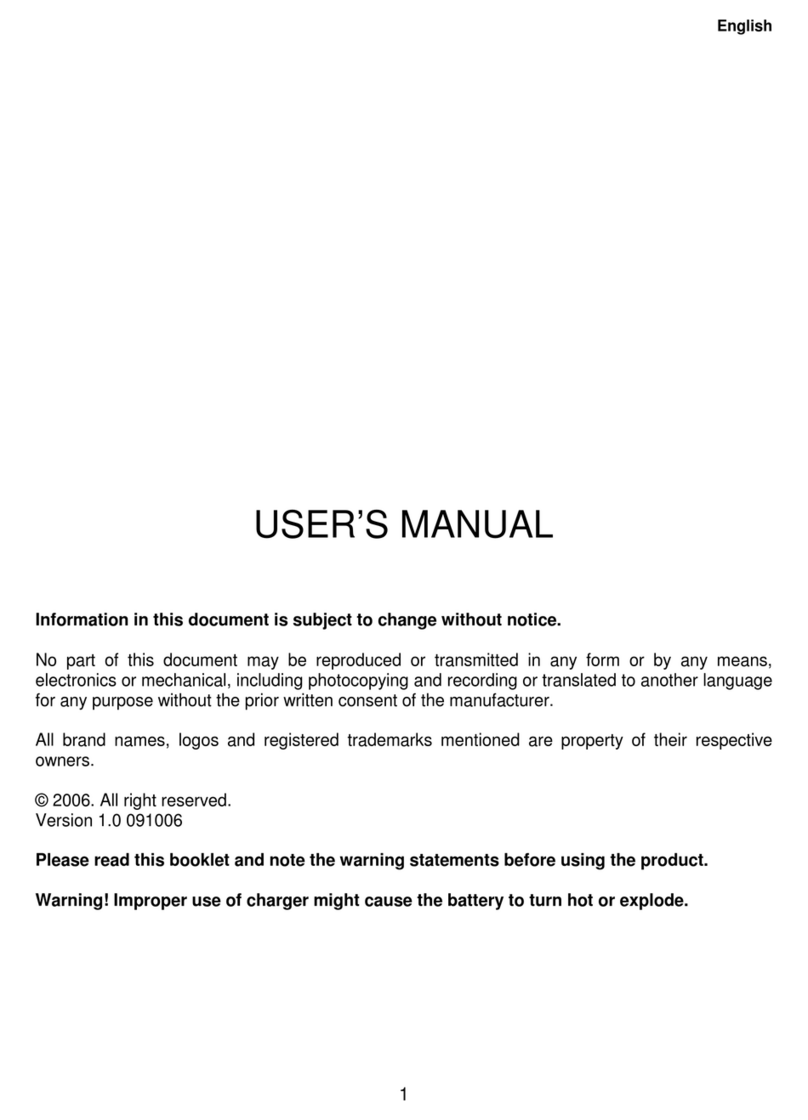

LENCO XEMIO-633 Manual de usuario
