Legamaster EVOLVE ETX-6530 Manual de usuario

Product Content & Operation - Version 1.0

Touchscreen display

Safety & Recommendations

English Deutsch Nederlands Français Español

Product Content & Operation - Version 1.0 2

Table of contents

01 IMPORTANT INFORMATION 3

1.1 USE 3

1.2 EXEMPTIONS 4

02 SAFETY INSTRUCTIONS 4

2.1 SAFETY PRECAUTIONS 4

2.2 MOVING AND CARRYING NOTICE 5

2.3 INSTALLATION 5

2.4 WALLMOUNT SAFETY NOTICE 6

2.5 RECOMMENDED USE 7

2.6 CLEANING 8

Product Content & Operation - Version 1.0 3

IMPORTANT INFORMATION

1.IMPORTANT INFORMATION

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE. ALSO, DO NOT USE THIS UNIT‘S POLARIZED PLUG WITH AN

EXTENSION CORD RECEPTABLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.REFRAIN FROM OPENING THE E-SCREENS HOUSING

AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS

UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE

UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE.

WARNING:

FOR CONTINUED SAFETY, DEVICES WITH CLASS I CONSTRUCTION SHALL BE

CONNECTED TO A MAIN SOCKET OUTLET WITH A PROTECTIVE EARTHING

CONNECTION.

WARNING:

THIS IS A CLASS A PRODUCT MEANT TO BE USED IN PROFFECIONAL

ENVIROMENTS. - THIS PRODUCT MUST NOT BE USED IN RESIDENTIAL AREAS.

1.1. USE

•Transport the product upright with proper packaging. Avoid placing the product face up or down. Handle

with care!

•Do not send a static (non-moving) image to the e-screen, it may cause image ‘burn-in’ or image retention.

•“Burn in” and/or image retention is not covered under warranty.

•Make sure to change the image on the e-screen periodically. It is recommended to turn off the e-screen

for at least 6 hours after 16 hours of usage in a 24-hour period to help avoid image retention.

Product Content & Operation - Version 1.0 4

SAFETY INSTRUCTIONS

2. SAFETY INSTRUCTIONS

Before using this e-screen, please read this user

manual thoroughly to help protect against property

damage and to ensure your personal safety and the

safety of others.

• Read and follow all instructions and safety-

warnings found in this manual.

• For installation or adjustment, please follow the

instructions in this manual and refer all servicing to

qualified service personnel.

2.1 SAFETY PRECAUTIONS

If smoke or a peculiar smell comes from the e-

Screen, remove the power plug from the outlet

immediately. Failure to do so may result in fire or

electrical shock.

Contact your dealer for inspection.

If the e-Screen has been turned on but there is no

picture, remove the power plug from the outlet

immediately. Failure to do so may result in fire or

electrical shock.

Contact your dealer for inspection.

If water is spilled or objects are dropped inside the

e-Screen, remove the power plug from the outlet

immediately. Failure to do so may result in fire or

electrical shock.

Contact your dealer for inspection.

If the e-Screen is dropped or the e-screen‘s

housing is damaged, remove the power plug from

the outlet immediately. Failure to do so may result

in fire or electrical shock.

Contact your dealer for inspection.

If the power cord or plug is damaged or becomes

hot, turn off the main power switch of the e-

Screen, make sure the power plug has cooled

down and remove the power plug from the outlet.

If the e-Screen is still used in this condition, it may

cause fire or electrical shock. Contact your dealer

for replacement.

1.2. EXEMPTIONS

•This product isn’t warranted for any damage

caused by natural disaster (such as earthquake,

thunder, etc.), fire, acts by third parties,

accidents, owner’s intentional misuse and fault,

or use in other improper conditions.

•This product isn’t warranted for incidental

damages (such as profit loss or interruption in

business, modification or erasure of record data,

etc.) caused by use or inability to use of this

product.

•This product isn’t warranted for any damage

caused by inappropriate operation, or from not

following the user manual.

•This product isn’t warranted for any damage

caused by misuse or malfunction through

simultaneous use of this product and the

connected equipment or software.

•This product isn’t warranted for any damage

caused by neglect of the installation instructions.

•This product isn’t warranted for any damage

caused by improper installation.

•This product isn’t warranted for any damage

caused by disassembly, modification or repair by

non-authorized service centers or people.

Product Content & Operation - Version 1.0 5

SAFETY INSTRUCTIONS

2.2 MOVING AND CARRYING

NOTICE

Moving the product:

Moving the product requires at least four

people. Attempting to move the product with

fewer people may result in damage to the

display or in serious injury of the people

handling the screen. When moving a display in

its shipping carton, lift the carton using the

white handles.

Carrying the product:

This product is heavy; please follow proper

lifting techniques, as pictured below. Failure to

do so may cause injury.

2.3 INSTALLATION

Don‘t install in a high-temperature environment.

If the e-screen is used in high-temperatures or in

direct sunlight, it may cause the housing of the

product or other parts to become distorted or

damaged, resulting in overheating or electrical

shock.

Don‘t install in a high-humidity environment.

This may cause overheating or electrical shock.

Don‘t install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus that produce heat.

This may cause fire or electrical shock.

Don‘t overload outlets or cables beyond electrical

capacity. Don‘t use extension cords as it may cause

fire or electrical shock.

Don‘t insert the power plug into an outlet other

than 100~240V AC.

This may cause fire or electrical shock.

• Don’t use a damaged power plug or worn outlet.

• Don’t insert an improper power plug it may

cause fire or electric shock.

Don‘t place the e-screen on an unstable shelf or

surface. The e-screen may fall, causing injury.

Please install on a horizontal, stable, level surface.

Don‘t place objects on the e-screen.

• If the e-screen is covered or the vents are

blocked, the display could overheat and cause a

fire.

• If objects or liquids get inside the e-screen, this

may cause fire or electrical shock.

• Do not put heavy objects on the e-screen as they

may fall, causing injury.

• Please keep a 10 cm minimum distance between

e-screen, wall and/or other objects to ensure

sufficient ventilation.

Product Content & Operation - Version 1.0 6

SAFETY INSTRUCTIONS

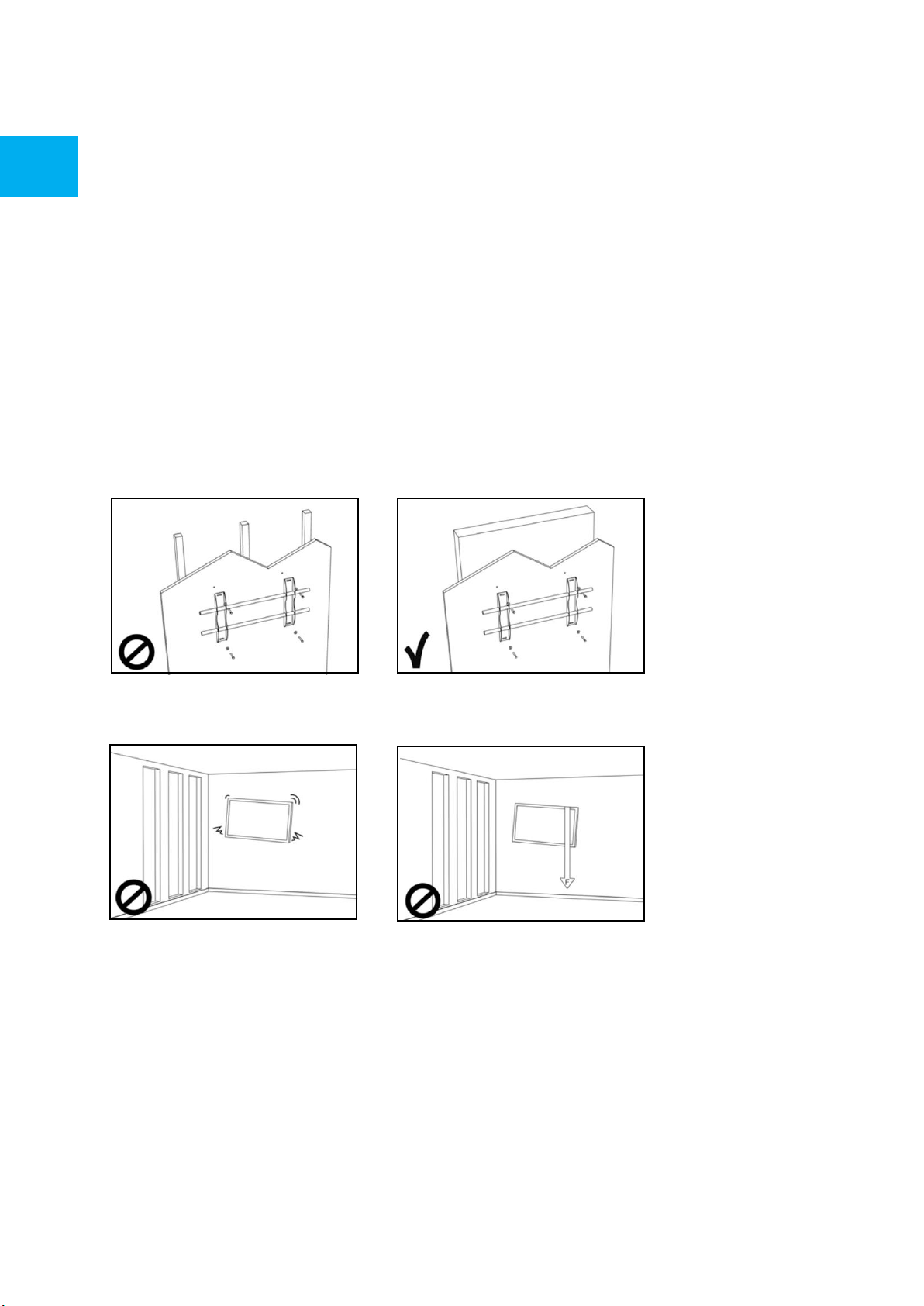

2.4 WALLMOUNT SAFETY NOTICE

1. Please make sure that the bracket is mounted on a solid surface.

2. After mounting the screen, do not pull, push or shake the screen.

Don‘t move the e-screen when it is connected to the power cord and AV cables.

•When moving the e-screen, make sure to remove all cables first.

•When unpacking or carrying the e-screen, at least 4 people are needed. Make sure the e-screen is carried

upright.

•Transport the e-screen upright. Avoid placing the e-screen face up or down.

•Handle the e-screen gently. Do not drop.

Product Content & Operation - Version 1.0 7

SAFETY INSTRUCTIONS

2.5 RECOMMENDED USE

If you encounter a problem during installation, please contact your supplier for assistance. Don’t repair or

open the e-screen by yourself. Failure to do so may result in fire or electrical shock.

Contact your dealer for inspection.

Protect and correctly use the power cord/plug.

•Don‘t pinch the power cord/plug between hard surfaces.

• Don‘t step on the power cord/plug.

• Before inserting the power plug into the wall outlet, connect the power cord to the display.

• Using an e-screen with a damaged or non-original power cord can damage the screen, cause fires or

electrical shocks.

Using extension cords (not recommended)

If an extension cord must be used, ensure the voltage rating exceeds the max power consumption of the

display. If the voltage rating is less than the display, it will cause the extension cord to overheat.

Do not operate the screen during thunder or lightning.

Remove the powerplug from the power outlet.

1. Do not install screens in direct sunlight, humid conditions, or high temperatures.

Product Content & Operation - Version 1.0 8

SAFETY INSTRUCTIONS

Don’t use any kind of liquid on the e-screen.

• If liquid is spilled on the e-screen, remove the power plug from the wall socket and ask qualified service

personnel to check the product.

• If liquid gets on e-screens glass plate, clean it with a dry and soft cloth immediately.

• Don’t use any chemicals on the e-screen.

• If metal or liquids get into the e-screen, it may cause a fire or an electrical shock.

Don’t install or remove the power plug with wet hands. This may cause an electrical shock.

If the e-screen will not be used for a long period of time, unplug the display. Preventing to do so may cause

premature wear of electrical components or fire.

Handle the e-screen with care, prevent glass breakage.

•If the glass of the e-screen is broken, liquids may escape. Please don‘t touch the liquid.

•If these liquids come into contact with skin or eyes, immediately wash it away with clean water and consult

a medical professional.

Precautions with the remote-control batteries

•Please only use approved AAA type batteries.

•Please be sure to insert batteries by matching the + and -.

•Don’t recharge, heat, disassemble, short or throw batteries into a fire.

•Don’t mix a new battery with a used one.

•Don’t mix different types of batteries together (only use the specified type).

2.6 CLEANING

Remove the power plug from the power outlet before cleaning.

Failure to do so may result in electrical shock or damage.

Cleaning the surface of the e-screen

•When the surface of the e-screen becomes dirty, wipe the surface lightly with a soft clean cloth.

•If the surface requires additional cleaning, lightly moisten the cloth.

•Do not to let any kind of liquid enter the e-screen as it may cause electrical shock or damage.

•Do not clean the e-screen with alcohol, solvents or ammonia, as this could damage the e-screen.

Product Content & Operation - Version 1.0 9

Touchscreen display

Product Content & Operation

English Deutsch Nederlands Français Español

Product Content & Operation - Version 1.0 10

TABLE OF CONTENTS

01 PACKAGE CONTENT 11

1.1 UNPACKING 11

1.2 INCLUDED ACCESORIES 11

02 INSTALLATION 11

2.1 ENVIROMENT CONDITIONS 11

2.2 GENERAL OVERVIEW OF THE SCREEN 12

2.3 INPUT / OUTPUT CONNECTOR INFORMATION 13

2.4 REMOTE CONTROL 13

2.4.1 CHANGING THE REMOTE-CONTROL BATTERY 14

03 TURNING THE SCREEN ON AND OFF 14

3.1 OPERATING THE SCREEN FOR THE FIRST TIME 15

3.2 QUICK LAUNCH MENU 16

3.3 SETTINGS MENU 17

3.4 UPDATING THE SCREEN 21

3.5 OPERATING THE SCREEN BUTTONS 21

04 TROUBLESHOOTING 22

05 COMPLIANCE 22

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pantalla táctil de Legamaster

Legamaster

Legamaster e-Screen 84 UMD Manual de usuario

Legamaster

Legamaster ETX-5510UHD Manual de usuario

Legamaster

Legamaster E-SCREEN Manual de usuario

Legamaster

Legamaster Panorama PAN-10500 Manual de usuario

Legamaster

Legamaster XTX-5500UHD Manual de usuario

Legamaster

Legamaster XTX-5500UHD Manual de usuario

Legamaster

Legamaster XTX-8600UHD Manual de usuario

Legamaster

Legamaster STX-7550UHD Manual de usuario

Legamaster

Legamaster ETX-5520 Manual de usuario

Legamaster

Legamaster Panorama PAN-10500 Manual de usuario

Legamaster

Legamaster PROFESSIONAL e-Screen 55 inch ETD Manual de usuario

Legamaster

Legamaster STX Series Manual de usuario

Legamaster

Legamaster ETX-6520 Manual de usuario

Legamaster

Legamaster XTX-7500UHD Manual de usuario

Manuales populares de Pantalla táctil de otras marcas

Elecro Engineering

Elecro Engineering Poolsmart Plus Instrucciones de instalación

Johnson Controls

Johnson Controls IQ4 HUB Manual de usuario

Elo TouchSystems

Elo TouchSystems ET2270L Manual de usuario

Elo TouchSystems

Elo TouchSystems ET1002L Manual de usuario

Elo TouchSystems

Elo TouchSystems 3201L Manual de usuario

Duratec

Duratec S15 Manual de usuario

Crestron

Crestron TPMC-3SM Manual de usuario

Racelogic

Racelogic MFD Touch Manual de usuario

J2 580 Guía del usuario

HAI

HAI OmniTouch 10p Manual de usuario

panel

panel PC PSR108-FM Series Manual de usuario

Tipro

Tipro FREE+ Manual de usuario

Systemline

Systemline Commander Manual de usuario

Interactive Technologies

Interactive Technologies Insite Manual de usuario

GVision

GVision Legacy Manual de usuario

BeiJer

BeiJer T21C-C24 Manual de usuario

Advantech

Advantech ITM-5117 Series Manual de usuario

Edge

Edge CS Manual de usuario
