Lefroy Brooks CW-4071 Instrucciones de montaje

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS

CW-4071

WHITE LEVER ARCHIPELAGO PRESSURE BALANCE MIXING VALVE TRIM ONLY,

TO SUIT M1-4100 ROUGH

Contents

Dimensions 3

InstalLation Procedure 4

Parts List 8

Fault Finder 9

Safety Tips, Care and Maintenance 10

Guarantee 11

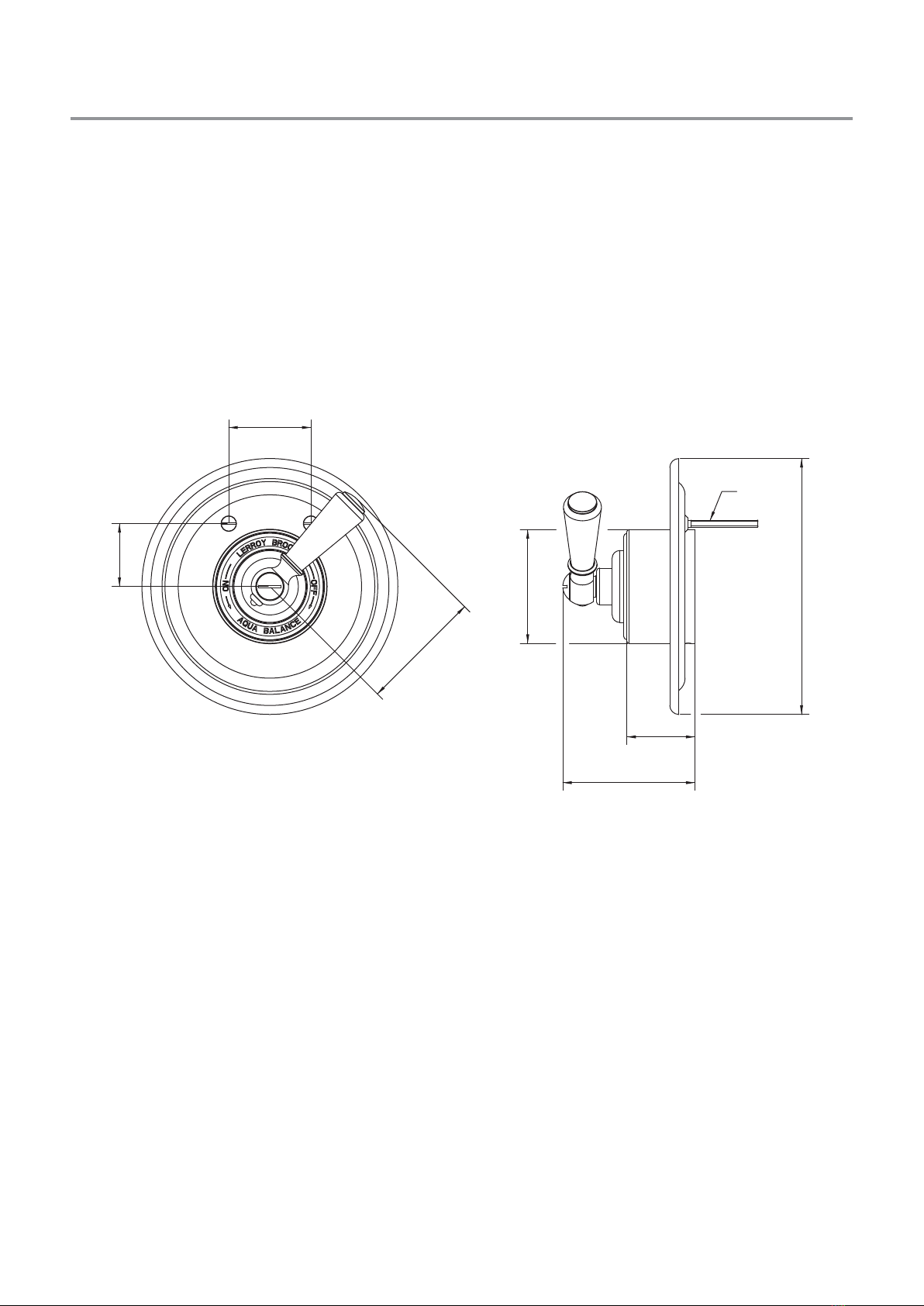

2 3/16"

(55mm)

1 5/8"

(42mm)

Ø3"

(Ø76mm)

Ø 6 3/4"

(Ø171mm)

3 1/4"

(82.5mm)

3 7/16"

(88mm)

1 13/16"

(45.5mm)

W3/16-24

Dimensions in Inches (& Millimetres)

Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without

notice as part of the company’s product development process.

82~107mm

wall surface

Note: Plaster guard

Keep a distance of

7mm at least from

the wall surface to

the front of the

plaster guard so

that the trim kit

CW-4070 &

CB-4070 can be

fitted successfully.

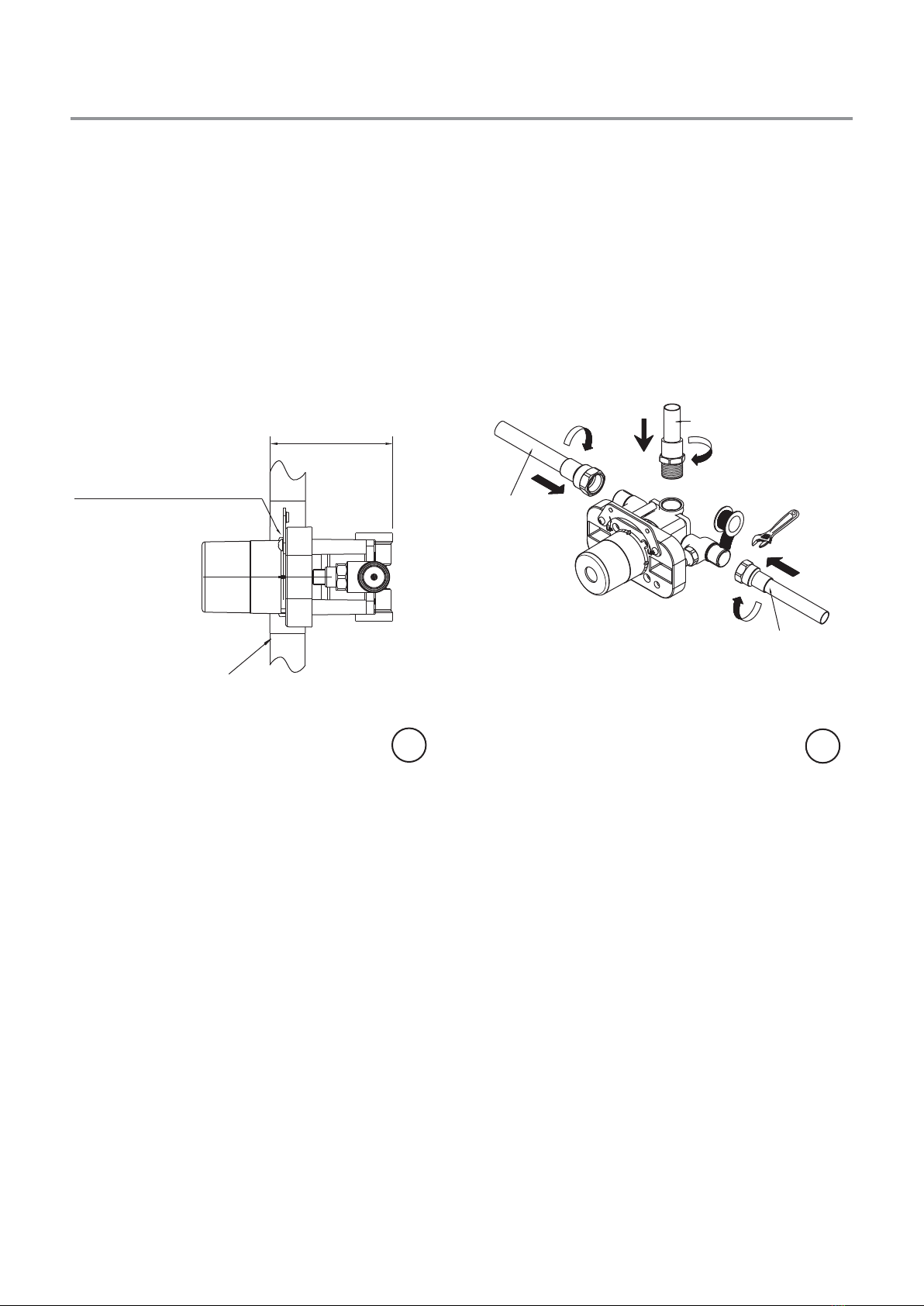

HOT WATER - IN

COLD WATER - IN

mixed water out

Steps 1-2

InstallationProcedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

1Position valve into the wall as shown.

2Connect the valve to the water pipes.

Ø145~150mm

Stopper A

(marked #049000)

Stopper B

(marked #049001)

Washer C

InstallationProcedure Steps 3-5

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

3Cut a hole on the wall surface for ﬁtting the trim kit. The hole dimension is as shown in ﬁgure 3.

4Throw away the protective cap only when the building construction is completed and you are

ready to ﬁt the trim kit.

REMOVE CAP ONLY, KEEP THE REST OF THE MUD GUARD AS IT IS NEEDED TO HOLD THE

TRIM FIXING SCREWS.

5Temperature Limiting Device:

Remove washer C, then take off stopper A & B.

10 11

Stopper A

(marked #049000) Stopper B

(marked #049001)

0 tooth

8 teeth

12 teeth

HIGHT TEMPERATURE SETTING

(with 150° operation range)

AVERAGE TEMPERATURE SETTING

(with 90° operation range)

LOW TEMPERATURE SETTING

(with 60° operation range)

InstallationProcedure Steps 9-11

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

9Figures I, II, III show how to adjust the temperature limit stop.

Having this open at eight notches is recommended.

10 Install washer.

11 Install adjusting ring and canopy.

12 13

InstallationProcedure Steps 12-13

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

12 Position valve into the wall as shown.

13 Install handle.

1 Seal (013007)

2 Front plate (006225)

3 Screw (008101)

4 Adjusting ring (104292)

5 Canopy (018394)

6 Set screw (065086)

7 Ceramic ring (023660-50)

8 O-ring (004623R)

9 Canopy (018251)

10 Screw (008109)

11 Canopy (205003)

12 Set screw (075018)

13 Handle head (205002)

14 Handle adaptor (109377)

15 Set screw (292556)

16 Screw head (008291)

17 Handle stem (017094)

18 Handle sleeve (108924)

19 Handle-end cap (109376)

20 Allen key (031003)

PartsList Exploded view

FaultFinder

Fault Cause Rectiﬁcation

Wobbling of handle. The ﬁxing screw comes loose. Check for ﬁxing screw and

re-tighten it properly.

Wobbling of canopy. The canopy comes loose. Check and tighten the canopy.

SafetyTips,CareandMaintenance

Safety Tips

If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to

applying ﬂame, otherwise you will void the warranty.

Cover drain openings to avoid losing small parts.

When cutting or soldering pipe, use safety glasses to protect your eyes.

Important Points

Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release

built-up pressure.

Overtightening nuts may cause damage.

Wrap all threaded connections with pipe tape available at your local plumbing supply store.

Always wrap in a clockwise direction. The ﬁttings should be installed by a state-licenced plumber.

Please note:

When there is a difference in water pressure between hot and cold supplies to the mixing valve, the

pressures should be equalized by a plumber in accordance with best practice and legislation.

Maintenance

Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as

these will dull the ﬁnish and void your warranty.

Routine Maintenance

The frequency and extent of attention required will vary according to prevailing site and operational

conditions, however a 12 monthly maintenance schedule is recommended.

If the product has operated satisfactorily for some time, but performance has been degraded, please

check the Fault Finder section to identify the problem.

Maintenance Check List

 s 7ORNORDAMAGEDSEALSANDWASHERS

 s $AMAGEDSEALFACES

 s 4HREADWEAR

 s )NCORRECTADJUSTMENT

 s #OMPONENTFAILURE

 s $EBRISORLIMESCALEBUILDUP
