Congratulations on the purchase of your Lefant ROBOTICS!We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things.Wisdom Inspired FreedomShould you encounter situations that have not been properly addressed inthis Instruction Manual, please contact our Customer Service Center where atechnician can address your speciﬁc problem or question.For more information, please visit the Lefant ROBOTICS oﬃcial website:www.lefantlife.com or send email to [email protected]The Company reserves the right to make technological and design changes to this product for continuous improvement.2

Contents6. Troubleshooting7. Technical Parameters4. Maintenance 14 4.1 Dust Bin and Filters14 4.2 Sucking assembly and Side Brush15 4.3 Other Components3. Product Operating and Programming 3.1 Notes Before Cleaning7 3.2 Quick Start85. Indicator Light and Alarm Sounds 5.1 Indicator Light 17 5.2 Alarm Tips 172. Product Composition1. Important Safety Instructions16457171819····························································································································································································· 3.3 APP Download and Network Conﬁguration10··························································································································································································································································································································································································································3

1.Important Safety Instructions When using the product, please keep your vigilance and follow below information:1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.2. Clear the area to be cleaned. Remove power cords and small objects from the ﬂoor that could entangle the Appliance. Tuckrug fringe under the rug base, and lift items such as curtains and tablecloths oﬀ the ﬂoor.3. If there is a drop oﬀ in the cleaning area due to a step or stairs,you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling.Make sure the physical barrier is not a trip hazard.4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.5. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.7. Non-rechargeable batteries are prohibited.8. Do not use without dust bin and/or ﬁlters in place.9. Do not operate the Appliance in an area where there are li t candles or fragile objects.10. Do not use in extremely hot or cold environments (below-5℃/23℉ or above 40℃/104℉).11. Keep hair, loose clothing, ﬁngers, and all parts of body away from any openings and moving parts.12. Do not operate the Appliance in a room where an infant or child is sleeping.13. Do not use Appliance on wet surfaces or surfaces with standing water.14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.15. Do not use Appliance to pick up ﬂammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a ﬁre.17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air ﬂow.18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.20. Do not use the Charging Dock if it is damaged.21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.22. Turn OFF the Power Switch before cleaning or maintaining the Appliance.EN23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.24. Remove the Appliance from the Charging Dock, and turn OFF the Power Switch to the Appliance before removing the battery for disposal of the Appliance.25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.26. Please dispose of used batteries according to local laws and regulations.27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a ﬁre.28. When not using the Charging Dock for a long period of time, please unplug it.29. The Appliance must be used in accordance with the directions in this Instruction Manual. LEFANT ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.30. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.31. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.4

2.Product CompositionRobotTop CoverStart/Pause ButtonDust BinDriving WheelAnti-Drop Sensor Anti-Drop SensorSuction AssemblyUniversal WheelSide BrushCharging ContactAnti-Drop SensorDriving WheelCharging ContactBumper StripAnti-Collision SensorsTop CoverPower Switch5

2.Product CompositionCharging DockMulti-FunctionCleaning ToolCharging Dock PinsPower Indicator LightPower AdapterPower Adapter PortDust BinHigh Eﬃciency Filter (HEPA)Filter Net Dust Bin Cover HEPA Cover6

3.Operating and Programming3.1 Notes Before CleaningPlease refer to the following guidelines to check the cleaning area before using the robot.Remove power cords and small objects from theﬂoor that could entangle the products.The product is not suitable for use on long-pile carpet. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.If there is a step or stairs in the cleaning area,please operate robot to ensure its Anti-Drop Sensors can detect the drop oﬀ. It may be necessary to place a physical barrier at the edge of the drop oﬀ to keep the unit from falling over the edge.Please be aware that the robot needs at least an 8 cm (3”) clearance to clean under furniture without complications.7

3.Operating and ProgrammingAttach Side Brush to the bottom of robot by pressing a brush into each slot until it clicks. Install Side Brush2

1M1M

Side Brush3.2 Quick StartPlace the Charging Dock on a level ﬂoor surface against the wall with the base perpendicularto the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on both sides of the charger clear of objects and reﬂective surfaces.Plug the Charging Dock in, the Power Indicator Light on the Charging Dock glows.Charging Dock PlacementConnect the adapter to the charging Dock1Place the Charging DockConnect the power supply8

button in breathing status when robot is charging, button stops glowing after robot is fully charged.Usually take 3.5 hours from low battery mode to fully charged.3.Operating and ProgrammingTurn the robot’s Side Power Switch to the ON position. “-” indicates power ON and“O” indicates power OFF. Robot is powered ON when button glows a continuous BLUE.Start to ChargeStart CleaningTurn on the Robot1Charge Robot2Place robot on the Charging Dock making sure the Charging Contacts on robot and the Charging DockPins make a connection.When battery power gets low, Robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself. Alternatively, double click on the Start/Pause button on the robot to start the Return to Charger Mode.Press the button to Pause the Cleaning.Press the button on the robot to start the automatic cleaning mode.Pause CleaningReturn to Charging dockMake sure to turn the robot’s Power Switch on before charging.9

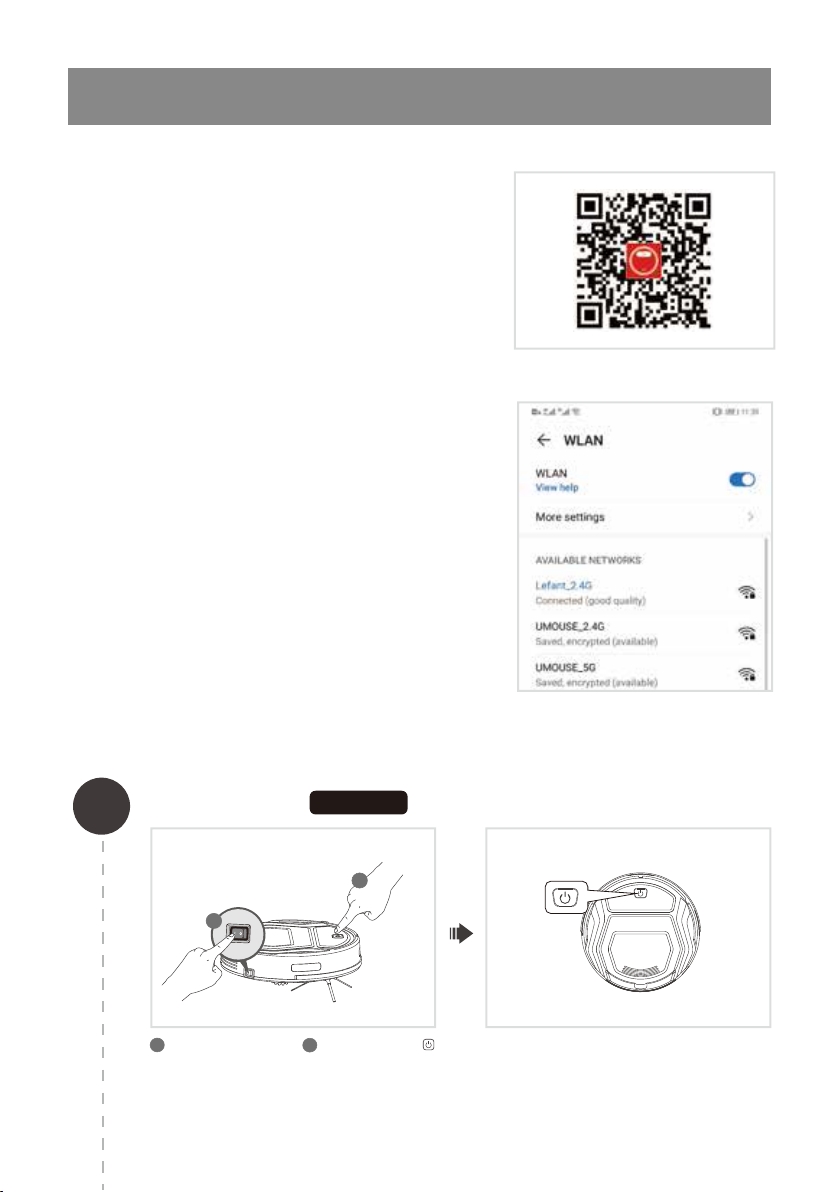

3.Operating and ProgrammingScan the QR code to download and install the appConnect to your Indoor 2.4G WIFI networkThis app is compatible with IOS9.0 and Android 4.0 or above.ios system: Please search “Lefant life” in the app store.Android system: Please scan the QR code or search "Lefant Life" on google play to download.

3.3 APP download and network conﬁguration

Make sure the mobile device is connected to the indoor 2.4G WIFI network, and the signal quality is good enough, register and log in to the mobile app.101

The robot enters the network conﬁguration EZ

mode, and the start / pause ﬂash quickly in blue.

Network paring EZ mode (Only 2.4G Wi-Fi can be supported)

Turn on the side switch. Press and hold the key for about 3 seconds until you hear a beep and release.

EZ MODE
