Ledj STAGE BAR 16 Manual de usuario

www.prolight.co.uk

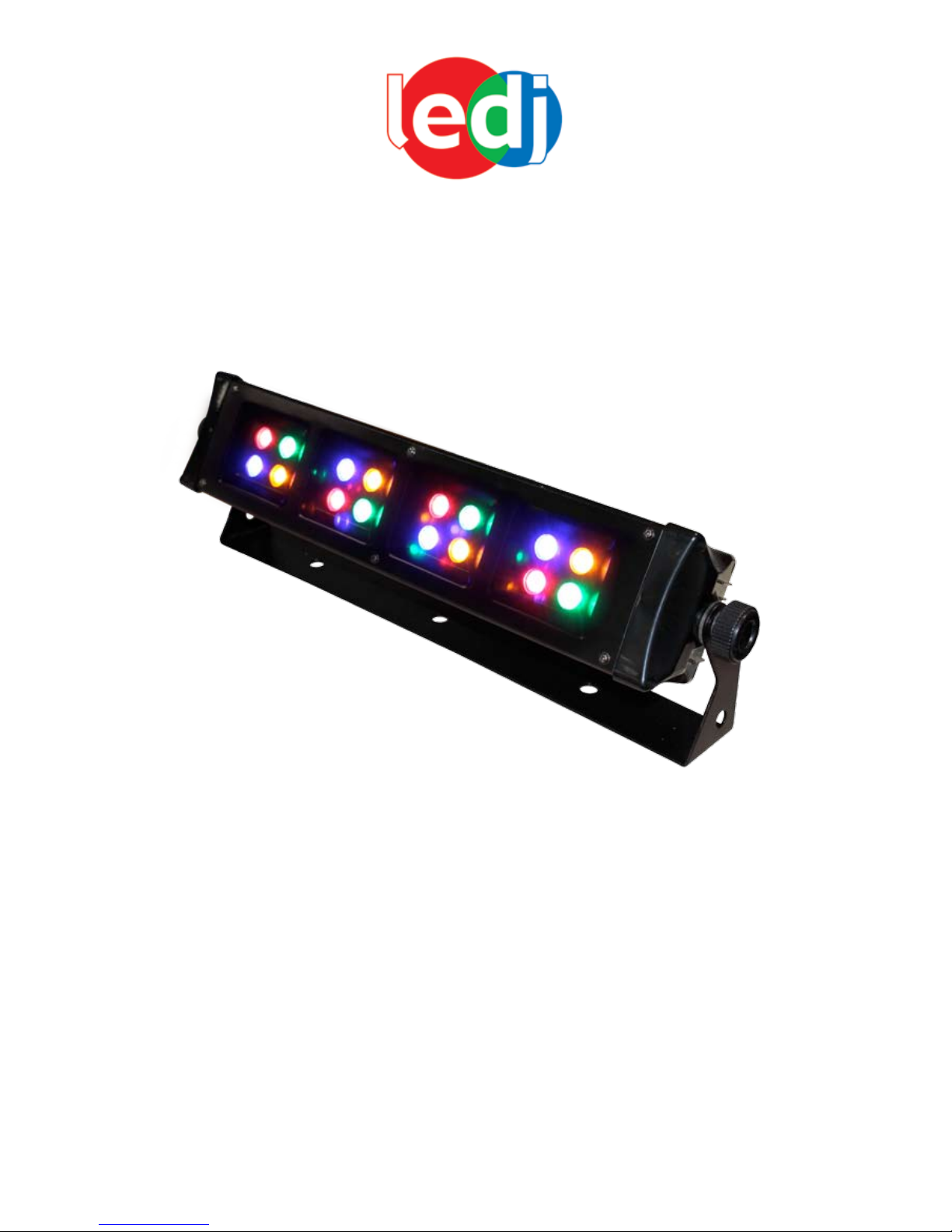

STAGE BAR 16

(Order code: LEDJ160)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

STAGE BAR 16 SAFETY

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

Setup

Operating Instructions

The Stage Bar 16 is a DMX-512 controllable unit made up of high efciency and Ultra bright LEDs

and will operate in auto run, master/slave, sound activated or DMX control modes.

STAGE BAR 16 INTRODUCTION

Introduction

Features

• DMX channels: 19/6/4 selectable

• 16 Ultra Bright 3W LEDs (R: 4, G:4, B: 4, A: 4)

• Sound activated, Auto run, Master/slave and DMX modes

• Sound control via internal microphone

• 13 built-in programmes

• Consumption: 60W

• Beam 25 degrees

• Lamp life: 100,000 hours

Over view

Mode Button

Set Up Button

Up Button

Down Button

Power In

STAGE BAR 16 OPERATION MODES

Operation modes

Sound Active mode:

To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”

on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using

the “UP” and “DOWN” buttons. Press the “SET UP” button again to select the frequency number

and adjust by using the “UP” and “DOWN” buttons.

“SENS” 00 - 31 (00 = low, 31 = high), “FQN” 01-99 (01 = low, 99 = high)

Auto run mode:

To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the

LCD screen. Now press the “SET UP” button to select the desired frequency number by using the

“UP” and “DOWN” buttons.

“FQN” 01-99 (01 = low, 99 = high)

Note: When the Stage Bar 16 is set to “SOUND” or “AUTO RUN” mode it will scroll through all

of its built-in programmes one after the other. The term “FQN” refers to the number of times it

displays the buit-in programmes: for example if you set the “FQN” to 3, it will then repeat each

programme 3 times before going on to the next one.

Slave mode:

To activate the unit in slave mode, rst you must link multiple units together and press the

“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the

“MODE” button to select the desired mode and the slave units will now run in sequence with the

master unit.

Built-in programmes:

To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the

LCD screen. Press the “SET UP” button to choose between the 13 built-in programmes by

using the “UP” and “DOWN” buttons. Now press the “SET UP” button to select the desired

speed and adjust by using the “UP” and “DOWN” buttons. Press the “SET UP” button once

more to select the desired ash value and adjust by using the “UP” and “DOWN” buttons.

Speed values: 00 - 99 (00 = slow, 99 = fast),Flash values: 00 - 99 (00 = slow, 99 = fast)

For the 13 built-in programmes please see page 5.

DMX mode:

To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD

screen. Press the “SET UP” button and select the desired DMX address setting by using the

“UP” and “DOWN” buttons. Then to select one of the 3 DMX modes 19, 6 or 4 channel,

press the “SET UP” button again to choose the desired DMX mode by using the “UP” and

“DOWN” buttons.

For the 19, 6 and 4 channel DMX address information please see page 6.

NOTE: Once the desired settings have been selected in all of the modes, ALWAYS

conrm the settings by pressing the “SET UP” button.

STAGE BAR 16 BUILT-IN PROGRAMME CHART

13 Built-in programme chart

Static colour selection:

To select a static colour press the “MODE” button to show “01.STATIC” on the LCD screen.

Now press the “SETUP” button to select the desired light output value of each individual colour,

for example for RED and AMBER on only set the values to R:99,G:00,B:00,A99.

Light output values: 00 = Off, 99 = On.

Flash speed values: 00 = Off, 99 = Fast

01, Static colour

Blackout - RGBA

Flash: 00 - 99

02, Colour Jump

Speed: 00 - 99 Flash: 00 - 99

03, Colour Fade

Speed: 00 - 99 Flash: 00 - 99

04, Colour Dream

Speed: 00 - 99 Flash: 00 - 99

05, Colour Flow

Speed: 00 - 99 Flash: 00 - 99

06, Colour Overlap Flow

Speed: 00 - 99 Flash: 00 - 99

07, Colour Chase

Speed: 00 - 99 Flash: 00 - 99

08, Multi-Colour

Speed: 00 - 99 Flash: 00 - 99

09, Fade Flow

Speed: 00 - 99 Flash: 00 - 99

10, Two Flow

Speed: 00 - 99 Flash: 00 - 99

11, One Way

Speed: 00 - 99 Flash: 00 - 99

12, Two Way

Speed: 00 - 99 Flash: 00 - 99

13, Two Colour

Speed: 00 - 99 Flash: 00 - 99

Static colour selection.

R: 00 - 99, G: 00 - 99, B: 00 - 99, A: 00 - 99

NB: See static colour selection below.

Jumps through its built-in 15 colours one after the other.

Speed and ash adjustable.

15 colour fade in, fade out

Speed and ash adjustable.

15 colour fade

Speed and ash adjustable.

15 colour ow from left to right.

Speed and ash adjustable.

15 colour ow from left to right, right to left

Speed and ash adjustable.

15 colour chase from left to right, right to left

Speed and ash adjustable.

Multi-colour chase from left to right,

Speed and ash adjustable.

15 colour fade ow from left to right,

Speed and ash adjustable.

2 colour ow from left to right,

Speed and ash adjustable.

2 colour chase from left to right,

Speed and ash adjustable.

2 colour ow from left to right, right to left

Speed and ash adjustable.

2 colour chase from left to right, right to left

Speed and ash adjustable.

STAGE BAR 16 DMX PROGRAMME CHARTS

4 channel mode DMX chart

6 channel mode DMX chart

19 channel mode DMX chart

CH1

Red

0-255

CH2

Green

0-255

CH3

Blue

0-255

CH4

Amber

0-255

CH1

Red

0-255

CH2

Green

0-255

CH3

Blue

0-255

CH4

Amber

0-255

CH5

Master

dimmer

0-255

CH6

0 = On

1-5 = Sound

6-10 = On

11-255 = Flash

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

CH17

CH18

CH19

0-5: BLACKOUT

6-10

DIMMER

0-255

ALL

0-255

Flash

0-255

11-15

DIMMER

0-255

ALL

0-255

Flash

0-255

16-20

0-255

Speed

0-255

Flash

21-25

0-255

Speed

0-255

Flash

26-30

0-255

Speed

0-255

Flash

31-35

0-255

Speed

0-255

Flash

36-40

0-255

Speed

0-255

Flash

41-45

0-255

Speed

0-255

Flash

46-50

0-255

Speed

0-255

Flash

51-55

0-255

Speed

0-255

Flash

56-60

0-255

Speed

0-255

Flash

61-65

0-255

Speed

0-255

Flash

66-70

RGB

0-255

Speed

0-255

Flash

71-75

RGA

0-255

Speed

0-255

Flash

76-80

RBA

0-255

Speed

0-255

Flash

81-85

GBA

0-255

Speed

0-255

Flash

86-90

RGBA

0-255

Speed

0-255

Flash

91-100

Colour

jump

0-255

Speed

0-255

Flash

101-110

Colour

fade

0-255

Speed

0-255

Flash

111-120

Dreaming

0-255

Speed

0-255

Flash

121-130

Colour

flow

0-255

Speed

0-255

Flash

131-140

Overlap

flow

0-255

Speed

0-255

Flash

141-150

Colour

chase

0-255

Speed

0-255

Flash

151-160

Multi-

Colour

0-255

Speed

0-255

Flash

161-170

Fade flow

0-255

Speed

0-255

Flash

0-255

Colour

select

171-180

Two flow

0-255

Speed

0-255

Flash

0-255

Colour

select

0-255

Colour

select

181-190

One way

0-255

Speed

0-255

Flash

0-255

Colour

select

0-255

Colour

select

191-200

Two way

0-255

Speed

0-255

Flash

0-255

Colour

select

0-255

Colour

select

201-210

Two

Colour

0-255

Speed

0-255

Flash

0-255

Colour

select

0-255

Colour

select

211-255

SOUND

0-255

Sens

STAGE BAR 16 DMX SET UP

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only

have a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The Stage Bar 16 can be controlled via DMX-512 protocol. The DMX address is set on the

back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for

data input/output (gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased

from all good sound and lighting suppliers

or Prolight dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Notice:

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

STAGE BAR 16 DMX SET UP

STAGE BAR 16 TECHNICAL SPECIFICATIONS

Technical Specications

Weight & Dimensions

• Length…...........................................................550mm

• Width.................................................................120mm

• Height……………………………………………..155mm

• Weight……………………………………….........3.6kgs

Power

• AC input……………………………………..........240V/50hz

• Power consumption.........................................60W

• Fuse

• Main……………………………………………….2A/240V

Control & Programming

• Data input………………………………………...Locking 3-pin XLR male socket

• Data output……………………………………….Locking 3-pin XLR female socket

• Protocols…………………………………………DMX-512 USITT

• DMX channels…………………………………...19, 6 and 4

Tabla de contenidos

Otros manuales de Equipo de iluminación de Ledj

Ledj

Ledj Slimline CW Series Manual de usuario

Ledj

Ledj TRI LED-56 CAN Manual de usuario

Ledj

Ledj Mini Pix 4 Batten Manual de usuario

Ledj

Ledj LEDJ225 Manual de usuario

Ledj

Ledj Slimline Q5 Series Manual de usuario

Ledj

Ledj Pixel Storm 6 Tri Batten Manual de usuario

Ledj

Ledj ECO LED Par 56 Manual de usuario

Ledj

Ledj STAR15 Manual de usuario

Ledj

Ledj Spectra Par LEDJ88 Manual de usuario

Ledj

Ledj Mini Pix 9 Panel Manual de usuario

Ledj

Ledj Event Spot Bar RGBW Manual de usuario

Ledj

Ledj BlockBuster 6 Manual de usuario

Ledj

Ledj STAGE PAR 64 Manual de usuario

Ledj

Ledj Event Spot WW Triac Manual de usuario

Ledj

Ledj LEDJ352A Manual de usuario

Ledj

Ledj LEDJ252C Manual de usuario

Ledj

Ledj Slimline 1T100 Manual de usuario

Ledj

Ledj Stage Wash 18 Manual de usuario

Ledj

Ledj minibar TC Manual de usuario

Ledj

Ledj LEDJ472 Manual de usuario

Ledj

Ledj Slimline 3HEX12 Series Manual de usuario

Ledj

Ledj ALU ZOOM PAR 64 Manual de usuario

Ledj

Ledj LEDJ255 Manual de usuario

Ledj

Ledj STRATOS UV Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
