LeCroy MS-500 Manual de usuario

S-

-5

r’

’s

2ISSUED: June, 2009 MS-500-OM-E Rev C

LeCroy Corporation

700 Chestnut Ridge Road

Chestnut Ridge, NY 10977–6499

Tel: (845) 578 6020, Fax: (845) 578 5985

Internet: www.lecroy.com

LeCroy, ActiveDSO, WaveLink, JitterTrack, WavePro, WaveMaster, WaveSurfer, WaveExpert, and

Waverunner are registered trademarks of LeCroy Corporation. Other product or brand names are

trademarks or requested trademarks of their respective holders. Information in this publication

supersedes all earlier versions. Specifications subject to change without notice.

Manufactured under an ISO 9000

Registered Quality Management System

Visit www.lecroy.com to view the

certificate.

This electronic product is subject to

disposal and recycling regulations

that vary by country and region.

Many countries prohibit the

disposal of waste electronic

equipment in standard waste

receptacles.

For more information about proper

disposal and recycling of your

LeCroy product, please visit

www.lecroy.com/recycle.

MS-500-OM-E Rev C

917368-00 Rev A

MS-500-OM-E Rev C ISSUED: June, 2009 3

TABLE OF CONTENTS

SAFETY REQUIREMENTS ..................................................................................5

Cleaning...........................................................................................................................................5

Use and Maintenance......................................................................................................................5

INTRODUCTION...................................................................................................6

Overview ..........................................................................................................................................6

Warranty...........................................................................................................................................6

Returning a Product for Service or Repair.......................................................................................7

Technical Support.............................................................................................................................7

Staying Up-to-Date...........................................................................................................................7

STANDARD AND ACCESSORY EQUIPMENT ...................................................8

The MS-500 Standard Hardware .....................................................................................................8

The MS-500 Software ......................................................................................................................9

Accessories....................................................................................................................................10

DESCRIPTION OF OPERATION........................................................................12

GETTING STARTED WITH THE MS-500...........................................................13

Overview ........................................................................................................................................13

Connecting the MS-500 System to the Oscilloscope.....................................................................13

Verifying Proper MS-500 Connection to your Oscilloscope and the Device Under Test ...............16

If you are concerned that your digital signals aren’t being displayed correctly, it is a good idea to

check by viewing the digital signals one at a time with an analog channel. This can point out

errors in your connection or in your logic threshold setup. ............................................................16

The Complete System Connection ................................................................................................16

Digital Connections ........................................................................................................................16

Channel Groupings.................................................................................................................17

Connector Colors....................................................................................................................17

Standard Output Connection ..................................................................................................17

Threshold Levels............................................................................................................................17

Minimum voltage swing..................................................................................................................19

Basic Oscilloscope Operation........................................................................................................19

ACCESSING THE MS-500 OSCILLOSCOPE MIXED SIGNAL OPTION

TOOLSET...........................................................................................................20

Overview ........................................................................................................................................20

Oscilloscope Analog Trigger and MS-500 Digital Trigger ..............................................................20

Digital Trace Groups.......................................................................................................................21

DIGITAL TRACE GROUP SETUP......................................................................23

Digital Trace Group Dialog.............................................................................................................23

Digital Logic Threshold Setup ........................................................................................................25

Overview.................................................................................................................................25

MS-500 Mixed Signal Oscilloscope Option

4ISSUED: June, 2009 MS-500-OM-E Rev C

Digital Logic Setup..................................................................................................................26

DIGITAL TRIGGER SETUP ...............................................................................28

Overview ........................................................................................................................................28

Creating a Pattern Trigger..............................................................................................................28

Logic Pattern Trigger Setup ...........................................................................................................29

Logic Bus Trigger Setup.................................................................................................................30

Digital Logic Threshold Setup ........................................................................................................30

CHARACTERIZE DIGITAL OR MIXED SIGNAL SYSTEM PERFORMANCE...32

Overview ........................................................................................................................................32

Using Cursors.................................................................................................................................32

Using Measurement Parameters ...................................................................................................33

Measurement Gating......................................................................................................................33

Using Statistics and Graphing........................................................................................................34

ISOLATE AND ANALYZE SIGNAL ACTIVITY..................................................35

Capture Long Pre-Trigger Time .....................................................................................................35

Zooming on Your Waveforms.........................................................................................................36

APPENDIX A –SPECIFICATIONS....................................................................38

CERTIFICATIONS..............................................................................................39

CE Declaration of Conformity.........................................................................................................39

EMC Directive ................................................................................................................................39

Electromagnetic Emissions:...........................................................................................................39

Electromagnetic Immunity: .....................................................................................................39

Low-Voltage Directive ....................................................................................................................39

MS-500-OM-E Rev C ISSUED: June, 2009 5

SAFETY REQUIREMENTS

This symbol may appear on the product:

This refers you to additional information contained in the operator’s manual. The corresponding

information in this manual is similarly denoted.

Before using this product, ensure that its operating environment will be maintained within these

parameters:

Temperature:

5 to 40 oC

Humidity:

Maximum relative humidity 80 % (non-

condensing) for temperatures up to 31oC

decreasing linearly to 50 % relative

humidity at 40oC

Altitude:

Up to 2,000 m

CAUTION

To avoid personal injury or damage to the MS-500 or any equipment connected to it, review and

comply with the following safety precautions.

Use only as intended. Use of the MS-500 and/or the equipment it is connected to in a

manner other than specified may impair the protection mechanisms.

Connect and disconnect properly. Avoid damage to cables thru excessive bending.

Do not use in wet/damp or explosive atmospheres.

For indoor use only. The MS-500 is intended for indoor use and should be operated in a

clean, dry, environment.

Do not operate with suspected failures. Do not use MS-500 if any part is damaged. All

maintenance should be referred to qualified service personnel.

Keep product surfaces clean and dry.

Cleaning

The outside of the MS-500 hardware should be cleaned with a soft cloth dampened with either

deionized / distilled water or isopropyl alcohol. Allow the surface to dry completely before

returning the instrument to service.

Use and Maintenance

The MS-500 is a high quality, precision instrument. To maintain accuracy and signal fidelity,

mechanical shock should be avoided, as well as damage to the cables through excessive

bending. All maintenance and component replacement should be referred to qualified personnel.

MS-500 Mixed Signal Oscilloscope Option

6ISSUED: June, 2009 MS-500-OM-E Rev C

INTRODUCTION

Overview

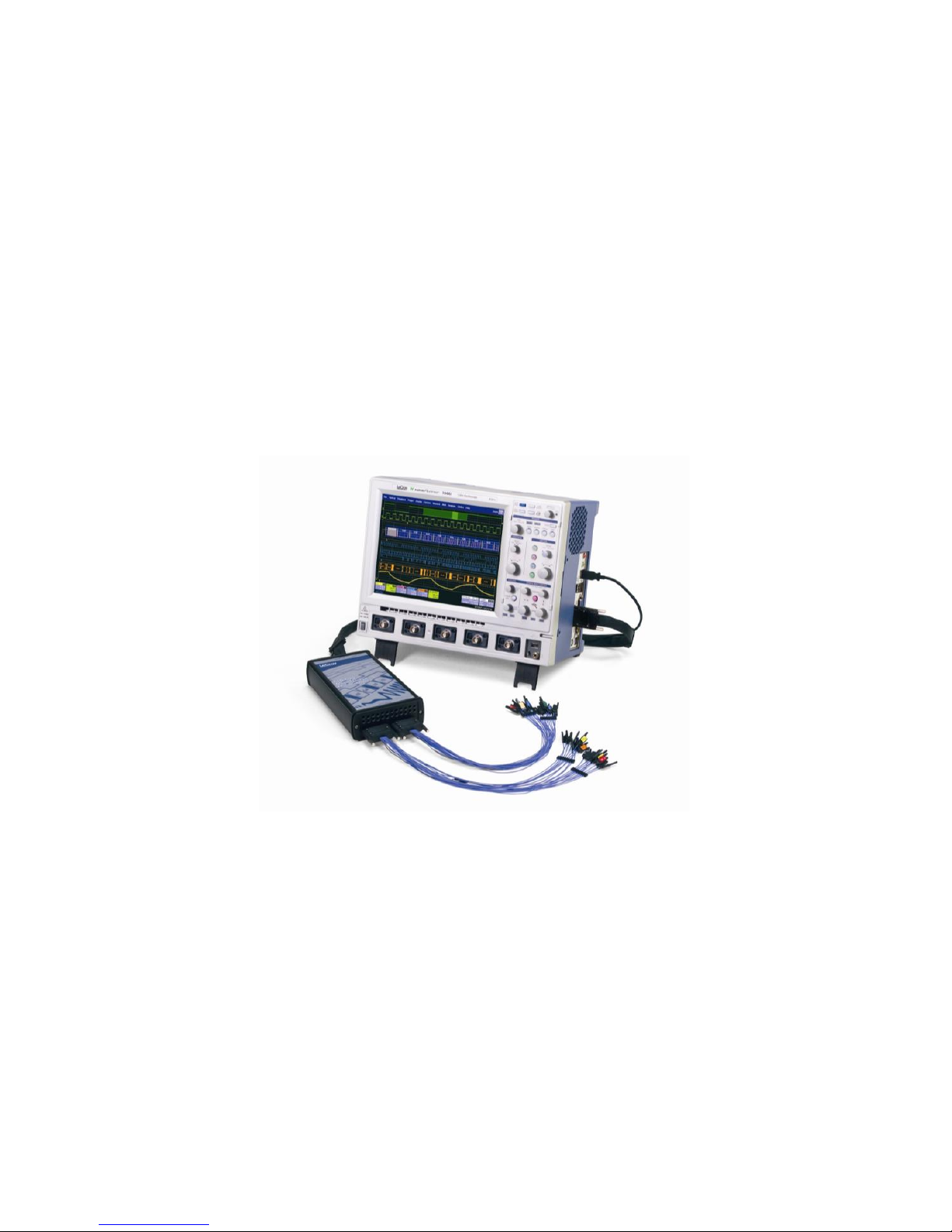

The MS-500 Mixed Signal Oscilloscope Option is a powerful solution for the challenge of

measuring multiple, mixed signals in a single oscilloscope. An enhancement tool to the LeCroy

WaveRunner Xi Series and WaveSurfer Xs Series oscilloscopes, the MS-500 extends their

testing range by adding 18 or 36 digital channels for display or triggering.

The MS-500 is ideally suited for embedded controller testing where there is a proliferation of

analog signals (comparators, voltage sources, sensor/actuator signals, etc.) coincident with digital

signals (address or data lines, control signals, or peripheral serial data signals). Users can easily

debug signals using standard oscilloscope tools such as cursors, measurement parameters, and

zooming.

Both oscilloscopes usable with the MS-500 feature large, bright color displays to facilitate signal

viewing, plus all the connectivity and documentation capabilities needed to quickly record and

distribute information.

This MS-500 manual assumes that you have a basic understanding of discrete electronics, logic

analyzers, and LeCroy oscilloscopes, specifically the LeCroy oscilloscope that the MS-500

system will be used with. When practical or necessary there are details on specific oscilloscope

features included in this manual.

The MS-500 and MS-500-36 are identical except the MS-500-36 standard configuration is for 36

channels. The MS-500-36 can be operated in 36 or 18 channel mode for higher performance.

The MS-500 is configured as an 18 channel instrument and can be upgraded with an additional

lead set to support 36 channels.

In this manual the MS-500 and MS-500-36 are referred to solely as MS-500.

Warranty

The MS-500 is warranted for normal use and operation, within specifications, for a period of one

year from shipment. LeCroy will either repair or, at our option, replace any product returned to

one of our authorized service centers within this period. However, in order to do this we must first

examine the product and find that the defect is due to workmanship or materials and not due to

misuse, neglect, accident, or abnormal conditions or operation.

LeCroy shall not be responsible for any defect, damage, or failure caused by any of the following:

a) attempted repairs or installations by personnel other than LeCroy representatives, or b)

improper connection to incompatible equipment, or c) for any damage or malfunction caused by

the use of non-LeCroy supplies.

Spare and replacement parts, and repairs, all have a 90-day warranty.

The oscilloscope’s firmware has been thoroughly tested and is presumed to be functional. This

includes MS-500 specific firmware. Nevertheless, it is supplied without warranty of any kind

covering detailed performance. Products not made by LeCroy are covered solely by the warranty

of the original equipment manufacturer.

MS-500-OM-E Rev C ISSUED: June, 2009 7

Returning a Product for Service or Repair

If you suspect that you have a problem with the MS-500 you should first contact your local

LeCroy service center so they can ascertain whether the component is defective.

If you need to return a LeCroy product, provide model identification by providing the model name

and serial number, describe the defect or failure, and give us your name and telephone number.

For factory returns, use a Return Authorization Number (RAN), which you can get from customer

service. Write the number clearly on the outside of the shipping carton. Return products requiring

only maintenance to your local customer service center. Within the warranty period,

transportation charges to the service center are your responsibility.

Products under warranty are then returned to you with transport prepaid by LeCroy. Outside the

warranty period, you provide us with a purchase order number before the work can be done. You

are also billed for parts and labor related to the repair work and shipping. It is highly

recommended to prepay return shipments and use air freight.

It is highly recommended to prepay return shipments and use air freight. LeCroy cannot accept

COD (Cash On Delivery) or Collect Return shipments.

Technical Support

You can get assistance with installation and operation from your customer service center. Visit

the LeCroy Web site at http://www.lecroy.com for the center nearest you.

Staying Up-to-Date

Your MS-500 hardware does not need periodic calibration.

LeCroy offers state-of-the-art performance by continually refining and improving the instrument’s

capabilities and operation. We frequently update both firmware and software during service, free

of charge during warranty. Therefore, MS-500 specific software may be periodically updated. You

can download firmware and software updates from the LeCroy website.

Since software is continuously updated, the dialog boxes and menus you see in your program

may be slightly different than what is shown in this manual. These differences should not affect

your understanding of correctly operating the MS-500.

MS-500 Mixed Signal Oscilloscope Option

8ISSUED: June, 2009 MS-500-OM-E Rev C

STANDARD AND ACCESSORY EQUIPMENT

The MS-500 Standard Hardware

The Standard Hardware consists of the following items:

Qty. 1 Mixed Signal Oscilloscope Option –Provides 18

or 36 channel digital acquisition and triggering.

Qty. 1 16” (40.64 cm) Digital Lead Set –Interfaces the

MS-500 to the device under test. The lead set terminates

in a 25 mil pin socket. Micro-gripper probes of various

sizes are available as accessories from LeCroy, and may

be connected to the lead set. (Qty.2 provided with MS-

500-36)

The lead set is divided into two groups. Each lead within

the group is color-coded (to resistor color-coding standard)

and has an individual ground connection. In addition, there

are two common ground leads available for use.



Qty. 1 LeCroy Bus Cable –1.3m cable to connect Mixed

Signal Hardware to main oscilloscope unit, includes

USB2.0 cable. This connection provides timebase

synchronization, cross-triggering and power.

MS-500-OM-E Rev C ISSUED: June, 2009 9

Qty. 5 3” Flexible Ground Lead –Lead for grounding

individual digital inputs (Qty. 10 for MS-500-36)

Qty. 20 Ground Extender –Connect to ground port of any

digital input and make a simple signal and ground

connection to a 0.1”square pin header. (Qty. 40 with MS-

500-36)

Qty. 1 Carrying Case

Qty. 1 Quick Reference Guide

Qty. 1 Operator’s Manual

The MS-500 Software

The standard MS-500 software adds the following capability to the LeCroy oscilloscope software

dialogs:

Analog, Digital and Combination Trigger Modes –Allows you to choose whether to set

an analog trigger condition, a digital trigger condition or a pattern consisting of analog

and digital signals.

Digital Trigger –Allows a digital trigger condition to be set from within the oscilloscope

using an easy-to-understand interface.

Digital Channels –Provides a standard, general purpose setup for defining the digital

channels and displaying digital lines.

MS-500 Mixed Signal Oscilloscope Option

10 ISSUED: June, 2009 MS-500-OM-E Rev C

Digital Threshold Setup –Provides the means to define a logic threshold for digital

trace calculation.

The MS-500 Hardware and Software requires no traceable calibration or adjustment. However,

the oscilloscope used with the MS-500 does require periodic calibration and adjustment.

Accessories

The following accessories are also available for use with the MS-500.

MSO-DLS-18 16” (40.64 cm) Digital Lead Set –You may

find an additional standard digital lead set convenient if

you have more than one device under test and do not wish

to disconnect/reconnect your cables (when using the MS-

500 on different DUTs). Inputs are labeled D0 –D17.

MSO-DLS-36 16” (40.64 cm) Digital Lead Set –An

additional digital lead set. This might be convenient to

have if you have more than one device under test and do

not wish to disconnect/reconnect your cables to use the

MS-500 on different DUTs. Adding this to the MS-500

enables 36 channels. Inputs are labeled D18 –D35

PK400-1 –Large gripper probe set for 0.10 inch (2.54

mm) pin pitch. Includes 10 probes with color-coded leads.

Tabla de contenidos

Otros manuales de Equipo de prueba de LeCroy

LeCroy

LeCroy WAVERUNNER 6000 SERIES Manual de usuario

LeCroy

LeCroy XI SERIES Manual de usuario

LeCroy

LeCroy LC Series Manual de usuario

LeCroy

LeCroy 9450 Manual de usuario

LeCroy

LeCroy WaveMaster 8 Zi Manual de lista de piezas

LeCroy

LeCroy WavePro 7 Zi series Manual de usuario

LeCroy

LeCroy PP011 Manual de usuario

LeCroy

LeCroy WaveMaster 8 Zi Manual de lista de piezas

LeCroy

LeCroy WaveRunner XI Series Manual de usuario

LeCroy

LeCroy WaveRunner 6Zi Manual de lista de piezas

LeCroy

LeCroy Waverunner2 Series Manual de usuario

LeCroy

LeCroy WaveRunner 6000A Series Manual de usuario

LeCroy

LeCroy WaveAce 1000 series Manual de usuario

LeCroy

LeCroy Digital Oscilloscopes Manual de usuario

LeCroy

LeCroy WaveRunner LT224 Manual de usuario

LeCroy

LeCroy WaveSurfer 400 Series Manual de usuario

LeCroy

LeCroy ZD200 Manual de usuario

LeCroy

LeCroy WaveJet 300A series Manual de usuario

LeCroy

LeCroy MS-250 Manual de usuario

LeCroy

LeCroy WavePro 7 Zi series Manual de lista de piezas

LeCroy

LeCroy WAVESURFER 44MXS-B Manual de usuario

LeCroy

LeCroy LC564DL Manual de usuario

LeCroy

LeCroy WaveAce 202 Manual de usuario

LeCroy

LeCroy 4300B Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
