Mechanical
Time Recorder
Model 2121
User’s Guide
Contents
Thank you for choosing the Lathem 2121 time recorder. Should
you ever need assistance, please let us know.
This guide contains all the information you need for setting up
and operating your new time recorder. Service information is
also included for replacing certain parts.
Ordering Accessories ............................................. 1
Start ere .......................................................... 2
1.
Mount Clock in Suitable Location ........................... 2
2.
Unlock and Remove the Cover............................... 2
3.
Lift the Type Section ......................................... 3
4.
Set the Printed Day and Time ............................... 4
5.
Set ands on Clock Face ..................................... 6
6.
Advance Print Wheels and ands ........................... 7
7.
Lower the Type Section into Place ......................... 7
8.
Test that Clock is Now Set Correctly ....................... 9
9.
Close and Lock the Unit ...................................... 9
Change the Ribbon...............................................10
Change the Type Section........................................11
Change the Motor ................................................12
Trouble Shooting .................................................13
Warranty ..........................................................14
Model 2121 Time Recorder User’s Guide
Page 1
Ordering Accessories
Lathem time recorders fulfill a wide range of timekeeping
requirements. For maximum results, only use Lathem accessories
specifically designed to fit your time recorder.
To purchase the appropriate accessories for your Model 2121
time recorder, contact your local Lathem dealer or visit us at:
http://shop.lathem.com
Description Part Number
Extra Pair of Keys VSM0976
Replacement Ribbon, 2-Colors 7-2CN
Time Card Rack, 25 Pockets 25-9G
Time Card Rack 12 Pockets 12-9G
Time Cards, Weekly (Box of 1,000) 1900L-C
Time Cards, Bi-Weekly (Box of 1,000) L-31-1D
Time Cards, Semi-Monthly / Monthly (Box of
1,000) 1790
Time Cards, Job Costing (Box of 1,000) 350
Replacement Timing Motor, 110V/60 z K342
Model 2121 Time Recorder User’s Guide
Page 2
Start Here
Complete these steps to setup your new time recorder
This guide is available to download at:
http://www.lathem.com/support/product-manuals.aspx
1. Mount Clock in Suitable Location
Must be within 6 feet of AC power source
(unswitched) and conveniently located for your
employees. See attached instructions if you will be
installin on wall.
2. Unlock and Remove the Cover
Safety Warning: Do not plug the unit into an AC electrical outlet
until you are instructed.
2.1 Place the unit where you plan to mount or leave it.
2.2 Insert the key into the lock on the top of the unit cover.
2.3 Turn the key clockwise to unlock the unit.
Locked
Unlocked
Model 2121 Time Recorder User’s Guide
Page 3
2.4 Place your hands on both sides of the cover and pull it
toward you to remove it. A small amount of force may
be required.
3. Li t the Type Section
3.1 Locate the lock lever on either side of the type section
behind the clock face.
Model 2121 Time Recorder User’s Guide
Page 4

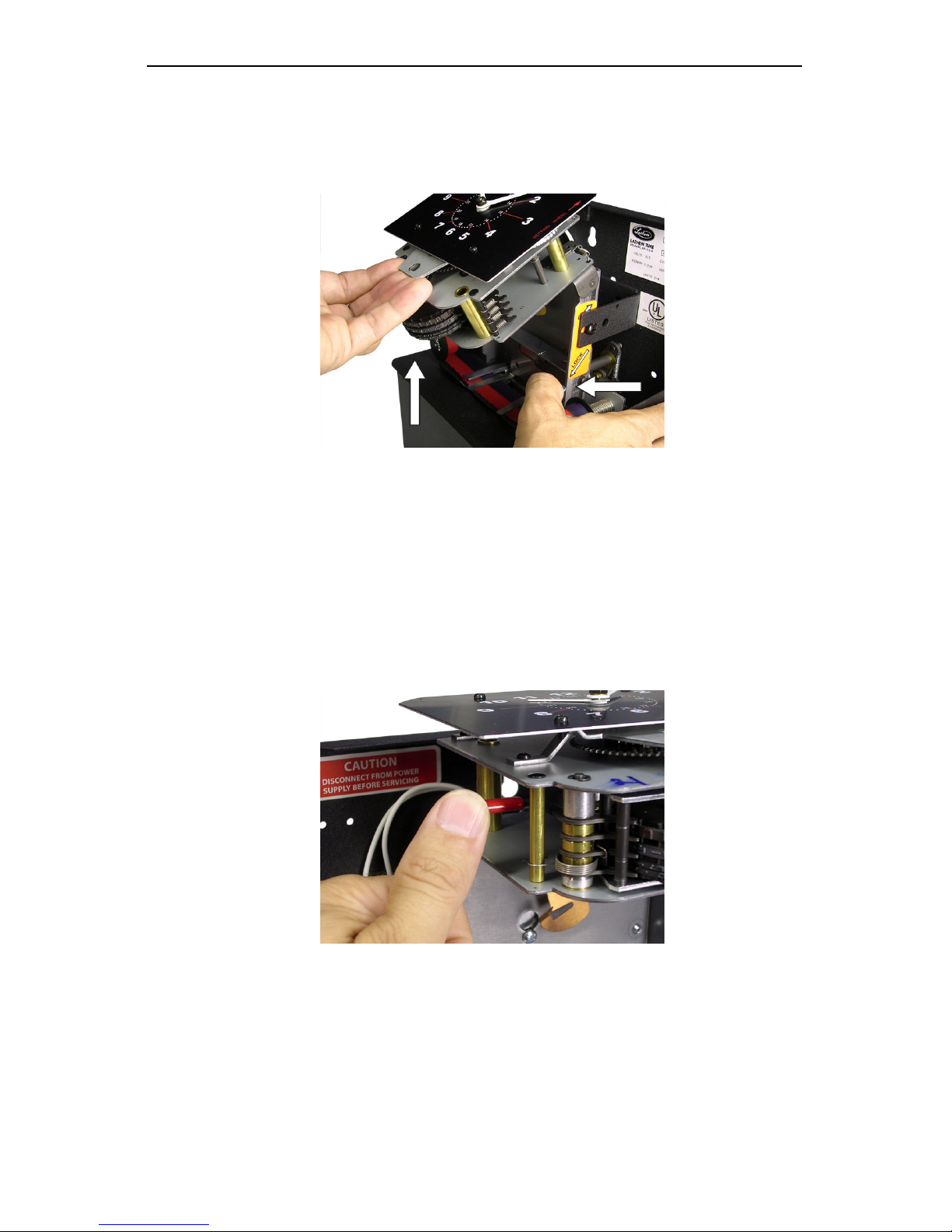

3.2 While pushing the lock lever down, lift the entire type
section as shown below until it locks into place
horizontally. It will click distinctly when it locks place.
4. Set the Printed Day and Time
4.1 Locate and press the red overthrow lever until it clicks.
This releases the print wheels, allowing you to turn them.
Model 2121 Time Recorder User’s Guide
Page 5
4.2 Before setting type wheels, observe the center position
of wheels, as shown by the arrows below. The characters
in the center position of each wheel are the characters
that will print.
Rotate each wheel with your fingers or a pointed object
clockwise until the correct day and time are aligned at the
center position. The wheel will click at each position.
Print Wheels Description
Day Wheel The top wheel is the Day wheel. Rotate it to the
current day of the week, such as M for Monday.
our Wheel
Below the Day wheel is the our wheel. Be
sure to set hours to correct AM/PM. PM hours
are underlined. AM hours are not underlined.
0-5 Minute
Wheel
Below the our wheel is the 0-5 Minute wheel.
If the current time is 2:34 PM, rotate it to 3.
0-9 Minute
Wheel
The last wheel is 0-9 Minute wheel. If current
time is 2:34 PM, rotate this wheel to 4.
Model 2121 Time Recorder User’s Guide
Page 6
4.3 When finished, release the red overthrow lever by gently
pulling it toward you until it clicks. This prevents the
print wheels from being manually turned.
5. Set Hands on Clock Face
5.1 Locate the setting wheel on the right side below the
clock face.
Caution: Do not manually turn the hands on the clock face.
5.2 Rotate the clock setting wheel counter-clockwise to set
the clock time to the print time you previously set.
ip: The arrow on the clock face indicates the correct
direction to move the clock setting wheel.
Model 2121 Time Recorder User’s Guide
Page 7
6. Advance Print Wheels and Hands
6.1 Turn the main setting wheel, as shown below, to advance
both the clock face and the print wheels together.
6.2 Use your fingers or a pointed object to rotate the main
setting wheel clockwise until it advances the time on the
clock face to the current time. Each minute will make a
distinct click as you rotate the wheel.
ip: Advance print wheels and clock face 1 or 2 minutes
ahead of the actual time to allow time to complete step 7.
7. Lower the Type Section into Place
7.1 Slightly lift the type section.
Model 2121 Time Recorder User’s Guide
Page 8
7.2 While holding the type section up, release the latch by
slightly pushing it in the direction, as shown below.
7.3 Gently lower the type section.
ip:Turn spools to tighten ribbon before lowering type
section to avoid catching the ribbon.
7.4 Firmly push it into the clock until it clicks.
7.5 Plug the clock into an AC electrical outlet.
