Larson Electronics GL-30004-S-E Manual
Wireless Remote Control Spotlight with
Post Mount - Perko Socket
INSTRUCTION GUIDE
Part# GL-30004-S-E
Congratulations
You are now the owner of one of the finest remote control searchlights available today. Thank you for
letting Larson Electronics assist you in your lighting application needs. We're proud of our products and
the technology that we've developed to ensure our customers the most durable, versatile and powerful
searchlights in the lighting industry.
Please read these instructions before using your new Remote Control Spotlight from Larson Electronics.
The GL-30004-S-E 36 Watt motorized spot light
combo that operates with a wireless hand held remote
control and a wireless dash mount remote control.
This particular model is available in a white finish and
is mounted on a stanchion post with red/green
navigational running lights. It produces a wide spot
beam with an effective working beam of 700 feet and
has a 5 million candlepower rating.
GL-2100 Hard Wired - Permanent Mount:
GL-30004-S-E Searchlight
Wireless Remote Control
2 A23 12V Batteries
Perko Socket/Mount
MOUNTING INSTRUCTIONS
Determine the location for the light on your vehicle or
boat. The small arrow on the base indicates the
normal forward direction of the light. The light will
rotate to the left of this arrow approximately 185 and
to the right approximately 185. The beam will angle
down about 45 and angles up to 90. The location
should take into consideration this beam movement
to ensure optimum usability.
Once the position and orientation are decided
upon—use the black rubber gasket as a footprint to
mark the mounting of base to vehicle. Drill 1/4 inch
hole though mounting surface in the middle of the
footprint for passage of the power cord. Use silicone
sealant to fill opening around power cord.
IMPORTANT: Allow 3” of cord to remain under the
light to ensure full 370 rotation.
You should choose screw or bolt fasteners
appropriate to the surface to which you intend to
attach the light. If you intend to use the four small
plastic caps provided to cover the screw heads once
installed, a #8 round head is recommended.
The black gasket should be installed on the lamp
base prior to attachment to the vehicle surface.
NOTE: The small drain hole in the edge of the
gasket should normally face opposite the forward
direction of the vehicle—opposite the arrow molded
in the front of the base. Silicone or other like
sealants should not be used around the base gasket
as it will limit the light’s ability to drain excess water
properly.
The 12 Volt DC power wire should be joined to the
leads under the lamp with appropriate automotive
wire attachments. It is critical that polarity be
observed. Connect vehicle positive (+) to spotlight
positive (+) wire. Connect vehicle ground (-) to
spotlight ground (-) wire. Power should be fused at
10 Amps and be on a dedicated circuit, or wired to an
appropriate automotive relay system.
PROGRAMMABLE REMOTE INSTRUCTIONS
The GL-30004-S is controlled with a
programmable remote with 2187 different
channels. This feature allows you the freedom to
change the channel selection, and the receiver
relearns the new selection.
PROGRAMMING THE TRANSMITTER.
This light has been pre-programmed at the factory, it
is not necessary to re-program the transmitter, but is
recommended.
PROGRAMMABLE REMOTE INSTRUCTIONS
The GL-30004-S Light is controlled with a
programmable remote with 2187 different channels.
This feature allows you the freedom to change the
channel selection, and the receiver re- learns the
new selection. This light has been pre-programmed
at the factory, and it is not necessary to re-program
the transmitter, unless you experience outside
interference. To program transmitter:
1.IMPORTANT Disconnect power.
2.Remove battery cover from remote control.
3.Set the 7 dip switches to a selection of your
choice. There are 3 positions on each; positive,
negative and neutral. Use a small screwdriver and
select a position for each dip switch. *Please note
that the orientation of the +/- switch positions may
vary among different models of wireless remote
controls.
4.Insert both A23 12V batteries. Be sure batteries
have adequate charge.
5.Replace battery cover.
a. Depress the on/off button and hold it down.
Red LED will light.
b. While holding the on/off button down,
reinstall the power (replace fuse or connect
vehicle battery).
c. Keep on/off button depressed for 5-6
seconds, and then release. The light should
now be programmed.
WIRELESS DASH CONTROL
If you have a wireless dash control, please note that
it is vital for this to be attached to a flat / smooth
surface with the 4 mounting screws included. The
arrow under the rubber cover should point up.
OPERATION OF GL-30004-S
1. Using the remote control, turn on the light by
depressing the on/off button.
2. With the 4-way arrows on the remote control,
rotate your light to the desired location.
Depending upon conditions, the wireless remote
may be used up to 80 feet from the spotlight.
3. The speed of the light rotation can be controlled
by de-pressing the tortoise/hare button one time
and by depressing it again to restore the original
speed.
4. The spotlight should not be turned on when the
snap on lens cover (rockguard) is attached. (Not
applicapble for LED)
BATTERY INSTALLATION AND REMOVAL FOR
TRANSMITTER
Remove Battery Cover: remove the Phillips head
screw securing the battery cover then remove the
cover. With the battery compartment now exposed,
insert batteries according to correct polarity.
Remove the batteries by gripping the positive end of
each battery and lifting.
Use only 12v-A23 batteries in the Golight remote
control
USAGE:
» This light is intended for off-road and utility use only
» This light may only be disassembled and repaired
by an authorized representative
MISUSE:
» This light is not approved for road or highway use
» This light is not approved for underwater use
» This light is not approved for inverted mounting
» This light is not approved for use inside a vehicle or
enclosure and power should be disconnected prior to
placing the light in such circumstance
» This light may be damaged if operated in icing
conditions
» This light may only be dismantled by an authorized
Larson Electronics representative.
» Any violation of the above referenced misuses
will be considered grounds for warranty refusal
IMPORTANT SAFETY INFORMATION
This symbol is to alert you to important operating
or servicing instructions that appear in your
instructions.
Always follow basic safety
precautions when using
this product to reduce the
risk of injury, fire or electric shock.
This light is for off road and utility use only. It
is not designed for road use as a driving light.
The GL-30004-S complies with Part. 15.105 of
the FCC Rules. This equipment has been tested
and found to comply with the limits for a Class
B digital device. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC RULE Part. 15.21 - Changes or
modifications made by the user not expressly
approved by Larson Electronics, LLC. for
compliance could void the user’s authority to
operate the equipment.
PARTS / ACCESSORIES
Contact manufacturer for GL-30004-S parts
and accessories.
PKS-1
Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com
1of 1

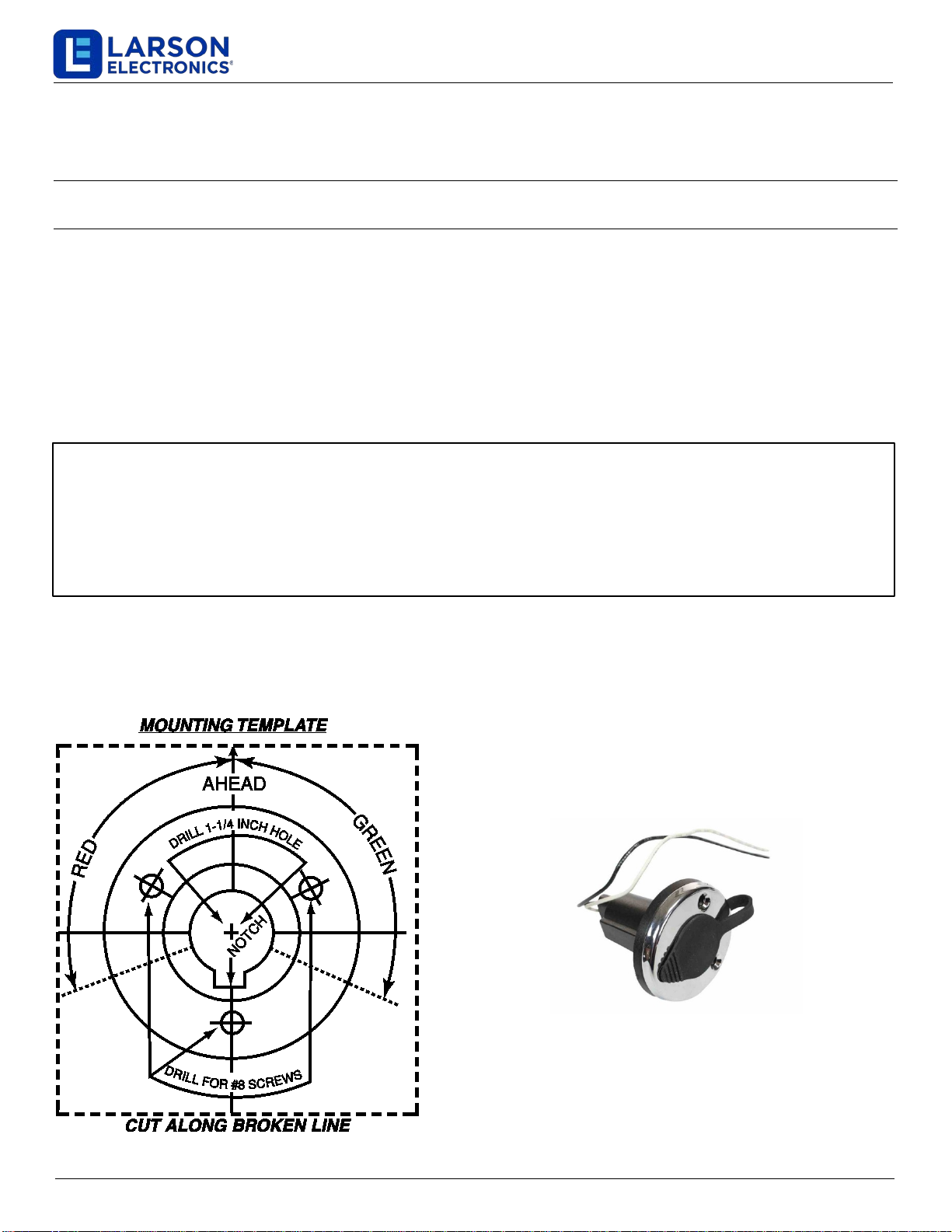

Black 2-Pin Perko Socket Mounting Base
Mounting information
Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE.
WE RECOMMEND A LICENSED ELECTRICIAN INSTALL THIS PRODUCT.
INSTALLATION
1. For proper light selection, positioning and configuration, refer to A.B.Y.C. Standard A-16*, the '72 COLREGS*,
and the U.S. Inland Rules*.
2. These bases are designed to be mounted on a horizontal surface.
3. For Bi-Color lights, draw a 6" long reference line through the center of the selected mounting location and parallel
to the centerline of the boat.
4. Cut out the mounting template. Place it on the mounting surface such that the reference line (drawn above) is
directly underneath the reference line marked on the template.
5. Drill indicated holes through the template to accommodate #8 oval head mounting screws and socket as required.
6. Attach supply connections to the light, making sure to wire in accordance with both A.B.Y.C. Standard E-9* and
the U.S. Coast Guard Safety Standards for Boat Electrical Systems (33 CFR 183)*.
For 2-contact bases, the supply leads are coded as follows:
WHITE: Positive supply lead
BLACK: Negative supply lead (Caution: Negative lead connected to case. To avoid energizing case, observe
polarity.)
Electrical connections must be made such that the forward compartment is switched in conjunction with the
other running light(s); aft compartment should be switched with Ignition (or permanently energized), as a
push switch is provided on top of the light. NOTE: All light circuits must be circuit protected. Use a 1/2 Amp
fuse (or breaker) for the courtesy light circuit and a 2 Amp fuse (or breaker) for the combination light circuit.
7. Setup for Operation: As pole engages with base, make sure alignment screw in pole slides into the notch in the
base. Push pole until it engages the electrical connector and lock by rotating the locking collar clockwise.
*The above referenced standards can be obtained from
American Boat & Yacht Council, Inc.
U.S. Coast Guard
613 Third Street, Suite 10
Washington D.C. 20593
Annapolis, MD 21403 (or your local C.G. Office)
<< PRINT ACTUAL SIZE (100% SCALE) FOR CORRECT DIMENSIONS.
Otros manuales de Destacar de Larson Electronics
Larson Electronics
Larson Electronics GL-3610-S-E Manual
Larson Electronics
Larson Electronics LE-224-LED Manual de usuario
Larson Electronics
Larson Electronics Golight Radioray GL-2081-M Manual
Larson Electronics
Larson Electronics APM-GL20004 Manual de usuario
Larson Electronics
Larson Electronics HALSS-24-2L-LED-HBL Manual de usuario
Larson Electronics
Larson Electronics WALTP-Q500 Manual de usuario
Larson Electronics
Larson Electronics The LE-9 Series Manual de usuario
Larson Electronics
Larson Electronics PTB-1 Manual de usuario
Larson Electronics
Larson Electronics RCL700 Manual de operación y mantenimiento
Larson Electronics
Larson Electronics Golight RadioRay GL-7 GT Series Manual de usuario
Larson Electronics
Larson Electronics EXPRA-06R-LED Manual de usuario
Larson Electronics
Larson Electronics LE Series Manual de usuario
Larson Electronics
Larson Electronics GAU-LTL-500W-LED-IR Manual de usuario
Larson Electronics
Larson Electronics GL-3100-S-12-E Manual
Larson Electronics
Larson Electronics LED10W-1SCB Manual de usuario
Larson Electronics
Larson Electronics HL-85-LED-CPR-NC Manual de usuario
Larson Electronics
Larson Electronics LED3W-LT-IR Manual de usuario
Larson Electronics
Larson Electronics GL-9901 Manual
Larson Electronics
Larson Electronics PML-90LED-DP-120 Manual de usuario
Larson Electronics
Larson Electronics Golight 51494 Manual
Manuales populares de Destacar de otras marcas
Guangzhou Yinhe Lighting&Sound Equipment Factory
Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manual de usuario
LIVARNO home
LIVARNO home 375304 2101 Instrucciones originales
Cameo
Cameo CLQS40WW Manual de usuario
Leviton
Leviton Ellipsoid 5/50 Manual de usuario
Monacor
Monacor img Stage Line PARL-56PDX/CR Manual de usuario
Vector
Vector SL3AKV Manual de usuario
EuroLite
EuroLite Akku flat light 1 Manual de usuario
Commercial Electric
Commercial Electric SPTM-1401 Manual de usuario
Vision & Control
Vision & Control SLB-500-W5K7-P-SL Manual de usuario
Teknik
Teknik FLEXI Manual de usuario
Craftsman
Craftsman CMXLSB10 Manual de usuario
EuroLite
EuroLite LED SLS-144 UV Floor Spot Manual de usuario
