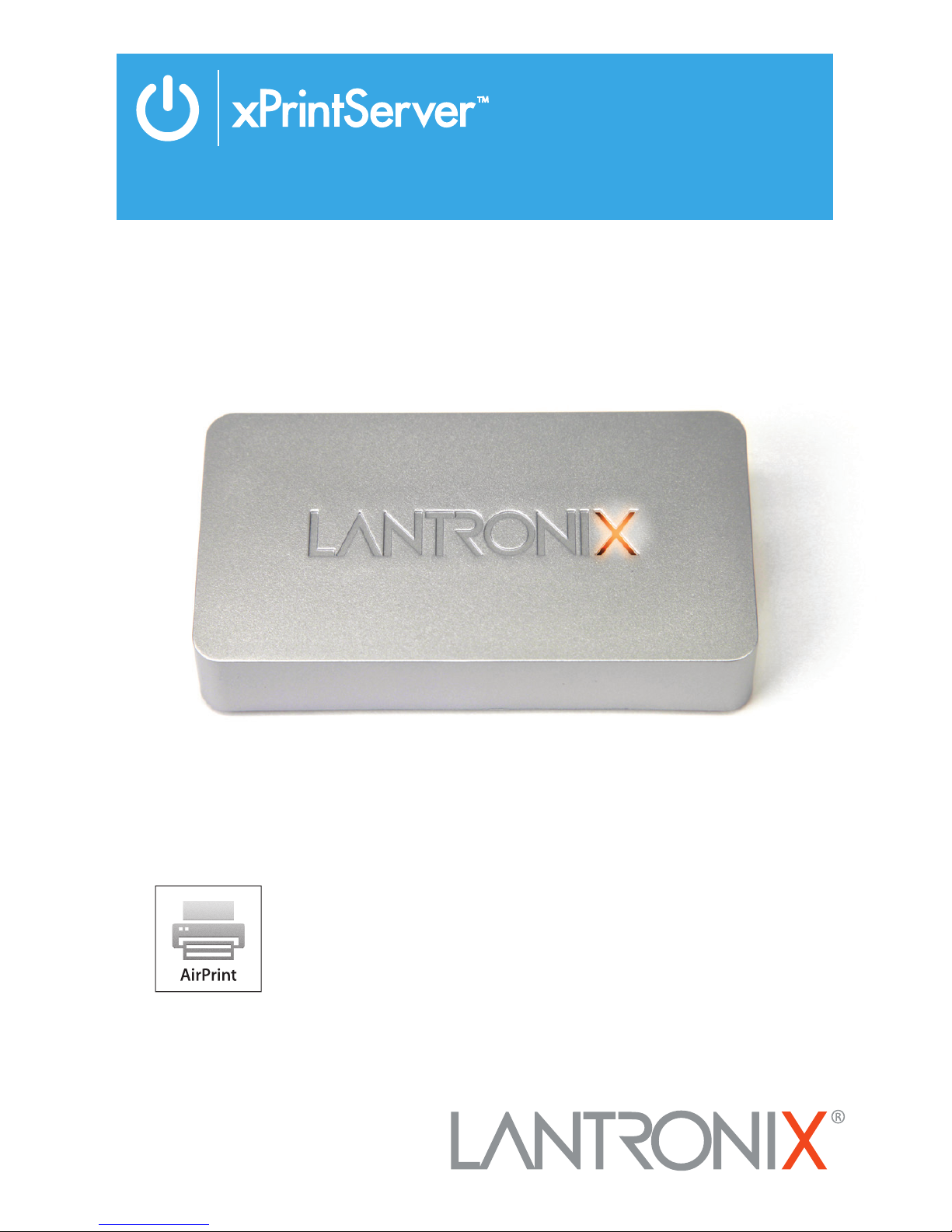

Lantronix XPrintServer Manual de usuario

Ofce Edition

Quick Start Guide

AirPrint™ AirPrint enables you to wirelessly print photos,

e-mail, web pages, and documents from your iPad, iPhone,

and iPod touch without the need to install a driver.

Part Number 900-728-R

Revision B August 2015

WHAT’S

INSIDE

Power supply

3’ Ethernet Cable

Mounting Bracket

& 2 Screws

xPrintServerQuick Start Guide

1 BEFORE YOU BEGIN

2 HARDWARE INSTALLATION

1. If you intend to connect a USB printer to the xPrintServer™, please be sure to test the printer from the

Windows or Mac computer that it is directly attached to before proceeding.

2. xPrintServer will auto-discover all network (wired and wireless) printers located on the same subnet.

Printers on a different subnet must be manually configured. Refer to the User’s Guide for instructions.

3. Internet access is required during set-up and when adding new printers.

Custom Set-Up & xPrintServer User Guide: Using a web browser log into your xPrintServer admin interface at

xPrintServer-XXXXXXXXXXXX.local with USER ID = admin and PASSWORD = PASS (both case sensitive)

RACK MOUNT

1. A versatile mounting bracket and screws

are supplied to assist in easily installing and

mounting xPrintServer into a server rack

in various orientations (e.g., horizontal or

vertical). Refer to the User’s Guide for mounting

instructions.

DESKTOP

1. Place the xPrintServer upside down on a

smooth, flat surface.

2. Peel off the rubber feet from the adhesive strip

and place them adhesive-side down onto each

corner of the xPrintServer.

3. Turn the xPrintServer over so that it is resting

on the rubber feet.

Ofce Edition

Quick Start Guide

AirPrint AirPrint enables you to wirelessly print photos,

e-mail, web pages, and documents from your iPad, iPhone,

and iPod touch without the need to install a driver.

13266xPrintQSG_OfficeEd_resize_16.indd 1 9/30/13 9:23 AM

Of ce Edition Quick Start Guide

Mounting Bracket

xPrintServer

Rubber

Feet (4)

ENGLISH

xPrintServer-XXXXXXXXXXXX.local

3 QUICK CONNECT

USB Printer

Network Cable

Wireless Router/

Switch

1Connect USB printer cable to USB

port of xPrintServer (if any).

2Connect network cable from wireless

router/switch to xPrintServer.

3Power on the xPrintServer with

supplied power adapter.

Auto Set-Up Process: The xPrintServer will automatically set-up your printers (USB & network) as soon it

is connected, as shown above. The glowing “X” will blink quickly for about 30 seconds, then it will pulse

slowly to show it’s ready for printing. Connecting a USB printer is not required for the xPrintServer to

set-up network printers.

2. From the Printer

Options menu, choose

Printer to display all

available networked

printers.

1. Using your iPad, iPhone or other iOS device,

Open the web page, email, photo, etc. that

you wish to print and choose the icon to open

the native print menu:

3. Select the appropriate

printer. Then, select

the number of copies

and choose Print.

4 HOW TO PRINT FROM iOS DEVICES

Of ce Edition Quick Start Guide

ENGLISH

Of ce Edition Quick Start Guide

ENGLISH

5 HOW TO PRINT FROM MAC OS

1. Go to System Preferences, Hardware and click

on Print & Scan.

2. Click on the +button on the lower left corner

3. A list of printers appear. Select the printer you

wish to add and click on the Add button.

4. The printer is now added in your available list of

printers and is ready to print.

Instructions for Windows XP

4.The Bonjour Printer Wizard appears with a list

of discovered printers. Highlight the printer you

wish to install.

Instructions for Windows 7

4. The Bonjour Printer Wizard appears with a list

of discovered printers. Highlight the printer you

wish to install.

6 HOW TO PRINT FROM WINDOWS OS

BEFORE YOU BEGIN

Ensure the USB printer is working and the printer drivers are installed on the computer before proceeding.

INSTALL BONJOUR PRINT SERVICES

1. Bonjour Print Services is an Apple application that allows discovery of printers connected to the

xPrintServer from a Windows PC. Go to the web address below to download and install Bonjour Print

Services for Windows v2.0.2 or higher

http://support.apple.com/kb/DL999

2.Follow the prompts to install Bonjour Print Services

3.Find the Bonjour Printer Wizard shortcut on your Desktop or in the Start/All

programs menu and click to launch

Ofce Edition Quick Start Guide

ENGLISH

Ofce Edition Quick Start Guide

ENGLISH

Instructions for Windows XP

5.Search and select your printer by manufacturer

and model number and click Next.

6.To complete the installation, click Finish.

Instructions for Windows 7

5. Search and select your printer by manufacturer

and model number and click Next.

6. To complete the installation, click Finish.

6 HOW TO PRINT FROM WINDOWS OS continued

Ofce Edition Quick Start Guide

ENGLISH

Instructions for Windows XP

7. If you wish to configure the printer as the

default printer go to: Start, Control Panel and

click on Printers and Faxes

8. Select the printer and right click and select Set

as default printer

Congratulations! Add printer setup is now

complete.

Instructions for Windows 7

7. If you wish to configure the printer as the

default printer go to: Start, Control Panel and

click on Devices and Printers

8. Select the printer and right click and select Set

as default printer

Congratulations! Add printer setup is now

complete.

6 HOW TO PRINT FROM WINDOWS OS continued
