Laney BC 250 Manual de usuario

MODEL : BC250MODEL : BC250

Laney

USER MANUAL

BC SERIES

Care of your Laney amplifier will prolong it's life.....and yours!. If you follow these guidelines your equipment will give you

years of playing pleasure

After unpacking your amplifier check that it is factory fitted with a three pin 'grounded' (or earthed) plug. Before plugging into

the power supply ensure you are connecting to a grounded earth outlet.

If you should wish to change the factory fitted plug yourself, ensure that the wiring convention applicable to the country where

the amplifier is to be used is strictly conformed to. As an example in the United Kingdom the cable colour code for

connections are as follows.

EARTH OR GROUND - GREEN/YELLOW

NEUTRAL - BLUE

LIVE - BROWN

220V

Laney

Congratulations on your decision to purchase a Laney amplifier.

Laney products are designed with ease of operation as a primary objective, however to ensure you derive the best from your

new amplifier, it is important you take time to read this user manual and to familiarise yourself with the control functions and

facilities available

INTRODUCTION

BEFORE

SWITCHING ON

This manual has been written for easy access of information. The front and rear panels of each unit are graphically illustrated,

with each control and feature numbered. For a description of the function of each control feature, simply check the number

with the explanations adjacent to each panel.

When you first recieve your Laney amp, follow these simple procedures:

(i) Ensure that the amplifier is set at the correct voltage for the country it is to be used in.

(ii) Connect your instrument with a high quality sheilded instrument cable. Use of cheap cables will compromise the sound of

your instrument and your amplifier.

If there is a problem with your Laney amplifier

DON'T DO

PHONE YOUR DEALER!

{

MODEL BC250

10 12

DYNAMICSDYNAMICS

HORNSHORNS

BRIGHTBRIGHT

FULLFULL

INJECTINJECT

DIRECTDIRECT

BC-250BC-250

INPUTINPUT

EQUALIZATIONEQUALIZATION

MASTERMASTER

VOLUMEVOLUME

TREBLETREBLE

BASSBASS

GAINGAIN

ACTIVEACTIVE

PASSIVEPASSIVE

HIHI

LOLO

COMPCOMP

3k2Hz3k2Hz

1k6Hz1k6Hz

800Hz800Hz400Hz400Hz200Hz200Hz

100Hz100Hz

1010

POWERPOWER

SENDSEND

RETURNRETURN

EFFECTS LOOPEFFECTS LOOP

INTERNALINTERNAL

(8 OHM)(8 OHM)

SPEAKERSSPEAKERS

(8 OHM)(8 OHM)

EXTERNALEXTERNAL

MINMIN

POWERPOWER

TO AVOID FIRE HAZZARDTO AVOID FIRE HAZZARD

REPLACE ONLY WITH REPLACE ONLY WITH

SAME TYPE AND RATING.SAME TYPE AND RATING.

110-120V :-T6.3A110-120V :-T6.3A

220-240V :-T3.15A220-240V :-T3.15A

CAUTIONCAUTION

THIS APPARATUS THIS APPARATUS

MUST BE EARTHED.MUST BE EARTHED.

SUPPLYSUPPLY

VOLTAGEVOLTAGE

CAUTIONCAUTION

TO REDUCE THE RISK OF ELECTRICTO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER.SHOCK DO NOT REMOVE COVER.

NO USER SERVICABLE PARTSNO USER SERVICABLE PARTS

INSIDE.REFER SERVICING TO INSIDE.REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.QUALIFIED SERVICE PERSONNEL.

WARNINGWARNING

TO REDUCE THE RISK OF FIRETO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK DO NOTOR ELECTRIC SHOCK DO NOT

EXPOSE THIS APPLIANCEEXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.TO RAIN OR MOISTURE.

85748574

MAXIMUM POWER CONSUMPTIONMAXIMUM POWER CONSUMPTION

500W 50/60Hz500W 50/60Hz

SERIAL No.SERIAL No.

MADE IN THE U.K. BY BLT INDUSTRIES LTD.MADE IN THE U.K. BY BLT INDUSTRIES LTD.

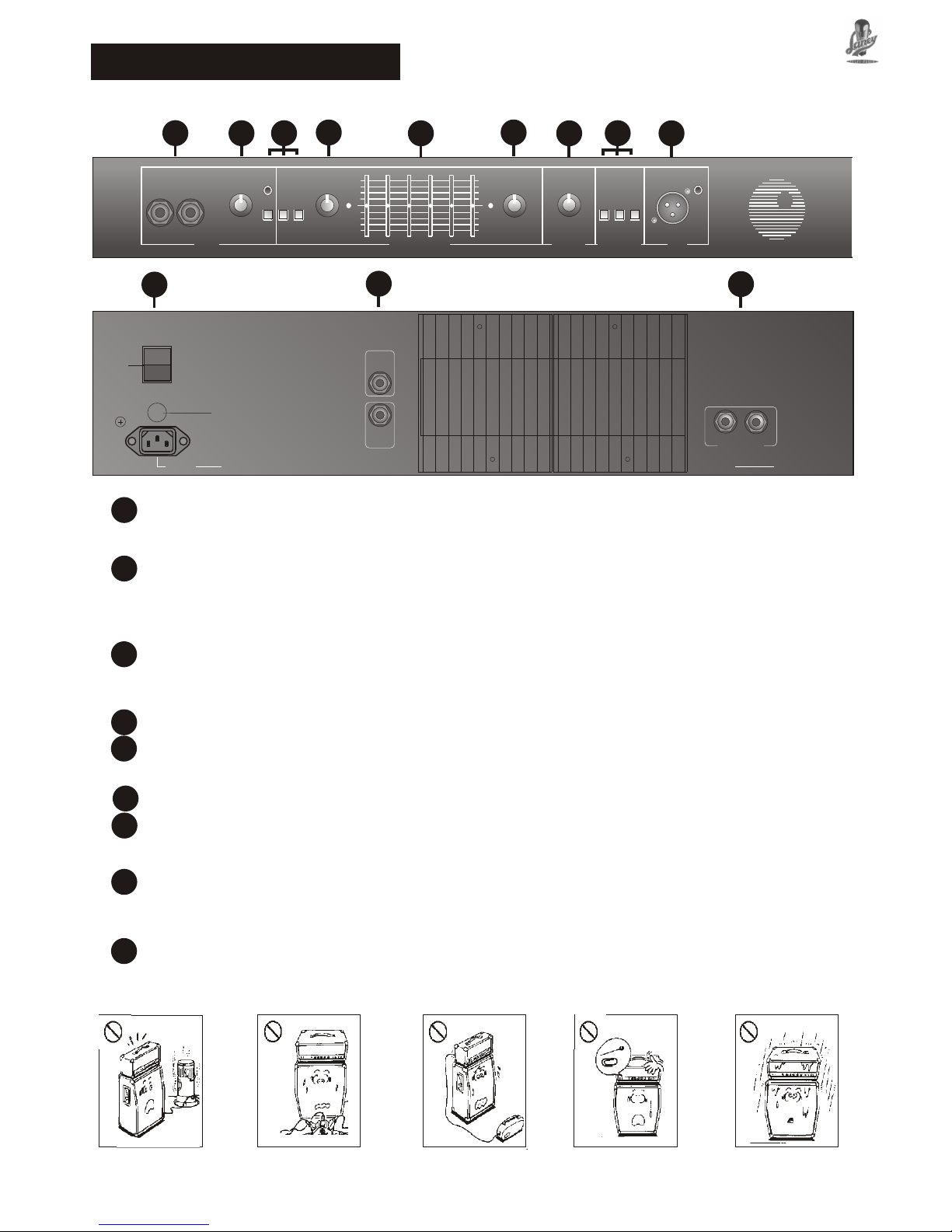

INPUTS: ACTIVE. Input jack for active or high output instruments such as those with built in pre-

amplifiers. PASSIVE. Input jack for most passive instruments such as those without built in

pre-amplifiers.

GAIN: Sets the overall gain of the amplifier to suit the instrument being used. Set as high as possible

without distortion, then adjust the overall volume to suit. The gain control may need re-adjusting after EQ

changes.

COMPRESSOR: Compresses the input signal, giving a punchier sound. Use in conjunction with GAIN

control.

HI: Boosts the high frequencies

LO: Boosts the extreme low frequencies, especially useful on 5 string bass guitars.

BASS: Sets the Bass frequency response.

GRAPHIC EQ: Six band graphic equaliser, use to set the middle frequencies. For best sound set the

sliders to gradual curves and avoid extremes.

TREBLE: Sets the high frequency response.

VOLUME: Sets the overall listening level of the amplifier.

FULL: Engages a speaker control system which controls the tightness of the bass response.

BRIGHT: Switches in increased attack and sparkle to the upper frequencies.

HORNS: Switches in the HF units fitted to the unit.

DIRECT INJECT: XLR socket for direct injection of the amplifier signal to a mixing desk or power

amplifier. This provides a low impedance output signal (Balanced output, Pin 1: Ground, Pin2: Hot, Pin

3:cold

{

MODEL BC250

SENDSEND

RETURNRETURN

EFFECTS LOOPEFFECTS LOOP

INTERNALINTERNAL

(8 OHM)(8 OHM)

SPEAKERSSPEAKERS

(8 OHM)(8 OHM)

EXTERNALEXTERNAL

MINMIN

POWERPOWER

TO AVOID FIRE HAZZARDTO AVOID FIRE HAZZARD

REPLACE ONLY WITH REPLACE ONLY WITH

SAME TYPE AND RATING.SAME TYPE AND RATING.

110-120V :-T6.3A110-120V :-T6.3A

220-240V :-T3.15A220-240V :-T3.15A

CAUTIONCAUTION

THIS APPARATUS THIS APPARATUS

MUST BE EARTHED.MUST BE EARTHED.

SUPPLYSUPPLY

VOLTAGEVOLTAGE

CAUTIONCAUTION

TO REDUCE THE RISK OF ELECTRICTO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER.SHOCK DO NOT REMOVE COVER.

NO USER SERVICABLE PARTSNO USER SERVICABLE PARTS

INSIDE.REFER SERVICING TO INSIDE.REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.QUALIFIED SERVICE PERSONNEL.

WARNINGWARNING

TO REDUCE THE RISK OF FIRETO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK DO NOTOR ELECTRIC SHOCK DO NOT

EXPOSE THIS APPLIANCEEXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.TO RAIN OR MOISTURE.

85748574

MAXIMUM POWER CONSUMPTIONMAXIMUM POWER CONSUMPTION

500W 50/60Hz500W 50/60Hz

SERIAL No.SERIAL No.

MADE IN THE U.K. BY BLT INDUSTRIES LTD.MADE IN THE U.K. BY BLT INDUSTRIES LTD.

POWER: Mains/power on/off switch.

SPEAKER OUTPUTS: Allowing the conection of an 8 Ohm extension cabinet.

EFFECTS LOOP: SEND, sends the pre-amplifier signal to an external effects processor if required (signal

level nominal -6dB). RETURN, effects return, accepts the output of an external effects processor (signal level

nominal -6dB).

Technical Specifications

Maximum Power Consumption 500 Watts

Supply Voltage (Factory Preset) 115/230 Volts

Supply Frequency 50/60 Hz

Output Power 250 Watts @ 4 Ohms

Input Impedance Passive 1 Meg Ohm

Input Impedance Active 200 k Ohm

FXLoop/Line Level (All Nominal) -6dB

FX Send/Return Impedance 1k/10K Ohm

Speaker Impedance 8 Ohms

Extension Speaker Impedance 8 Ohm

Speaker Size 15" 375cms + 2 x HF drivers
