LaCie DDS4 Drive Manual de usuario

LaCie DDS4 Drive User’s Manual

Copyrights

be reproduced, stored in a retrieval system, or transmitted in any form or by

any means, electronic, mechanical, photocopying, recording or otherwise,

without the prior written consent of LaCie.

Trademarks

Apple, Mac and Macintosh are registered trademarks of Apple Computer, Inc.

Sony is a registered trademark of Sony Electronics. Microsoft, Windows 98,

Windows 98SE, Windows 2000 and Windows Millennium Edition are

registered trademarks of Microsoft Corporation. Other trademarks mentioned

in this manual are the property of their respective owners.

Changes

The material in this document is for information only and subject to change

without notice. While reasonable efforts have been made in the preparation of

this document to assure its accuracy, LaCie assumes no liability resulting from

errors or omissions in this document, or from the use of the information

contained herein. LaCie reserves the right to make changes or revisions in the

product design or the product manual without reservation and without

obligation to notify any person of such revisions and changes.

Federal Communications Commission Radio Frequency

Interference Statement (FCC)

WARNING: Changes or modifications to this unit not expressly approved by

the party responsible for compliance could void the user’s authority to operate

the equipment. This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy, and

if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to correct the interference by one of the following measures:

• Reorient or relocate the receiving antennas.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the reseller or an experienced radio/TV technician for help.

Shielded cables and I/O cards must be used for this equipment to comply with

the relevant FCC regulations. This device complies with Part 15 of the FCC

rules. Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation.

Canada Compliance Statement

This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Manufacturer’s Declaration for CE Certification

We, LaCie, solemnly declare that this product conforms to the following

European standards:

Class B EN60950, EN55022, EN50082-1, EN60555-2

With reference to the following conditions:

73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive

1. Introduction.........................................................................................5

1.1 Icons Used in This Manual ................................................................5

1.2 What is SCSI?....................................................................................6

2. Getting To Know Your LaCie DDS4 Drive.....................................7

2.1 Minimum System Requirements ........................................................7

2.2 LaCie DDS4 Drive – Views ................................................................8

2.3 SCSI Cables and Connectors.......................................................... 10

3. Setting Up Your LaCie DDS4 Drive............................................. 11

3.1 Installing Your LaCie DDS4 Drive................................................... 11

3.1.1 Software Installation.............................................................. 12

3.1.2 SCSI Card Verification ........................................................... 12

3.1.3 Setting the SCSI ID Number................................................... 12

3.1.4 Connecting the Drive to the Computer.................................. 13

3.1.5 Drive Recognition................................................................... 13

4. Using Your LaCie DDS4 Drive...................................................... 15

5. Technical Information.................................................................... 20

5.1 User Advice When Using SCSI........................................................ 20

6. Troubleshooting.............................................................................. 24

7. Contacting Customer Service....................................................... 28

7.1 Warranty........................................................................................ 30

8. Appendix 1 – SCSI Questions and Answers.............................. 31

9. Glossary............................................................................................ 36

10. Health, Safety and General Precautions................................. 40

1. Introduction

Congratulations on the purchase of your new LaCie DDS4 drive. LaCie tape

drives deliver a cost-effective, reliable way to protect against devastating data

loss, at home and in the office. Use your new tape drive in conjunction with

effective tape rotation and a detailed disaster recovery plan to make your

critical data virtually untouchable. Based upon standard technology with clear

migration paths, LaCie tape drives are backward compatible to allow for

capacity growth.

With a variety of tape formats and capacities to choose from, LaCie tape

drives are suitable for a range of environments, from workstations and small

networks and servers, to high-end, enterprise-level backup.

With all it can do for you, we’re confident that your LaCie DDS4 drive will

quickly become an important tool in your day-to-day business and personal

computing.

This manual will help you to:

• Install your new device properly

• Get your drive up and running

• Quickly learn how to operate it

1.1 Icons Used in This Manual

Italicized paragraphs feature an icon describing the type of information being

given.

Important Note Technical Information or News

Warning! (This icon indicates potential hazard).

Precautions

Always follow the basic precautions to use your LaCie DDS4 drive safely and

correctly. Respecting these guidelines will help to avoid the possibility of

personal injury to yourself or others, as well as to prevent damage to your

device and other computer equipment. For a complete list of precautions,

please see Chapter10. Health, Safety and General Precautions of this

manual.

Warranty

LaCie and its suppliers accept no liability for any loss of data during the use of

this device, or for any of the problems caused as a result. As a precaution, it is

recommended that the tape media be tested after they have been written to.

Under no circumstances do LaCie or its suppliers guarantee the reliability of

the tape media used in this drive.

Manual Updates

LaCie is constantly striving to give you the most up-to-date, comprehensive

User’s Manuals available on the market. It is our goal to provide you with a

friendly, easy-to-use format that will help you quickly install and utilize the

many functions of your new device.

If your manual does not reflect the configurations of the product that you

purchased, please check our Web site for the most current version available.

You can access our manuals at: www.lacie.com/support/manuals

1.2 What is SCSI?

SCSI (Small Computer System Interface) is an industry standard used to

connect peripherals to your computer through a standard hardware interface,

using standard SCSI commands. Currently, there are three generations of the

SCSI interface: SCSI-1, SCSI-2 and SCSI-3, which is made up of at least 14

separate standards documents.

For a more detailed discussion of SCSI, please refer to 5. Technical

Information and 9. Appendix 1 – SCSI Questions and Answers.

The SCSI Icon This icon will help you easily identify the SCSI interface.

It appears on some SCSI cables and next to the SCSI

port connectors on certain computers.

Software

For guidance on application software that can be used with your LaCie DDS4

Drive and the supported operating systems, please contact your reseller or

LaCie Technical Support.

2. Getting To Know Your LaCie DDS4 Drive

What can your LaCie DDS4 drive do?

•Archive your database.

•Back up proprietary information.

•Store company files.

2.1 Minimum System Requirements

Hardware Requirements: • Mac or PC equipped with SCSI card or built-in

SCSI interface.

System Requirements: • Mac OS 8.6, 9.x, and OS 10.x

• Windows 95, Windows 98, Windows NT,

Windows 98 Second Edition (SE), Windows 2000,

Windows Me and Windows XP

• Intel Pentium II/350MHz-compatible processor

or greater; minimum 64MB (128MB

recommended) RAM

DDS4 Drive and Cartridge Compatibility

The LaCie DDS4 Drive supports the DDS4, DDS3, DDS2 and DDS1 recording

formats. Compatibility with each of these formats ensures complete write and

read interchange of recorded digital data between all compliant drive and

media vendors.

The following DDS cartridges are compatible with the LaCie DDS4 drive:

Model Name / Length / Recording

Capacity DDS2

Drive DDS3

Drive DDS4

Drive

DDS1 M32000 / 90-meter / 2/4GB* X X X

DDS2 M34000 / 120-meter / 4/8GB* X X X

DDS3 STDM24G / 125-meter / 12/24GB* -- X X

DDS4 STMD40 / 150-meter / 20/40GB* -- -- X

STDMCL DDS Cleaning Cartridge X X X

*Capacity is based on 1:2 compression ratio

Important Note: The LaCie DDS4 drive can not use 60-meter DDS1

media.

Important Note: In data compression mode, the LaCie DDS4 drive

typically doubles the storage capacity and transfer rate of the native

uncompressed operation. Tape capacity and sustained data transfer

rate are dependent upon the characteristics of the files being compressed,

along with system parameters such as the speed of the host, the operating

system and the application software used. The LaCie DDS4 drive also offers

synchronous and asynchronous SCSI transfers with a high-speed burst data

transfer rate of 80MB/sec.

2.2 LaCie DDS4 Drive – Views

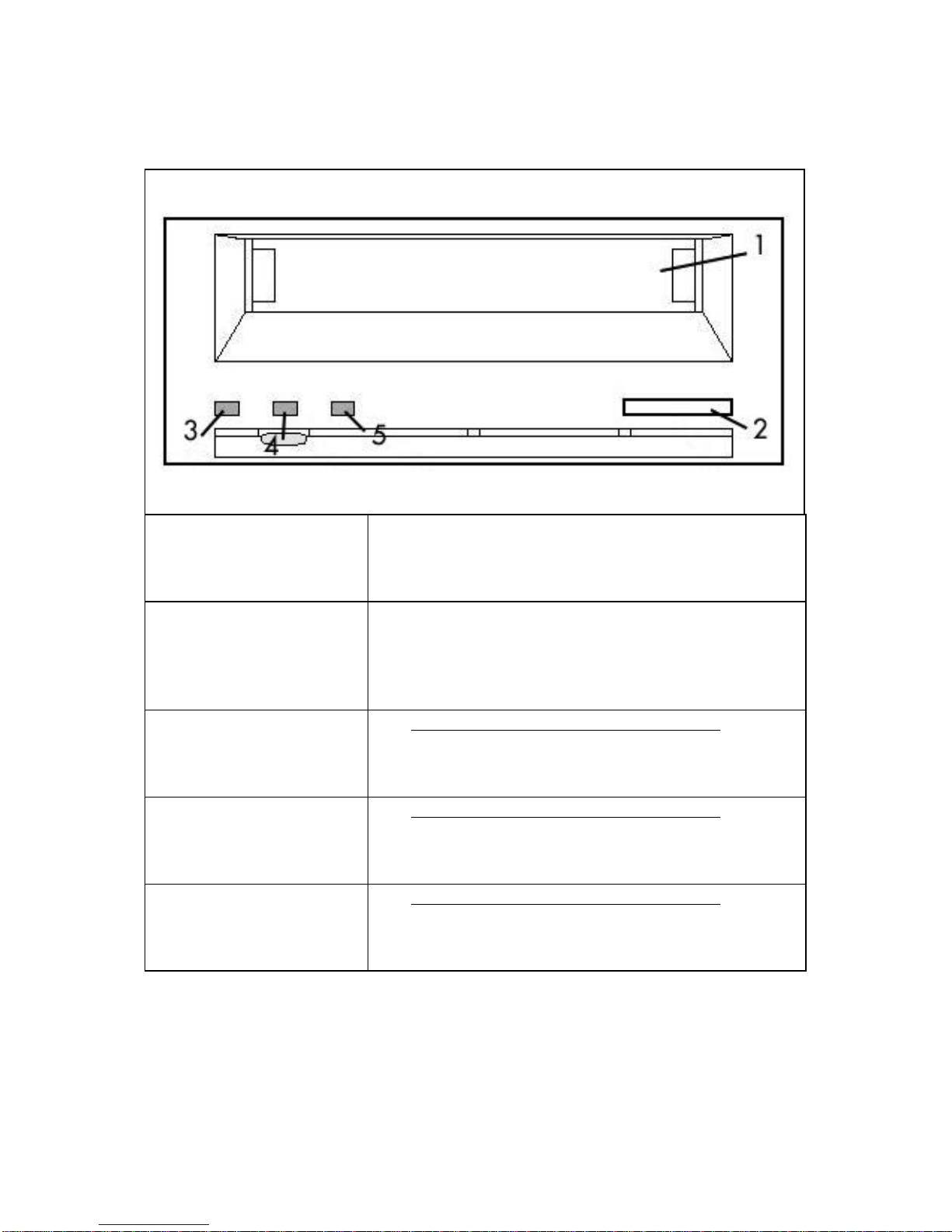

Front View

1 – Cartridge Slot Door Insert your DDS cartridge in this door. As you insert

the cartridge, the drive takes hold of it and loads it

into the mechanism.

2 – Eject Button Press this button to eject a cartridge. Do not

attempt to eject the cartridge while the busy LED is

blinking. Doing so may harm the cartridge and

lead to data corruption or loss.

3 – Clean LED See 4. Using Your LaCie DDS4 Drive for

complete information on this LED’s condition

explanation.

4 – Media LED See 4. Using Your LaCie DDS4 Drive for

complete information on this LED’s condition

explanation.

5 – Drive LED See 4. Using Your LaCie DDS4 Drive for

complete information on this LED’s condition

explanation.

Back View

1 – SCSI Connectors This is where you plug in the SCSI cable furnished

with your drive.

2 – Ventilation Fan Helps to keep your drive cool during operation. Be

sure not to block this opening when using your

drive.

3 – SCSI ID Switch Select the SCSI ID for your drive by pushing the

plus or minus signs to move the numbers up or

down.

4 – On/Off Switch Turns the drive on and off.

5 – Power Supply

Connector This is where you plug in the AC adapter supplied

with the drive. See 3. Setting Up Your LaCie

DDS4 Drive for details on connecting the

adapter.

Serial Number Sticker

This is where you will find your LaCie drive's serial number. Write down the

serial number and keep it in a safe place, because you will need to provide

the number in the event you have to call LaCie Technical Support for any

reason in regard to the drive’s performance. The serial number would also

come in handy if your drive is lost or stolen.

2.3 SCSI Cables and Connectors

Ultra2 LVD, Ultra160 LVD & Terminator

LaCie DDS4 drives are supplied with a 68-pin to 68-pin SCSI interface (also

included with the drive is an LVD terminator). If the SCSI cable supplied with

your LaCie DDS4 drive does not meet your requirements, please contact your

computer supply specialist, who will be able to help you choose the right SCSI

cable for your particular setup and applications.

Tabla de contenidos

Otros manuales de Almacenamiento de LaCie

LaCie

LaCie Rugged RAID Shuttle Manual de usuario

LaCie

LaCie CloudBox Manual de usuario

LaCie

LaCie USB 2.0 Manual de usuario

LaCie

LaCie DJI COPILOT Manual de usuario

LaCie

LaCie 5BIG THUNDERBOLT 2 Manual de usuario

LaCie

LaCie LITTLE BIG DISK THUNDERBOLT 2 Manual de usuario

LaCie

LaCie Mobile Hard Drive Manual de usuario

LaCie

LaCie CurrenKey Manual de usuario

LaCie

LaCie 4big Spare Drive Manual de usuario

LaCie

LaCie LaCinema Rugged HD Manual de usuario

LaCie

LaCie rikiki 301949 Manual de usuario

LaCie

LaCie FireWire 800 Manual de usuario

LaCie

LaCie Silverscreen Manual de usuario

LaCie

LaCie d2 Quadra Manual de usuario

LaCie

LaCie Little Big Disk Manual de usuario

LaCie

LaCie rikiki 301949 Manual de usuario

LaCie

LaCie Hard Disk Manual de usuario

LaCie

LaCie 301286 Manual de usuario

LaCie

LaCie 301371 - Rugged Hard Disk 500 GB External... Manual de usuario

LaCie

LaCie Brick Manual de usuario

LaCie

LaCie MINI COMPANION HARD DRIVE U S B 2. Manual de usuario

LaCie

LaCie RUGGED BOSS SSD Manual de usuario

LaCie

LaCie LITTLE DISK USB 2.0 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario

CFI

CFI TERA STOR SATA RAID IV Manual de usuario

Quantum

Quantum PX506 Manual de usuario
