Labconco Purifier Logic+ 30231 Manual de usuario

Original instructions

Labconco Corporation

8811 Prospect Avenue

Kansas City, MO 64132-2696

800-821-5525, 816-333-8811

FAX 816-363-0130

E-MAIL [email protected]

HOME PAGE www.labconco.com

To receive important product updates,

complete your product registration card

online at register.labconco.com

Use

r’

Purifier®

Biological Safety Cabinets

Models

30231 Series 30238 Series

30241 Series 30248 Series

30251 Series 30258 Series

30261 Series 30268 Series

Please read the User’s Manual before operating the equipment.

TYPE

Original instructions

This page is intentionally blank.

Original instructions

The information contained in this manual and the accompanying products are copyrighted and all rights

reserved by Labconco Corporation. Labconco Corporation reserves the right to make periodic design

changes without obligation to notify any person or entity of such change.

Returned or Damaged Goods

Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be

accepted. If your shipment was damaged in transit, you must file a claim directly with the freight

carrier. Labconco Corporation and its dealers are not responsible for shipping damages.

The United States Interstate Commerce Commission rules require that claims be filed with the delivery

carrier within fifteen (15) days of delivery.

Limitation of Liability

The disposal and/or emission of substances used in connection with this equipment may be governed by

various federal, state, or local regulations. All users of this equipment are required to become familiar

with any regulations that apply in the user’s area concerning the dumping of waste materials in or upon

water, land, or air and to comply with such regulations. Labconco Corporation is held harmless with

respect to user’s compliance with such regulations.

Contacting Labconco Corporation

If you have questions that are not addressed in this manual, or if you need technical assistance, contact

Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-

5525 or 1-816-333-8811, between the hours of 7:00 a.m. and 6:00 p.m., Central Standard Time.

Part #3848310 Rev. D

ECO J600

Warranty

Labconco provides a warranty on all parts and factory workmanship. The warranty includes areas of

defective material and workmanship, provided such defect results from normal and proper use of the

equipment. Glassware is not warranted from breakage when dropped or mishandled.

Purifier®Logic®+ Biological Safety Cabinets carry a five-year warranty from date of installation or six

years from date of shipment from Labconco, whichever is sooner. Warranty is non-transferable and

only applies to the owner (organization) of record.

This limited warranty covers parts and labor, but not transportation and insurance charges. In the

event of a warranty claim, contact Labconco Corporation or the dealer who sold you the product. If

the cause is determined to be a manufacturing fault, the dealer or Labconco Corporation will repair or

replace all defective parts to restore the unit to operation. Under no circumstances shall Labconco

Corporation be liable for indirect, consequential, or special damages of any kind. This statement may

be altered by a specific published amendment. No individual has authorization to alter the provisions

of this warranty policy or its amendments. Lamps and filters are not covered by this warranty.

Damage due to corrosion or accidental breakage is not covered.

Original instructions

CHAPTER 1: INTRODUCTION 1

CHAPTER 2: PREREQUISITES 2

Space Requirements 2

Clearance 2

Location Requirements 3

ExhaustRequirements 4

ElectricalRequirements 4

Service Line Requirements 5

CHAPTER 3: GETTING STARTED 6

Unpacking the Biosafety Cabinet 7

Preparing the Biosafety Cabinet for Operation 7

Moving and Lifting the Biosafety Cabinet 8

Installing the Biosafety Cabinet on an Existing Work Surface 8

Installing the Biosafety Cabinet on a Labconco Base Stand 8

TelescopingBaseStands 9

Manual or Electric Hydraulic Lift Base Stands 9

SoLo Electric Hydraulic Lift Base Stands 9

Connecting the Biosafety Cabinet to Utility Service Lines 10

Optional VentusTM Exhaust System Connections 11

Optional Vacu-PassTM Cord and Cable Portal Use 12

DrainValveInstallation 13

Initial Certification 14

CHAPTER 4: PERFORMANCE FEATURES AND SAFETY

PRECAUTIONS 15

HEPA Filters 15-16

ULPA Filters 16

LaminarAirflow 17

DirectionalAirflow 18

Motor/Blower 19

Cabinet Air Intakes (Grilles), Ductwork & Air Balance Controls 20

Ultraviolet(UV)Lamp 20

Safety Precautions 21-22

CHAPTER 5: USING THE CABINET 23

Original instructions

SystemResetSwitch 23

InformationCenter 24

AlarmScreens 25

OperatingtheSlidingSash 26

Starting the Biosafety Cabinet 26

The Logic+ Touchpad 27

Navigating the Logic+ Menu Screens 28

Navigating the MyLogicTM Menu Screens 29-31

SettingtheClock 29

Configuring the Logic+ 30-31

Navigating the Settings Screens 31-34

Display Options 31-32

UnitsofMeasure 31

StartupTone 32

SecurityLock 32

RS-232 Output Rate 32

UVSettings 33-34

UVLampHourmeter 33

ResetUVLampHourmeter 33

ChangeUVLampLife 34

ServiceMenuScreens 34

TimerOperation 35

IntervalTimerOperation 35

Stopwatch Timer Operation 35

If An Airflow Alert Activates 35

Resetting the Airflow Alert System 35

Working in the Biosafety Cabinet 36-38

CHAPTER 6: MAINTAINING THE CABINET 39

Routine Maintenance Schedule 39-40

Service Operations 40-44

WorkSurfaceRemoval 40

Front Grille Removal 40-41

Towel Catch Removal 41-42

Front Panel Removal & Installation 42-43

Changing the Fluorescent Lamps 43

Changing the Optional UV Lamp 43-44

Resetting a Circuit Breaker 44

Storage 44

CHAPTER 7: TROUBLESHOOTING 45-47

APPENDIX A: COMPONENTS 48-49

APPENDIX B: DIMENSIONS 50

Original instructions

APPENDIX C: SPECIFICATIONS 51

ElectricalData 51

MotorSpecifications 51

Environmental Conditions 52

APPENDIX D: ACCESSORIES 53

APPENDIX E: QUICK CHART 54

CAUTION – See Manual. When this symbol is on the unit it

indicates a caution that is detailed in this manual.

ATTENTION - Voir manuel. Lorsque ce symbole est allumé

l'appareil, il indique une mise en garde qui est indiqué dans

ce manuel.

Product Service 1-800-522-7658 1

Original instructions

Congratulations on the purchase of a Labconco®Purifier Logic+© Biosafety

Cabinet. The biosafety cabinet is designed to protect you, the product and the

laboratory environment from biohazardous aerosols. The Logic+ is the result

of years of experience in manufacturing biohazard cabinetry, and users like

you suggested many of its features to us.

This biosafety cabinet offers many unique features to enhance safety,

performance and ergonomics. To take full advantage of them, please acquaint

yourself with this manual and keep it handy for future reference. If you are

unfamiliar with how biosafety cabinets operate, please review Chapter 4:

Performance Features and Safety Precautions before you begin working in

the cabinet. Even if you are an experienced biosafety cabinet user, please

review Chapter 5: Using the Cabinet; it describes the biosafety cabinet’s

features so that you can use it efficiently.

This manual and other technical information is available in PDF format

at our website: www.labconco.com.

If the unit is not operated as specified in this manual it may impair the

protection provided by the unit.

Si l'unité n'est pas utilisée comme spécifié dans ce manuel il peut

diminuer la protection fournie par l'unité.

Product Service 1-800-522-7658

Original instructions

Before you install the Logic+, you need to prepare the site for installation.

Examine the location where you intend to install the cabinet. You must be

certain that the area is level and of solid construction. In addition, a dedicated

source of electrical power must be located near the installation site.

Carefully read this chapter to learn:

•Location requirements.

•Electrical power requirements.

•Exhaust requirements.

•Service utility requirements.

•Space requirements.

Refer to Appendix C: Specifications, for complete biosafety cabinet electrical

and environmental conditions, specifications and requirements.

Space Requirements

The dimensions for the Logic+ A2 biosafety cabinets are shown in Appendix B:

Dimensions.

Clearance

A minimum clearance of at least 6 inches (150 mm) is suggested on the top

and both sides of the cabinet for service.

Chapter 2: Prerequisites

Product Service 1-800-522-7658 3

Original instructions

Location Requirements

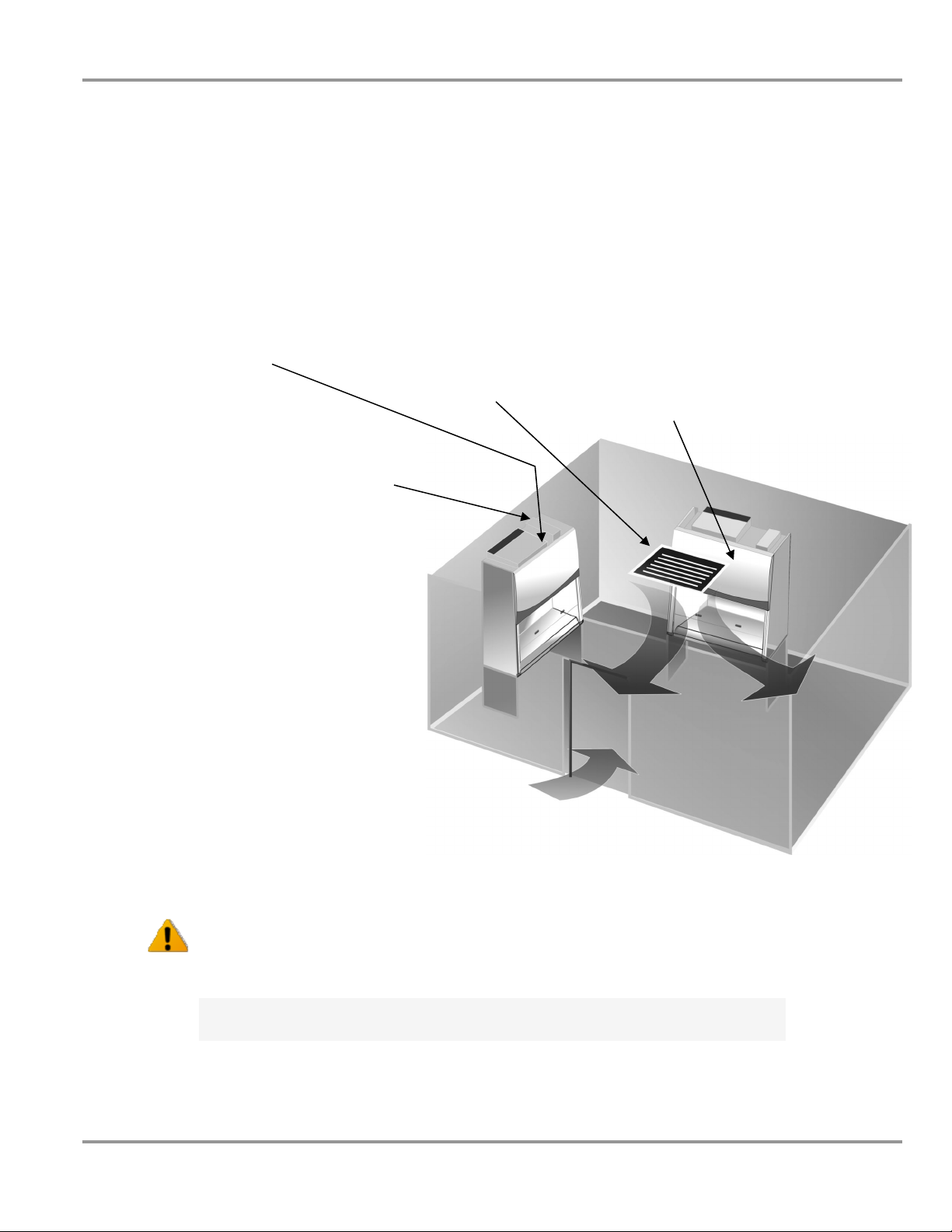

Note: The biosafety cabinet should be located away from traffic patterns,

doors, fans, ventilation registers, fume hoods and any other air-handling

devices that could disrupt its airflow patterns. All windows in the room

should remain closed. Figure 2-1 shows the preferred location for the

biosafety cabinet.

Preferred location

Air register blocked or redirected

to prevent cabinet disruption

Alternate location

Main Disconnect Device

(Power cord plug in back

of the electronics module).

Do not position the unit so that it is difficult to operate the main

disconnect device.

Ne placez pas l'appareil de sorte qu'il est difficile de faire fonctionner le

dispositif principal de déconnexion.

Figure 2-1

Chapter 2: Prerequisites

Product Service 1-800-522-7658

Original instructions

Exhaust Requirements

If you intend to connect the biosafety cabinet to the optional VentusTM

Canopy Connection Kit, first examine the location to ensure that it

accommodates the cabinet’s exhaust duct. The area directly above the

cabinet’s exhaust port should be clear of structural elements, water and utility

lines, or other fixed obstructions. There should be enough clearance to

accommodate a 10-inch diameter duct. Avoid cabinet locations that require

an elbow directly above the cabinet’s exhaust connection or an excessive

number of elbows in the exhaust system. For further information about the

cabinet’s exhaust system requirements, please refer to Chapter 3: Getting

Started.

Electrical Requirements

The biosafety cabinet models have the following electrical requirements:

Model # Requirements

3023xxx0x 115 VAC, 60 Hz, 12 Amps

3023xxx1x 100 VAC, 50/60 Hz, 12 Amps

3023xxx-20, 30, 40, 50, 60, 70 230 VAC, 50/60 Hz, 6 Amps

3024xxx0x 115 VAC, 60 Hz, 12 Amps

3024xxx1x 100 VAC, 50/60 Hz, 12 Amps

3024xxx-20, 30, 40, 50, 60, 70,80 230 VAC, 50/60 Hz, 6 Amps

3025xxx0x 115 VAC, 60 Hz, 16 Amps

3025xxx1x 100 VAC, 50/60 Hz, 16 Amps

3025xxx-20, 30, 40, 50, 60, 70 230 VAC, 50/60 Hz, 8 Amps

3026xxx0x 115 VAC, 60 Hz, 16 Amps

3026xxx1x 100 VAC, 50/60 Hz, 16 Amps

3026xxx-20, 30, 40, 50, 60, 70 230 VAC, 50/60 Hz, 8 Amps

Note: A dedicated outlet with an appropriate circuit breaker should be

located as close as possible to the right rear side of the cabinet, at a

height even with, or higher than, the top of the bench or stand. Consult

your local electrical codes for properly rated circuit breakers. For safe

operation the dedicated outlet must provide the protective earthing

ground connection to the cabinet.

Note: On 100 and 115 VAC models, both electrical outlets are protected by a

ground fault interrupter circuit (GFIC). Labconco does not recommend

plugging the biosafety cabinet into a GFIC outlet.

Table 2-1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de laboratorio de Labconco

Labconco

Labconco CentriVap DNA Systems Manual de usuario

Labconco

Labconco Fiberglass 30 Series Manual de usuario

Labconco

Labconco 44003 Series Manual de usuario

Labconco

Labconco Purifier Logic+ 30132 Manual de usuario

Labconco

Labconco Purifier Logic+ 30348 Manual de usuario

Labconco

Labconco Logic+ A2 Manual de usuario

Labconco

Labconco Protector 3410000 Manual de usuario

Labconco

Labconco FreeZone 6 Manual de usuario

Labconco

Labconco 5530000 Manual de usuario

Labconco

Labconco Protector XL 1124 Series Manual de usuario

Labconco

Labconco Capture BT 31700-00 Manual de usuario

Labconco

Labconco Protector XStream 9840400 Manual de usuario

Labconco

Labconco Purifier Class 2 Biological Safety Cabinet Manual de usuario

Labconco

Labconco CentriVap-105 Cold Trap Manual de instrucciones

Labconco

Labconco CentriVap 78110 Series Manual de usuario

Labconco

Labconco FreeZone Triad 74000 Series Manual de usuario

Labconco

Labconco Protector Premier 10040 Series Manual de usuario

Labconco

Labconco Purifier 3951400 Manual de usuario

Labconco

Labconco RapidVap 73200 Series Manual de usuario

Labconco

Labconco Precise CA 5220100 Manual de usuario

Labconco

Labconco Capture BT 31700-00 Manual de usuario

Labconco

Labconco Protector XStream 11041 Series Manual de usuario

Labconco

Labconco CApture 3420000 Manual de usuario

Labconco

Labconco Protector Echo 180 Series Manual de usuario

Manuales populares de Equipo de laboratorio de otras marcas

Qiagen

Qiagen DML 3000 Manual de usuario

Queensgate

Queensgate NANOSCAN OP400 Manual de programación

Conviron

Conviron GEN1000-GE Manual de usuario

Parr Instrument

Parr Instrument 4560 Manual de instrucciones

IKA

IKA IC control Manual de usuario

Integra

Integra DOSE IT Manual de usuario

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manual de usuario

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manual de usuario

NI PXI-5422 Manual

Collomix

Collomix Aqix Manual de usuario

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario

Ocean Insight

Ocean Insight FLAME-NIR+ Manual de usuario

Parker

Parker ALIGN-MG-NA Manual de usuario

BD 644787 Manual de usuario

DENTAURUM

DENTAURUM Compact Megaplus Manual de usuario

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manual de usuario

VWR

VWR SAS Super IAQ Manual de usuario

illumina

illumina MiSeqDx Manual de usuario
