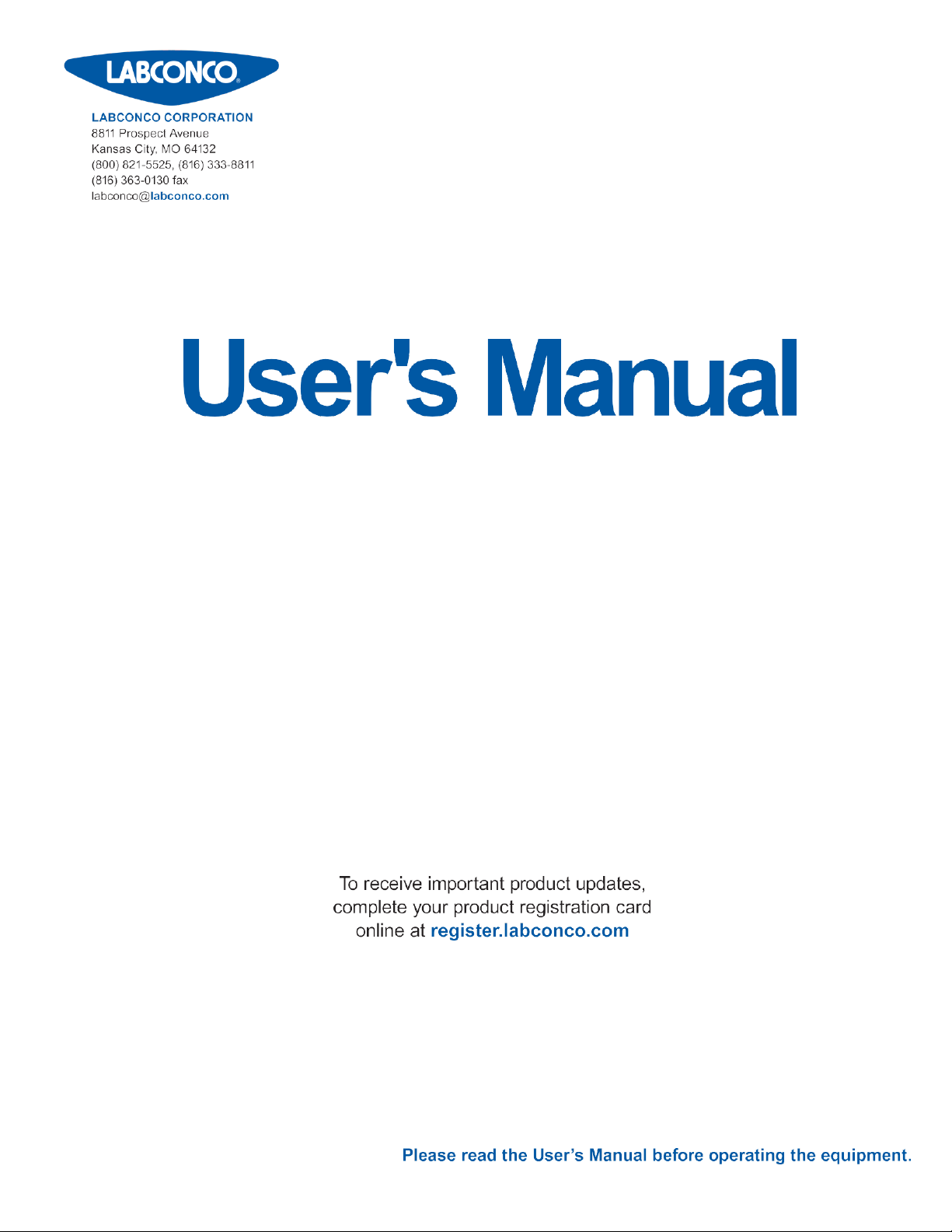

Labconco CentriVap Complete 73150 Series Manual de usuario

Original instructions

CentriVapComplete™

Models

73150 Series

Original instructions

the right to make periodic design changes without obligation to notify any person or entity of such change.

Returned or Damaged Goods

Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be

accepted. If your shipment was damaged in transit, you must file a claim directly with the freight carrier.

Labconco Corporation and its dealers are not responsible for shipping damages.

The United States Interstate Commerce Commission rules require that claims be filed with the delivery

carrier within fifteen (15) days of delivery.

Limitation of Liability

The disposal and/or emission of substances used in connection with this equipment may be governed by

various federal, state, or local regulations. All users of this equipment are required to become familiar with

any regulations that apply in the user’s area concerning the dumping of waste materials in or upon water,

land, or air and to comply with such regulations. Labconco Corporation is held harmless with respect to

user’s compliance with such regulations.

Contacting Labconco Corporation

If you have questions that are not addressed in this manual, or if you need technical assistance, contact

Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-5525

or 1-816-333-8811, between the hours of 7:30 a.m. and 5:30 p.m., Central Standard Time.

Part #7314000, Rev. C

ECO K940

Warranty

Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and

reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken

glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not

warranted. Excluded from warranty are products with improper installation, erratic electrical or utility supply,

unauthorized repair and products used with incompatible chemicals.

The warranty for the CentriVap®Complete™ will expire one year from date of installation or two years from

date of shipment from Labconco, whichever is sooner. Warranty is non-transferable and only applies to the

owner (organization) of record.

Buyer is exclusively responsible for the set-up, installation, verification, decontamination or calibration of

equipment. This limited warranty covers parts and labor, but not transportation and insurance charges. If the

failure is determined to be covered under this warranty, the dealer or Labconco Corporation will authorize

repair or replacement of all defective parts to restore the unit to operation. Repairs may be completed by 3rd

party service agents approved by Labconco Corporation. Labconco Corporation reserves the rights to limit this

warranty based on a service agent’s travel, working hours, the site’s entry restrictions and unobstructed access

to serviceable components of the product.

Under no circumstances shall Labconco Corporation be liable for indirect, consequential, or special damages

of any kind. This warranty is exclusive and in lieu of all other warranties whether oral, or implied.

Original instructions

CHAPTER 1: INTRODUCTION 1

Safety Symbols 2

CHAPTER 2: PREREQUISITES 3

Electrical Requirements 3

Location and Exhaust Requirements 4

Space Requirements 4

CHAPTER 3: GETTING STARTED 5

Unpacking Your CentriVap 6

CentriVap Components 6

Setting Up Your CentriVap 7

Emergency Access Into the Chamber 7

Exhaust Port 8

Electrical Connection 8

Rotor Installation 8

Chemical Resistance of CentriVap Components 8

Solvent Safety Precautions 10

CHAPTER 4: USING YOUR CENTRIVAP COMPLETE 11

Planning 12

Glassware Selection 12

Loading Glassware Into the CentriVap 12

Temperature Setting Guidelines 12

Time Setting Guidelines 12

Heat Boost Operation 13

CentriVap Controls 13

Operating the CentriVap Controls 14

Operating The CentriVap 15

CentriZap Strobe Light 16

Operational Notes 16

Interrupting a Cycle After it Has Begun 17

Gas Ballast 17

Safety Precautions 17

Original instructions

CHAPTER 5: MAINTAINING YOUR CENTRIVAP COMPLETE 18

CHAPTER 6: ACCESSORIES FOR YOUR CENTRIVAP

COMPLETE 20

Installing a Vacuum Gauge 22

Installing a Secondary Chemical Trap 23

CHAPTER 7: TROUBLESHOOTING 24

APPENDIX A: CENTRIVAP COMPONENTS 27

APPENDIX B: CENTRIVAP DIMENSIONS 29

APPENDIX C: CENTRIVAP SPECIFICATIONS 30

Electrical Specifications 30

Environmental Conditions 31

Evaporation Rates 32

Product Service 1-800-522-7658

Original instructions

Congratulations on your purchase of a Labconco CentriVap Complete. Models

are available for operation on 115V or 230V.

The CentriVap Complete combines a concentrator, cold trap, and vacuum pump

in one cabinet. The concentrator uses centrifugal force with heat and vacuum to

rapidly evaporate and condense solvents from biological and analytical samples.

Centrifugation eliminates bumping and foaming as vacuum is applied and also

concentrates the solute in the bottom of the vial. This allows recovery of solutes

from sample volumes as small as a few microliters. The concentrator is equipped

with a 300 watt heater to speed evaporation by warming the chamber during

processing. The microprocessor delays the start of the vacuum pump until the

rotor reaches operating speed. A safety switch prevents the concentrator from

starting when the lid is in the open position and a latch prevents the lid from being

opened while the rotor is turning.

The microprocessor, which controls the operation of the heater and the motor,

provides excellent regulation and reproducibility of protocols. The end of the run

can be signaled by a manually preset timer. Nine different protocols can be stored

in memory so exact test parameters can be easily repeated.

As an integral part at the CentriVap Complete, the cold trap can be used to trap

moisture, vapors and corrosive fumes as they evaporate from the samples.

Standard models can be used for aqueous and organic applications. Acid resistant

models are recommended for corrosive applications. The 230V models comply

with CE regulations.

Chapter 1: Introduction

Product Service 1-800-522-7658

Original instructions

Safety Symbols

Your CentriVap Complete was designed with safety in mind, however conditions

may exist that could be hazardous.

Throughout this manual potentially hazardous conditions are identified using the

following words and symbols.

It is important that you understand the warnings listed throughout this manual

before you operate the CentriVap Complete.

Product Service 1-800-522-7658

Original instructions

Before you install your CentriVap, you need to prepare your site for installation.

Carefully examine the location where you intend to install your CentriVap. You

must be certain that the area is level and of solid construction. In addition, an

exhaust means must be provided. An electrical source must be located near the

installation site.

Carefully read this chapter to learn:

The electrical supply requirements.

The exhaust requirements.

The vacuum pump requirements.

Refer to Appendix C: CentriVap Specifications for electrical and environmental

conditions, specifications and requirements.

If the unit is not operated as specified in this manual it may impair the protection

provided by the unit.

Electrical Requirements

The CentriVap Complete requires a dedicated grounded electrical outlet. This

outlet requires a 15 Amp circuit breaker or fuse for models rated at 115V (60 Hz).

An 8 Amp circuit breaker or fuse is required for models rated at 230V (50/60 Hz).

Various models are available for use in different locations throughout the world.

Each has a unique plug suitable for the specific location. See CentriVap

Components in Chapter 3 for detailed plug specifications. If the plug supplied

with the CentriVap does not match with the available receptacle, remove this plug

and replace it with an approved plug of the suitable style.

It is recommend that an emergency switch for disconnecting the mains in the case

of a malfunction be located remote from the CentriVap, preferably outside the

room in which the CentriVap is housed, or adjacent to the exit from that room.

Chapter 2: Prerequisites

Product Service 1-800-522-7658

Original instructions

Do not position the CentriVap so that it is difficult to remove

the power cord from the unit or to operate the power switch.

Do not use any detachable power cord that is not adequately

rated for the unit.

Location and Exhaust Requirements

The CentriVap Complete should be located on a surface that is stable, flat and

level.

WARNING: The CentriVap should be located within a fume hood if

hazardous or flammable solvents are used. Heating of materials could lead

to the liberation of hazardous gases. In all cases, regardless of the solvent

used, it is strongly recommended that the vacuum pump is vented in a fume

hood. An accessory secondary trap is available to minimize the exhausting of

solvents into the atmosphere. This does not, however, negate the need to

exhaust the vacuum pump into a fume hood. Failure to properly vent the

CentriVap will expose personnel to potentially harmful chemicals.

The CentriVap has not been evaluated by an approval agency for the use of

biological, radio toxins or flammable liquids or materials.

Space Requirements

Refer to Appendix C: CentriVap Specifications for dimensional drawings of the

CentriVap.

No person or any hazardous material should be within 12 inches of the CentriVap

while it is operating.

Product Service 1-800-522-7658

Original instructions

Now that the site for your CentriVap Complete is properly prepared, you are

ready to unpack, inspect, install, and test your CentriVap Complete. Read this

chapter to learn how to:

Unpack and move your CentriVap Complete.

Set up your CentriVap Complete.

Connect the electrical supply source to your CentriVap Complete.

Properly exhaust your CentriVap Complete.

Safely use solvents with your CentriVap Complete.

CAUTION: The CentriVap Complete weighs 145 lbs. (66 Kg). The carton

allows for lifting with a mechanical lift truck or hand truck. If you must lift

the CentriVap manually, use at least two (2) persons and follow safe lifting

guidelines.

Chapter 3: Getting Started

Product Service 1-800-522-7658

Original instructions

Unpacking Your CentriVap

Carefully unpack your CentriVap and inspect it for damage that may have

occurred in transit. If your CentriVap is damaged, notify the delivery carrier

immediately and retain the entire shipment intact for inspection by the carrier.

The United States Interstate Commerce Commission rules require that claims be

filed with the delivery carrier within fifteen (15) days of delivery.

NOTE: Do not return goods without the prior authorization of Labconco.

Unauthorized returns will not be accepted. If your CentriVap was damaged

in transit, you must file a claim directly with the freight carrier. Labconco

Corporation and its dealers are not responsible for shipping damage.

Do not discard the carton or packing material for your CentriVap until you have

checked all of the components and installed and tested the CentriVap.

CentriVap Components

As previously mentioned, the CentriVap Complete is available in 115V or 230V.

Locate the model of CentriVap you received in the following table. Verify that

the components listed are present and undamaged.

Catalog # Description Volts Hz

1334500

1336100

1338000

1332600

1332700

7315020 CENTRIVAP COMPLETE (US) 115 60 X

7315021 CENTRIVAP COMPLETE ACID RESISTANT (US) 115 60 X

7315022 CENTRIVAP COMPLETE W/ HEAT BOOST (US) 115 60 X

7315023 CENTRIVAP COMPLETE ACID RESISTANT W/ HEAT BOOST (US) 115 60 X

7315030 CENTRIVAP COMPLETE (EU) 230 50 X

7315031 CENTRIVAP COMPLETE ACID RESISTANT (EU) 230 50 X

7315032 CENTRIVAP COMPLETE W/ HEAT BOOST (EU) 230 50 X

7315033 CENTRIVAP COMPLETE ACID RESISTANT W/ HEAT BOOST (EU) 230 50 X

7315040 CENTRIVAP COMPLETE (US) 230 60 X

7315041 CENTRIVAP COMPLETE ACID RESISTANT (US) 230 60 X

7315042 CENTRIVAP COMPLETE W/ HEAT BOOST (US) 230 60 X

7315043 CENTRIVAP COMPLETE ACID RESISTANT W/ HEAT BOOST (US) 230 60 X

7315060 CENTRIVAP COMPLETE UK 230 50 X

7315061 CENTRIVAP COMPLETE ACID RESISTANT UK 230 50 X

7315062 CENTRIVAP COMPLETE W/ HEAT BOOST UK 230 50 X

7315063 CENTRIVAP COMPLETE ACID RESISTANT W/ HEAT BOOST (UK) 230 50 X

7315070 CENTRIVAP COMPLETE (CHINA) 230 50 X

7315071 CENTRIVAP COMPLETE ACID RESISTANT (CHINA) 230 50 X

7315072 CENTRIVAP COMPLETE W/ HEAT BOOST (CHINA) 230 50 X

7315073 CENTRIVAP COMPLETE ACID RESISTANT W/ HEAT BOOST (CHINA) 230 50 X

Power Cords

Power Cord Part #

Plug Type

1334500

NEMA 5-15P

1336100

CEE 7/7

1338000

NEMA 6-15P

1332600

BS 1363

1332700

CH1-10P

Tabla de contenidos

Otros manuales de Equipo de laboratorio de Labconco

Labconco

Labconco RapidVap 73200 Series Manual de usuario

Labconco

Labconco Precise CA 5220100 Manual de usuario

Labconco

Labconco FreeZone Plus Manual de usuario

Labconco

Labconco FreeZone 6 Manual de usuario

Labconco

Labconco Purifier 3951400 Manual de usuario

Labconco

Labconco FreeZone 70061 6L -50C Series Manual de usuario

Labconco

Labconco FreeZone 70020 Series Manual de usuario

Labconco

Labconco Protector Premier 10040 Series Manual de usuario

Labconco

Labconco FreeZone Triad 74000 Series Manual de usuario

Labconco

Labconco 44003 Series Manual de usuario

Labconco

Labconco Protector XStream 9840400 Manual de usuario

Labconco

Labconco Protector 3410000 Manual de usuario

Labconco

Labconco CentriVap-105 Cold Trap Manual de instrucciones

Labconco

Labconco Protector Echo 180 Series Manual de usuario

Labconco

Labconco Protector XL 1110 Series Manual de usuario

Labconco

Labconco Protector XStream 11041 Series Manual de usuario

Labconco

Labconco CentriVap 73100 Series Manual de usuario

Labconco

Labconco CentriVap 78110-00 Manual de usuario

Labconco

Labconco CentriVap DNA Systems Manual de usuario

Labconco

Labconco CentriVap 78110 Series Manual de usuario

Labconco

Labconco Purifier Axiom 30441 Series Manual de usuario

Labconco

Labconco 5530000 Manual de usuario

Labconco

Labconco Precise 5220100 Manual de usuario

Labconco

Labconco 5530000 Manual de usuario

Manuales populares de Equipo de laboratorio de otras marcas

Qiagen

Qiagen DML 3000 Manual de usuario

Queensgate

Queensgate NANOSCAN OP400 Manual de programación

Conviron

Conviron GEN1000-GE Manual de usuario

Parr Instrument

Parr Instrument 4560 Manual de instrucciones

IKA

IKA IC control Manual de usuario

Integra

Integra DOSE IT Manual de usuario

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manual de usuario

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manual de usuario

NI PXI-5422 Manual

Collomix

Collomix Aqix Manual de usuario

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario

Ocean Insight

Ocean Insight FLAME-NIR+ Manual de usuario

Parker

Parker ALIGN-MG-NA Manual de usuario

BD 644787 Manual de usuario

DENTAURUM

DENTAURUM Compact Megaplus Manual de usuario

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manual de usuario

VWR

VWR SAS Super IAQ Manual de usuario

illumina

illumina MiSeqDx Manual de usuario
